XCMG 50KW generator JHK-50GF Cummins engine china silent diesel power generator price
![](/app/topc/statics/images/close.png)
![XCMG 50KW generator JHK-50GF Cummins engine china silent diesel power generator price](http://www.machmall.com/images/store/357636/item/JHK-50GF-1.jpg)
![](/app/topc/statics/images/close.png)
Specifications
- weight:1600.000kg
- Condition:New
- Moving Type:Other
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

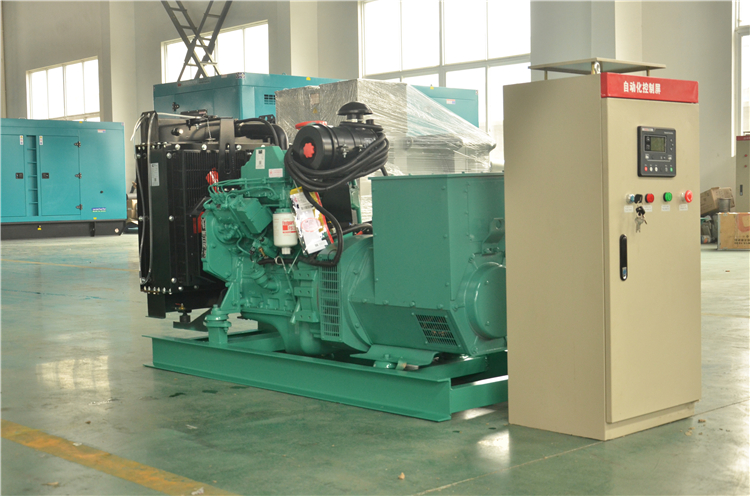

50KW
generator Cummins engine china silent diesel power generator JHK-50GF.
The
control screen is a self-starting control screen.
Unit with Automatic Start and manual
start function (15-50 seconds adjustable). With three-phase voltage, frequency,
three-phase current, oil pressure, oil temperature, coolant temperature, unit
speed, operating hours, battery voltage displays. Diesel engine has over-speed
alarm stop, low oil pressure alarm and stop, high water temperature alarm and
stop, generator voltage too high, too low alarm and stop, too high frequency,
too low alarm and stop, short-circuit current and IDMT characteristic
over-current protection.
Unit
Controller Adopts Zhengzhou Zhongzhi HGM6120N controller. The main features are
as follows:
1. 132*64 LCD display with backlight,
optional language interface, push-button operation;
2. Good wear resistance and scratch
resistance, strong ability to adapt to high and low temperature environments;
3. With CANBUS port which can be
connected to electronic injection with J1939, it not only can monitor
frequently-used data, but also can control start, stop, high speed and low
speed;
4. Can measure and display 3 phase
voltage, 3 phase current, frequency, power parameter of mains/gens.
The
power range of Cummins K series engine is 336--1343KW (450-1800 horsepower),
which is mainly used for mining, power generation, marine, rail cars and
petroleum machinery.
1. Super power, wide power coverage.
Power coverage 1086~1650 horsepower;
2. Has high working reliability and
durability;
3. Low fuel consumption and good fuel
economy;
4. Compact structure and convenient maintenance.
Replaceable wet cylinder liner, good heat dissipation effect, easy to replace;
5. The parts are highly versatile. The
common parts of K6 and KV reach 85%, and the high commonality of parts is
beneficial to reduce manufacturing costs and reduce the inventory of parts.
发电机组主要参数/One the main parameters of the set |
|
机组型号The model of the unit |
JHK-50GF |
额定功率 Power |
50KW/62.5KVA |
额定电压 Rated voltage |
400/230V |
额定电流 Rated current |
90A |
满载燃油消耗率 The waste of fuel with full load |
206g/kw·h |
噪音(7米处))Noise (7 mater) |
≤75dB |
静音箱外形参考尺寸 (mm) Size (mm) |
2300*1000*1550 |
总重量 Weight |
1600KG |
柴油机组主要参数/The main parameters of the diesel engine |
|
品牌 Brand |
康明斯 Cummins |
产地Place of production |
DCEC |
柴油机型号 Model |
4BTA3.9-G11 |
备用功率 Spare Power |
80KW/100KVA |
冷却方式 Cooling way |
自带风扇水箱强制闭式循环水冷 water cooling |
排列型式 With Type |
直列型 Inline type |
缸径*行程
Bore * Trip |
102mm*120mm |
气缸数 Cylinder |
4缸 4cyclinders |
排气量 Displacement |
3.9L |
润滑油容量 Lubricating oil capacity |
11L |
转速 Rotating speed |
1500r/min |
转速调节 The regulation of rotating speed |
电子调速 E-Speed |
启动方式 Starting way |
DC24V电启动 DC24V starting with electricity |
发电机组主要参数/The main parameters of the generator |
|
发电机品牌 Brand |
领驭 LING YU |
产地Place of production |
江苏 Jiangsu |
发电机型号 Model |
KHI 50-1-4 |
类型Type |
无刷(AVR自动调压)brushless(AVR automatic voltage regulation) |
相数接法The connecting way of
the phase |
三相四线 three phase four
lines |
绝缘等级 Insulation degree |
H级 H degree |
防护等级 Grading Protection |
IP22 |
