Summary
- Rated Speed:5.3km/h
- Maximum Digging Depth:5535mm
- Maximum Digging Height:8649mm
- Bucket capacity:0.32~0.71m3
- Operating Weight:14600kg
- Model Number:XE150D
- Brand Name:XCMG
- Place of Origin:Jiangsu, China
Specifications
- Weight:14800.000kg
- Condition:New
- Moving Type:Crawler
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

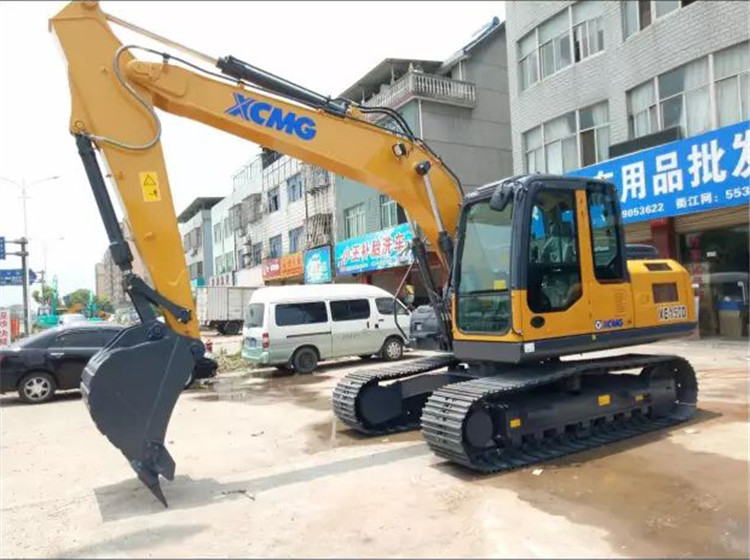

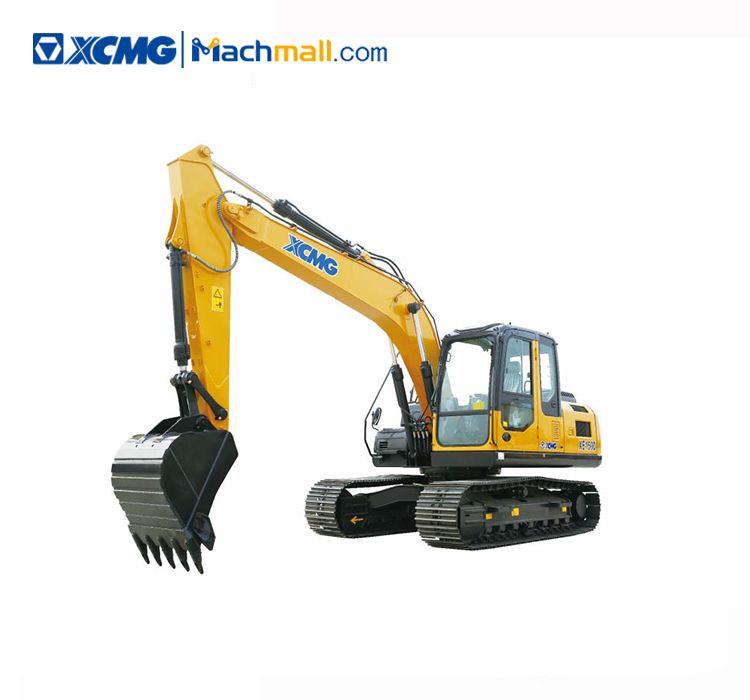

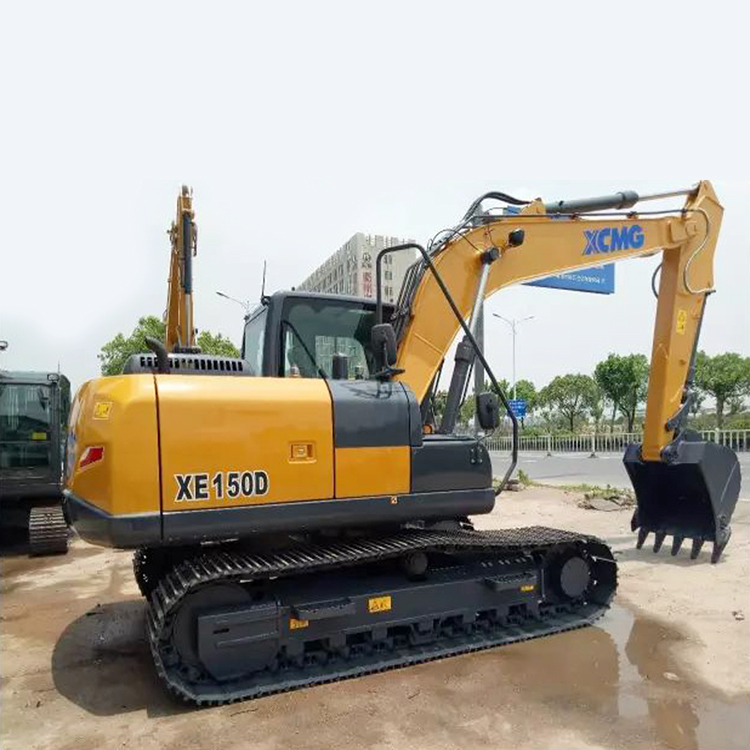

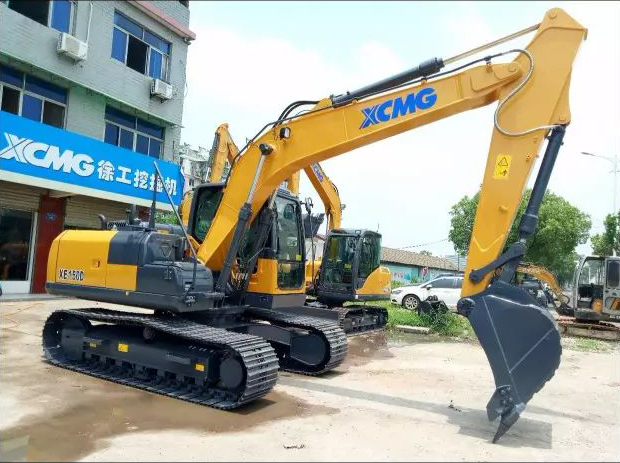

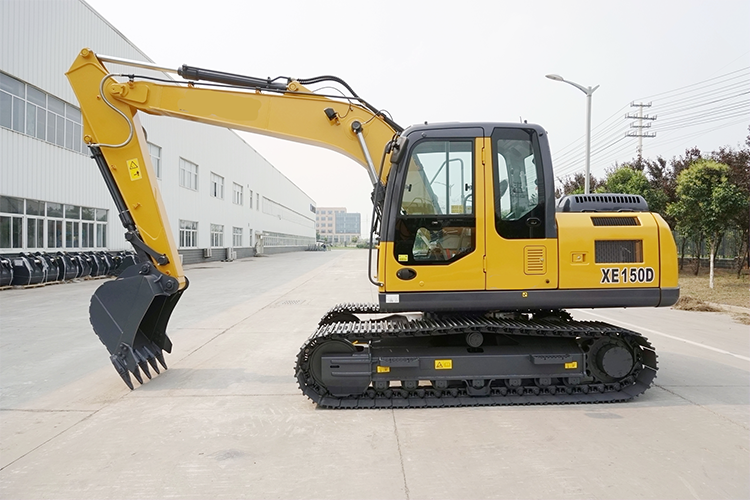

XCMG Construction Equipment XE150D 15 ton Hydraulic Excavator Machine.
The XE150D hydraulic excavator subject to full hydraulic drive has been widely used throughout China and exported to more than twenty countries and regions in the world by virtue of its high working efficiency like medium-sized excavators and such characteristics of less fuel consumption and higher flexibility.

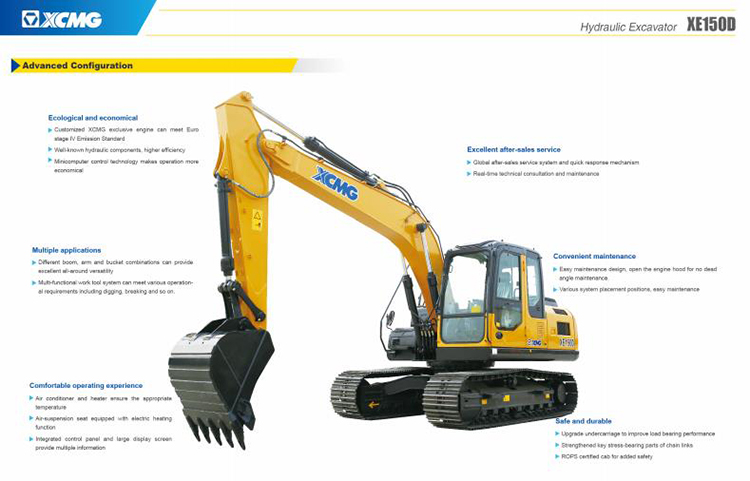

Performance Characteristics:
*Imported Cummins engine is powerful, low noise, energy efficient.
*Advanced energy-saving Kawasaki hydraulic system provides good controllability and high efficiency;
*Customized XCMG exclusive engine can meet Euro stage IV Emission Standard.

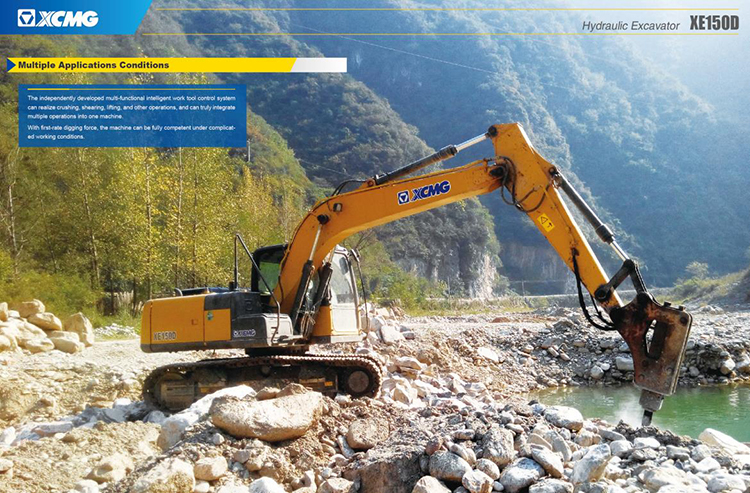

2. Multiple applications
* Different boom, arm and bucket combinations can provide excellent all-around versatility.
* Multi-functional work tool system can meet various operational requirements including digging, breaking and so on.
3. Comfortable operating experience
* Air conditioner and heater ensure the appropriate temperature.
* Air-suspension seat equipped with electric heating function.
* Integrated control panel and large display screen provide multiple information.
Optional configuration:
break hammer and pipeline, Quick coupler, rotary driller, hydraulic vibrating tamper are available.
|
Description |
Unit |
Parameter value |
|
|
Operating weight |
kg |
14600 |
|
|
Bucket capacity |
m³ |
0.32~0.71 |
|
|
Engine |
Model |
Engine |
CUMMINS |
|
QSF3.8 |
|||
|
No. of cylinders |
--- |
4 |
|
|
Output power |
kW/ r/min |
93/2200 |
|
|
torque/speed |
N.m |
500/1300 |
|
|
Displacement |
L |
3.76 |
|
|
Main performance |
Travel speed(H/L) |
km/h |
5.3/3.2 |
|
Gradeability |
% |
70 |
|
|
Rotary speed |
r/min |
11.7 |
|
|
Ground pressure |
kPa |
37 |
|
|
Bucket digging force |
kN |
106.9 |
|
|
Arm digging force |
kN |
73.4 |
|
|
Hydraulic system |
Main pump |
-- |
K7V63DTP |
|
Rated flow of the main pump |
L/min |
2×123.5 |
|
|
Main safety valve pressure |
MPa |
34.3/37 |
|
|
The pressure of the pilot system |
MPa |
3.9 |
|
|
Oil Capacity |
Fuel tank capacity |
L |
260 |
|
Hydraulic tank capacity |
L |
105 |
|
|
Engine oil capacity |
L |
11 |
