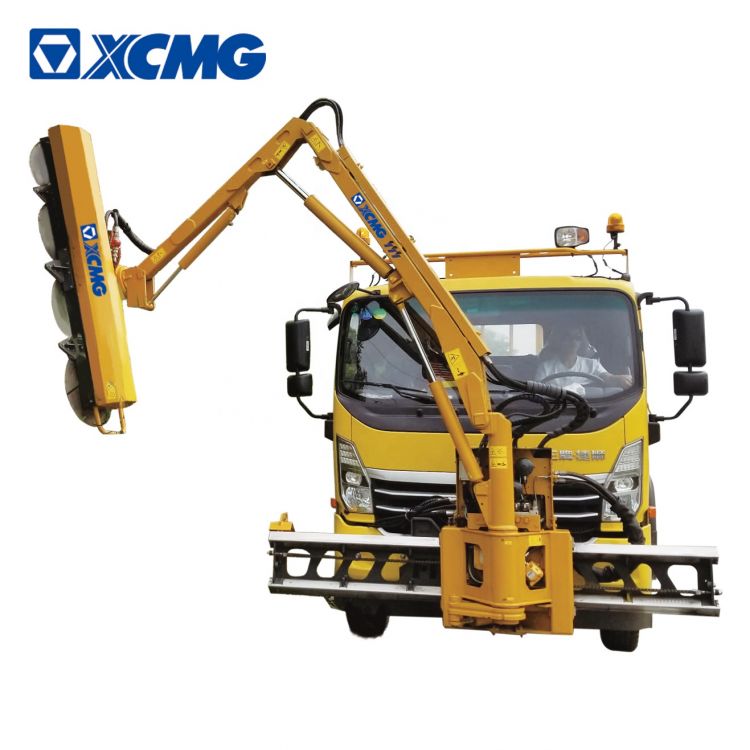

XCMG Hedge Trimmer multifunctional Tractor Hedge Cutter Road Machine.

XCMG IM500A/700A green comprehensive maintenance vehicle is suitable for the daily maintenance of highways, national and provincial trunk lines, municipal roads and green belts.

According to the different road conditions, different specifications of extension arms are assembled to meet a variety of construction operations; according to the construction objects, different functions of working tools are assembled at the end of the arm or the rear car to complete the grass cutting and shearing. Construction operations such as branching, leveling, sculpting, strong cleaning, cleaning, watering, spraying, dredging, and collecting of broken branches and leaves; it has the characteristics of multiple functions, convenient operation and high reliability.

1.Mowing Tool:

Mowing tool, one of the multi-functional tools of green integrated maintenance vehicles, is used to crush green plants, weeds, shrubs etc. On the both sides of roads (national roads, provincial roads, county roads, rural roads) and within the slope. It driven by fully hydraulic power; the maximum cutting diameter is up to 20mm and able to adjust the height of cutting in different situation. The Rotating blades are made of special wear-resistant steel, which provides good wear resistance while ensuring flexibility, and the connection between the blade and the rotating shaft has good avoidance within a certain range while ensuring good cutting, which greatly reduce the risk of breaking the knife.

2.Centrifugal Shear:

Centrifugal shear, one of the multi-functional tools of green integrated maintenance vehicles, is used to trim the tower cypress, tea plum, azaleas, small leaf virginity, lilac and other plants on the middle greenbelts and on both sides of road to made the top and sides of greenbelt neater than before. The maximum cutting diameter is up to 20mm and able to adjust the height of cutting in different situation. The rotating blades are made of special wear-resistant steel, which provides good wear resistance while ensuring flexibility, and the connection between the blade and the rotating shaft has good avoidance within a certain range while ensuring good cutting, which greatly reduce the risk of breaking the knife. Each shaft uses two sets of blades up and down to maximize the crushing of cutting leaves for subsequent cleaning and treatment, and the rotating blades are surrounded by protective measures to effectively reduce the splash ingestion of the branches.

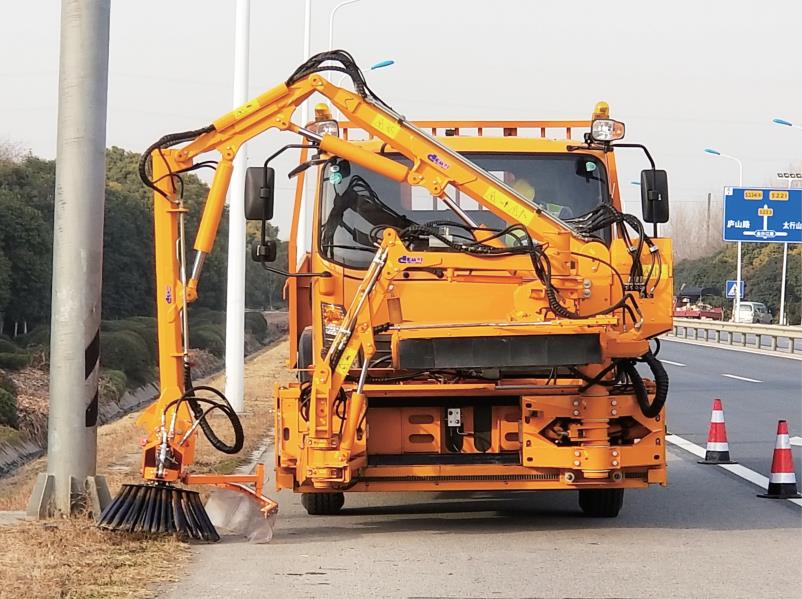

3.Cleaning Brush

Cleaning brush, one of the multi-functional tools of green integrated maintenance vehicles, is used to clean the sediment, gravel, weeds, debris and other dust on the roads, using full hydraulic drive; the brush can be adjusted to all directions to facilitate different working conditions, effectively ensuring the quality of cleaning.

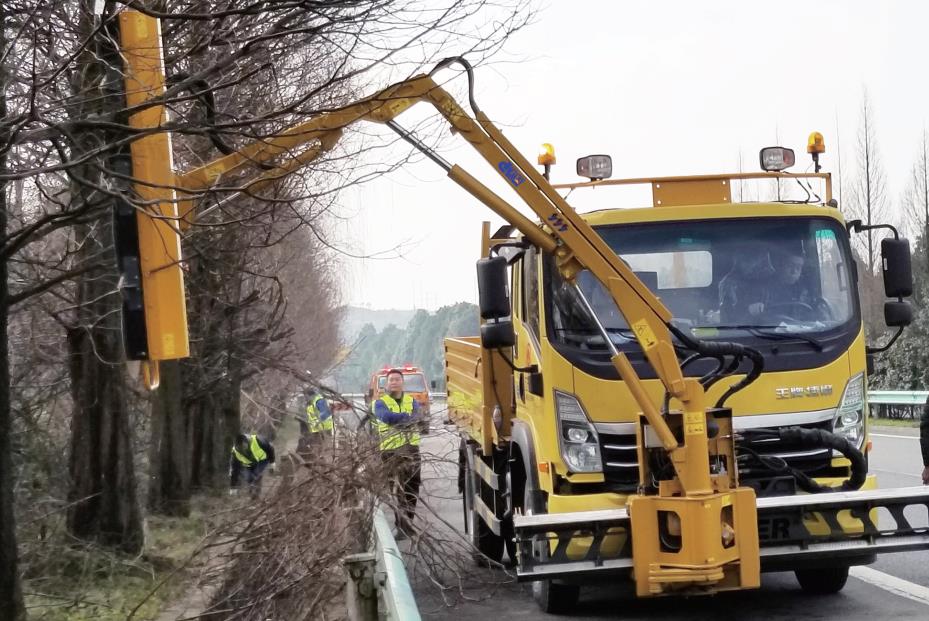

4.Disk Saw

Disk saw, one of the multi-functional tools of green integrated maintenance vehicle, is used to trim the branches on both sides of the road, using full hydraulic drive. The maximum of cutting diameter is 150mm. The saw is made of special wear-resistant steel, which provides good wear resistance, flexibility and thermostability and the function of reducing vibration and noise. The surface of blade coated with silver ice coating can effectively reduce the temperature in the process of use to improve service life and reduce the adhesion rate of dust. The expansion slot on the saw blade using laser cutting, effectively control the deformation of the blade. The high-density carbide which is made the impact-resistant welding technology of silver, copper and silver three-layer alloy effectively, guarantees the cutting quality. And exclusive guide block between saw blades guarantees the cutting efficiency.

5.Hedge Shear

Hedge shear, one of the multi-functional tools of green integrated maintenance vehicles, using full hydraulic drive with high quality, is used to prune the branches on the sides of roads (national roads, provincial roads, county roads, rural roads). The maximum of cutting diameter is 40mm of V-type and that of U-type is up to 100mm. The shear is made of special wear-resistant steel, which provides good wear resistance and flexibility.
