XCMG Official Small Mobile Concrete Batching Plant 40m3 HZS40VY Portable Concrete Plant for Sale
Summary
- Certification: CE/ISO9001
- Power(W):30000W
- Model Number:HZS40VY
- Brand Name:XCMG
- Place of Origin:JiangSu,China
Specifications
- Weight:10000.000kg
- Condition:New
- Moving Type:Wheel
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

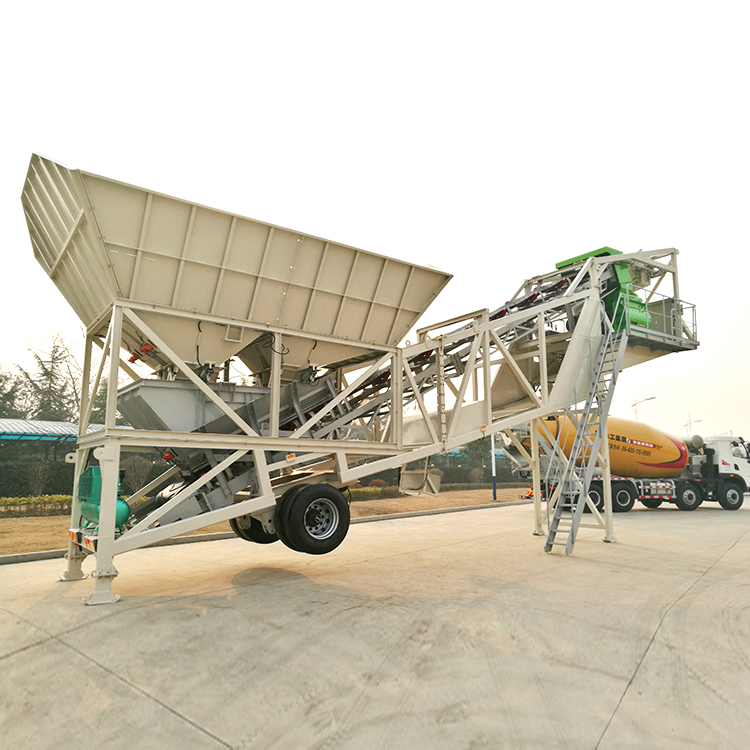

XCMG Official Small Mobile Concrete Batching Plant 40m3
HZS40VY Portable Concrete Mixer Plant.

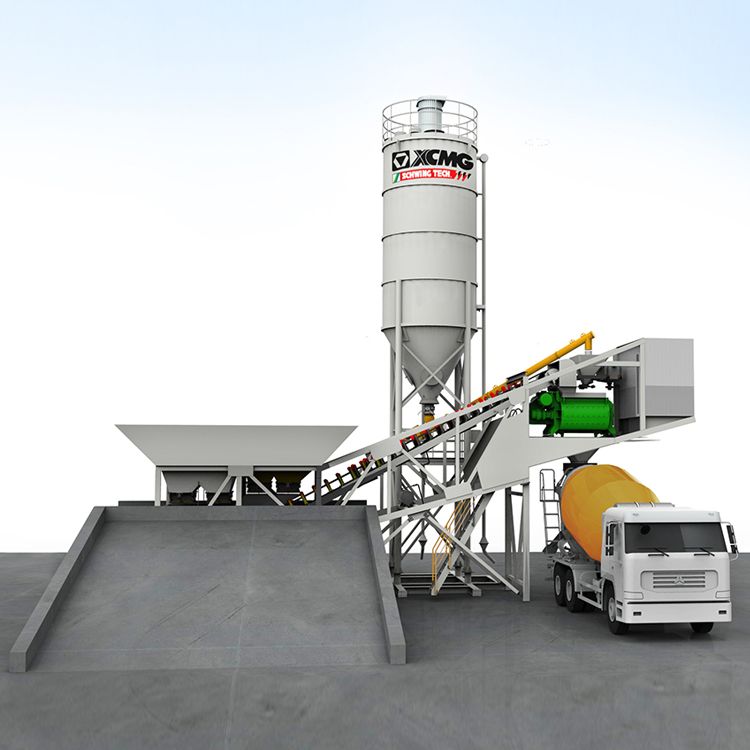

Mobile
Mixing Plant.
1.More
Efficient Production
Unique
“Three-straight-face” anti-blocking gate structure is adopted to provide smooth
batching of aggregate. Liquid batching is
provided with “non-return” function, which can eliminate empty pipe and start
and discharge immediately. Overall propelling
technology is used for belt weigher, improving delivery efficiency by 40%. Elevating
hopper feeder adopts unique mechanical variable-speed winch without frequency
conversion, which can realize zero-speed start, high-speed hoist and low-speed
stop, with high speed and small impact. Panoramic
simulation design is used for control procedure to eliminate redundant link-up
of procedures. Logic control of aggregate is used to ensure no dead band in delivery
and high efficiency. The machine is provided
with customer management, formula management, production data management, and
such functions as cleaning by one key, digital calibration and monitoring of
black box. The electrical control framework is
designed based on the design concept of redundancy, safety and anti-interference,
with reliable and stable high-end electrical components and emergency
production functions, providing more reliable operation and better continuous
production. Based on the human-based interactive
design of Microsoft, parameters are well-matched and fixed,
with
no need for alteration, and if there is problem, they can be restored with one
key.
2.More
Uniform Agitating
Spiral
loop-current mixing technology features faster material cycle, more violent countercurrent
and more uniform agitating, with agitating efficiency 10% higher than its
counterparts. Optimized triple sealing technology of
“S-shaped labyrinth+ floating oil seal+ framework oil seal” is used, improving
the service life by 25%, without leakage in 3000 hours.
Accurate
feed position, optimized feed sequence and proper layout of water supply vents
are designed to solve shaft seizing problem, greatly reducing cleaning
intensity of labor.
3.More
Comprehensive Customization
By
relying such technologies as on temperature control, agitating and delivery,
such individualized customization as one machine serving several purposes,
construction in extremely cold and hot areas and production of special concrete
can be satisfied. Multiple delivery methods
of materials are combined to follow local conditions and meet customer’s
individualized requirements. All-around and 3D
environmental measures are taken to effectively control the pollution from
powder dust, waste water, waste slag and noise. With such
cutting-edge technologies as the Internet of Things, cloud service and data
analysis, such IT management systems as GCC group control, telematics and ERP are
formed to realize all-around control of people, vehicles, pumps and plants.
4.Cutting-edge
Environmental-care
XCMG not only
provides conventional environmental schemes, but commits itself to the
application and development of cutting-edge environmental technologies.
MODEL |
UNIT |
HZS40VY |
HZS60VY |
HZS75VY |
Theoretical production rate |
M³/h |
40 |
60 |
75 |
Discharge height |
m |
4 |
4 |
4 |
Mixer type |
JS750 |
JS1000 |
JS1500 |
|
Mixer power |
kW |
30 |
2×15 |
2×30 |
Nominal volume of mixer |
L |
750 |
1000 |
1500 |
Production period |
S |
60 |
60 |
60 |
Max. diameter of aggregate |
mm |
≤60 |
≤60 |
≤60 |
Max. diameter of aggregate |
m³ |
4×5 |
4×5 |
4×8 |
Volume of powder silo (optional) |
t |
—— |
—— |
—— |
Burdening capability of burdening plant |
L/Silo |
1200 |
1600 |
2400 |
Conveying capability of loader elevator |
t/h |
90 |
120 |
150 |
Productivity of spiral conveyer |
t/h |
—— |
—— |
—— |
Standard installed capacity |
kW |
69 |
76 |
95 |
Measuring range and accuracy of sand and stone |
kg |
(500~2500)±2% |
(500~2500)±2% |
(500~3200)±2% |
Cement measuring range and accuracy |
kg |
(100~500)±1% |
(100~500)±1% |
(200~800)±1% |
Water measuring range and accuracy |
kg |
(40~200)±1% |
(40~200)±1% |
(100~400)±1% |
Additive measuring range and accuracy |
kg |
(10~30)±1% |
(10~30)±1% |
(10~30)±1% |
