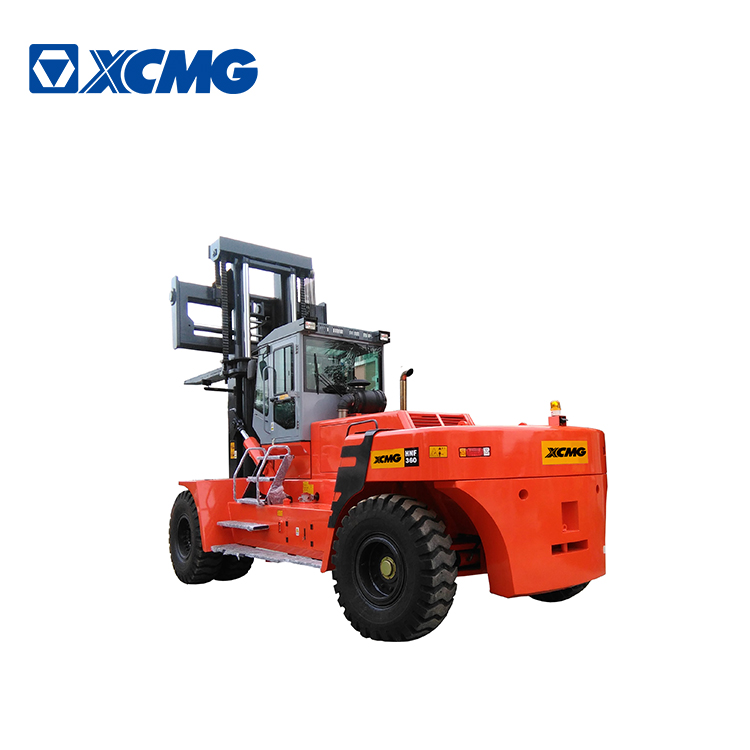

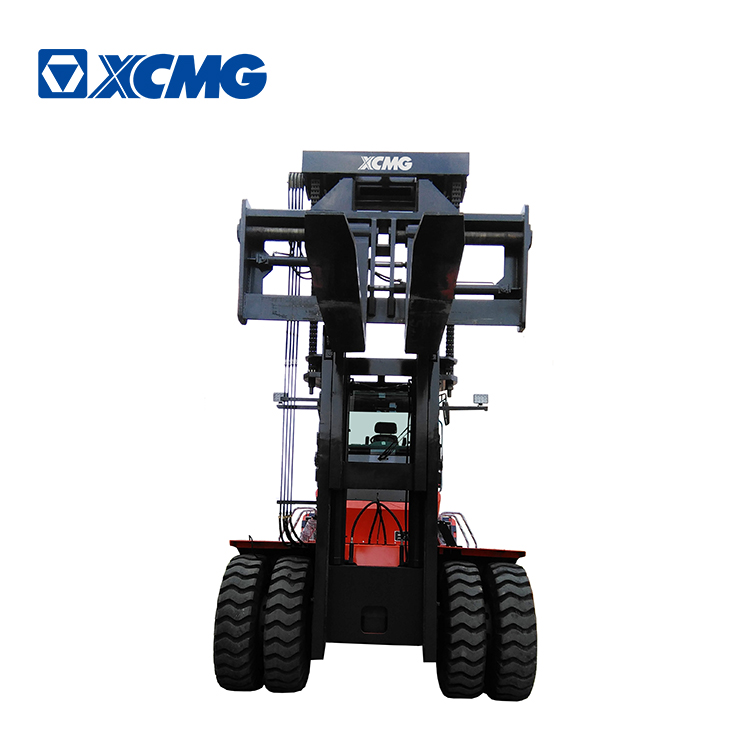

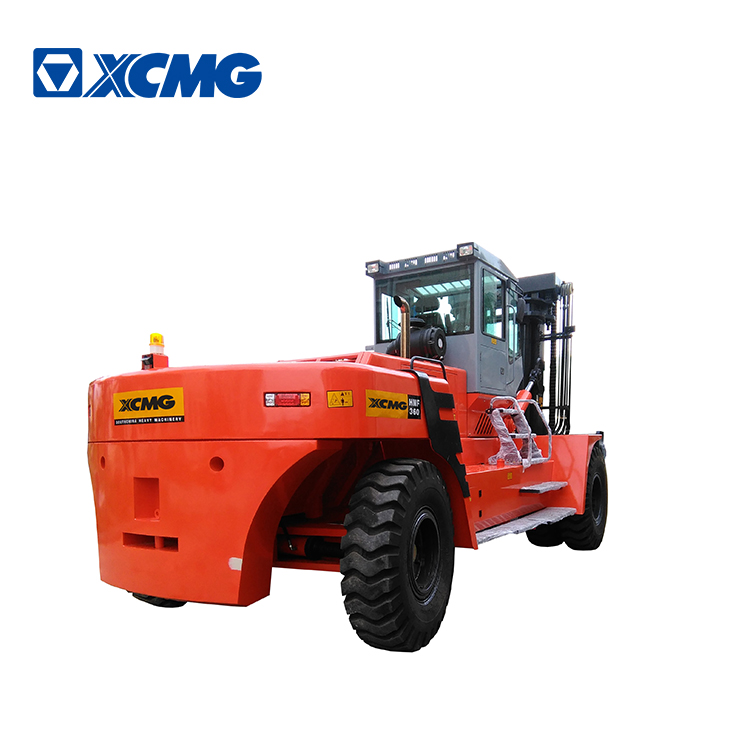

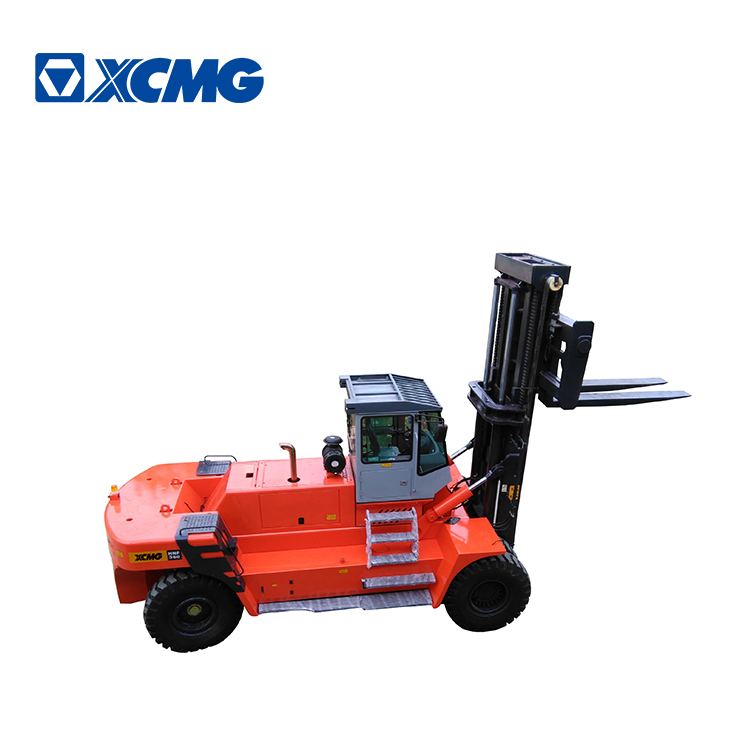

XCMG high quality heavy duty forklift 36 ton HNF-360 with Cummins engine for sale
Summary
- Fork Width:340mm
- Fork Length:2440mm
- Max Lifting Height:3500mm
- Rated Loading Capacity:36t
- Power Source:Diesel
- Type:heavy duty forklift
- Model Number:HNF-360
- Brand Name:XCMG
- Place of Origin:Xuzhou, Jiangsu,China
Specifications
- Weight:43500.000kg
- Condition:New
- Moving Type:Other
- Overall Dimensions:9700*3320*4010mm
- Load Center:1250mm
- Transmission:Hydraulic
- Weight:43500kg
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
XCMG high quality heavy duty forklift 36 ton HNF-360 with
Cummins engine.
The HNF-360 heavy duty 36 ton forklift with Cummins
engine in china. The transmission adopts the driving model combined by
mechanical and hydraulic, it is a new torque transfer method.
The engine output torque is distributed by mechanical and
hydraulic and shifted, torsional transferred, then inter-flow to output shaft.
The transmission controlled the transmission ratio by
controlling the ratio of mechanical and hydraulic flow, realizing the
continuously adjustable of the gear ratio.
Performance Characteristics:
1，Comparing with the current widely
adopted hydraulic transmission. It can save 25% fuel and reduce the same
percentage emission. And is also more energy-saving comparing with hydrostatic
transmission.
2, It has the
following features: better starting moment force, stable acceleration, easy to
operate, accurate, the gear ratio can be adjusted continuously, comfortable,
High transmission efficiency.
3, Comparing
with the traditional inching function, it has the advantage zero power lost and
the transmission temperature is low.
|
Configuration |
Model |
Unit |
HNF-360 |
|
|
Performance |
Rated load |
kg |
36000 |
|
|
Load center |
mm |
1250 |
||
|
Mast tilt angle (front/rear) |
º |
6/12 |
||
|
Overall dimensions |
Length with fork |
mm |
9700 |
|
|
Width |
mm |
3320 |
||
|
Height |
mm |
4010 |
||
|
Mast lifting height |
mm |
3500 |
||
|
Fork size (L*W*H) |
mm |
2440x340x125 |
||
|
Min. turning radius |
mm |
7260 |
||
|
Max. travel speed (with load) |
Km/h |
25 |
||
|
Lifting speed (with load) |
mm/s |
260 |
||
|
Gradeability (with load) |
% |
20 |
||
|
Weight |
Kg |
43500 |
||
|
Tyre |
Front |
4X16.00-25/32PR |
||
|
Rear |
2X16.00-25/32PR |
|||
|
Wheel tread |
Front |
mm |
2400 |
|
|
Rear |
mm |
2450 |
||
|
Wheelbase |
mm |
4800 |
||
|
Min. ground clearance |
mm |
400 |
||
|
Engine |
Model |
Cummins QSC8.3-C260 |
||
|
Rated power/rotate speed |
KW/r.pm |
194/2200 |
||
|
No. of cylinder |
6 |
|||
