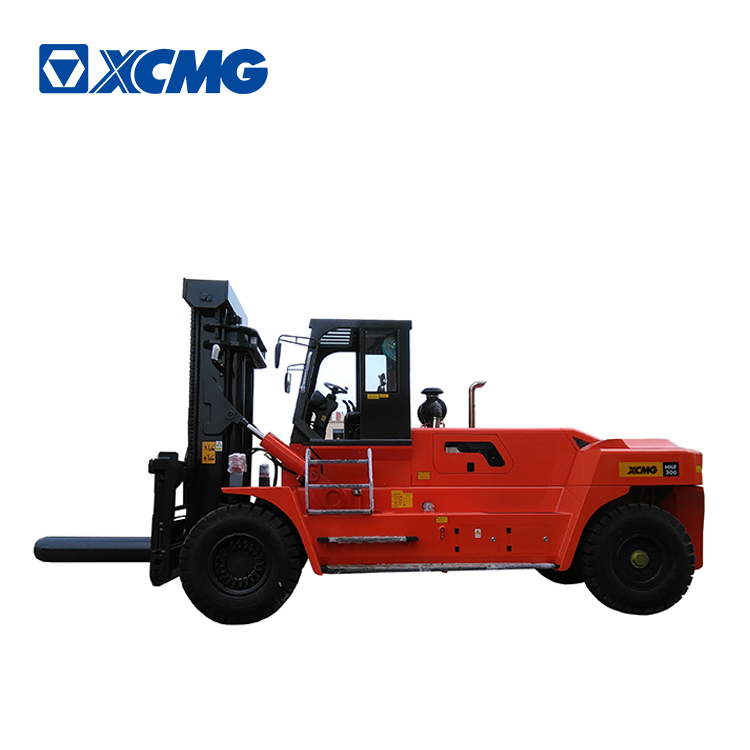

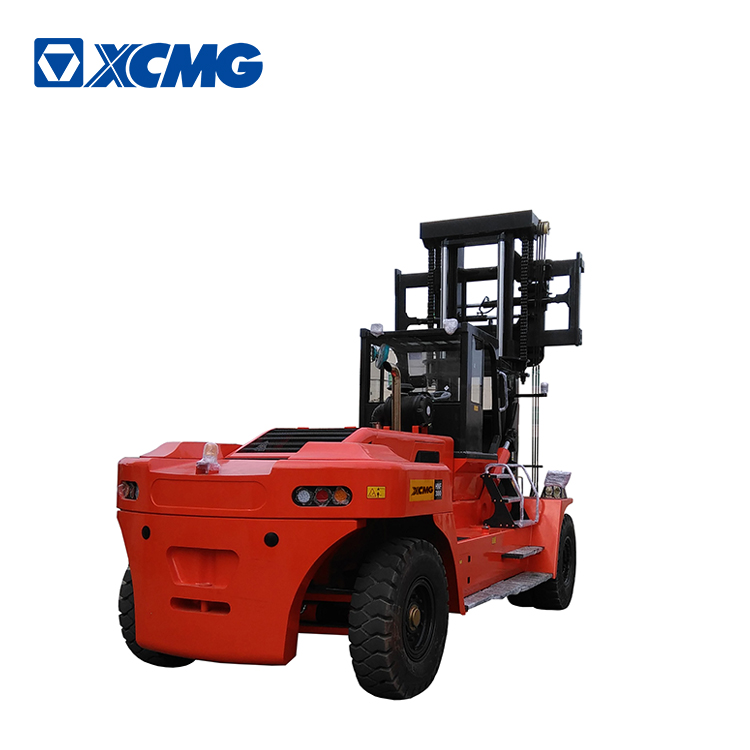

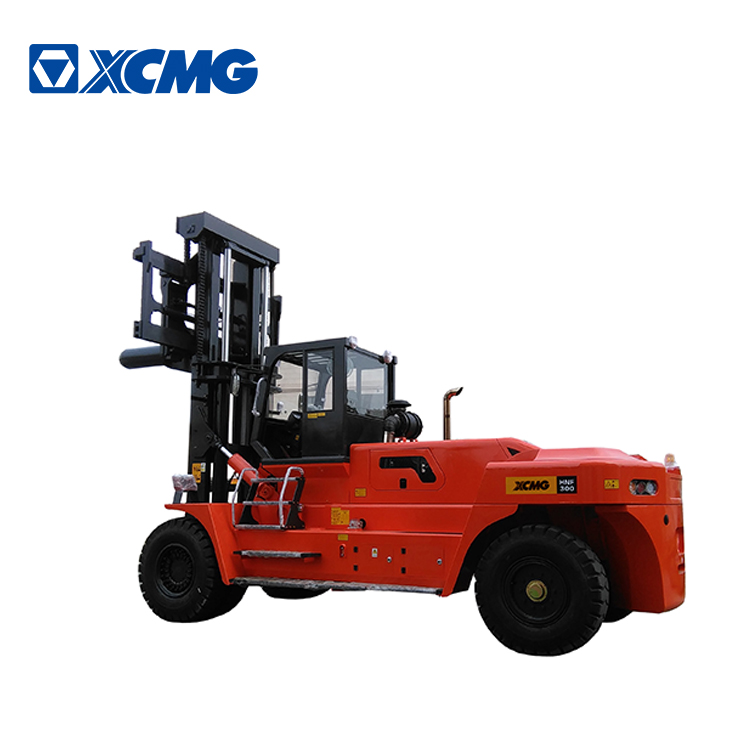

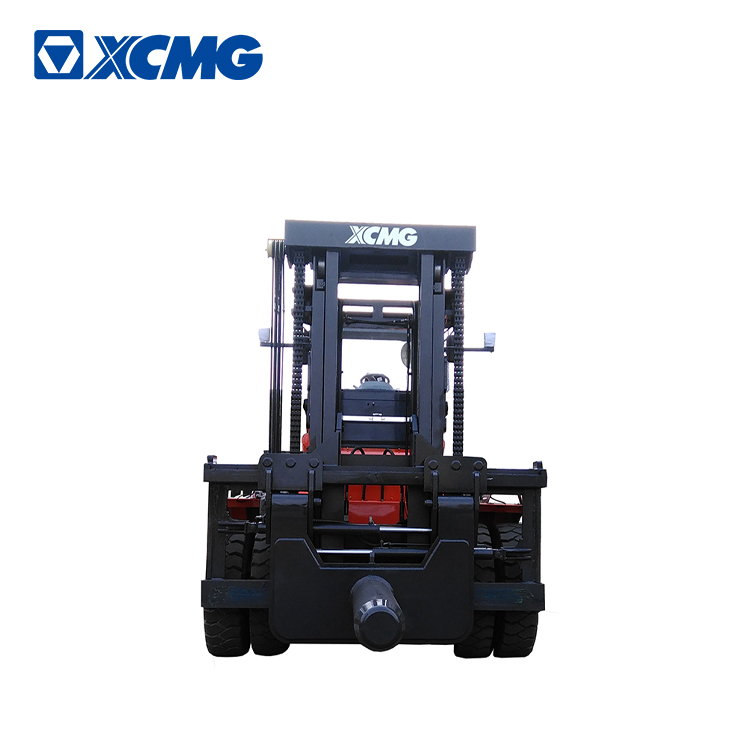

XCMG 30 ton heavy duty forklift HNF-300 with Cummins engine
Summary
- Fork Width:320mm
- Fork Length:2440mm
- Max Lifting Height:5700mm
- Rated Loading Capacity:30t
- Power Source:Diesel
- Type:heavy duty forklift
- Model Number:HNF-300
- Brand Name:XCMG
- Place of Origin:Xuzhou, Jiangsu,China
Specifications
- Weight:40000.000kg
- Condition:New
- Moving Type:Other
- Overall Dimensions:9590*3200*3950mm
- Load Center:1250mm
- Transmission:Hydraulic
- Weight:40000kg
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
XCMG 30 ton heavy duty forklift HNF-300 with Cummins
engine.
The HNF-300 first unit of heavy duty 30 ton forklift with
Cummins engine in china. The transmission adopts the driving model combined by
mechanical and hydraulic, it is a new torque transfer method.
The engine output torque is distributed by mechanical and
hydraulic and shifted, torsional transferred, then inter-flow to output shaft.
The transmission controlled the transmission ratio by
controlling the ratio of mechanical and hydraulic flow, realizing the
continuously adjustable of the gear ratio.
Performance Characteristics:
1，Comparing with the current widely
adopted AT (hydraulic) transmission. It can save 25% fuel and reduce the same
percentage emission. And is also more energy-saving comparing with hydrostatic
transmission.
2, It has the
following features: better starting moment force, stable acceleration, easy to
operate, accurate, the gear ratio can be adjusted continuously, comfortable,
High transmission efficiency.
3, Comparing
with the traditional inching function, it has the advantage zero power lost and
the transmission temperature is low.
|
Item |
Unit |
HNF-300 |
|
|
Rated Load |
Q(t) |
30 |
|
|
Load center |
c(mm) |
1250 |
|
|
Features |
Wheelbase |
y(mm) |
4800 |
|
Weight |
Weight |
kg |
40000 |
|
Chassis |
Tyre Specs. |
14.00-24-32PR |
|
|
Tires Qty,front/rear(X-drive wheels) |
42 |
||
|
Dimension |
Mast/carriage tilt angle(front/rear) |
Degree (°) |
612 |
|
Mast height (fork lowering) |
h1(mm) |
3950 |
|
|
Mast lifting height |
h3(mm) |
3500 |
|
|
Max.lifting height |
h4(mm) |
5700 |
|
|
Height to head guard (height to cab) |
h6(mm) |
3800 |
|
|
Overall height (with forks) |
l1(mm) |
9590 |
|
|
Fork front vertical surface to the rear end of the vehicle |
l2(mm) |
7150 |
|
|
Overall width |
b1/b2(mm) |
3200 |
|
|
Fork dimension |
s/e(mm) |
2440X320X110 |
|
|
Dimension |
Mast min ground clearance (with load) |
m1(mm) |
350 |
|
Wheelbase center min ground clearance (with load) |
m2(mm) |
410 |
|
|
Min.Turning radius |
WA (mm) |
7260 |
|
|
Travel speed (with load/without load) |
km/h |
24/28 |
|
|
Performance |
Max Lifting Speed (with/without load) |
mm/s |
260/280 |
|
Max Lowering Speed (with/without load) |
mm/s |
250/180 |
|
|
Traction |
KN |
220 |
|
|
Gradeability (with load/without load) |
% |
20/21 |
|
|
Driving brake |
Hydraulic clamp disc |
||
|
Engine |
Engine brand |
Cummins |
|
|
Engine model |
6CTA8.3-C260-II |
