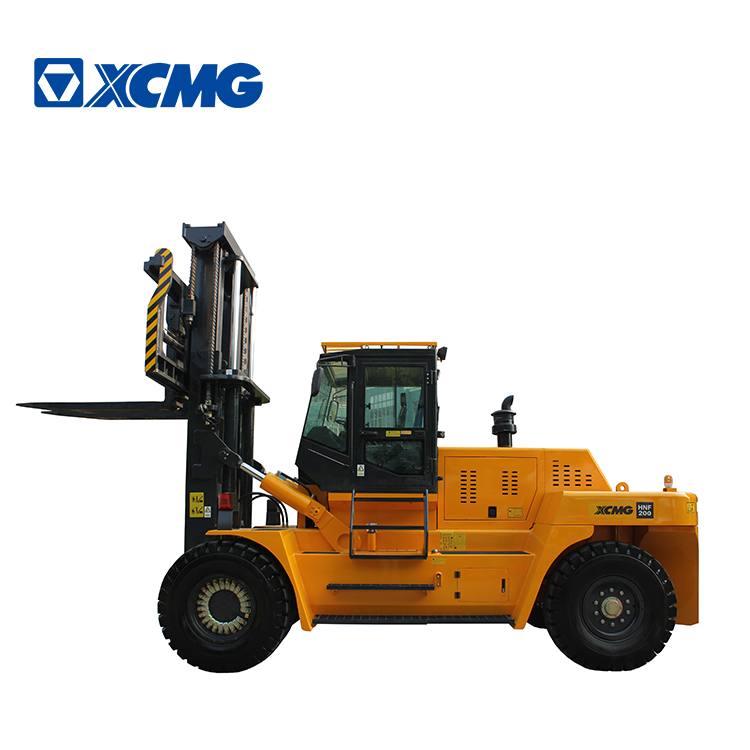

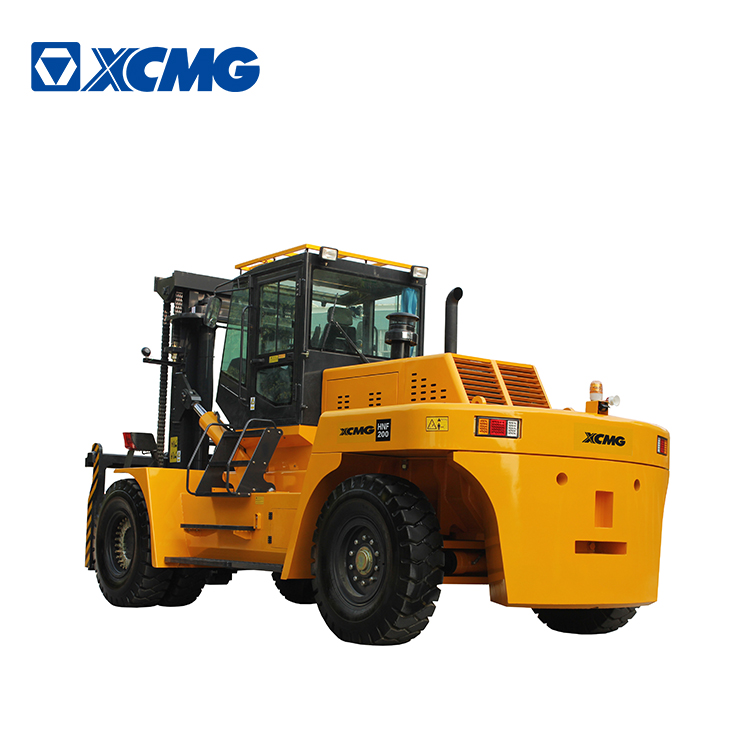

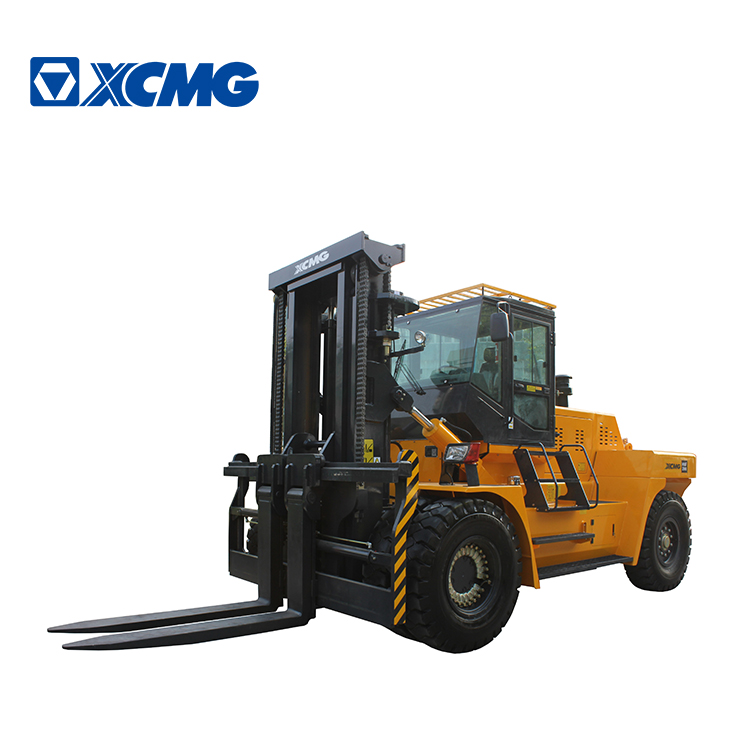

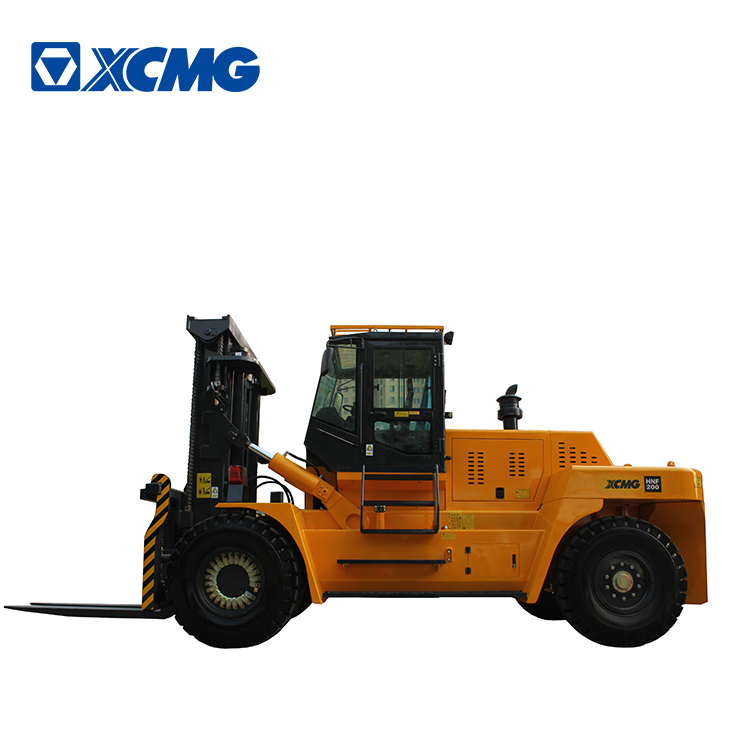

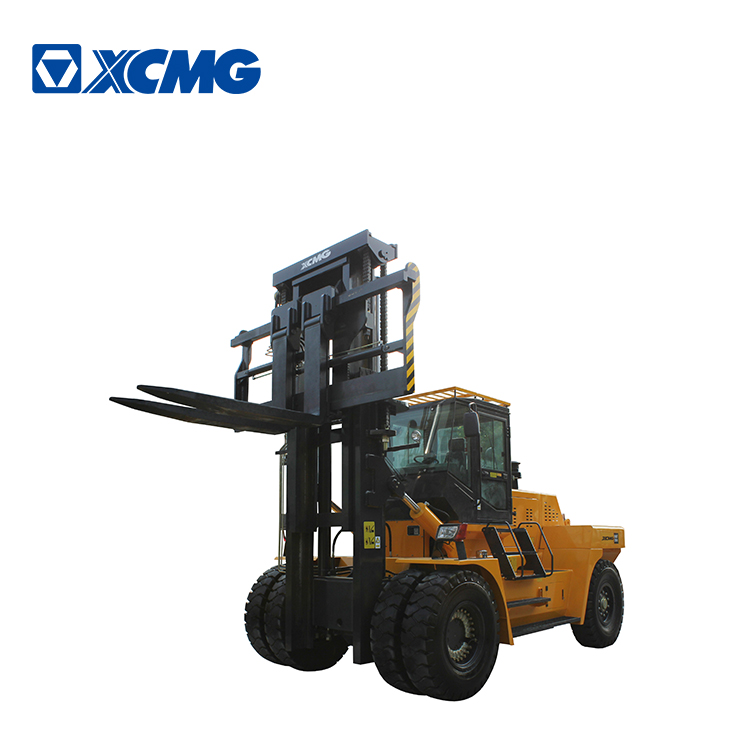

XCMG 20 ton large heavy duty forklift HNF-200 with Cummins engine and CVT transmission
![](/app/topc/statics/images/close.png)
![XCMG 20 ton large heavy duty forklift HNF-200 with Cummins engine and CVT transmission](http://www.machmall.com/images/store/357636/item/HNF-200-2.jpg)
![](/app/topc/statics/images/close.png)
Summary
- Fork Width:2000mm
- Fork Length:260mm
- Max Lifting Height:3500mm
- Rated Loading Capacity:20t
- Power Source:Diesel
- Type:heavy duty forklift
- Model Number:HNF-200
- Brand Name:XCMG
- Place of Origin:Xuzhou, Jiangsu,China
Specifications
- weight:26000.000kg
- Condition:New
- Moving Type:Other
- Overall dimensions:8100*3020*3600mm
- Load center:900mm
- Max. travel speed :25km/h
- Gradeability :20%
- Weight:26000kg
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
XCMG 20 ton large heavy duty forklift HNF-200 with
Cummins engine and CVT transmission.
The HNF-200 large heavy duty 20 ton forklift with CVT
transmission and Cummins engine. The transmission adopts the driving model
combined by mechanical and hydraulic, it is a new torque transfer method.
The engine output torque is distributed by mechanical and
hydraulic and shifted, torsional transferred, then inter-flow to output shaft.
The transmission controlled the transmission ratio by
controlling the ratio of mechanical and hydraulic flow, realizing the
continuously adjustable of the gear ratio.
Performance Characteristics:
1,Comparing with the current widely
adopted hydraulic transmission. It can save 25% fuel and reduce the same
percentage emission. And is also more energy-saving comparing with hydrostatic
transmission.
2, It has the
following features: better starting moment force, stable acceleration, easy to
operate, accurate, the gear ratio can be adjusted continuously, comfortable,
High transmission efficiency.
3, Comparing
with the traditional inching function, it has the advantage zero power lost and
the transmission temperature is low.
Configuration |
Vehicle configuration |
Unit |
HNF-200 |
|
Performance |
Rated load |
kg |
20000 |
|
Load center |
mm |
900 |
||
Mast tilt angle (front/rear) |
º |
6/12 |
||
Overall dimensions |
Length |
mm |
8100 |
|
Width |
mm |
3020 |
||
Height |
mm |
3600 |
||
Mast lifting height |
mm |
3500 |
||
Fork size (L*W*H) |
mm |
2000*260*100 |
||
Min. turning radius |
mm |
5800 |
||
Max. travel speed (with load) |
km/h |
25 |
||
Lifting speed (with load) |
mm/s |
180 |
||
Gradeability (with load) |
% |
20 |
||
Weight |
kg |
26000 |
||
Tyre |
Front |
4X14.00-24/24PR |
||
Rear |
2X14.00-24/24PR |
|||
Wheel tread |
Front |
mm |
2200 |
|
Rear |
mm |
2390 |
||
Wheelbase |
mm |
4000 |
||
Min. ground clearance |
mm |
250 |
||
Engine |
Brand |
Dongfeng Cummins |
||
Rated power/rotate speed |
KW/r.pm |
132/2000 |
||
Max. torque/rotate speed |
N.m/r.pm |
810/1600 |
