![XCMG counterweight diesel forklift HNF-150 China hydraulic heavy duty forklift XCMG counterweight diesel forklift HNF-150 China hydraulic heavy duty forklift](http://www.machmall.com/images/store/357636/item/HNF-150-1.jpg_l.jpg)
XCMG counterweight diesel forklift HNF-150 China hydraulic heavy duty forklift
![](/app/topc/statics/images/close.png)
![XCMG counterweight diesel forklift HNF-150 China hydraulic heavy duty forklift](http://www.machmall.com/images/store/357636/item/HNF-150-1.jpg)
![](/app/topc/statics/images/close.png)
Summary
- Fork Width:180mm
- Fork Length:1800mm
- Min Lifting Height:320mm
- Max Lifting Height:5375mm
- Rated Loading Capacity:15t
- Power Source:Diesel
- Type:heavy duty forklift
- Model Number:HNF-150
- Brand Name:XCMG
- Place of Origin:Xuzhou, Jiangsu,China
Specifications
- weight:23000.000kg
- Condition:New
- Moving Type:Other
- Overall Dimensions:5840*2750*3365mm
- Load Center:900mm
- Weight:23000kg
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

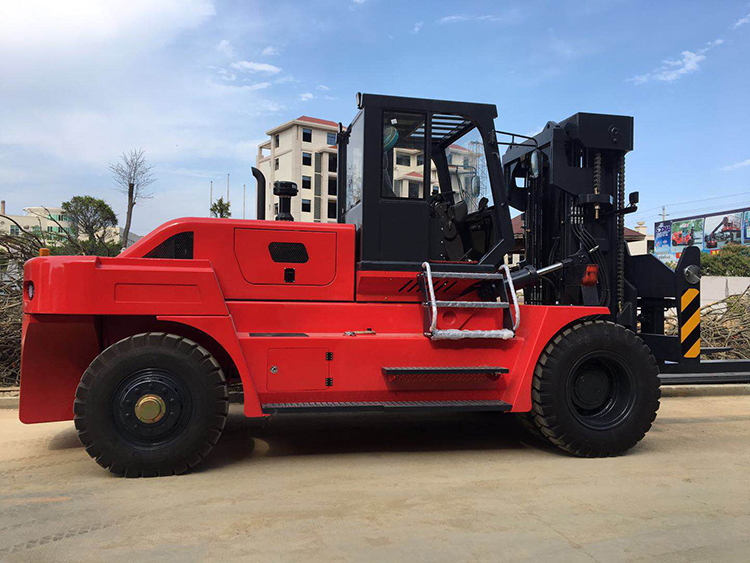

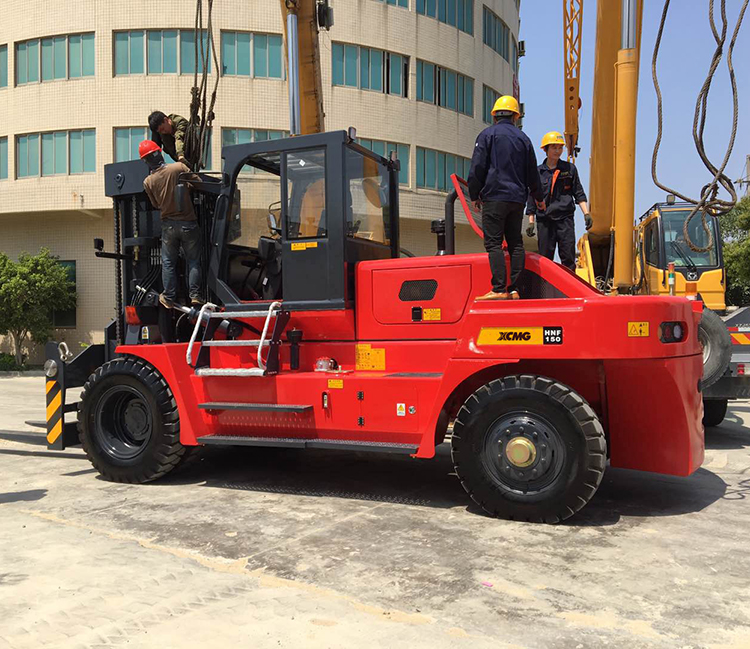

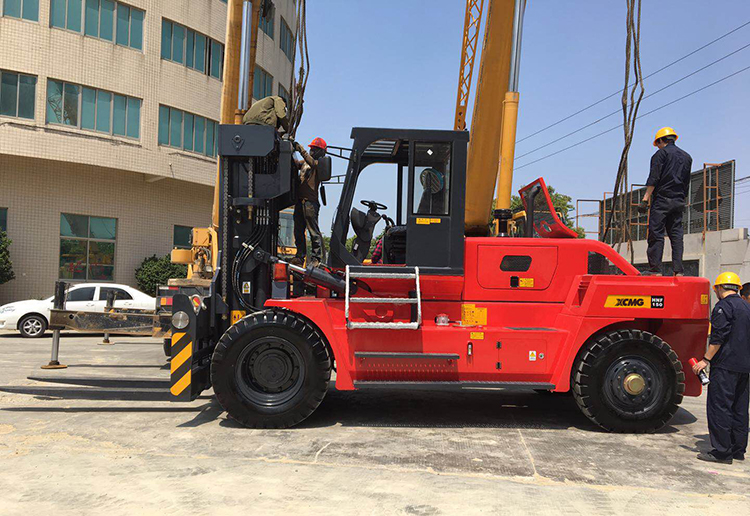

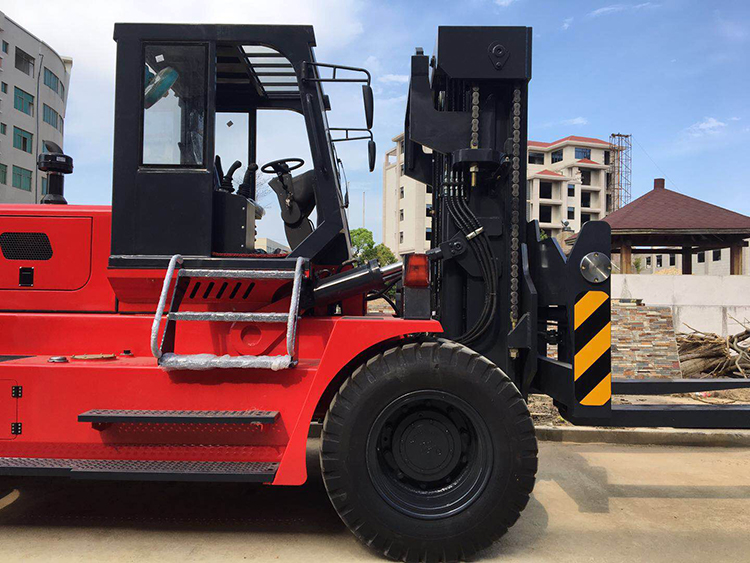

XCMG counterweight diesel forklift HNF-150 China
hydraulic heavy duty forklift.
HNF-150 heavy duty forklift adopts Dongfeng Cummins,
Yuchai turbocharging engine, powerful, energy conservation, environmental
protection, satisfies the requirement of high efficiency operation.
Performance Characteristics:
* Front axle adopts heavy duty type driving axle,
increase the load capacity and service life.
* Used Hangchi, Sanchi planet type hydraulic power shift
transmission, big traction in combined operating condition.
* Adopt double turbine hydraulic torque converter,
stepless speed change, single level control for the speed changing.
* Variable speed control valve matched with neutral
starter, the machine starts more secure.
Item |
Item details |
Unit |
HNF-150 |
Features |
Rated Load |
Q(t) |
15 |
Load center |
c(mm) |
900 |
|
Wheelbase |
y(mm) |
3800 |
|
Weight |
Weight |
kg |
23000 |
Dimension |
Mast/carriage tilt angle(front/rear) |
Degree (°) |
612 |
Mast height (fork lowering) |
h1(mm) |
3625 |
|
Mast lifting height |
h3(mm) |
3500 |
|
Max.lifting height |
h4(mm) |
5375 |
|
Overall height (with forks) |
l1(mm) |
7640 |
|
Fork front vertical surface to the rear end of the
vehicle |
l2(mm) |
5840 |
|
Overall width |
b1/b2(mm) |
2750 |
|
Fork dimension |
s/e(mm) |
1800X22X100 |
|
Fork carriage width |
b3(mm) |
2380 |
|
Mast min ground clearance (with load) |
m1(mm) |
265 |
|
Wheelbase center min ground clearance
(with load) |
m2(mm) |
325 |
|
Min.Turning radius |
WA (mm) |
5800 |
|
Travel speed (with load/without load) |
km/h |
26/30 |
|
Performance |
Max.lifting speed (with load/without load) |
mm/s |
250/260 |
Max.Lowering speed (with load/without
load) |
mm/s |
430/330 |
|
Traction |
N |
150 |
|
Gradeablity (with load/without load) |
% |
20/21 |
|
Driving brake |
Hydraulic clamp disc |
||
Engine |
Engine brand/model |
Optional one |
Yuchai engine |
YC6J175-T302 |
|||
Optional two |
Dongfeng Cummins |
||
QSB6.7-C190 |
|||
Cylinder No. |
6 |
||
Others |
Transmission gears (Front/rear) |
21 |
|
Attachments working pressure |
bar |
16 |
|
Attachments using oil amount |
l/min |
60 |
