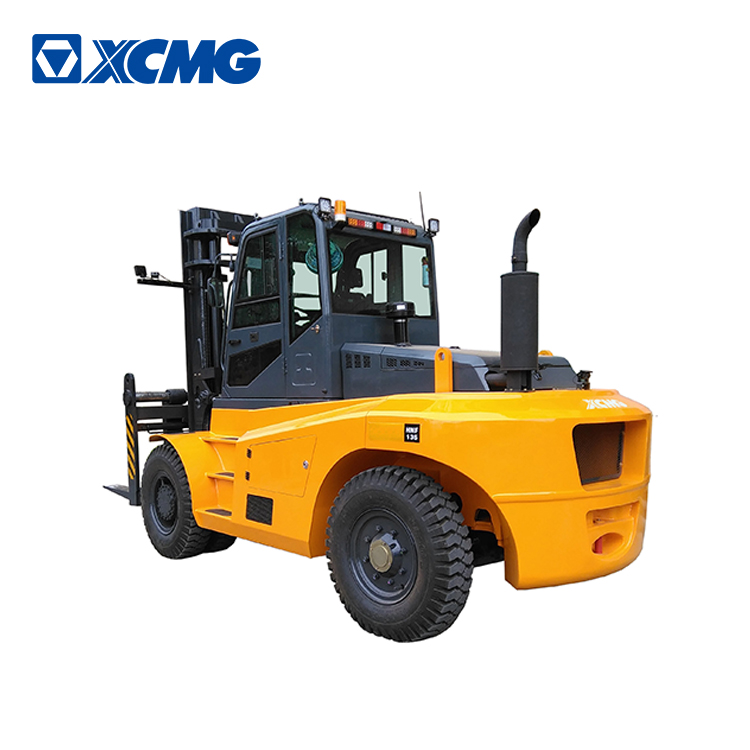

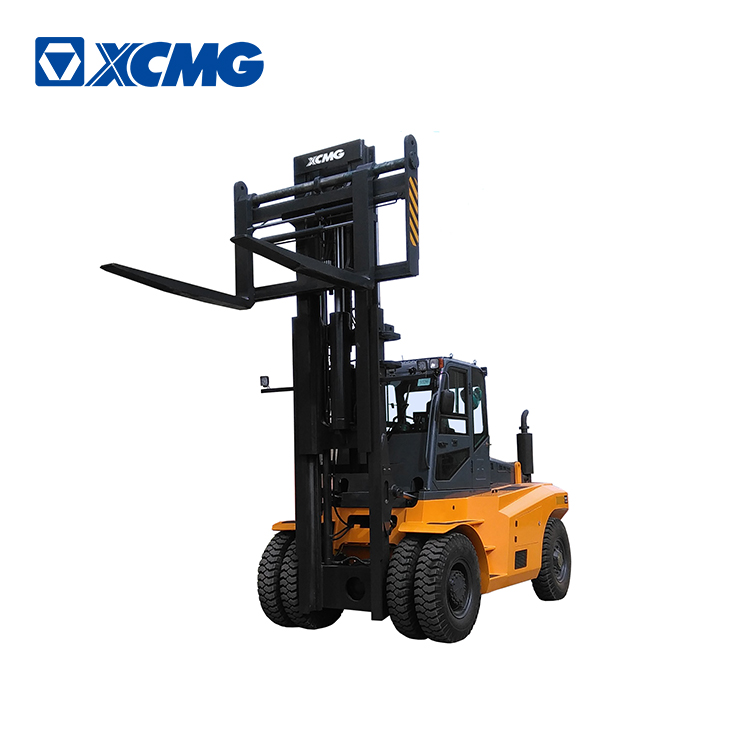

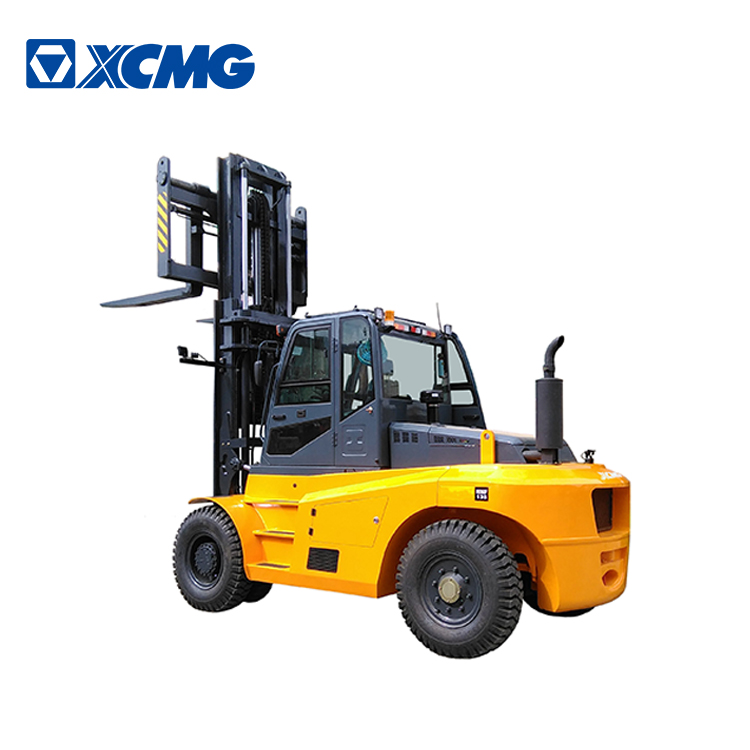

XCMG manufacturer heavy duty forklift China new counterweight diesel forklift HNF-135
Summary
- Fork Width:180mm
- Fork Length:1800mm
- Max Lifting Height:4600mm
- Rated Loading Capacity:13.5t
- Power Source:Diesel
- Type:heavy duty forklift
- Model Number:HNF-135
- Brand Name:XCMG
- Place of Origin:Xuzhou, Jiangsu,China
Specifications
- Weight:18000.000kg
- Condition:New
- Moving Type:Other
- Overall Dimensions:7640x2750x3625mm
- Load Center:600mm
- Weight:18000kg
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
XCMG heavy duty forklift China new counterweight diesel
forklift HNF-135.
HNF-135 heavy duty forklift adopts Dongfeng Cummins
turbocharging engine, powerful, energy conservation, environmental protection,
satisfies the requirement of high efficiency operation.
Performance Characteristics:
1.Front axle adopt heavy duty type driving axle, increase
the load capacity and service life.
2.Used Hangchi, Sanchi planet type hydraulic power shift
transmission, big traction in combined operating condition.
3.Adopt double turbine hydraulic torque converter,
stepless speed change, single level control for the speed changing.
4.Variable speed control valve matched with neutral starter;
the machine starts more secure.
|
Item |
Unit |
Model: HNF-135 |
|
|
Weight |
Weight |
kg |
18000 |
|
Tyres Qty,front/rear(X-drive wheels) |
42 |
||
|
Wheel tread:Front |
b10(mm) |
1677 |
|
|
Wheel tread:Rear |
b11(mm) |
2013 |
|
|
Dimension |
Mast/carriage tilt angle(front/rear) |
Degree (°) |
612 |
|
Mast height (fork lowering) |
h1(mm) |
3100 |
|
|
Mast lifting height |
h3(mm) |
3000 |
|
|
Max.lifting height |
h4(mm) |
4600 |
|
|
Height to head guard (height to cab) |
h6(mm) |
3000 |
|
|
Overall height (with forks) |
l1(mm) |
6055 |
|
|
Fork front vertical surface to the rear end of the vehicle |
l2(mm) |
4855 |
|
|
Overall width |
b1/b2(mm) |
2250 |
|
|
Mast min ground clearance (with load) |
m1(mm) |
225 |
|
|
Wheelbase center min ground clearance (with load) |
m2(mm) |
350 |
|
|
Min.Turning radius |
Wa(mm) |
4450 |
|
|
Travel speed (with load/without load) |
km/h |
23/26 |
|
|
Performance |
Max.lifting speed (with load/without load) |
mm/s |
220/270 |
|
Max.Lowering speed (with load/without load) |
mm/s |
450/300 |
|
|
Traction |
KN |
90 |
|
|
Gradeablity(with load/without load) |
% |
20/22 |
|
|
Driving brake |
Hydraulic clamp disc |
||
|
Engine |
Engine brand/model |
Cummins |
|
|
QSB4.5-C130 |
|||
|
Fuel Tank |
L |
4.5 |
|
|
Rated Power |
KW |
97 |
|
|
Rated Turning Speed |
rpm |
2200 |
|
|
Cylinder No. |
4 |
||
|
Others |
Transmission gears (Front/rear) |
22 |
|
|
Attachments working pressure |
MPa |
16 |
|
|
Attachments using oil amount |
L/min |
40 |
|
