XCMG Manufacturer HDD Machine Horizontal Directional Drilling XZ320E Price
![](/app/topc/statics/images/close.png)
![XCMG Manufacturer HDD Machine Horizontal Directional Drilling XZ320E Price](http://www.machmall.com/images/store/357636/item/b03d3f0921bae63e992cfc7b37d08840.jpg)
![](/app/topc/statics/images/close.png)
Summary
- Certification:ISO9001
- Dimension(L*W*H):6200×2280×2450mm
- Weight:10500kg
- Power(W):154kw
- Model Number:XZ320E
- Brand Name:XCMG
- Place of Origin:China
- Power Type:Diesel
- Type:Horizontal Directional Drill
Specifications
- weight:10500.000kg
- Condition:New
- Moving Type:Crawler
- Max.thrust-pull force:345kN
- Max. thrust-pull speed:36m/min
- Max. spindle speed:140r/min
- Max. inclination angle:20
- Max. torque:12600N •m
- engine model(China III ):QSB5.9-C210
- rated power(China III ):154 kW / 2200 r/min
- engine model(China II ):6BTAA5.9-C205
- rated power(China II ):153 kW / 2200 r/min
- engine model(China III EU Stage IIIA ):QSB6.7-C220
- rated power(China III EU Stage IIIA ):164 kW/2200r/min
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

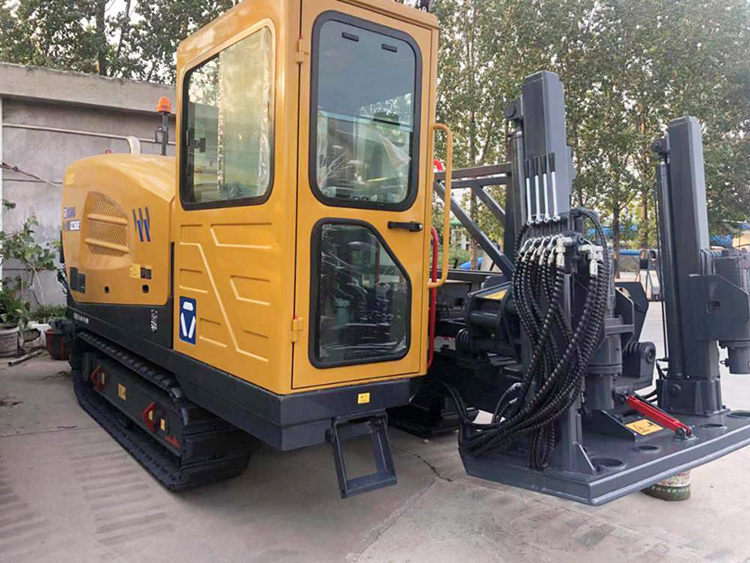

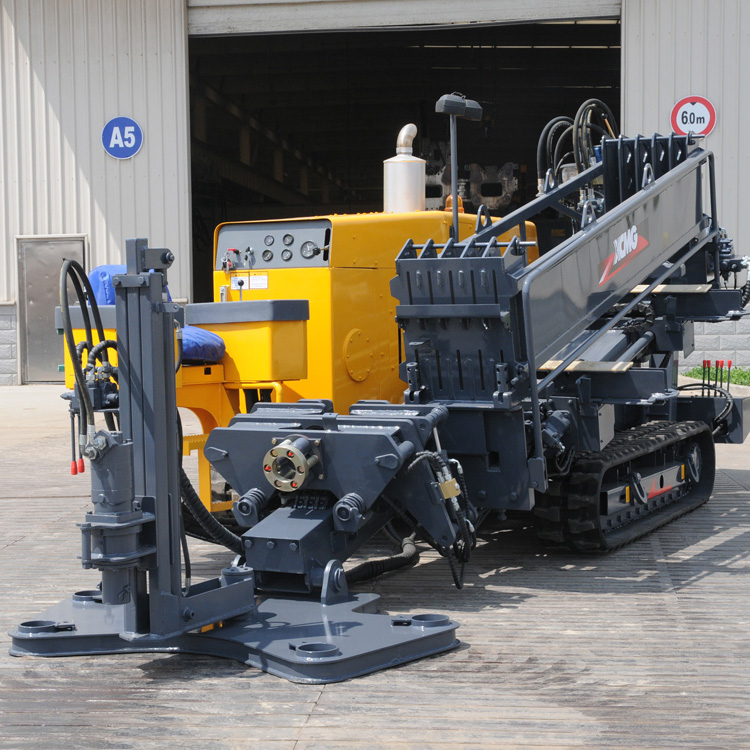

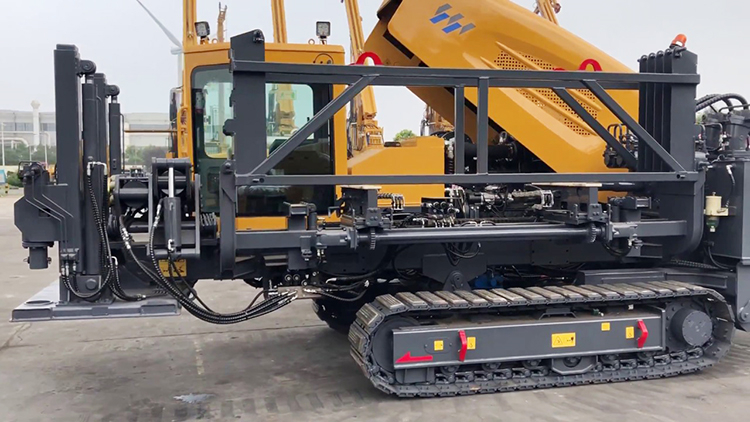

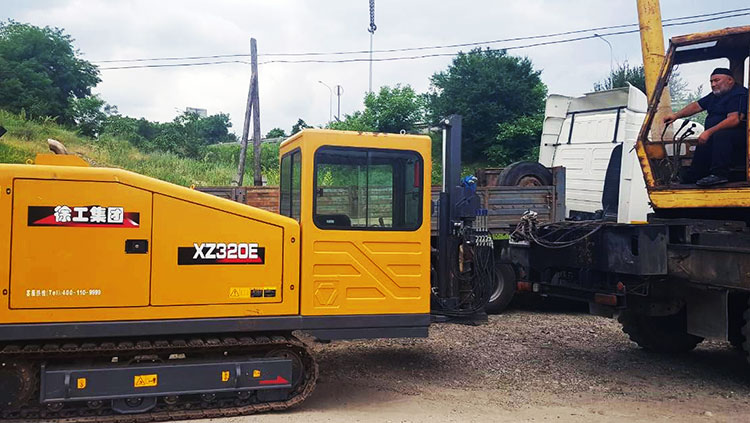

XCMG Manufacturer HDD Machine Horizontal Directional Drilling XZ320E.
HDD machine XZ320E hydraulic pilot control, provide comfortable operating performance and flexible regulation, first-class brand of hydraulic components to ensure the reliability of the machine hydraulic system.
1. Carriage and clamp using double floating patented technology can greatly protect the drill pipe thread, increase the service life of the drill pipe.
2. High-speed sliding systems, piston motor to achieve high and low sliding speed of carriage, increasing the ability to adapt the machine working conditions, promote construction efficiency.
3. Optional full-automatic pipe loader, drilling box can accommodate 40 piece of drill pipes(φ73), ensure one time reached 120 meters, efficient automation construction, reduce construction costs and labor intensity.
4. Support the diverse needs of customers, the machine can option configuration with the automatic (semi automatic) full-automatic pipe loader, automatic anchoring system, cab, air conditioning wind, cold start, freezing mud, mud washing, mud throttling and other devices.
Description |
Unit |
XZ320E |
||
Engine |
Manufacturers |
|
Dongfeng Cummins |
|
China III |
Model |
|
QSB5.9-C210 |
|
Rated Power |
kW /(r/min) |
154 / 2200 |
||
China II |
Model |
|
6BTAA5.9-C205 |
|
Rated Power |
kW /(r/min) |
153/ 2200 |
||
China III |
Model |
|
QSB6.7-C220 |
|
|
||||
EU Stage IIIA |
Rated Power |
kW /(r/min) |
164/2200 |
|
Thrust-Pull |
Type |
|
Pinion and rack drive |
|
Max thrust-pull force |
kN |
345/345 |
||
Max thrust-pull speed |
m/min |
36 |
||
Rotation |
Type |
|
four motor |
|
Torque |
N·m |
12600 |
||
Max spindle speed |
r/min |
140 |
||
Loader Crance |
/ |
/ |
||
Max inclination angle |
° |
20 |
||
Pipe |
Diameter × Length |
mm×mm |
Φ73×3000 |
|
Mud pump |
Max Flow rate |
L/min |
320 |
|
Max pressure |
MPa |
8 |
||
Weight |
kg |
10500 |
