XCMG official concrete mixer pump truck HBT9018K trailer concrete mixer with pump machine price
Summary
- Certification:CE/ISO9001
- Dimension(L*W*H):6482*2100*2886mm
- Weight:7400kg
- Power(W):186kw
- Model Number:HBT9018K
- Brand Name:XCMG
- Place of Origin:Xuzhou,Jiangsu,China
- Power Type:Diesel
Specifications
- Weight:7400.000kg
- Condition:New
- Moving Type:Other
- Productivity:115/60 M3/H
- Concrete slump range:80-230mm
- Pressure of hydraulic system:32Mpa
- Rated working flow:560L/min
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
XCMG official concrete mixer pump truck HBT9018K trailer
concrete mixer with pump machine.

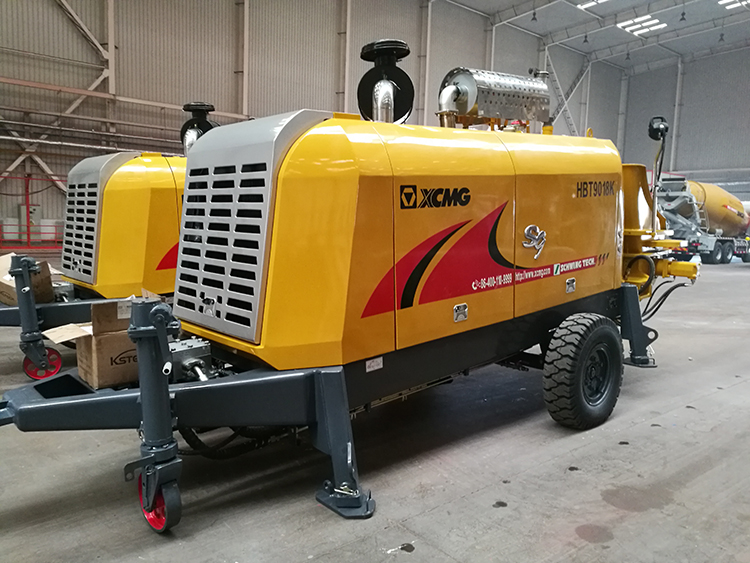

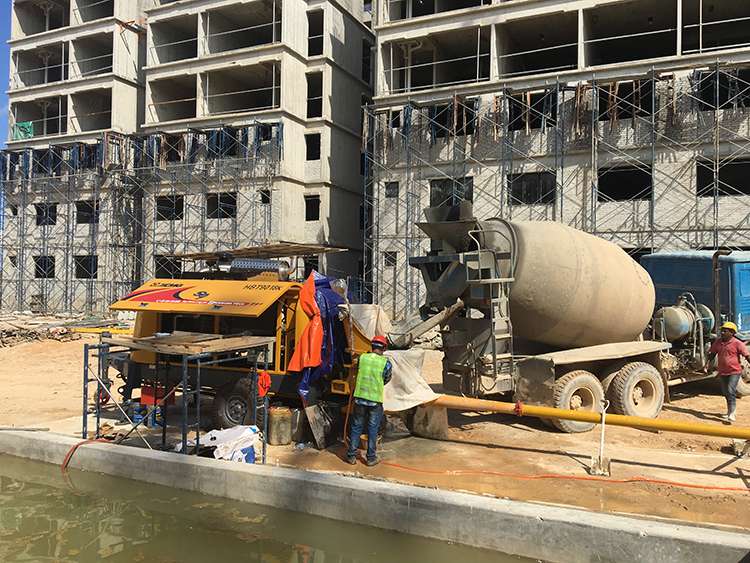

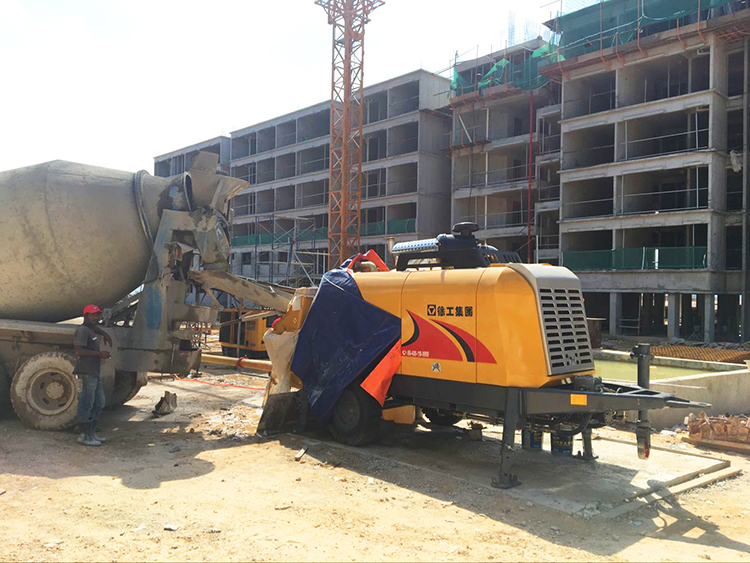

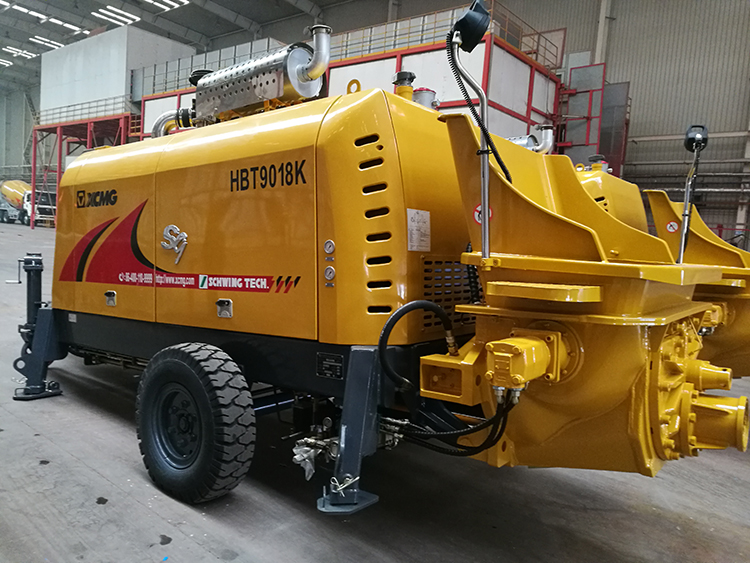

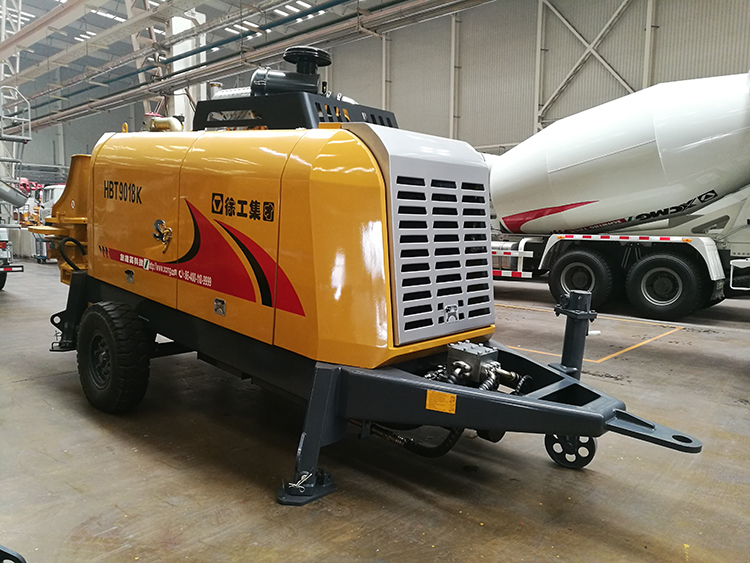

XCMG HBT9018K trailer mounted concrete pump truck is a
construction equipment which conveys concrete by pressure through pipeline, by
comprehensively incorporating Schwing switch-over control technology, reducing
customers' later maintenance cost.
Technical Characteristics:
1. By comprehensively incorporating Schwing switch-over
control technology, the extraction and control of switch-over signal is totally
done by hydraulic pressure, avoiding the unreliability brought by frequent
electrical contact and harsh environment and reducing customers' later
maintenance cost.
2. By adopting exclusive invariable reversing buffering
technology in the industry, the pump displacement keeps unchanged during
pumping and reversing and the main system unloads in low pressure, which
thoroughly avoid such problems as long reversing time, great reversing impact
and low service life of pump caused by frequent change of displacement during
traditional reversing.
3. The use of equivalent bending moment design ensures
uniform force, reliable sealing and greatly prolongs the service life of
bearing ring, spectacle wear plate and cutting ring. The feature of unilateral
wear makes the theoretical service life of rock valve once higher than that of
S-valve.
4. The machine adopts the controller with color display,
which can dynamically display and record various working parameters in
real-time; main control functions are all finished directly by the controller,
which reduces the use level of relay; and meanwhile with it, many intelligent control
functions can be realized.
5. Piston change is easy, convenient and time-saving.
6. The system ensures the cleanness of hydraulic oil and thus generates higher operational reliability of hydraulic system, pump and other hydraulic elements.
Description | Unit | Parameter value | ||
Overall performance | Overall dimensions | mm | 6482×2100×2886 | |
Total curb mass | kg | 7400 | ||
Concrete delivery value | m3/h | 115/60 | ||
Max. output pressure | Mpa | 18 | ||
Pulling speed | km/h | Three-level road 8km/h | ||
Road above two-level 16km/h | ||||
Delivery distance(vertical/horizontal) | m | 250/1000 | ||
Hopper capacity/filling height | m3/mm | 0.6/1370 | ||
Concrete slump range | mm | 80-230 | ||
Concrete delivery cylinder diameter/stroke | mm | 230/1600 | ||
Power system | Main motor (diesel engine) | Model | BF6M1013 | |
Rated power | kw/r/min | 186/2100 | ||
Manufacturer | DEUTZ | |||
Hydraulic system | Type | Open type | ||
Pressure of hydraulic system | Mpa | 32 | ||
Main oil pump | Model and type | 280 | ||
Rated working flow | L/min | 560 | ||
Manufacturer | KAWASAKI | |||
Pumping oil cylinder diameter /stroke | mm | 170/1600 | ||
Capacity of hydraulic oil tank | L | 600 | ||
Mixing system | Large torque at low speed | |||
