XCMG Manufacturer Chinese Concrete Pumps HBT5008K Trailer Mount Concrete Pump Machine Price
Summary
- Certification:CE/ISO9001
- Dimension(L*W*H):5623*1884*2606mm
- Weight:5035kg
- Power(W):82kw
- Model Number:HBT5008K
- Brand Name:XCMG
- Place of Origin:Jiangsu, China
Specifications
- Weight:5053.000kg
- Condition:New
- Moving Type:Other
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

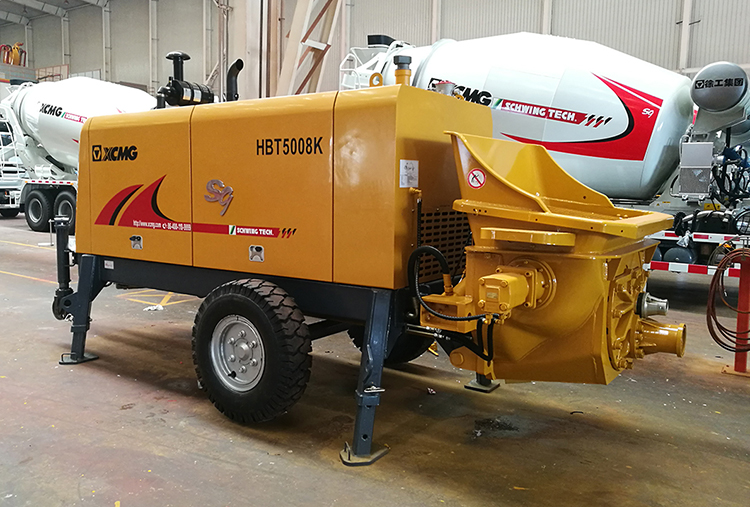

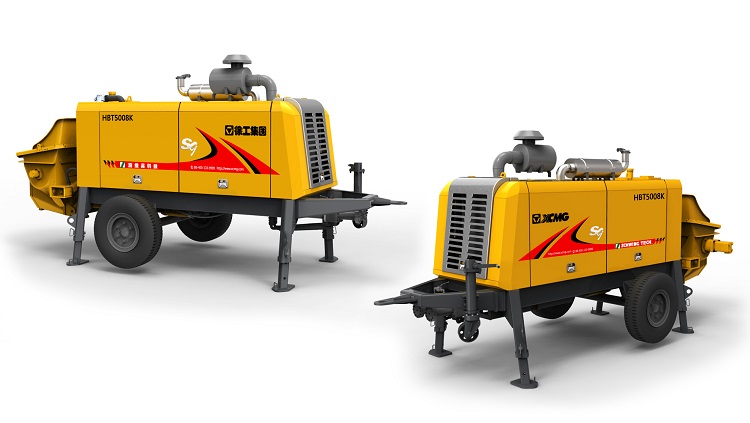

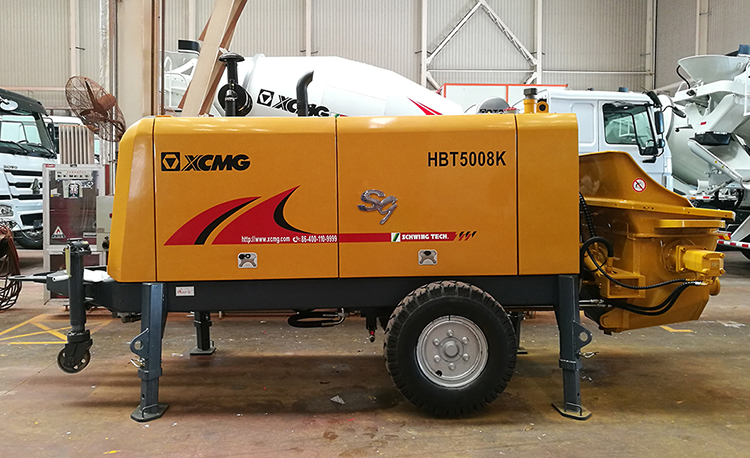

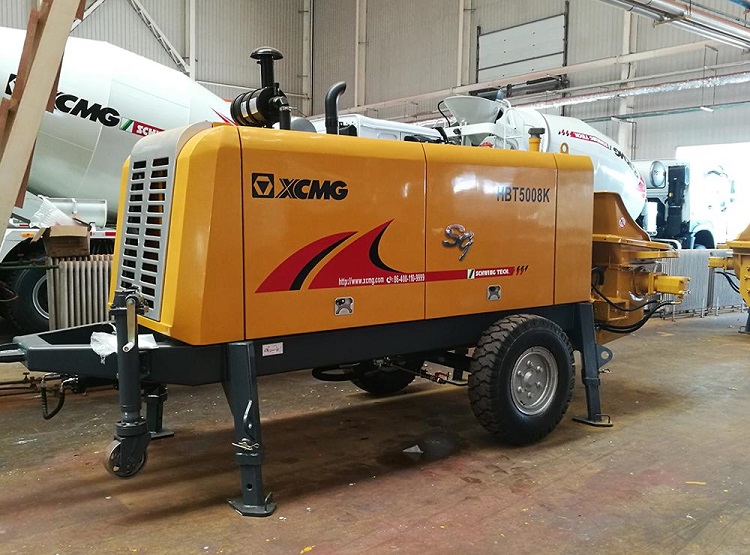

XCMG Manufacturer Chinese Concrete Pumps HBT5008K Trailer Mount Concrete Pump Machine.
XCMG HBT5008K Concrete pump is a construction equipment which conveys concrete by pressure through pipeline.
Technical Characteristics:
1.It is equipped with special pipeline.
2.It can continuously complete horizontal and vertical conveyance of concrete along pipeline.
3.It is an ideal kind of existing concrete conveyance equipment.
4.It combines the production of ready-mixed concrete with pumping construction and uses coagulation.
5.The soil mixing truck carries out intermediate operation, which can realize continuous pumping and pouring of concrete.
6.It is used for conveying concrete in large concrete projects.
|
item |
parameters |
unit |
|
Shape size |
5623×1884×2606 |
mm |
|
Whole machine quality |
5035 |
kg |
|
Concrete conveying capacity |
50 |
m3/h |
|
Maximum output pressure |
8 |
Mpa |
|
Conveying distance (vertical / horizontal) |
100/400 |
m |
|
Hopper volume / feeding height |
0.6/1320 |
m3/mm |
|
Concrete slump |
80-230 |
mm |
|
Concrete delivery bore diameter / stroke |
180/1400 |
mm |
|
Active engine-diesel engine |
||
|
Model |
WP4G110E220 |
|
|
Rated power |
82 |
kw |
|
Rated speed |
2200 |
r/min |
|
Hydraulic system |
||
|
type |
open |
|
|
Hydraulic system pressure |
32 |
Mpa |
|
Main oil pump |
||
|
Model type |
A11VLO130 |
|
|
Rated working flow |
224 |
L/min |
|
Pump cylinder diameter / stroke |
90/1400 |
mm |
|
Hydraulic tank volume |
250 |
L |
