XCMG new concrete pump truck HB62V China 62m concrete pump truck with sitrak chassis price
Summary
- Dimension(L*W*H):15318×2530×4000mm
- Weight:43870kg
- Power(W):324kW
- Model Number:HB62V
- Brand Name:XCMG
- Place of Origin:Jiangsu,China
- Certification:CE/ISO9001
Specifications
- Weight:43870.000kg
- Condition:New
- Moving Type:Other
- Color:Red
- Wheelbase:1950+4500+1400mm
- Theoretical:180m³/h
- Reach height:61.1m
- Reach depth:43.6m
- Transfer:Rock valve/S valve
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
new concrete pump truck HB62V China 62m concrete pump
truck with sitrak chassis.

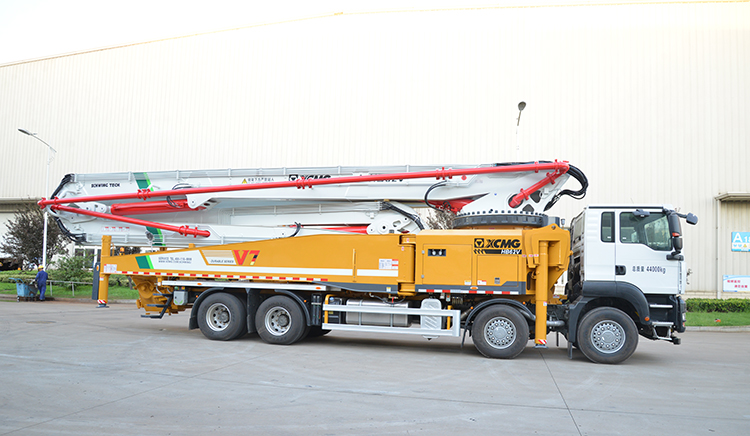

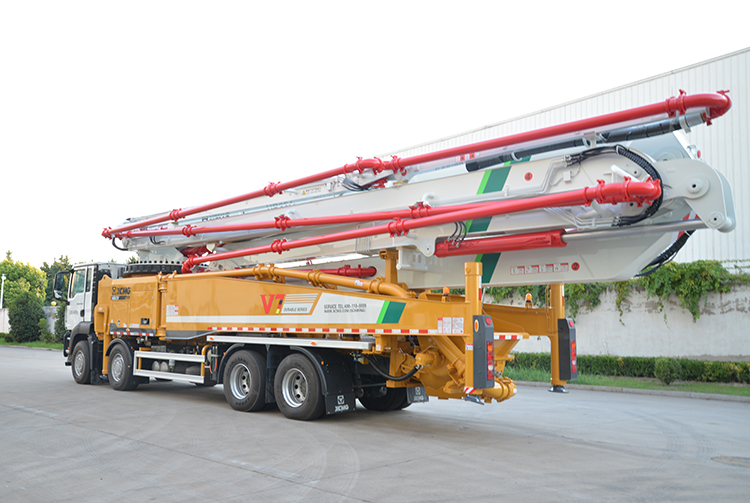

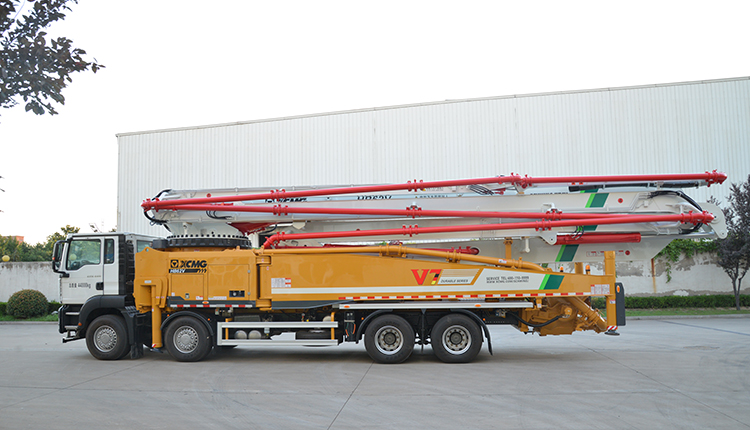

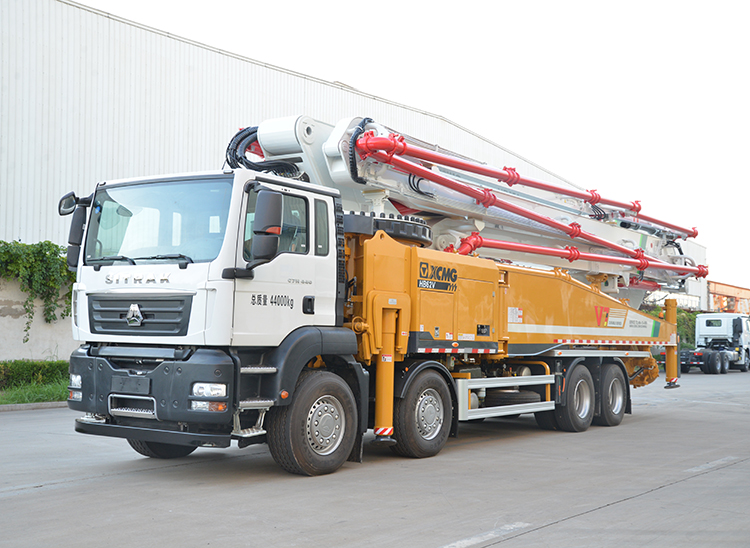

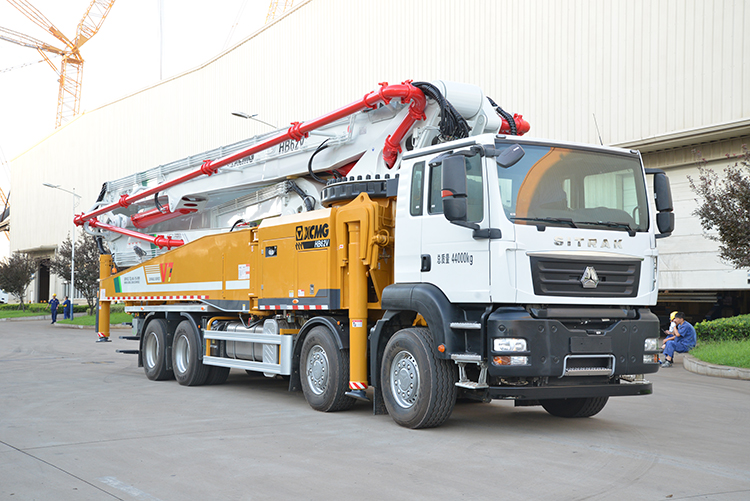

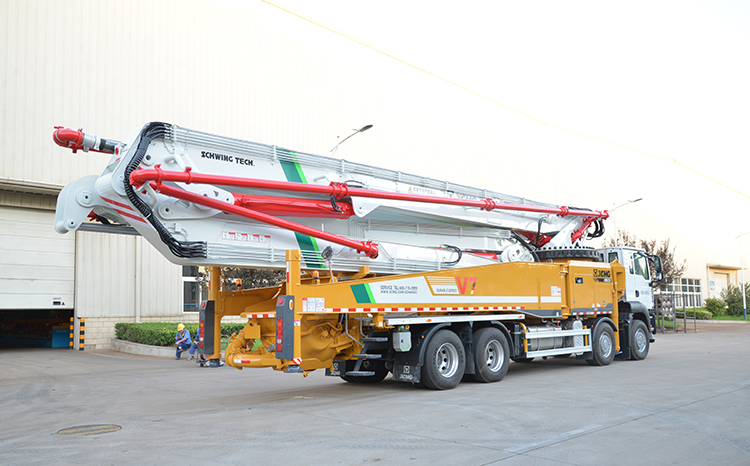

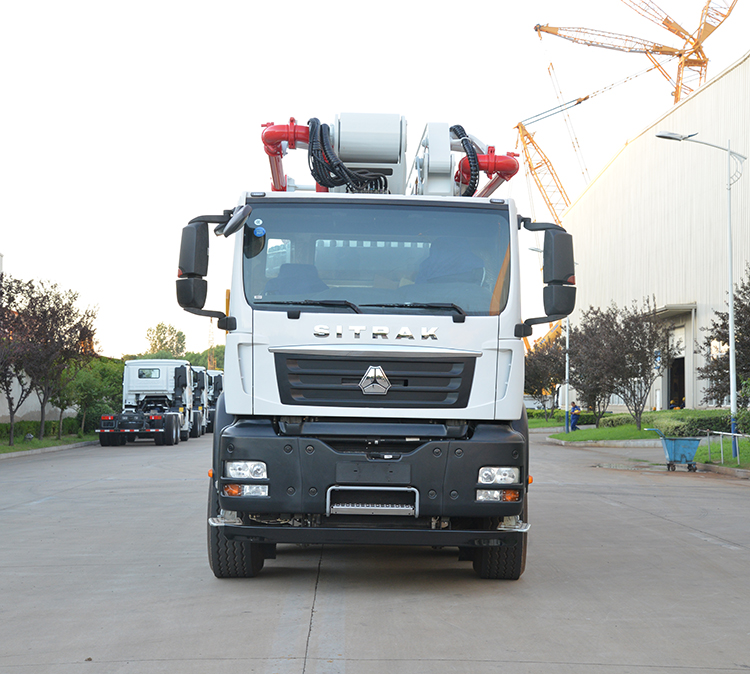

XCMG HB62V V7 series truck mounted concrete pump is a new
generation equipment which is developed by XCMG and SCHWING Germany technology.
In the design, the sitrak chassis is adopted, following
the principle of "high technology, high performance, high reliability, and
high quality", with curved outriggers, intelligent boom damping
technology, and full hydraulic reversing technology, The industry's unique
skirt valve pumping system and other product highlights.
Advantages and highlights:
1.Ultimately Safe Boom.
2.Lower Structure of High Rigidity.
3.Hydraulic System of Outstanding Performance.
4.Effectively reduce emissions with the reversing,
vulnerability of longer life.
5.The pumping system adopts electric control reversing,
reversing faster and the system impact smaller.
|
Category |
Item |
Unit |
HB62V |
|
Overall |
Outline
dimension |
mm |
15318×2530×4000 |
|
Oerall weight |
kg |
43870 |
|
|
Chassis |
Brand |
/ |
Sinotruck Sitrak |
|
Model |
/ |
ZZ5446V516MF1 |
|
|
Wheelbase |
mm |
1950+4500+1400 |
|
|
Max.power |
kW |
324 |
|
|
Emission
standard |
/ |
China VI |
|
|
Pumping system |
Theoretical |
m³/h |
180 |
|
Concrete pumping
pressure |
MPa |
10.2 |
|
|
Theoretical pumping times |
Times/min |
22～24 |
|
|
Delivery
cylinder diameter × stroke |
mm |
φ260×2200 |
|
|
Placing boom |
Reach height |
m |
61.1 |
|
Reach depth |
m |
43.6 |
|
|
Slewing radius |
m |
55.9 |
|
|
Slewing angle |
° |
±270 |
|
|
Others |
Transfer |
/ |
Rock valve/S valve |
