XCMG official 62m concrete pump truck HB62V China concrete truck with Benz chassis for sale
Summary
- Dimension(L*W*H):15300×2530×4000mm
- Weight:44000kg
- Power(W):315kW
- Model Number:HB62V
- Brand Name:XCMG
- Place of Origin:Xuzhou, Jiangsu, China
- Certification:CE/ISO9001
Specifications
- Weight:44000.000kg
- Condition:New
- Moving Type:Other
- Color:Red
- Theoretical:180m³/h
- Reach height:61.1m
- Reach depth:43.6m
- Wheelbase:2050+4300+1350mm
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

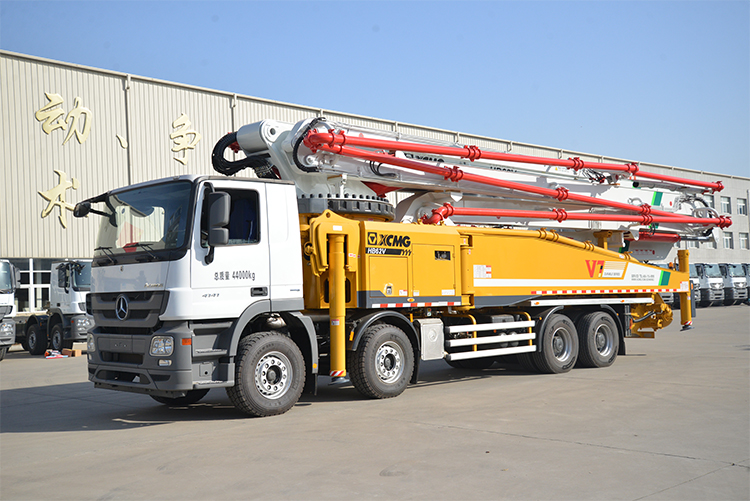

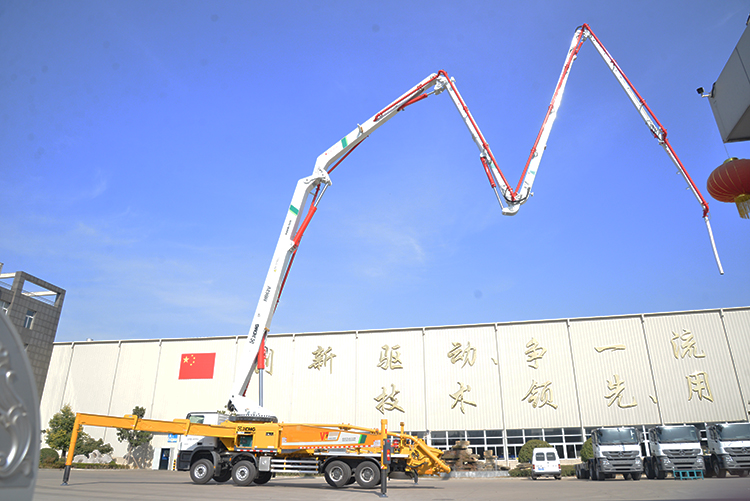

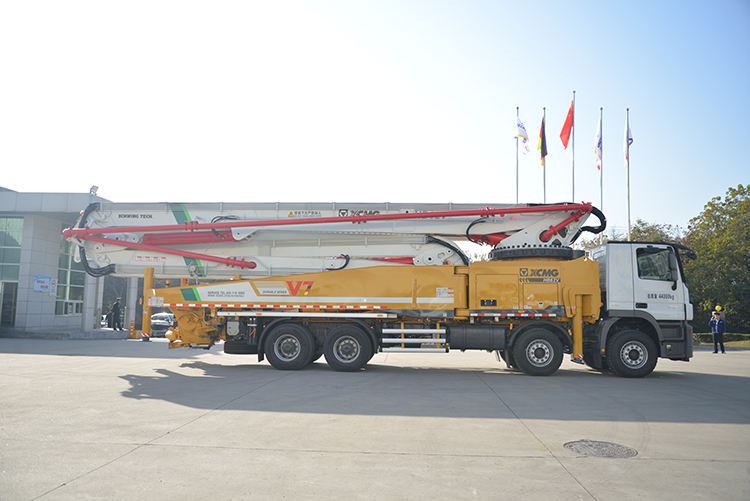

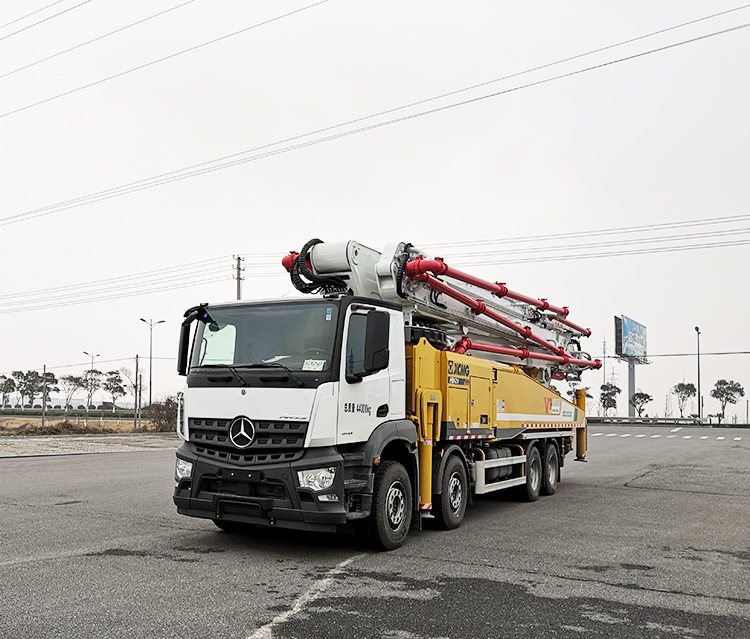

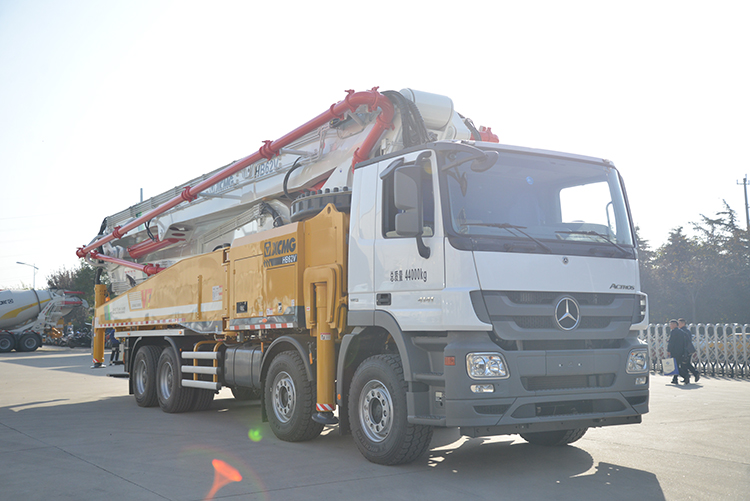

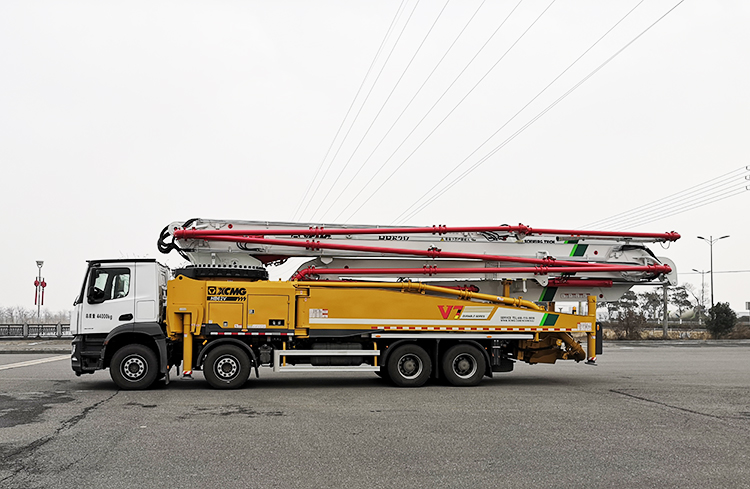

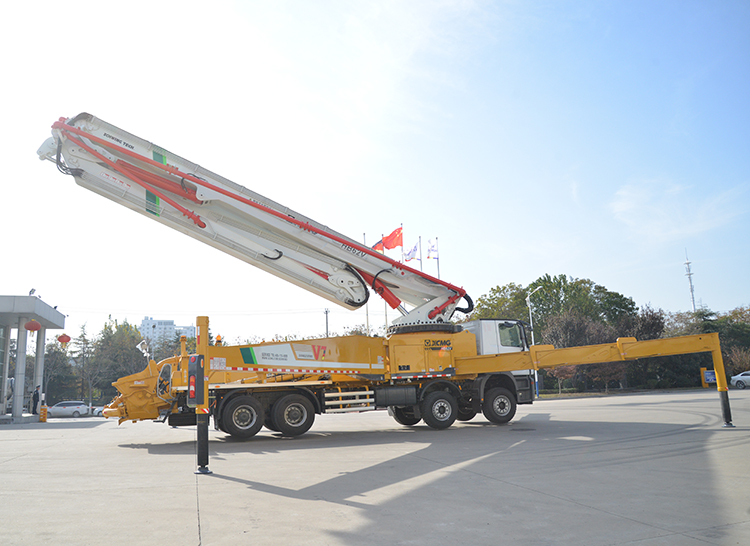

62m concrete pump truck HB62V China concrete truck with
Benz chassis.
XCMG HB62V V7 series truck mounted concrete pump is a new
generation equipment which is developed by XCMG and SCHWING Germany technology.
In the design, the mercedes Benz chassis is adopted,
following the principle of "high technology, high performance, high reliability,
and high quality", with curved outriggers, intelligent boom damping
technology, and full hydraulic reversing technology, The industry's unique
skirt valve pumping system and other product highlights.
Advantages and highlights:
1.Ultimately Safe Boom.
2.Lower Structure of High Rigidity.
3.Hydraulic System of Outstanding Performance.
4.Effectively reduce emissions with the reversing,
vulnerability of longer life.
5.The pumping system adopts electric control reversing,
reversing faster and the system impact smaller.
|
Category |
Item |
Unit |
HB62V |
|
Overall |
Outline
dimension |
mm |
15300×2530×4000 |
|
Overall weight |
kg |
44000 |
|
|
Brand |
/ |
Benz |
|
|
Chassis |
Model |
/ |
AROCS4143 |
|
Wheelbase |
mm |
2050+4300+1350 |
|
|
Max.power |
kW |
315 |
|
|
Engine |
Emission |
/ |
China V |
|
Theoretical |
m³/h |
180 |
|
|
Pumping system |
Concrete pumping
pressure |
Mpa |
10.2 |
|
Theoretical pumping times |
Times/min |
22～24 |
|
|
Delivery
cylinder diameter × stroke |
mm |
φ260×2200 |
|
|
Placing boom |
Reach height |
m |
61.1 |
|
Reach depth |
m |
43.6 |
|
|
Slewing radius |
m |
55.9 |
|
|
Slewing angle |
° |
±270 |
|
|
Others |
Transfer tuble |
/ |
Rock valve/S valve |
