XCMG official new with sitrak chassis China 58m concrete pump truck HB58V price
![](/app/topc/statics/images/close.png)
![XCMG official new with sitrak chassis China 58m concrete pump truck HB58V price](http://www.machmall.com/images/store/357636/item/D HB58V.jpg)
![](/app/topc/statics/images/close.png)
Summary
- Dimension(L*W*H):14570×2550×4000mm
- Weight:44000kg
- Power(W):327kW
- Model Number:HB58V
- Brand Name:XCMG
- Place of Origin:Xuzhou, Jiangsu, China
- Certification:CE/ISO9001
Specifications
- weight:44000.000kg
- Condition:New
- Moving Type:Other
- Color:Red
- Wheelbase:1950+4500+1400mm
- Emission standard:China VI
- Theoretical:180m³/h
- Reach height:57.5m
- Reach depth:40.5m
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

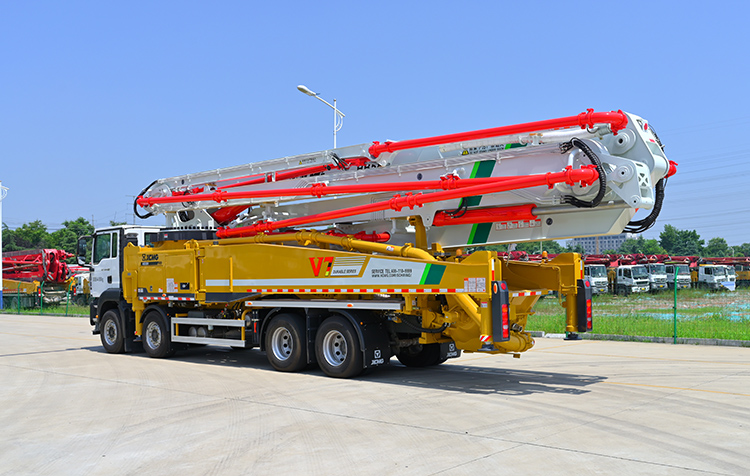

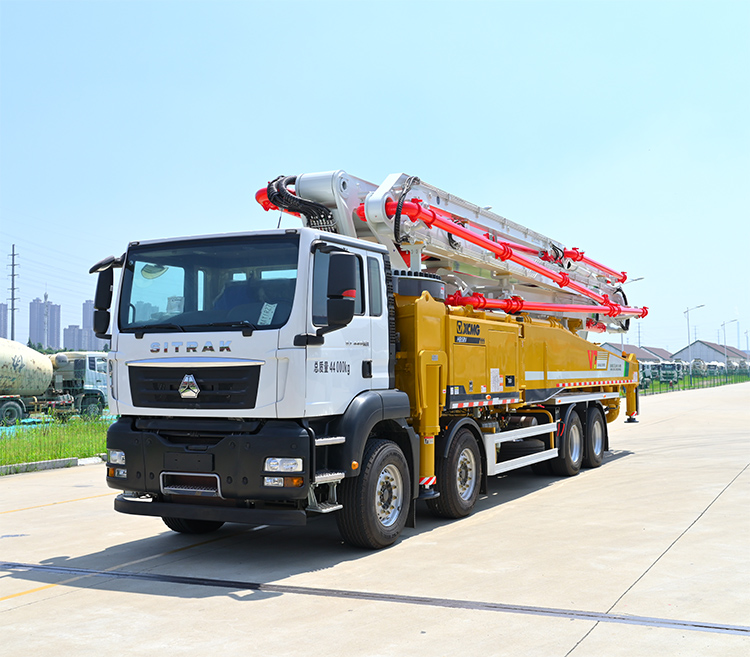

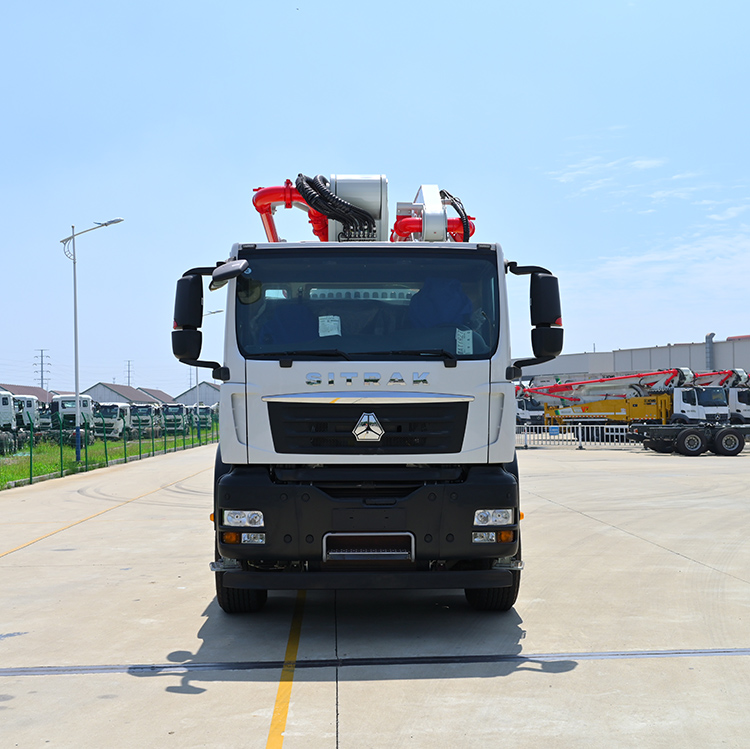

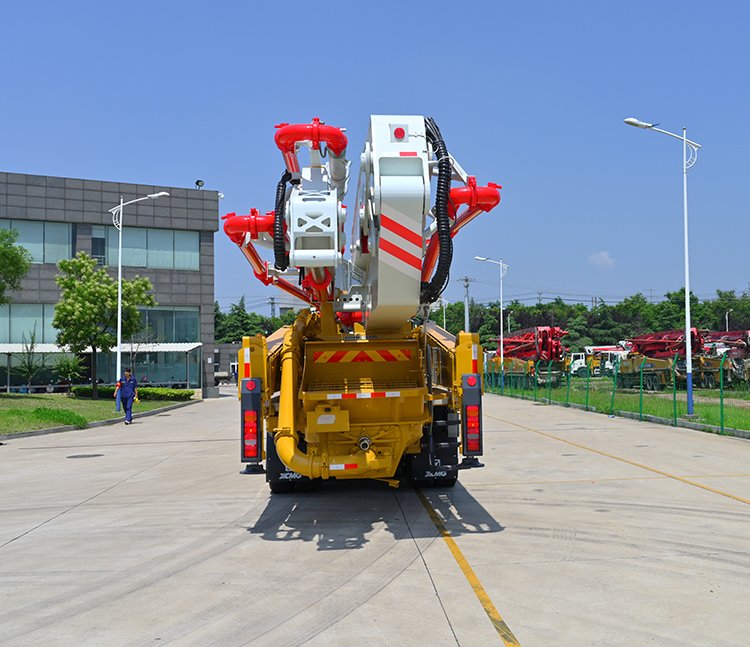

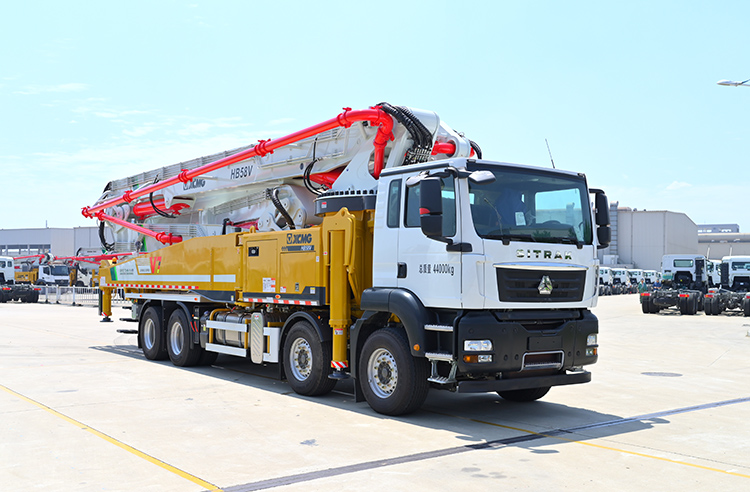

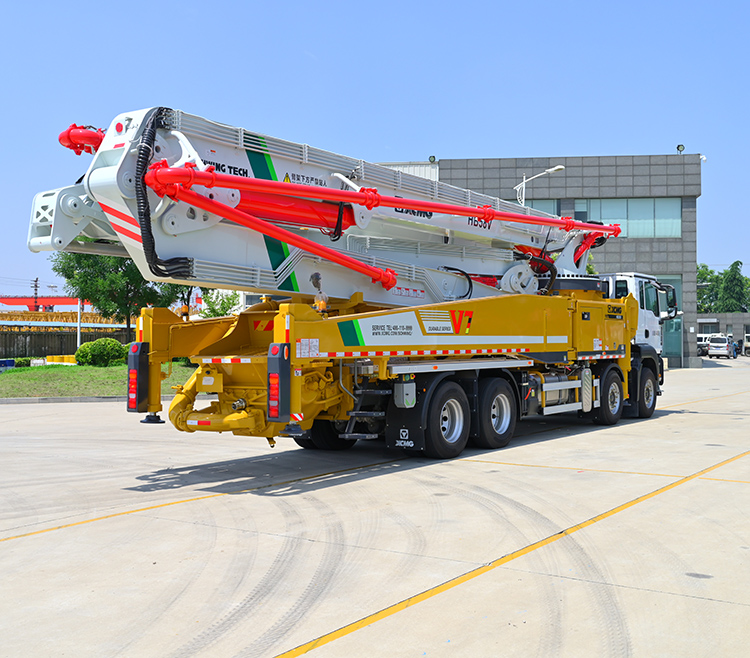

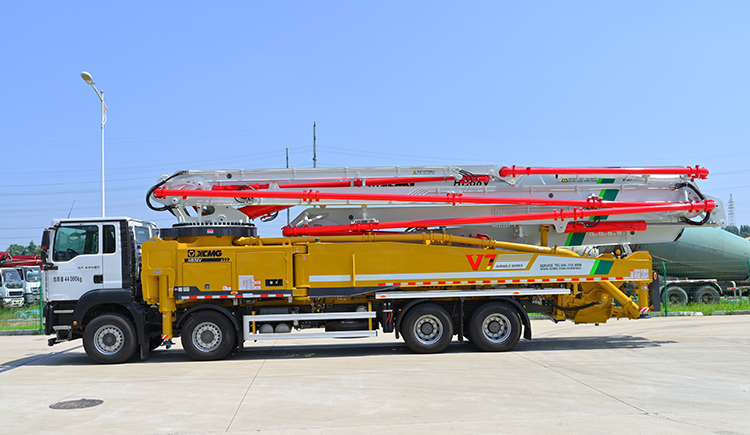

new with sitrak chassis China 58m concrete pump truck
HB58V.
The HB58V concrete pump truck is a new concrete pump
truck with Schwing series independently developed by XCMG. It is the world's
longest boom pump truck with four-axle curved outriggers, the Sinotruk sitrak
chassis is adopted.
In the design, the Sinotruk sitrak chassis is adopted,
following the principle of "high starting point, high technology, high
performance, high reliability, and high quality", with curved outriggers,
intelligent boom damping technology, and full hydraulic reversing technology,
The industry's unique skirt valve pumping system and other product highlights.
Advantages and highlights:
1.Ultimately Safe Boom.
2.Lower Structure of High Rigidity.
3.Hydraulic System of Outstanding Performance.
4.Effectively reduce emissions with the reversing,
vulnerability of longer life.
5.The pumping system adopts electric control reversing,
reversing faster and the system impact smaller.
Category |
Item |
Unit |
HB58V |
Overall |
Outline
dimension |
mm |
14570×2550×4000 |
overall weight |
kg |
44000 |
|
Brand |
/ |
Sinotruck sitrak |
|
Chassis |
Model |
/ |
ZZ5446V516MF1 |
Wheelbase |
mm |
1950+4500+1400 |
|
Max.power |
kW |
327 |
|
Engine |
Emission
standard |
/ |
China VI |
Theoretical |
m³/h |
180 |
|
Pumping system |
Concrete pumping
pressure |
MPa |
10.2 |
Theoretical pumping times |
Times/min |
22~24 |
|
Delivery
cylinder diameter × stroke |
mm |
φ260×2200 |
|
Placing boom |
Reach height |
m |
57.5 |
Reach depth |
m |
40.5 |
|
Slewing radius |
m |
52.5 |
|
Slewing angle |
° |
±270 |
|
Others |
Transfer |
/ |
Rock valve/S valve |
