XCMG 58m concrete pump truck HB58V new concrete truck machine with mercedes Benz chassis price
Summary
- Weight:44000kg
- Model Number:HB58V
- Brand Name:XCMG
- Place of Origin:Jiangsu,China
- Certification:CE/ISO9001
Specifications
- Weight:44000.000kg
- Condition:New
- Moving Type:Other
- Color:Red
- power:300kW
- Theoretical:180m³/h
- Reach height:57.5m
- Reach depth:40.5m
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
58m concrete pump truck HB58V new concrete truck machine
with mercedes Benz chassis.

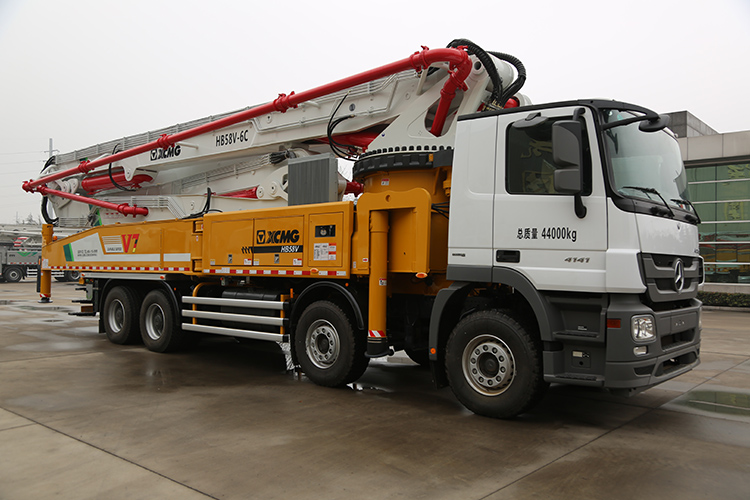

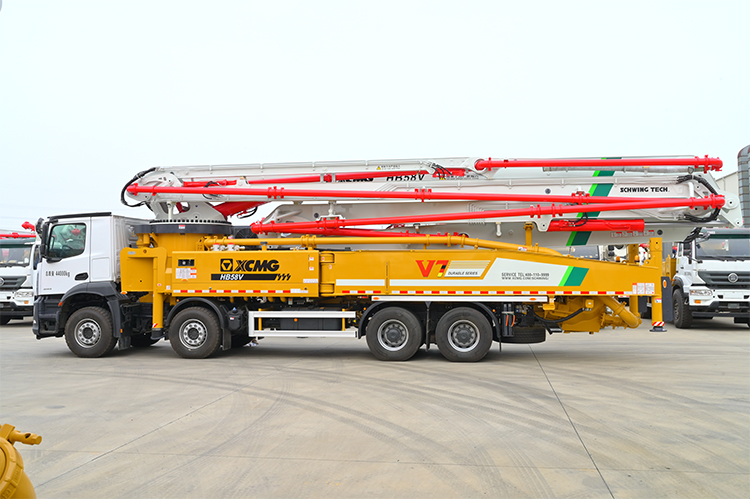

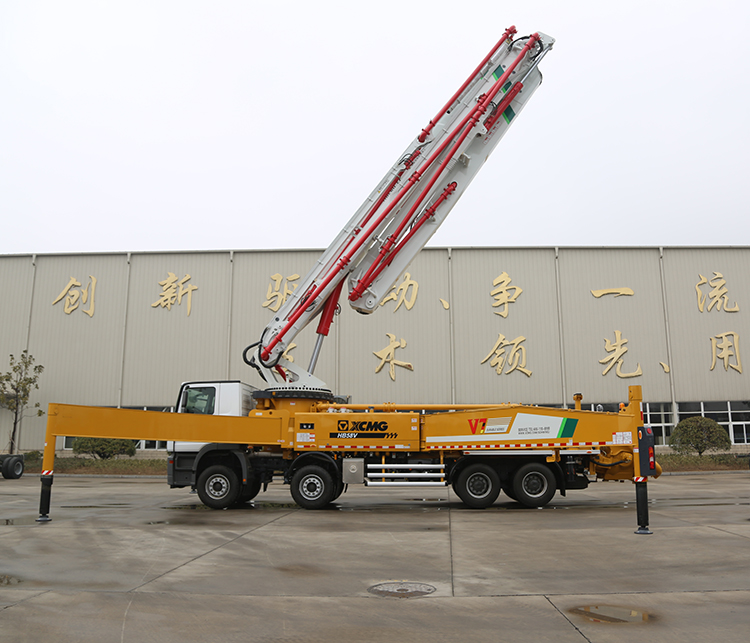

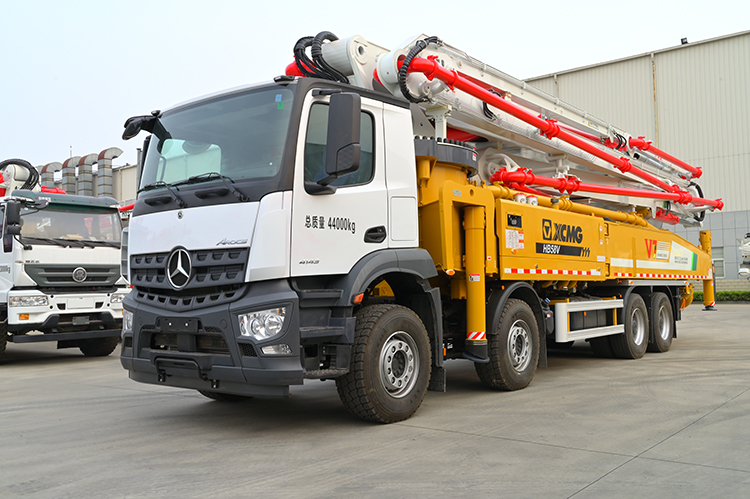

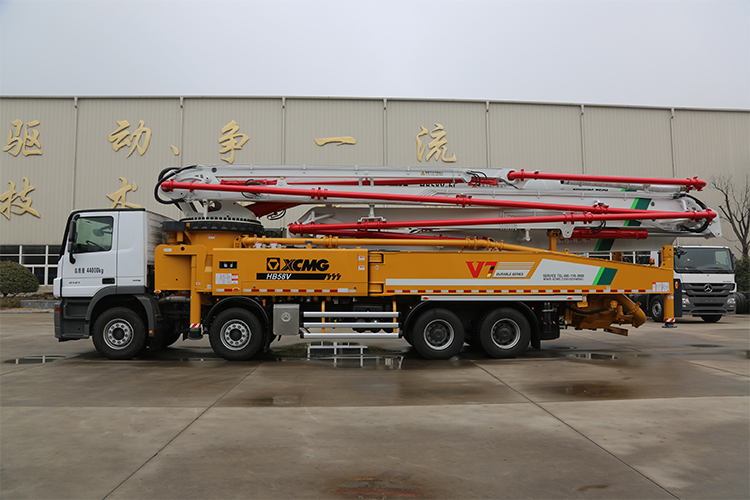

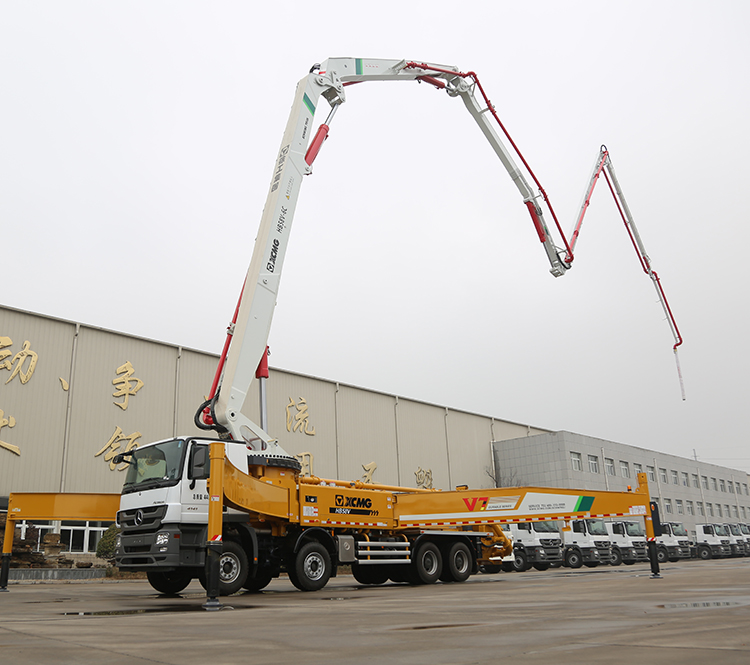

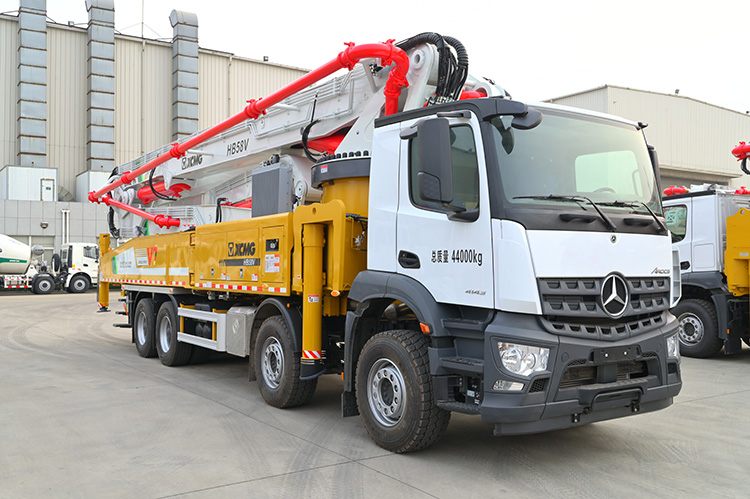

The HB58V concrete pump truck is a new concrete pump
truck with Schwing series independently developed by XCMG. It is the world's
longest boom pump truck with four-axle curved outriggers.
In the design, the Benz chassis is adopted, following the
principle of "high starting point, high technology, high performance, high
reliability, and high quality", with curved outriggers, intelligent boom
damping technology, and full hydraulic reversing technology, The industry's
unique skirt valve pumping system and other product highlights.
Advantages and highlights:
1.Ultimately Safe Boom.
2.Lower Structure of High Rigidity.
3.Hydraulic System of Outstanding Performance.
4.Effectively reduce emissions with the reversing,
vulnerability of longer life.
5.The pumping system adopts electric control reversing,
reversing faster and the system impact smaller.
|
Category |
Item |
Unit |
HB58V |
|
|
Overall |
Outline
dimension |
mm |
14530×2530×4000 |
14360×2530×4000 |
|
Overall weight |
kg |
44000 |
||
|
Brand |
/ |
Benz |
||
|
Chassis |
model |
/ |
AROCS4143 |
|
|
Wheelbase |
mm |
2050+4300+1350 |
2300+4050+1350 |
|
|
Max.power |
kW |
300 |
||
|
Engine |
Emission |
/ |
China V |
|
|
Theoretical |
m³/h |
180 |
||
|
Pumping system |
Concrete pumping
pressure |
Mpa |
10.2 |
|
|
Theoretical pumping times |
Times/min |
22～24 |
||
|
Delivery
cylinder diameter × stroke |
mm |
φ260×2200 |
||
|
Placing boom |
Reach height |
m |
57.5 |
|
|
Reach depth |
m |
40.5 |
||
|
Slewing radius |
m |
52.5 |
||
|
Slewing angle |
° |
±270 |
||
|
Others |
Transfer tuble |
/ |
Rock valve/S valve |
|
