XCMG Official 37m Truck Mounted Concrete Pumping Machine HB37V Price
Summary
- Dimension(L*W*H):9900×2525×3850MM
- Weight:23000KG
- Power(W):225000
- Model Number:HB37V
- Brand Name:XCMG
- Place of Origin:JiangSu,China
- Certification: ISO/CE
Specifications
- Weight:23000.000kg
- Condition:New
- Moving Type:Wheel
- Color:Color
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

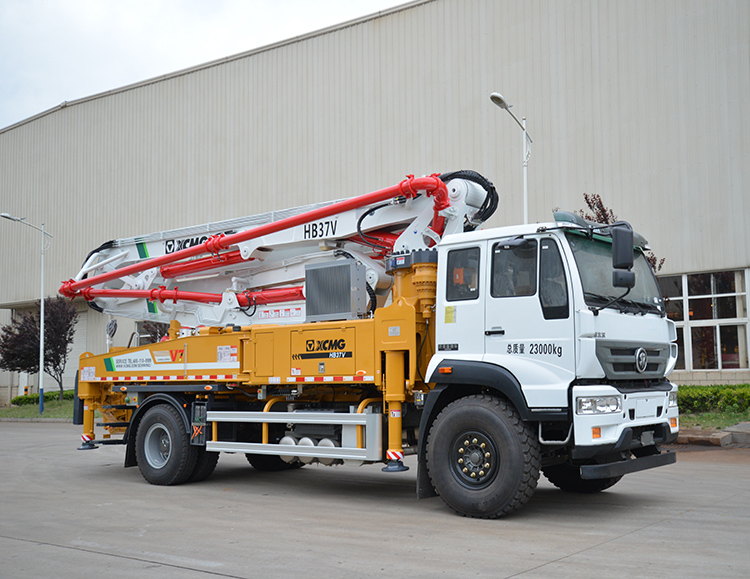

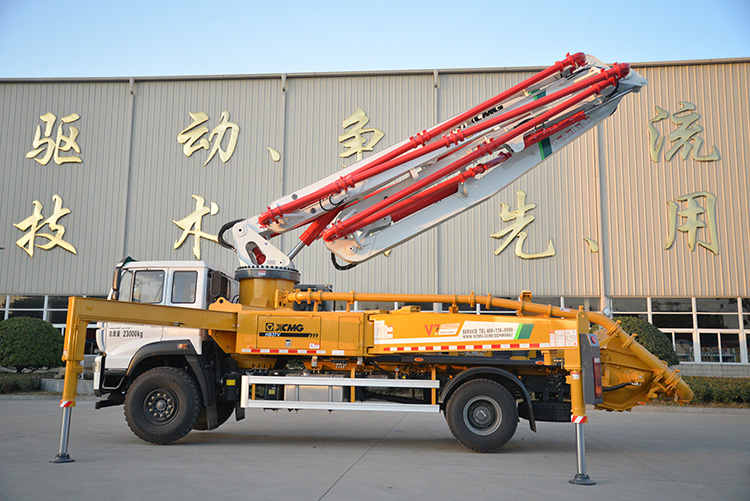

XCMG Official 37m Truck Mounted Concrete Pumping Machine HB37V.
1.Ultimately Safe Boom
All-around technical methods are used to make boom safer and more reliable.
A new generation of micro-control technology is used to make boom operation steadier and more accurate.
2. Lower Structurre of High Rigidity
On the basis of the design concept of high rigiditystructure, simulative calculation and testing offull-work-condition loading make chassis structuredeformation smaller and overall work stability.
Higher.
3.Hydraulic System of Outstanding Performance
MPS (micro shock) reversing buffering technology;The buffering process is steadier and more reliable, with smaller impact;The reversing time is shortened to be less than 0.1s and the efficiency is improved by more than 6%.SCHWING Germany’s hydraulic technology quintessence truly realizes fully-hydraulic reversing, in which self-adaption control in fully-hydraulic closed-loop is realized, with no need for any electrical components, more effective, steadier and zero-pollution.Ultra-low pressure loss hydraulic system, coordinated with efficient rock valve pumping system and power matching control system for oil-saving can help pumping system fully absorb engine power regardless of different concrete, without wasting a dip of fuel, and the average oil consumption is as low as 0.362L/m³.
|
CATEGORY |
ITEM |
UNIT |
HB37V |
|
Overall |
Outline dimension |
mm |
9900×2525×3850 |
|
Oerall weight |
kg |
23000 |
|
|
Brand |
-- |
重汽 Sinotruk |
|
|
Chassis |
Model |
-- |
ZZ5231N521GE1 |
|
Wheelbase |
mm |
5200 |
|
|
Max.power |
kW |
225 |
|
|
Engine |
Emission |
-- |
国V ChinaV |
|
Theoretical |
m³/h |
120/80 |
|
|
Pumping system |
Concrete pumping pressure |
MPa |
8.7/13 |
|
Theoretical pumping times |
次/min |
28~30/18~20 |
|
|
Delivery cylinder diameter ×stroke |
mm |
φ230×1600 |
|
|
Placing boom |
Reach height |
m |
36.5 |
|
Reach depth |
m |
24.9 |
|
|
Slewing radius |
m |
32.5 |
|
|
Slewing angle |
° |
360 |
|
|
Others |
ransfer tuble |
-- |
S阀 |
