XCMG Official HB37V 37m Small Concrete Pump Trucks for Sale
Summary
- Model Number:HB37V
- Brand Name:XCMG
- Place of Origin:Jiangsu,China
- Certification:CE/ISO9001
Specifications
- Weight:23000.000kg
- Condition:New
- Moving Type:Wheel
- Color:Red
- Theoretical:120/80m³/h
- Reach height:36.5m
- Reach depth:24.9m
- Transfer:S valve
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

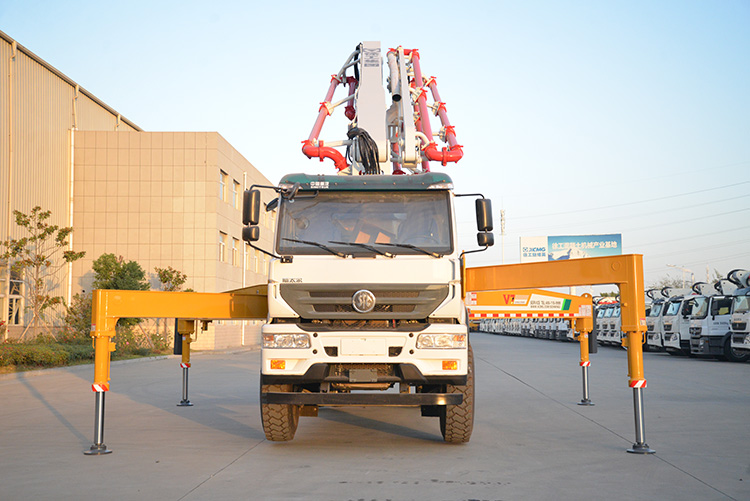

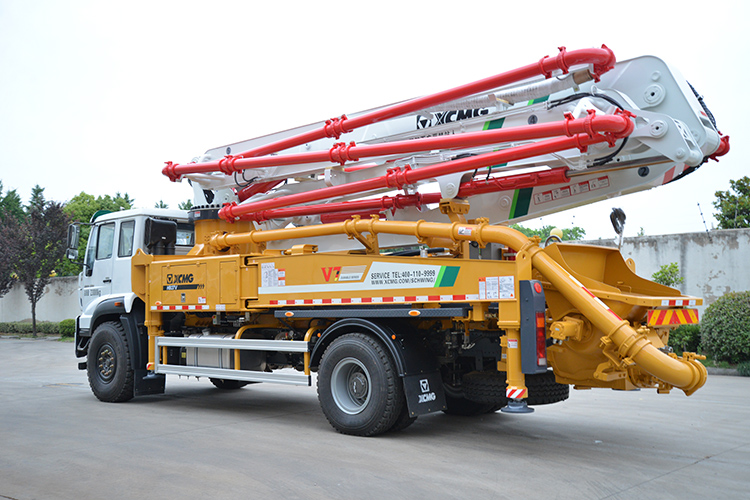

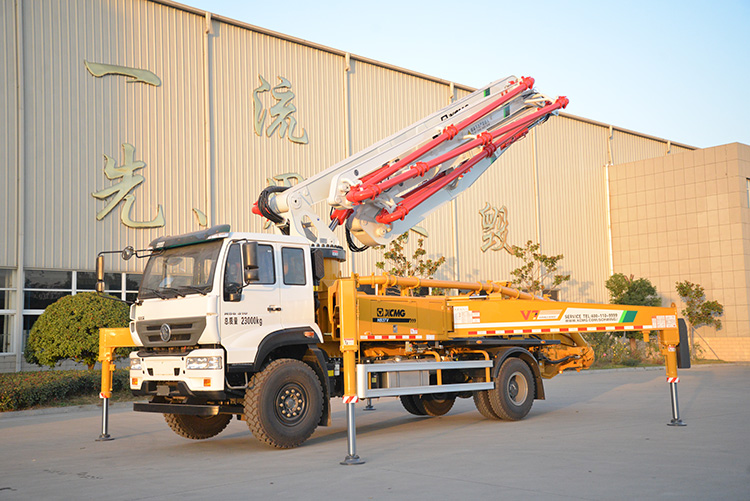

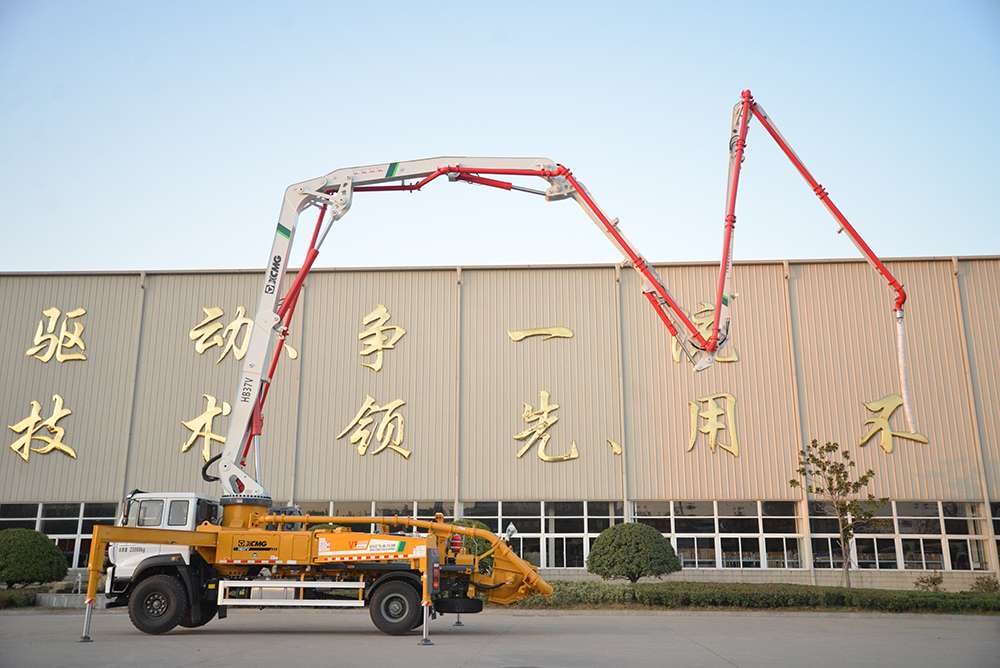

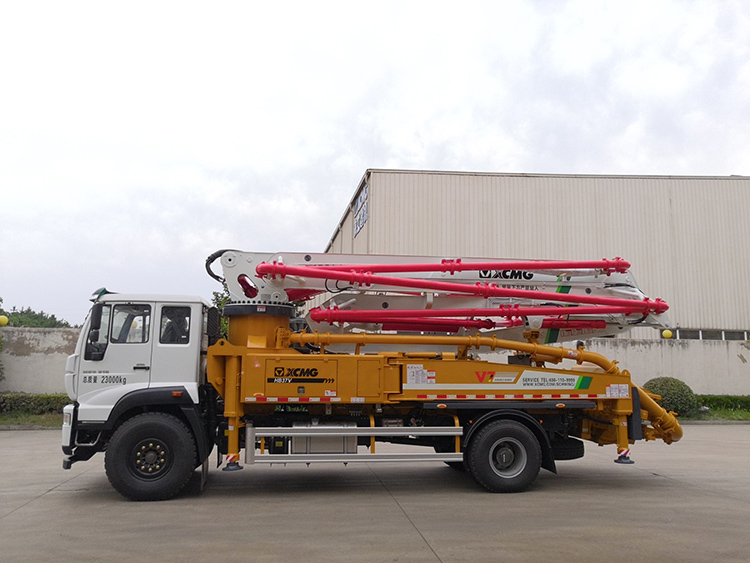

XCMG Official HB37V 37m Small Concrete Pump Trucks.
The XCMG HB37V concrete pump truck is equipped with more efficient skirt valve pump technology, more stable reversing buffer technology, more reliable full hydraulic reversing technology.
It adopts Sinotruk sitrak chassis, which complies with China 6 emission standard, featuring with powerful output, large torque, high efficiency, energy conservation and strong off-road performance.
Advantages and highlights:
1.Ultimately Safe Boom.
2. Lower Structure of High Rigidity.
3.Hydraulic System of Outstanding Performance.
4.Effectively reduce emissions with the reversing, vulnerability of longer life.
5.The pumping system adopts electric control reversing, reversing faster and the system impact smaller.
6.The actual pumping efficiency is more than 5% higher than the conventional hydraulic control reversing system.
|
Category |
Item |
Unit |
HB37V |
|
|
Overall |
Outline dimension |
mm |
10080×2525×3750 |
9900×2525×3750 |
|
Overall weight |
kg |
22870 |
23000 |
|
|
Chassis |
Brand |
/ |
Sinotruck Sitrak |
|
|
Model |
/ |
ZZ5237N521GF1/PAD752 |
ZZ5231N521GE1 |
|
|
Wheelbase |
mm |
5200 |
||
|
Max.power |
kW |
228 |
225 |
|
|
Emission standard |
/ |
China VI |
China V |
|
|
Pumping system |
Theoretical |
m³/h |
120/80 |
|
|
Concrete pumping pressure |
MPa |
8.7/13 |
||
|
Placing boom |
Reach height |
m |
36.5 |
|
|
Reach depth |
m |
24.9 |
||
|
Slewing radius |
m |
32.5 |
||
|
Others |
Transfer |
/ |
S valve |
|
