XCMG official 14m self-propelled scissor lift GTJZ1412 aerial working platform with electric and hydraulic drive system for sale
Summary
- Weight:3380kg
- Overall Dimension:2850*1250*200mm
- Table Size:2636*1120*1255mm
- Max Lifting Height:13.7m
- Rated Loading Capacity:230Kg
- Lift Drive / Actuation:Hydraulic
- Lift Mechanism:Scissor Lift
- Model Number:GTJZ1412
- Brand Name:XCMG
- Place of Origin:Jiangsu, China
- Certification:CE and KC
Specifications
- Weight:3380.000kg
- Condition:New
- Moving Type:Other
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

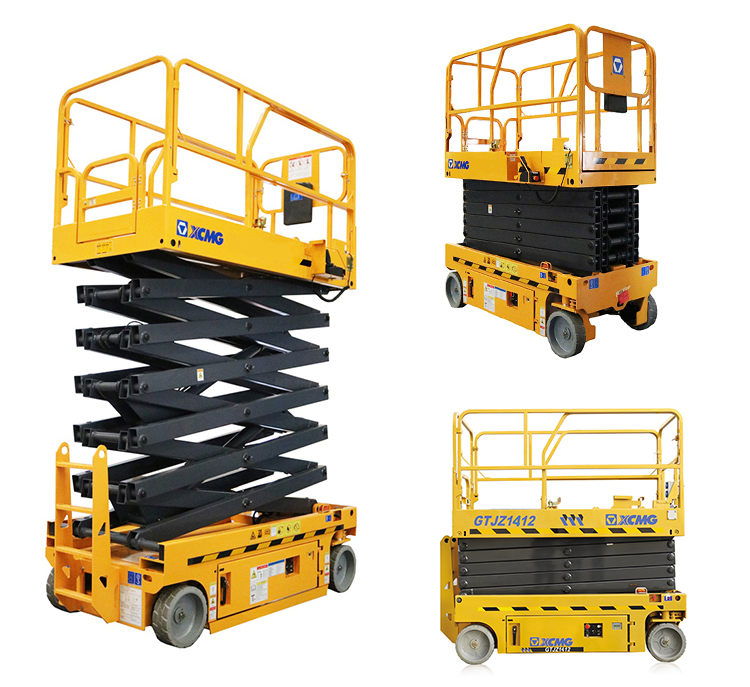

14m
self-propelled scissor lift aerial working platform with electric and hydraulic
drive system GTJZ1412.
The scissors aerial work platform which is the newly
developed series by XCMG can provide customers with a variety of
personalization options. The compact structure can be applied flexibly in a
narrow space; with the new electric drive system, the driving is more smooth,
without emissions more environmentally friendly; industry-leading automatic
pothole protection system, safe and reliable; more extensible platform
workspace. Shear can be used in the truck series construction and maintenance
of commercial buildings, warehouses, airports and other areas.
Performance Characteristics:
1.Convenient Transportation And Stable Operation
The telescoping sub-platform achieves large working space
and works with folding platform to realize easier transportation and
translocation. The industry-leading automatic pit protection system and the
widened wheel tread design enable your free operations even on rough ground.
2.Environmental Cons Truction And Convenient Service
Pure electric drive, zero release, low noise and more
environmental construction. Overall swing-type tray is convenient for service
and maintenance.
3.General And Modular Design
The modular design for the machine guarantees the
universality of parts, makes the customers’ repairs and maintenances easier,
and achieves more competitive cost.
|
Item |
Unit |
Parameter |
||
|
Dimension parameters |
Dimension of machine |
Length |
mm |
2850 |
|
Width |
mm |
1250 |
||
|
Height |
mm |
2600 |
||
|
Wheelbase |
mm |
2240 |
||
|
Wheel track |
mm |
1123 |
||
|
Running parameters |
Maximum running speed at low altitude |
km/h |
≤3.2 |
|
|
Maximum running speed at high altitude |
km/h |
≤0.8 |
||
|
Minimum turning radius |
Inside |
m |
0 |
|
|
Outside |
m |
≤2.65 |
||
|
Minimum ground clearance |
mm |
100/20 |
||
|
(retraction/supporting of pothole protector) |
||||
|
Maximum gradeability |
％ |
≥25 |
||
|
Mass parameters |
Total mass of machine |
kg |
3380 |
|
|
Front shaft |
kg |
1670 |
||
|
Rear shaft |
kg |
1710 |
||
|
Battery |
Model |
T1275 |
||
|
Specification/capacity |
V/Ah |
4×12/300 |
||
|
Manufacturer |
Trojan |
|||
|
Tire |
Specification |
Markless solid rubber tire |
||
|
Size |
mm×mm |
381×127 |
||
|
Dimension of working platform |
Length |
mm |
2636 |
|
|
Width |
mm |
1120 |
||
|
Height |
mm |
1254 |
||
|
Centroid position of machine |
Horizontal distance to front shaft |
mm |
1127 |
|
|
Height of centroid |
mm |
720 |
||
|
Tilt warning angle |
Front/rear |
° |
3 |
|
|
Left/right |
° |
1.5 |
||
|
Rated load of working
platform |
kg |
230 |
||
|
Maximum working height |
m |
≥15.7 |
||
|
Maximum height of working
platform |
m |
≥13.7 |
||
|
Extension length of extension
platform |
m |
0.9 |
||
|
Rated load of extension
platform |
kg |
115 |
||
|
Minimum height of working
platform |
m |
≤1.47 |
||
|
Lifting speed of working
platform |
m/s |
0.15 - 0.17 |
||
|
Lowering speed of working
platform |
m/s |
0.17 - 0.2 |
||
