XCMG official 12m hydraulic drive self-propelled mobile scissor lift table GTJZ1212 aerial working platform for sale
Summary
- Weight:3140kg
- Overall Dimension:2485*1190*2600mm
- Table Size:2276*1120*1254mm
- Max Lifting Height:11.8m
- Rated Loading Capacity:320Kg
- Lift Drive / Actuation:Hydraulic
- Lift Mechanism:Scissor Lift
- Model Number:GTJZ1212
- Brand Name:XCMG
- Place of Origin:Jiangsu, China
- Certification:CE and KC
Specifications
- Weight:3140.000kg
- Condition:New
- Moving Type:Other
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

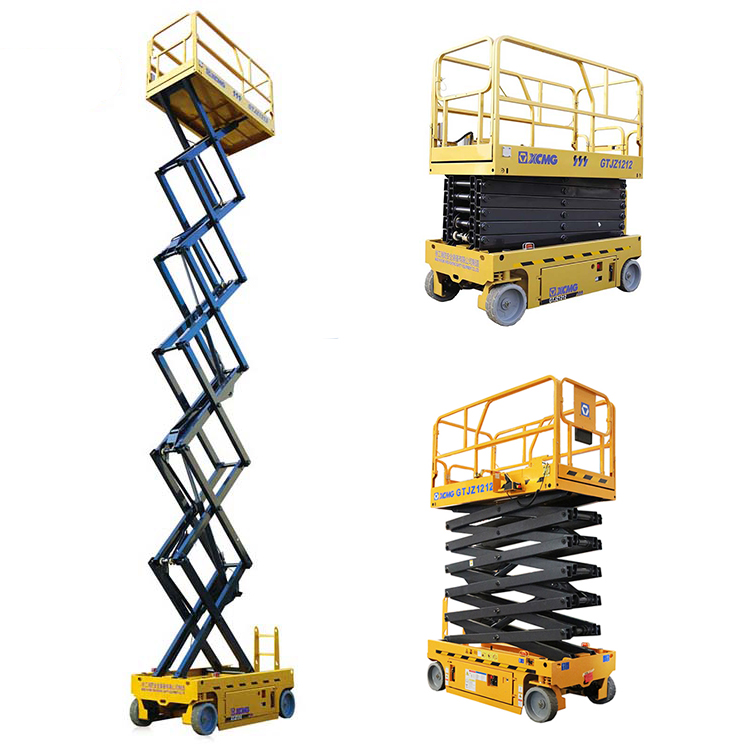

12m hydraulic drive self-propelled
mobile scissor lift table aerial working platform GTJZ1212.
The scissors aerial work platform which
is the newly developed series by XCMG can provide customers with a variety of
personalization options. The compact structure can be applied flexibly in a
narrow space; with the new electric drive system, the driving is more smooth,
without emissions more environmentally friendly; industry-leading automatic
pothole protection system, safe and reliable; more extensible platform
workspace. Shear can be used in the truck series construction and maintenance
of commercial buildings, warehouses, airports and other areas.
Performance Characteristics:
1.Convenient Transportation And Stable
Operation
The telescoping sub-platform achieves
large working space and works with folding platform to realize easier
transportation and translocation.The industry-leading automatic pit protection
system and the widened wheel tread design enable your free operations even on
rough ground.
2.Environmental Cons Truction And
Convenient Service
Pure electric drive, zero release, low
noise and more environmental construction. Overall swing-type tray is
convenient for service and maintenance.
3.General And Modular Design
The modular design for the machine
guarantees the universality of parts, makes the customers’ repairs and
maintenances easier, and achieves more competitive cost.
|
Item |
Unit |
Parameters |
|
Overall length |
mm |
2485 |
|
Overall width |
mm |
1190 |
|
Overall height |
mm |
2600 |
|
Maximum platform height |
m |
11.8 |
|
Size of platform |
mm |
2276×1120×1254 |
|
Platform extension length |
mm |
900 |
|
Minimum turning radius |
m |
0 |
|
Wheel base |
mm |
1871 |
|
Minimum ground clearance (pot hole protector
rising/falling) |
mm |
101/20 |
|
The total mass in driving state |
kg |
3150 |
|
Rated load |
kg |
320 |
|
Load of extension platform |
kg |
115 |
|
Lifting speed of working platform |
s |
61~71 |
|
Falling speed of working platform |
s |
43~58 |
|
Driving speed (high) |
km/h |
3.2 |
|
Driving speed (low) |
km/h |
0.8 |
|
Maximum driving platform height |
m |
11.8 |
|
Maximum gradeability |
25% |
|
|
Battery |
V/(Ah) |
4×12(300) |
|
Charger |
A |
30 |
|
Incline alarming angle |
1.5°
(both sides) |
|
|
3° (front
and back) |
