XCMG Official 8m Hydraulic Scissor Lift GTJZ0808 China Electric Aerial Working Platform price for sale
![](/app/topc/statics/images/close.png)
![XCMG Official 8m Hydraulic Scissor Lift GTJZ0808 China Electric Aerial Working Platform price for sale](http://www.machmall.com/images/store/357636/item/GTJZ0808-1.jpg)
![](/app/topc/statics/images/close.png)
Summary
- Weight:2170kg
- Overall Dimension:2485*810*2345mm
- Table Size:2276*810*1254mm
- Max Lifting Height:8m
- Min Lifting Height:2.3m
- Rated Loading Capacity:230kg
- Lift Drive / Actuation:Hydraulic
- Lift Mechanism:Scissor Lift
- Model Number:GTJZ0808
- Brand Name:XCMG
- Place of Origin:Jiangsu, China
- Certification:KC, CE
Specifications
- weight:2170.000kg
- Condition:New
- Moving Type:Other
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

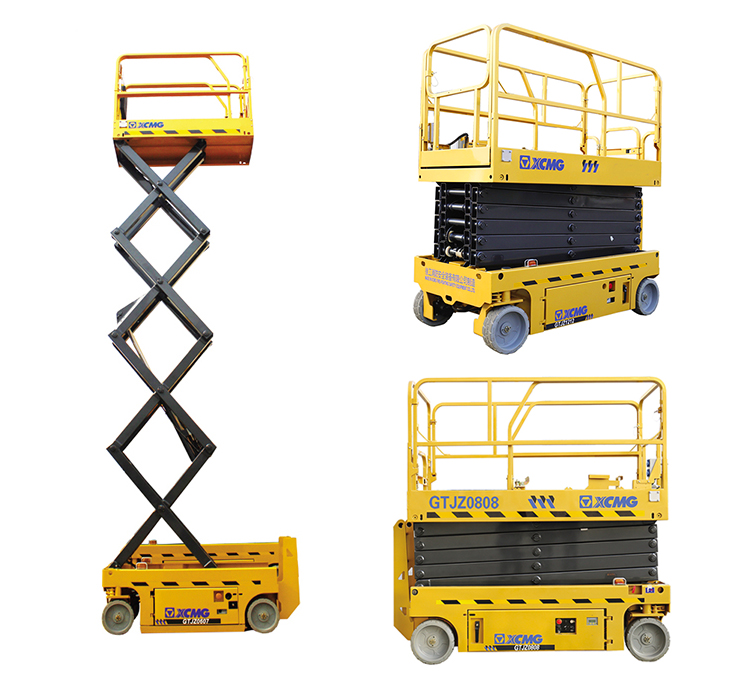

8m Hydraulic Scissor Lift Aerial Work
Platform GTJZ0808.
The scissors aerial work platform which
is the newly developed series by XCMG can provide customers with a variety of
personalization options. The compact structure can be applied flexibly in a
narrow space; with the new electric drive system, the driving is more smooth,
without emissions more environmentally friendly; industry-leading automatic
pothole protection system, safe and reliable; more extensible platform
workspace. Shear can be used in the truck series construction and maintenance
of commercial buildings, warehouses, airports and other areas.
Advantages and highlights:
1.Scissor-type Boom Assembly
The boom assembly mainly consists of four sets of scissor-type boom. This model
is equipped with narrow-type boom with local reinforcement and good
reliability.
2.Electrical System
The electrical system adopts CAN bus control technology; the chassis is fitted
with controller and the platform is equipped with operating handle. The chassis
communicates with the platform controller through CAN bus to control the
movement of the platform.
The electrical system could realize the following movements: Left/right turn of
platform, traveling on forward and backward directions, control of high/low
traveling speed and rising/lowering movement of platform.
3.Hydraulic System
The hydraulic system is driven with power unit. The power is supplied from the
storage battery to the battery pump which drives the hydraulic system directly.
The hydraulic system adopts elector-hydraulic proportional control technology,
which could realize stable movement of platform.
The lifting cylinder is equipped with hydraulic lock to maintain the work
platform reliably in the case that the hydraulic hose is broken. The lifting
cylinder is equipped with emergency lowering valve which may lower the platform
at stable speed in cases of unexpected faults and power failure to ensure the
personal safety.
Items | Parameters | ||||
Dimensional parameters | Overall dimensions | Length | mm | 2485 | |
Width | mm | 810 | |||
Height (with platform folded) | mm | 2345 (1965) | |||
Wheel base | mm | 1871 | |||
Wheel track | mm | 683 | |||
Traveling parameters | Maximum traveling speed with platform not fully extended | km/h | ≤3.5 | ||
Maximum traveling speed with platform fully extended | km/h | ≤0.8 | |||
Minimum turning radius | Outside | m | 0 | ||
Inside | m | 2.3 | |||
Minimum ground clearance | mm | 100/20 | |||
(with pit protector withdrawn/extended) | |||||
Maximum gradeability | % | ≥25 | |||
Mass parameters | Total weight | kg | 2170 | ||
Front axle | kg | 1070 | |||
Rear axle | kg | 1100 | |||
Batter | Model | T105 | |||
Specification/ capacity | V/Ah | 4×6/225 | |||
Manufacturer | Trojan | ||||
Tire | Specification | Traceless solid rubber tire | |||
Dimensions | mm | 381×127 | |||
Dimensions of work platform | Length | mm | 2276 | ||
Width | mm | 810 | |||
Height | mm | 1254 | |||
Position of mass center of complete platform | Horizontal distance to front axle | mm | 947 | ||
Height of center of mass | mm | 435 | |||
Tilting warning angle | Lateral | ° | 3 | ||
Transverse | ° | 1.5 | |||
Rated load of work platform | kg | 230 | |||
Maximum working height | m | ≥10 | |||
Maximum height of work platform | m | ≥8 | |||
Extension length of extended platform | m | 0.9 | |||
Rated load of extended platform | kg | 115 | |||
Minimum height of work platform | m | ≤1.2 | |||
Lifting speed of work platform | m/s | 0.2-0.24 | |||
Lowering speed of work platform | m/s | 0.17-0.2 |
