XCMG official 7m height electric mobile scissor lift GTJZ0607 Aerial Work Platform with factory price for sale
Summary
- Weight:1490kg
- Overall Dimension:1882*760*1771mm
- Table Size:1665*740*1185mm
- Max Lifting Height:7.8m
- Min Lifting Height:1.7m
- Rated Loading Capacity:230Kg
- Power:3kw
- Lift Drive / Actuation:Hydraulic
- Lift Mechanism:Scissor Lift
- Model Number:GTJZ0607
- Brand Name:XCMG
- Place of Origin:China
- Certification:CE/ISO
Specifications
- Weight:1490.000kg
- Condition:New
- Moving Type:Other
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

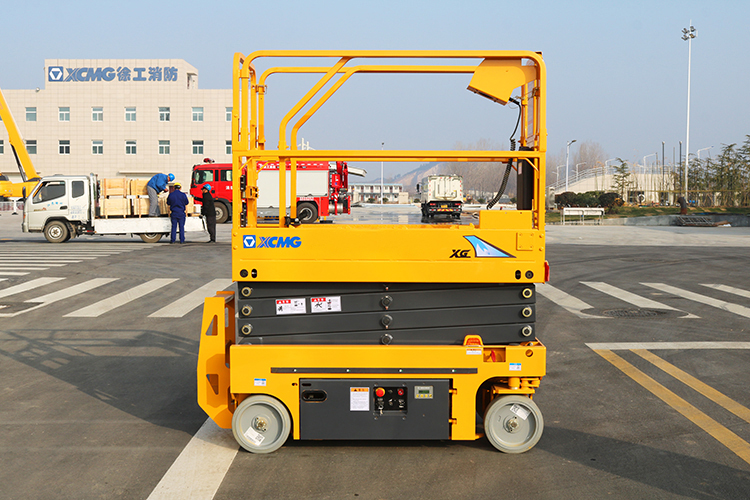

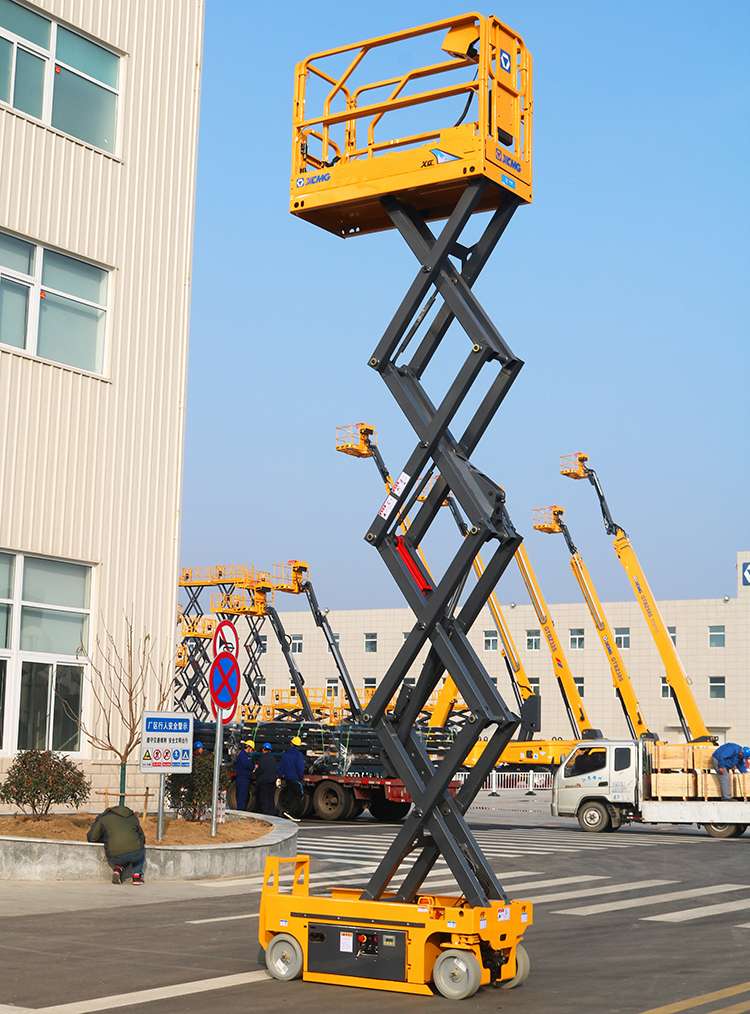

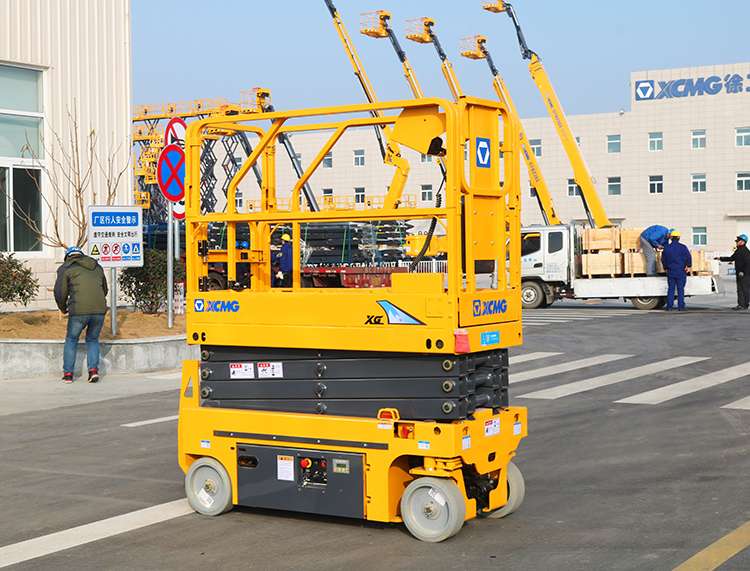

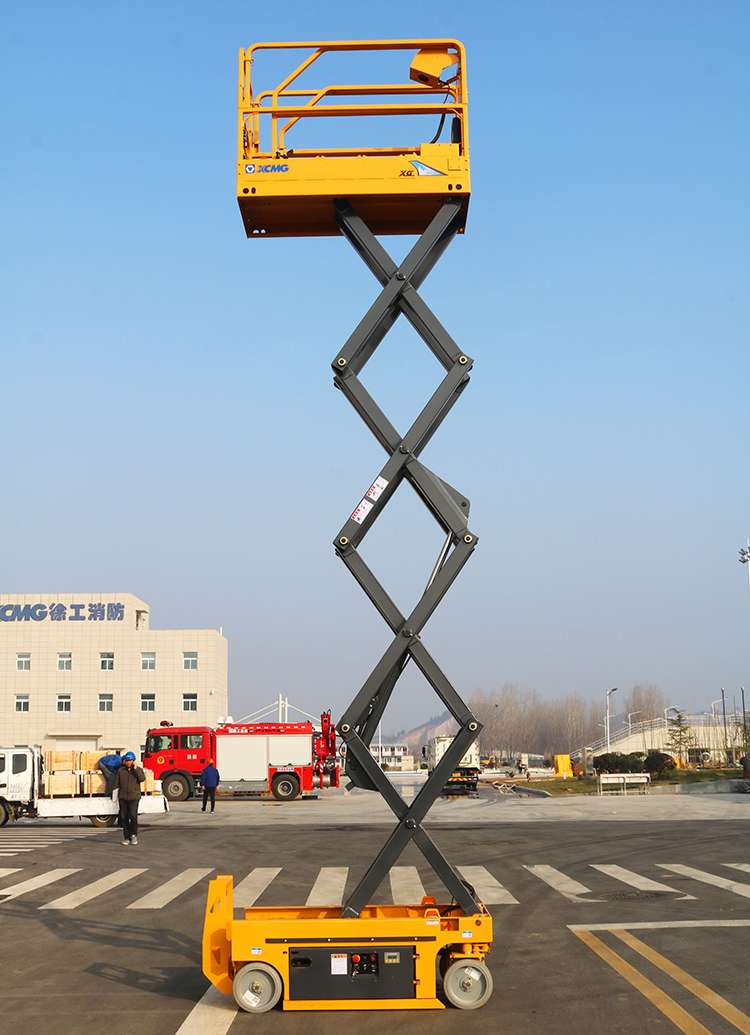

7m electric mobile scissor lift Aerial Work Platform GTJZ0607.
The scissors aerial work platform which is the newly developed series by XCMG can provide customers with a variety of personalization options. The compact structure can be applied flexibly in a narrow space; with the new electric drive system, the driving is more smooth, without emissions more environmentally friendly; industry-leading automatic pothole protection system, safe and reliable; more extensible platform workspace. Shear can be used in the truck series construction and maintenance of commercial buildings, warehouses, airports and other areas.
Advantages and highlights:
1.Low noise and zero release
The electric drive system of zero emission,low noise, high efficiency, and high energy-conservation is applied and the traceless tires are equipped to realize environmental-friendly and convenient constructions in enclosed environments, including office buildings, hospitals, and schools.
2.Meeting individual demands
Perfect safety protection,independently-designed control system and abundant matching combinations may fully meet the customized demands of customer.
3.Compact and flexible operation
The narrow design enables the vehicle to pass through single gateway with ease and the unique “zero inner turning radius” works with folding platform to realize easier transportation and translocation and flexible application in narrow spaces. The 25% gradeability makes the driving of vehicle easier.
|
Item |
Unit |
Parameters |
|
a Overall Length |
mm |
1882 |
|
b Overall Width |
mm |
760 |
|
c Overall Height (Guardrail folding) |
mm |
1771 |
|
d Wheel Base |
mm |
1360 |
|
Maximum Working Height |
m |
7.8 |
|
Maximum Platform Height |
m |
5.8 |
|
Maximum Load Capacity |
kg |
230 |
|
Extension Platform Load |
kg |
115 |
|
Platform Size |
mm |
1655×740×1185 |
|
PlatformExtension Length |
mm |
900 |
|
Lifting Speed of Working Platform |
s |
16-24 |
|
Falling Speed of Working Platform |
s |
20-28 |
|
Total Weight |
kg |
1490 |
|
Travel Speed (High Speed) |
km/h |
4.0 |
|
Travel Speed (low Speed) |
km/h |
0.8 |
|
Max. Travel Platform Height |
m |
5.8 |
|
Minimum Turning Radius |
m |
0 |
|
Minimum Ground Clearance (Pot Hole Protector
Rises/Falls) |
mm |
60/20 |
|
Maximum Grade Ability |
% |
25 |
|
Tire Specification |
_ |
Traceless
solid 30.5cm×10.0cm |
|
Battery |
V/(Ah) |
4×6(225) |
|
Charger |
A |
30 |
|
Warning Angle of Inclination |
° |
1.5
(Both sides) |
|
° |
3(Front or
Rear) |
