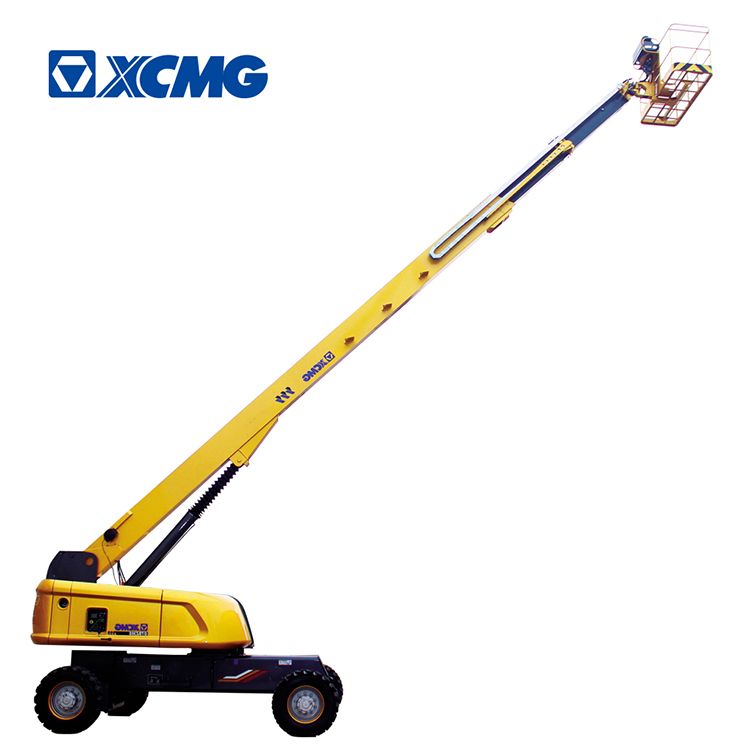

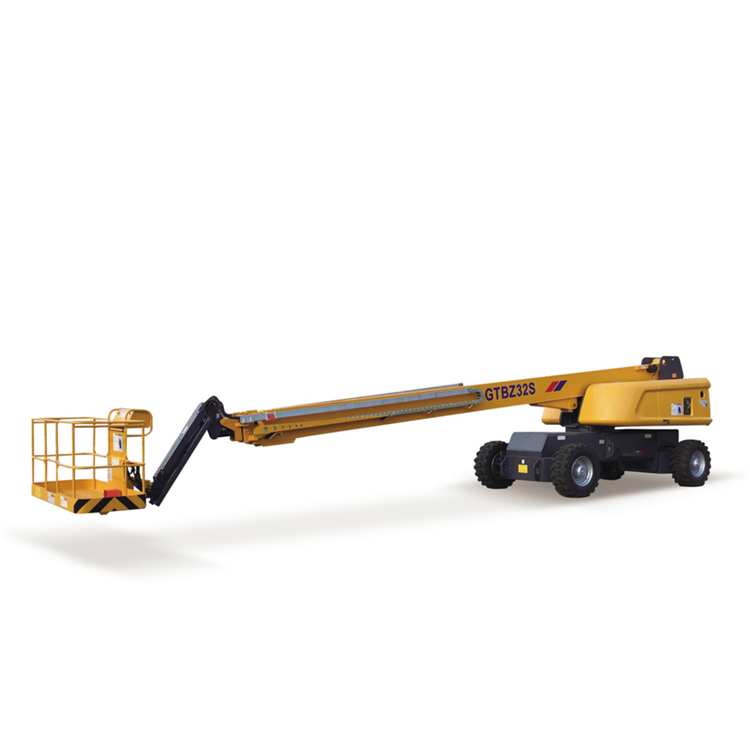

XCMG official manufacturer 32m china hydraulic telescopic boom lift equipment GTBZ32S for sale
.jpg)
Summary
- Weight:7980kg
- Overall Dimension:14300*2490*3070mm
- Table Size:2400*900mm
- Max Lifting Height:33.9m
- Rated Loading Capacity:230kg(unlimited)/340kg(limited)
- Power:55.5kw/2400r/min
- Lift Drive / Actuation:Hydraulic
- Lift Mechanism:Telescoping Lift
- Model Number:GTBZ32S
- Brand Name:XCMG
- Place of Origin:Jiangsu, China
- Certification:ISO
Specifications
- Weight:7980.000kg
- Condition:New
- Moving Type:Other
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

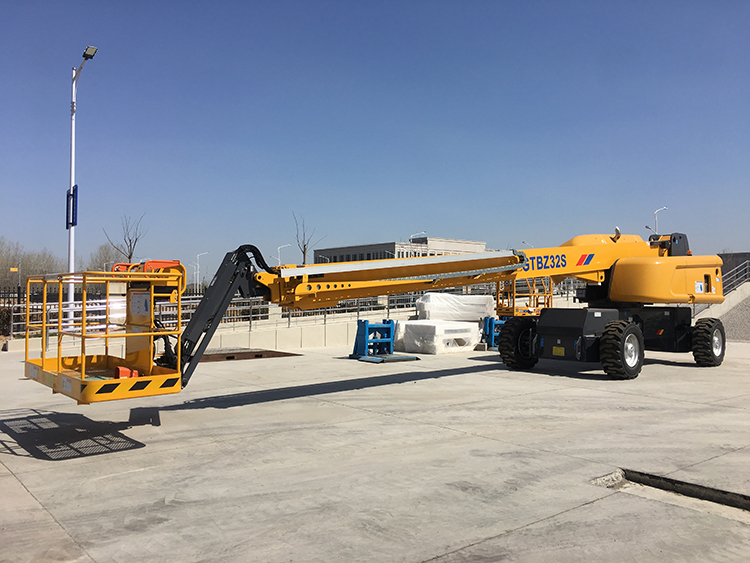

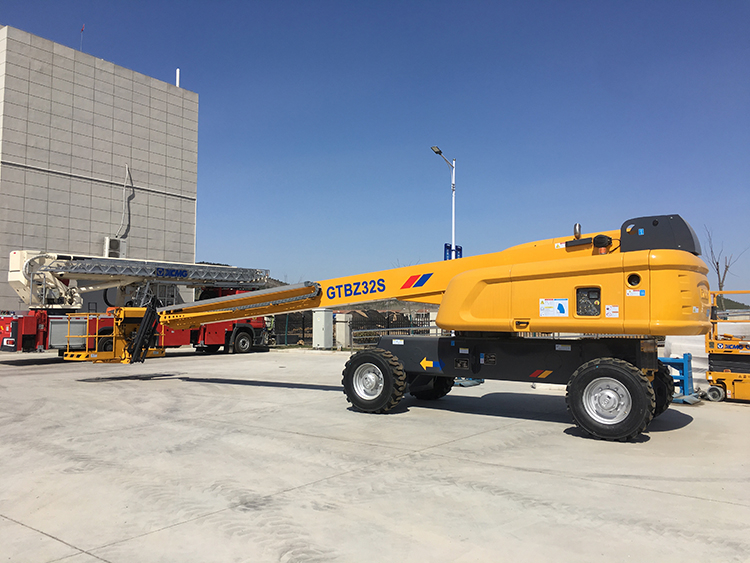

32m china
hydraulic telescopic boom lift equipment GTBZ32S.
It is a straight boom aerial work platform with the
widest scope of application at the same elevation. It is featured by: the
widest scope of application among the products operating under the same
elevation to enhance the ability of operation; the strongest capacity of
loading within the industry to satisfy the user’s demands on heavy load; and
the excellent capacity of climbing drive to adapt itself to all kinds of

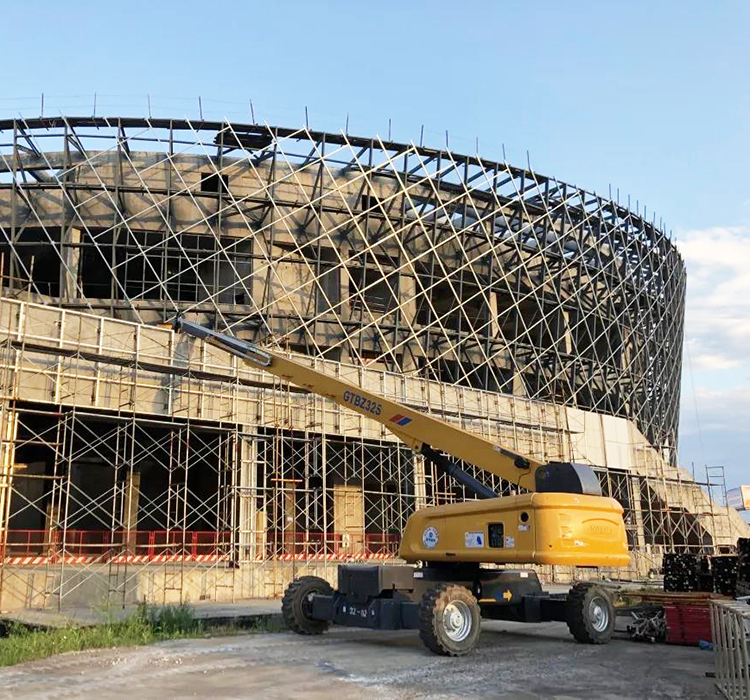

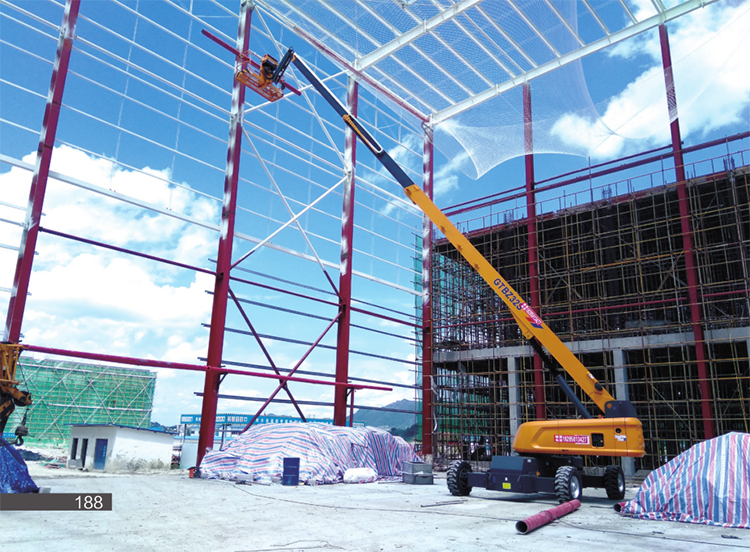

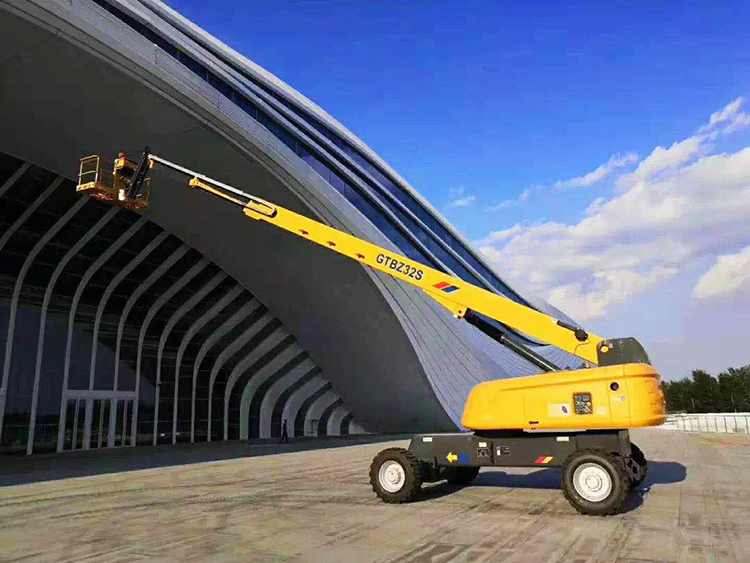

complicated road conditions. The machine may be widely used for building
operations, bridge & equipment maintenance, shipbuilding, petrochemical
engineering and other related industries.
1. Super-strong Capacity of Climbing
Drive
The electronic steering and wide foam types both
attribute to an excellent capacity of climbing drive, thus adapting itself to
all kinds of complicated road conditions.
2. Strongest Capacity of Loading Within
the Industry
The maximum load capacity of 30&32 meters is
480kg&340kg respectively ranks the first within the industry, thus
satisfying the user’s demands on heavy load.
3. Excellent Working Range
The double-load
operating-curve control technologies realizes a real-time monitoring over
loads, thus producing a strong capacity of operation, as well as a widest
working range at the same elevation.
|
Project |
Unit |
Parameters |
|
a Full length of machine |
mm |
14300 |
|
b Full width of machine (shaft retraction /
shaft extension) |
mm |
2490/3800 |
|
c Full height of machine |
mm |
3070 |
|
d Wheelbase |
mm |
3800 |
|
Maximum operation height |
m |
33.9 |
|
Maximum platform height |
m |
32.2 |
|
Maximum operation margin |
m |
24.6 |
|
Maximum bearing weight |
kg |
230
(unlimited) / 340 (limited) |
|
Boom variable amplitude range |
° |
-6~+75 |
|
Rotary table rotation angle |
° |
360° |
|
Maximum tail pendulum (shaft retraction /
shaft extension) |
mm |
2085/1430 |
|
Platform size |
mm |
2400×900 |
|
Platform rotation angle |
° |
180 |
|
Total weight |
kg |
18400 |
|
Maximum driving speed |
km/h |
5 |
|
Minimum turning radius |
m |
8.2 / 10.8
(two turns) |
|
(shaft retraction / shaft extension) |
5.8 / 6.8 (four turns) |
|
|
Minimum ground clearance |
mm |
260 |
|
Maximum climbing ability |
% |
45 |
|
Tire specification |
- |
385/65D22.5 |
|
Engine model |
- |
Perkins 1104D-44T |
|
Engine rated power |
kW/(r/min) |
55.5/2400 |
