XCMG 30m Telescoping boom Lifts GTBZ30S aerial work platform price
![](/app/topc/statics/images/close.png)
![XCMG 30m Telescoping boom Lifts GTBZ30S aerial work platform price](http://www.machmall.com/images/store/357636/item/GTBZ30S A1.jpg)
![](/app/topc/statics/images/close.png)
Summary
- Weight:18300kg
- Overall Dimension:13380*2490*3070 mm
- Table Size:2400* 900 mm
- Max Lifting Height:32.2m
- Min Lifting Height:260mm
- Rated Loading Capacity:340kg
- Power:55.5kw/2400r/min
- Lift Mechanism:Telescoping Lift
- Model Number:GTBZ30S
- Brand Name:XCMG
- Place of Origin:Jiangsu, China
- Certification:CE/ISO
Specifications
- weight:18300.000kg
- Condition:New
- Moving Type:Other
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

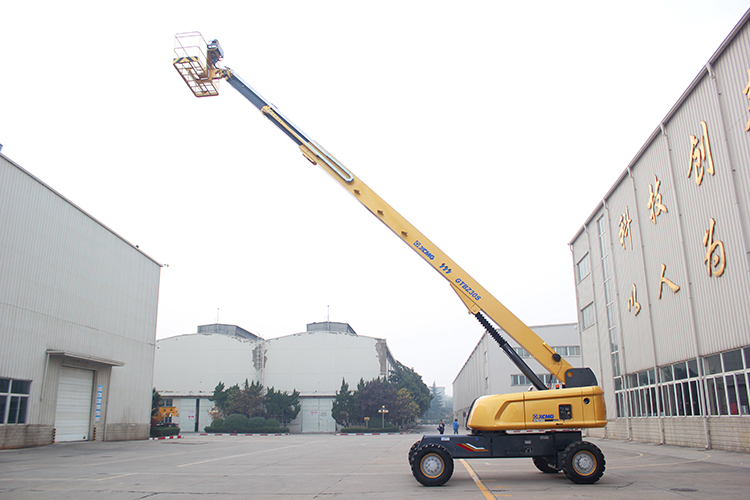

Telescoping
Lift aerial work platform GTBZ30S.
It
is a straight boom aerial work platform with the widest scope of application at
the same elevation. It is featured by: the widest scope of application among
the products operating under the same elevation to enhance the ability of
operation; the strongest capacity of loading within the industry to satisfy the
user’s demands on heavy load; and the excellent capacity of climbing drive to
adapt itself to all kinds of complicated road conditions. The machine may be
widely used for building operations, bridge & equipment maintenance,
shipbuilding, petrochemical engineering and other related industries.
Performance
Characteristics:
1.
Super-strong Capacity of Climbing Drive
The
electronic steering and wide foam tyres both attribute to an excellent capacity
of climbing drive, thus adapting itself to all kinds of complicated road
conditions.
2.
Strongest Capacity Of Loading Within The Industry
The
maximum load capacity of 30&32 meters is 480kg&340kg respectively ranks
the first within the industry, thus satisfying the user’s demands on heavy
load.
3.
Excellent Working Range
The
double-load operating-curve control technologies realizes a real-time
monitoring over loads, thus producing a strong capacity of operation, as well
as a widest working range at the same elevation.
Project |
Unit |
Parameters |
a Full length of machine |
mm |
13380 |
b Full width of machine (shaft retraction / shaft
extension) |
mm |
2490/3800 |
c Full height of machine |
mm |
3070 |
d Wheelbase |
mm |
3800 |
Maximum operation height |
m |
32.2 |
Maximum platform height |
m |
30.5 |
Maximum operation margin |
m |
23.1 |
Maximum bearing weight |
kg |
340 (unlimited) / 480 (limited) |
Boom variable amplitude range |
° |
-11~+75 |
Rotary table rotation angle |
° |
360° |
Maximum tail pendulum (shaft retraction / shaft extension) |
mm |
2085/1430 |
Platform size |
mm |
2400×900 |
Platform rotation angle |
° |
180 |
Total weight |
kg |
18300 |
Maximum driving speed |
km/h |
5 |
Minimum turning radius |
m |
8.2 / 10.8 (two turns) |
(shaft retraction / shaft extension) |
5.8 / 6.8 (four turns) |
|
Minimum ground clearance |
mm |
260 |
Maximum climbing ability |
% |
45 |
Tire specification |
- |
385/65D22.5 |
Engine model |
- |
Perkins 1104D-44T |
Engine rated power |
kW/(r/min) |
55.5/2400 |
