XCMG official manufacturer 26m self-propelled hydraulic telescopic boom lift GTBZ26S aerial vertical work platform for sale
![](/app/topc/statics/images/close.png)
![XCMG official manufacturer 26m self-propelled hydraulic telescopic boom lift GTBZ26S aerial vertical work platform for sale](/images/store/357636/item/a GTBZ26S_1.jpg)
![](/app/topc/statics/images/close.png)
Summary
- Weight:16600kg
- Overall Dimension:12100*2490*3050mm
- Table Size:2400*1800*800mm
- Max Lifting Height:26m
- Rated Loading Capacity:340kg
- Power:53kw
- Lift Drive / Actuation:Hydraulic
- Lift Mechanism:Telescoping Lift
- Model Number:GTBZ26S
- Brand Name:XCMG
- Place of Origin:China
- Certification:CE ISO9001
Specifications
- weight:16597.000kg
- Condition:New
- Moving Type:Other
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
XCMG 26m self-propelled hydraulic telescopic
boom lift aerial vertical work platform GTBZ26S.
The straight boom aerial work platform at the elevation
of 26 meters developed by XCMG is self-equipped with a small-sized fly jib,
thus having a certain capacity in obstacle crossing, and being stretchable to
any inaccessible position; the double-load control system may automatically
adjust the operating radius as the loads may be, which will satisfy the

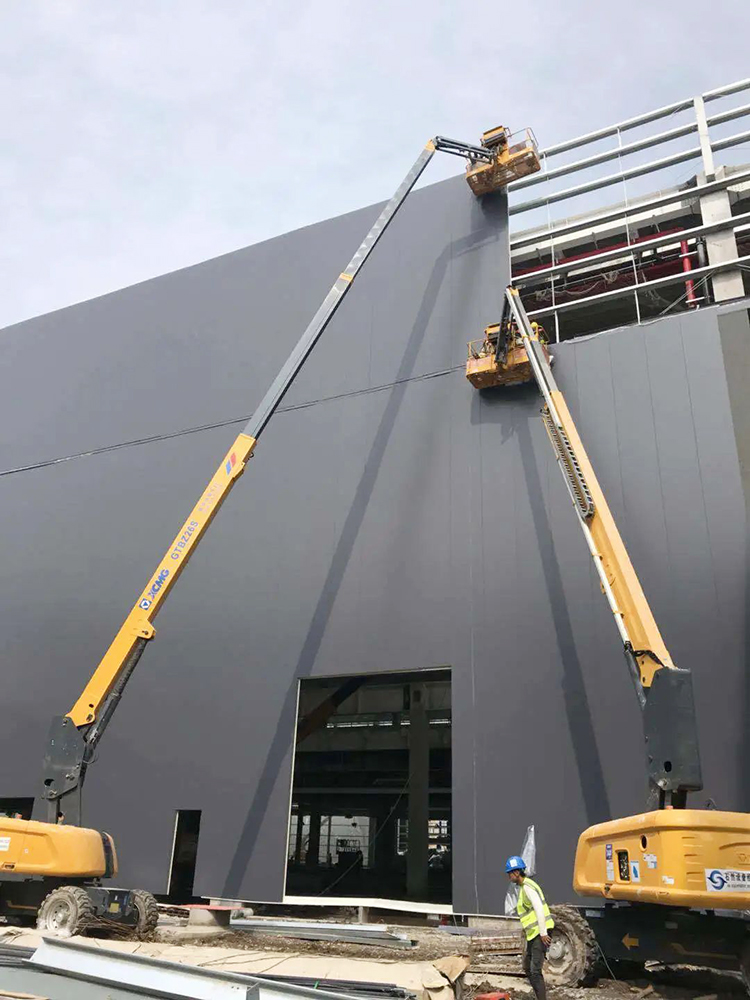

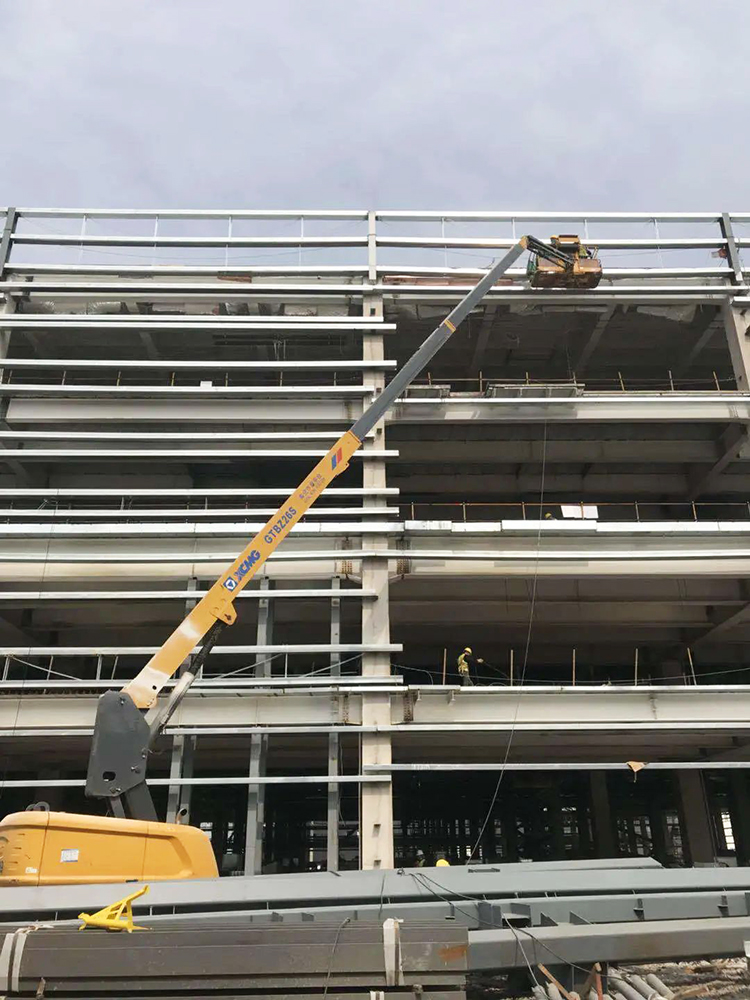

different demands of the users on different loads. It is an ideal choice for
users engaged in building construction, bridges, steel structures and
installation & construction both inside and outside the venue.
1.Ability in Fast Access to the Construction Area
The boom driven by a single cylinder and the
synchronously amplitude-varying and lifted stand column enhance the operating
speed, and realize the fast access to the construction area, which will improve
the construction efficiency.
2.Better Adaptability to Poor Construction Environment
The application of a lubrication-free shaft sleeve and
slider relieves the friction between each hinge point for connection and
inter-arm slider, thus resulting in better adaptability to welding and dusty
environment.
3.Advanced power system integration control
Electronic-controlled
engine is adopted as the dynamical system, oil pressure, water temperature,
rotating speed, sensor etc. are integrated by engine and controlled through
ECU, which is safe and reliable. Meanwhile, there is a fault diagnosis
interface as supporting for convenient of fault diagnosis and maintenance.
Description |
Unit |
Parameter value |
Overall Length |
mm |
12100 |
Overall Width |
mm |
2490 |
Overall Height |
mm |
3050 |
Wheel Base |
mm |
3000 |
Maximum Working Height |
m |
27.9 |
Maximum Platform Height |
m |
26.2 |
Maximum Working Range |
m |
23.2 |
Maximum Load Capacity |
kg |
340 |
Boom Luffing Range |
° |
-5~+75 |
Crank Arm Luffing Range |
° |
-65~+70 |
Rotation Angle of Rotating Platform |
° |
360 |
Maximum Tail Wagging |
mm |
1400 |
Platform Size |
mm |
2.4×0.9/1.8×0.8 |
Rotation Angle of Platform |
° |
180 |
Total Weight |
kg |
16600 |
Maximum Travel Speed |
km/h |
6.1 |
Minimum Turning Radius |
m |
6.7 |
Minimum Ground Clearance |
mm |
320 |
Maximum Grade Ability |
% |
45 |
Tire Specification |
- |
385/65-22.5 |
Engine Model |
- |
QSF2.8-71HP |
Rated Power of Engine |
kW/(r/min) |
53/(2200) |
