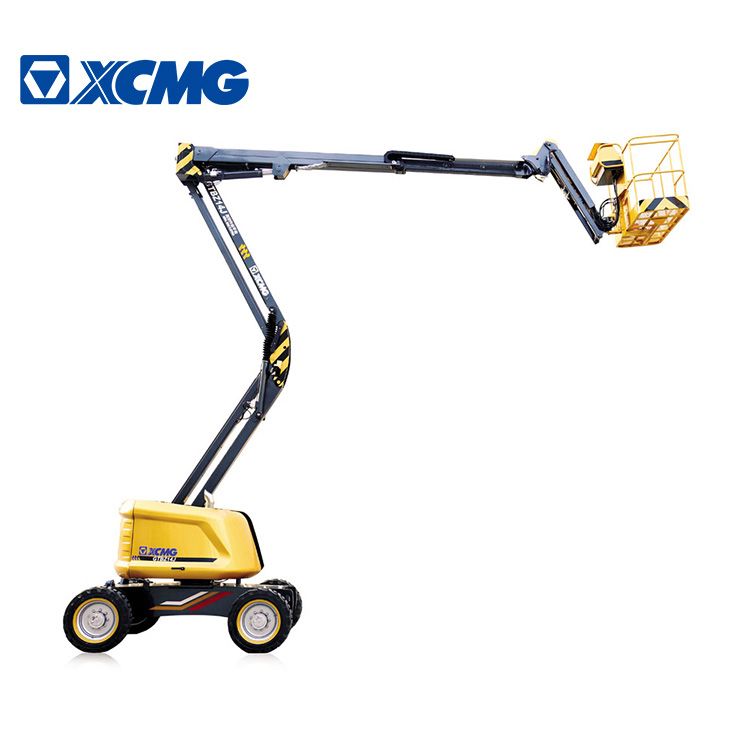

XCMG 15m articulated boom lift GTBZ14JD electric work platform price
![](/app/topc/statics/images/close.png)
![XCMG 15m articulated boom lift GTBZ14JD electric work platform price](/images/store/357636/item/GTBZ14JD A (3).jpg)
![](/app/topc/statics/images/close.png)
Summary
- Weight:6500 kg
- Overall Dimension:6.42*1.75*2 m
- Table Size:1.4*0.77*1.15 m
- Max Lifting Height:13.8m
- Min Lifting Height:500mm
- Rated Loading Capacity:230kg
- Power:420 Ah/48 V DC
- Lift Drive / Actuation:Hydraulic
- Lift Mechanism:Articulated Lift
- Model Number:GTBZ14JD
- Brand Name:XCMG
- Place of Origin:Jiangsu, China
- Certification:ISO/CE
Specifications
- weight:6500.000kg
- Condition:New
- Moving Type:Other
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

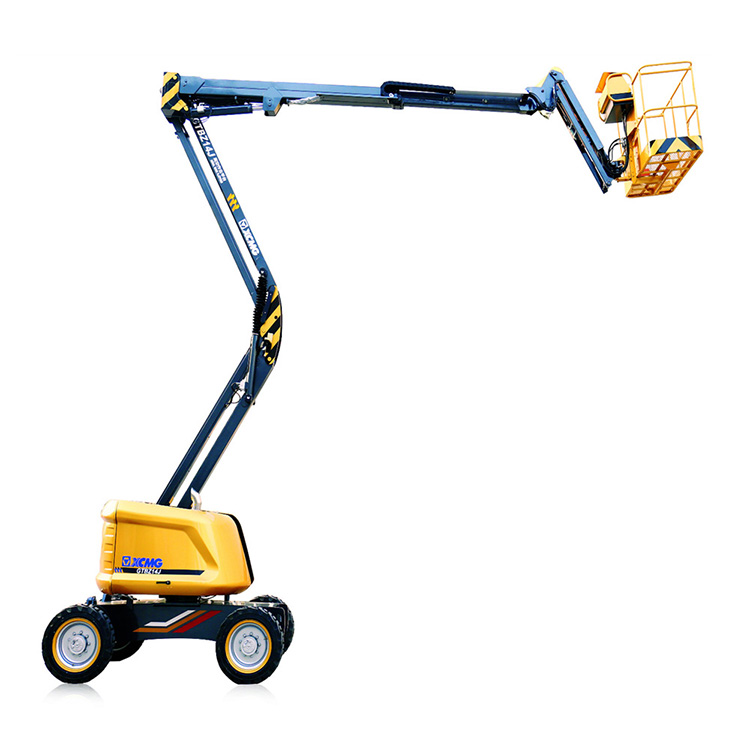

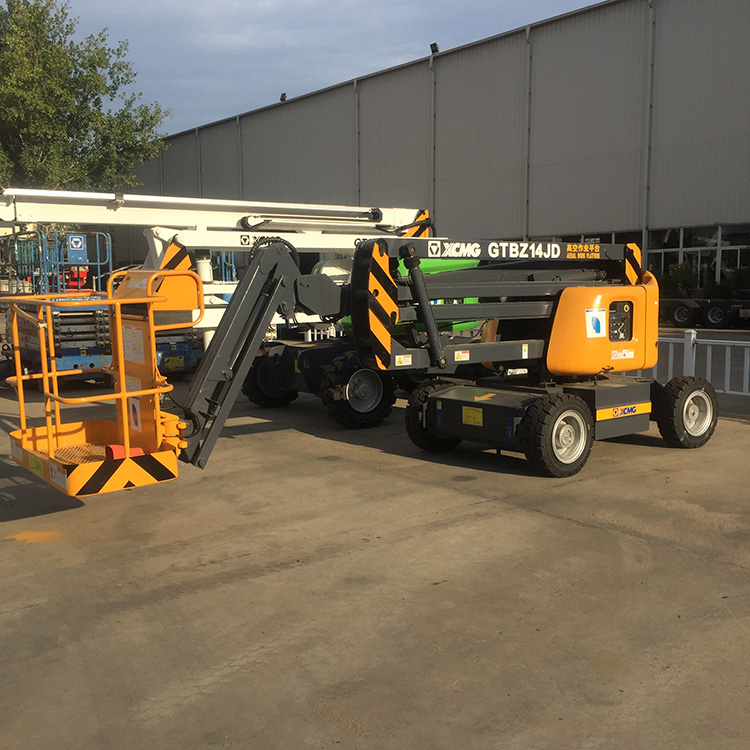

XCMG 15m GTBZ14JD articulated boom lift electric work platform.
(1) Leading
Technologies
The first electric-driven articulated boom product is leading the domestic
industry in terms of main working parameters. In addition, the AC
electric-driven traveling technology and the differential traveling control
technology are applied to realize more accurate power matching and more
flexible steering control.
(2) Higher Safety and Stability
The complete safety protection, the independently designed control system, and
high-efficiency worm and gear mechanism provide an all-new operation
experience.
(3) Flexible Operations
The "Crank-slider" mechanism is applied to realize small turning
radius and flexible steering. In addition, the 30% gradeability makes the
driving operations easier.
Description |
Unit |
Parameter value |
Overall length |
mm |
6420 |
Overall width |
mm |
1750 |
Overall Height |
mm |
2000 |
Overall dimension of work platform |
mm |
1400×770×1150 |
Maximum speed |
km/h |
5.2 |
Max. grade ability |
% |
≥30 |
Minimum outside turning radius |
m |
≤3.2 |
Ground clearance (center) |
m |
0.21 |
Wheel base |
m |
2 |
Total mass |
kg |
6500 |
Rated working height |
m |
15.5 |
Max. platform height |
m |
13.8 |
Max. working radius |
m |
8 |
Maximum span clearance height |
m |
7.03 |
Elevating range of No. 1 arm |
° |
0-60 |
Elevating range of No. 2 arm |
° |
-83 |
Elevating angle of crank arm |
° |
-140 |
Platform swing angle |
° |
180 |
Slewing angle |
360° discontinuous slewing |
|
Gyration radius of turntable |
m |
0.875 |
Maximum mass |
kg |
230 |
Max. tail swing |
m |
0 |
Control system |
12V DC proportional control |
|
Tire |
250-15 solid tire, 240/55 D17.5 optional, traceless tire can be selected |
|
Power source |
420 Ah/48 V DC |
|
Power unit |
4 kw/48 V DC |
|
Auxiliary power unit |
2.2 kw/24 V DC |
|
Walking motor |
3.3 kw/32 V AC |
