XCMG 350 HP Road Construction Grader Motor Heavy Duty Machine GR3505 With Cummins Engine Price
![](/app/topc/statics/images/close.png)
![XCMG 350 HP Road Construction Grader Motor Heavy Duty Machine GR3505 With Cummins Engine Price](http://www.machmall.com/images/store/357636/item/GR35050.jpg)
![](/app/topc/statics/images/close.png)
Specifications
- weight:30000.000kg
- Condition:New
- Moving Type:Other
- Rated power/speed:261/2100kW/rpm
- Traction force (f=0.75):165kN
- Min.turing radius:9.6m
- Moldboard width×height:4877X787mm
- Brand Name: XCMG:XCMG
- Place of Origin:Jiangsu, China
- Certification:CE/ISO9001
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
XCMG 350 HP Road Construction
Grader Motor Heavy Duty Machine GR3505 With Cummins Engine Price.

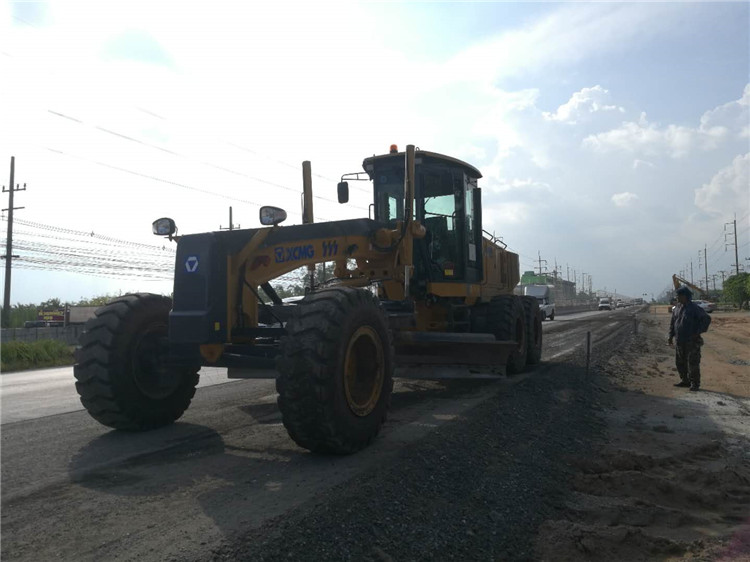

The motor grader is mainly
used for ground leveling, ditching, slope scraping, bulldozing, scarification,
snow removal for large areas such as highway, airports, farmlands etc. It is
the necessary construction machinery for national defense construction, mine
construction, urban and rural road construction and water conservancy
construction, farmland improvement and so on.
Advantages and Highlights:
1. The friction-disc worm
gearbox with overload protection is developed for the mining heavy load
condition, which can slip automatically and protect the safety of the machine
and personal.
2. Load sensing hydraulic
system is equipped with variable piston pump and load sensing multi-way valve,
in order to improve operation comfort, the pilot independent electrical
proportional valve, the main directional valve and relief valve are proportional
valves.
3. The service brake is a
double-loop hydraulic braking system.
4. For serious environment condition, to
analyze the matching analysis of the cooling system, conduct flow field
analysis to power compartment machine, reasonable layout of the cooling holes,
seal the clearance around the radiator, form the"chimney effect" of
air duct design, reduce the hot air vortex. At the same time, the optimized
hood design, spray anti-vertigo paint, beautiful shape.
5. The same time using ROPS&FOPS cabin to meet ISO
standard. Equipped with air conditioning, adjustable suspension seat, equipped
with wipers and defrosting vents to improve the comfort of operation.

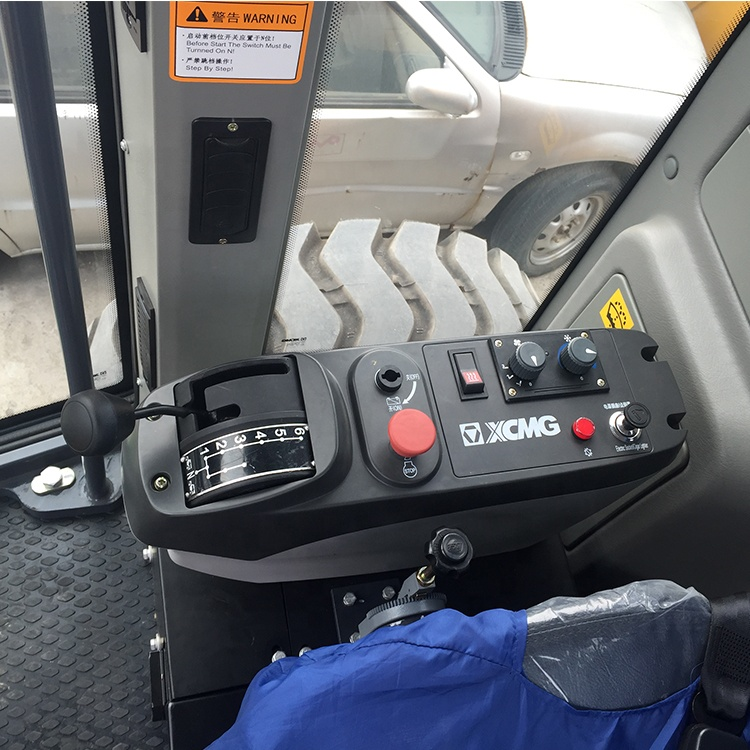

6. Spacious cabin design, three-dimensional air duct,
good driving experience. Double handle operation can be selected on the handle
operation, reducing the labor intensity by about 80%.
Item |
GR3505 |
||
Basic parameters |
Engine model |
QSM 11 |
|
Rated power/speed |
261kW/2100rpm |
||
Overall dimension (standard) |
11250X3180X3820 |
||
Total weight (standard) |
30000kg |
||
Tire specification |
23.5R25 |
||
Ground clearance (front axle) |
500mm |
||
Tread |
2580mm |
||
Space of front and rear axles |
7200mm |
||
Space of middle and rear wheels |
1960mm |
||
Performance parameters |
Forward velocity |
5、8.5、13、20、30、45km/h |
|
Reverse speed |
5、13、30km/h |
||
Tractive effort f=0.75 |
165kN |
||
Maximum gradeability |
25% |
||
Tire inflation pressure |
320kPa |
||
Working system pressure |
25MPa |
||
Working parameters |
Maximum steering angle of front wheel |
±45° |
|
Maximum slant angle of front wheel |
±17° |
||
Maximum oscillating angle of front axle |
±15° |
||
Maximum oscillating angle of equilibrium box |
±15° |
||
Maximum steering angle of frame |
±22° |
||
Minimum turning radius |
8.9m |
||
Scrape knife |
Maximum lift height |
450mm |
|
Maximum cutting depth |
500mm |
||
Maximum tilt angle |
65° |
||
Cutting angle |
28°—70° |
||
Angle of revolution |
360° |
||
Length & chord height |
4877x787mm |
||
Oil filling amount |
Coolant |
50L |
|
Fuel tank |
550L |
||
Engine |
37L |
||
Transmission |
38L |
||
Balancing box |
186L |
||
Drive axle |
106L |
||
Hydraulic oil |
310L |
