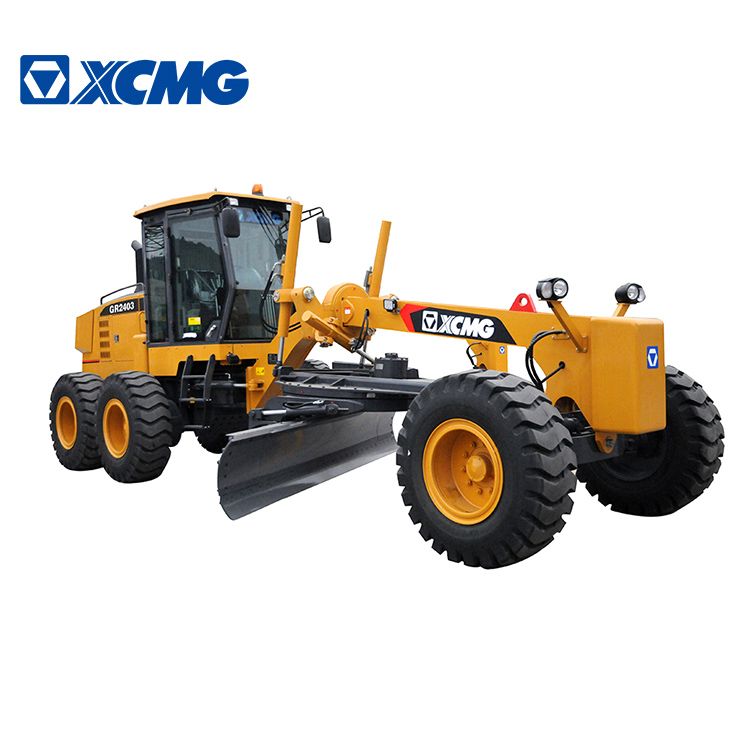

XCMG Manufacturer GR2403 China Brand New Road Motor Grader Machine with Cummins Engine
![](/app/topc/statics/images/close.png)
![XCMG Manufacturer GR2403 China Brand New Road Motor Grader Machine with Cummins Engine](http://www.machmall.com/images/store/357636/item/GR2403-1 (5).jpg)
![](/app/topc/statics/images/close.png)
Specifications
- weight:17000.000kg
- Condition:New
- Moving Type:Other
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
XCMG Manufacturer
GR2403 China Brand New Road Motor Grader Machine with Cummins Engine.
The motor
grader is mainly used for ground leveling, ditching, slope scraping,
bulldozing, scarification, snow removal for large areas such as highway, airports,
farmlands etc. It is the necessary construction machinery for national defense
construction, mine construction, urban and rural road construction and water
conservancy construction, farmland improvement and so on.
1. Energy saving and noise reduction: adopt low speed engine
transmission line, low fuel consumption and energy saving and environmental
protection; The transmission system is equipped with low speed ratio, and the
average fuel consumption is reduced by about 8%. Three levels of engine, cab and
seat vibration reduction; The cab is supported by six points; Deceleration of
engine, cooling fan with large diameter, sound absorption sponge inside the
hood, good sealing of the cab reduces noise of the whole machine.
2. Strong power: Shangchai efficient China stage I engine and hydraulic
torque converter, the optimal torque converter achieves the best matching of
torque converter and engine, reducing the start time, increase the work of
torque output at low speed, strong and powerful. The optional herringbone tread
tires, the adhesion can be increased by 10% in loosing soil and leveling,
further enhance the power output.
3. Rotation with load: improve the pressure of hydraulic system system,
the rotary force of the blade, the high frequency quenching treatment improves
the wear resistance and life span, and realize the rotation operation.
4. Efficient operation: improves the displacement of hydraulic pump and
hydraulic motor, increase the oil cylinder speed by 20%, realizes the industry
leading work efficiency, the optimized blade shape can turn and remove the soil
quickly and efficiently, and realize optimal load distribution and the minimum
material accumulation within the rotary discarea.
Item |
GR2403 |
||
Basic
parameters |
Engine
model |
QSB6.7 |
|
Rated
power/speed |
178kW/2000rpm |
||
Overall
dimension (standard) |
8970x2625x3420 |
||
Total
weight (standard) |
17000 kg |
||
Tire
specification |
17.5-25 |
||
Ground
clearance (front axle) |
430mm |
||
Space of
front and rear axles |
6219 mm |
||
Space of
middle and rear wheels |
1538 mm |
||
Performance |
Forward
velocity |
5,8,11,19,23,38km/h |
|
Reverse
speed |
5,11,23km/h |
||
Tractive
effort f=0.75 |
87kN |
||
Maximum
gradeability |
25% |
||
Tire
inflation pressure |
260kPa |
||
Working
system pressure |
20MPa |
||
Transmission
pressure |
1.3-1.8Mpa |
||
Working
parameters |
Maximum
steering angle of front wheel |
±48° |
|
Maximum
slant angle of front wheel |
±17° |
||
Maximum
oscillating angle of front axle |
±15° |
||
Maximum
oscillating angle of equilibrium box |
forwards15°,
Reverse15° |
||
Maximum
steering angle of frame |
±27° |
||
Minimum
turning radius |
7.3m |
||
Scrape
knife |
Maximum
lift height |
400mm |
|
Maximum
cutting depth |
500mm |
||
Maximum
tilt angle |
90° |
||
Cutting
angle |
28°-70° |
||
Angle of
revolution |
360° |
||
Length
& chord height |
3965x610mm |
||
Oil
filling amount |
Coolant |
50L |
|
Fuel tank |
280L |
||
Engine |
24L |
||
Transmission |
38L |
||
Equilibrium
box |
46L |
||
Drive alex |
28L |
||
Hydraulic
oil |
110L |
