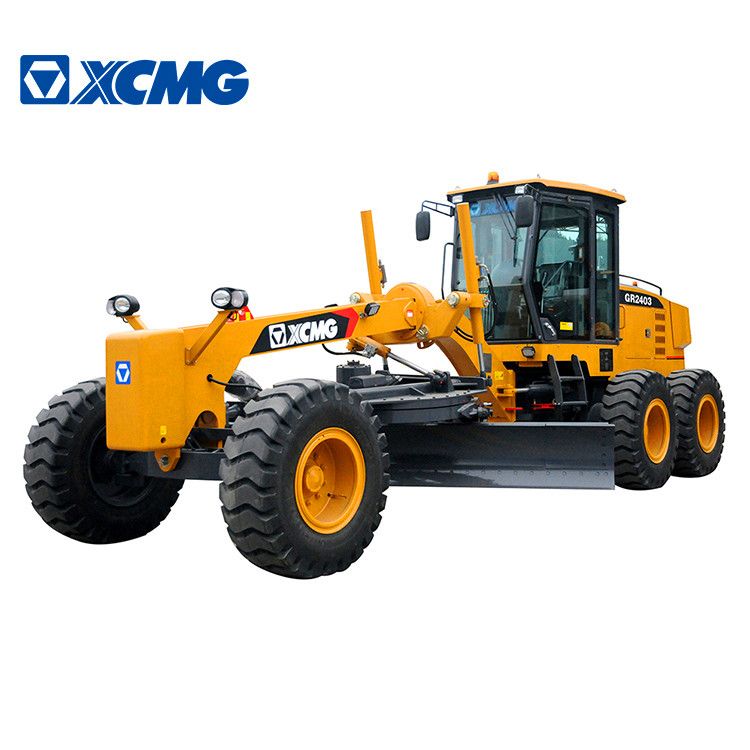

XCMG Hot Selling Motor Graders GR2403 China New Grader Motor Ground Leveling Equipment Price
![](/app/topc/statics/images/close.png)
![XCMG Hot Selling Motor Graders GR2403 China New Grader Motor Ground Leveling Equipment Price](http://www.machmall.com/images/store/357636/item/GR2403 (4).jpg)
![](/app/topc/statics/images/close.png)
Specifications
- weight:17000.000kg
- Condition:New
- Moving Type:Other
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

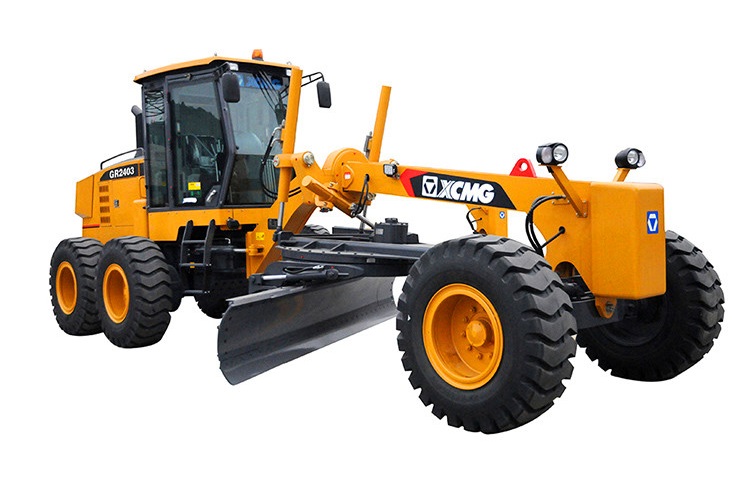

XCMG Hot Selling Motor Graders GR2403 China
New Grader Motor Ground Leveling Equipment.
The motor grader is mainly used for ground
leveling, ditching, slope scraping, bulldozing, scarification, snow removal for
large areas such as highway, airports, farmlands etc. It is the necessary
construction machinery for national defense construction, mine construction,
urban and rural road construction and water conservancy construction, farmland
improvement and so on.
Advantages and Highlights:
1. Energy saving and noise reduction: adopt low speed engine transmission line,
low fuel consumption and energy saving and environmental protection; The
transmission system is equipped with low speed ratio, and the average fuel
consumption is reduced by about 8%. Three levels of engine, cab and seat
vibration reduction; The cab is supported by six points; Deceleration of
engine, cooling fan with large diameter, sound absorption sponge inside the
hood, good sealing of the cab reduces noise of the whole machine.
2. Strong power: Shangchai efficient China stage I engine and hydraulic torque
converter, the optimal torque converter achieves the best matching of torque
converter and engine, reducing the start time, increase the work of torque
output at low speed, strong and powerful. The optional herringbone tread tires,
the adhesion can be increased by 10% in loosing soil and leveling, further
enhance the power output.
3. Rotation with load: improve the pressure of hydraulic system system, the
rotary force of the blade, the high frequency quenching treatment improves the
wear resistance and life span, and realize the rotation operation.
4. Efficient operation: improves the displacement of hydraulic pump and
hydraulic motor, increase the oil cylinder speed by 20%, realizes the industry
leading work efficiency, the optimized blade shape can turn and remove the soil
quickly and efficiently, and realize optimal load distribution and the minimum
material accumulation within the rotary discarea.
Item |
GR2403 |
||
Basic parameters |
Engine model |
QSB6.7 |
|
Rated power/speed |
178kW/2000rpm |
||
Overall dimension (standard) |
8970x2625x3420 |
||
Total weight (standard) |
17000 kg |
||
Tire specification |
17.5-25 |
||
Ground clearance (front axle) |
430mm |
||
Space of front and rear axles |
6219 mm |
||
Space of middle and rear wheels |
1538 mm |
||
Performance |
Forward velocity |
5,8,11,19,23,38km/h |
|
Reverse speed |
5,11,23km/h |
||
Tractive effort f=0.75 |
87kN |
||
Maximum gradeability |
25% |
||
Tire inflation pressure |
260kPa |
||
Working system pressure |
20MPa |
||
Transmission pressure |
1.3-1.8Mpa |
||
Working parameters |
Maximum steering angle of front wheel |
±48° |
|
Maximum slant angle of front wheel |
±17° |
||
Maximum oscillating angle of front axle |
±15° |
||
Maximum oscillating angle of equilibrium box |
forwards15°, Reverse15° |
||
Maximum steering angle of frame |
±27° |
||
Minimum turning radius |
7.3m |
||
Scrape knife |
Maximum lift height |
400mm |
|
Maximum cutting depth |
500mm |
||
Maximum tilt angle |
90° |
||
Cutting angle |
28°-70° |
||
Angle of revolution |
360° |
||
Length & chord height |
3965x610mm |
||
Oil filling amount |
Coolant |
50L |
|
Fuel tank |
280L |
||
Engine |
24L |
||
Transmission |
38L |
||
Equilibrium box |
46L |
||
Drive alex |
28L |
||
Hydraulic oil |
110L |
