XCMG official motor grader GR180 180HP China new motor grader road construction for sale
Specifications
- Weight:15400.000kg
- Condition:New
- Moving Type:Other
- Weight:15400kg
- Forward Speed:38km/h
- Reverse Speed:23km/h
- Dimension(L*W*H):8900*2625*3420mm
- Engine Brand:Cummins
- Place of Origin:Jiangsu, China
- Brand Name:XCMG
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

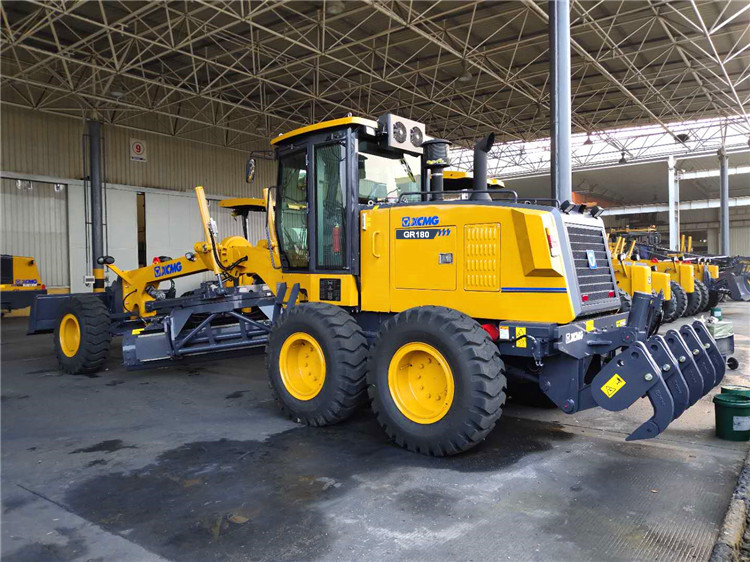

XCMG official motor grader GR180 180HP China new motor grader road construction.
The motor grader is mainly used for ground leveling, ditching, slope scraping, bulldozing, scarification, snow removal for large areas such as highway, airports, farmlands etc. It is the necessary construction machinery for national defense construction, mine construction, urban and rural road construction and water conservancy construction, farmland improvement and so on.
Advantages and Highlights:
1. Dongfeng Cummins Engine, ZF Technology Gearbox, and XCMG Drive Axle make the drive system power matching more reasonable and reliable.
2. Double-circuit hydraulic brake system makes the brake more reliable and stable.
3. Steering to the load sensing system, the main hydraulic components adopt international support to ensure the stability and reliability of the system.
4. Use XCMG special enhanced work devices.
Item | GR180 | |
Basic parameters | Engine model | 6CTA8.3-C190-Ⅱ |
Rated power/speed | 142kW/2200rpm | |
Overall dimension (standard) | 8900x2625x3420 | |
Total weight (standard) | 15400 kg | |
Tire specification | 17.5-25 | |
Ground clearance (front axle) | 430mm | |
Tread | 2156mm | |
Space of front and rear axles | 6219 mm | |
Space of middle and rear wheels | 1538 mm | |
Performance parameters | Forward velocity | 5、8、11、19、23、38km/h |
Reverse speed | 5、11、23km/h | |
Tractive effort f=0.75 | ≥79 kN | |
Maximum gradeability | ≥25% | |
Tire inflation pressure | 260kPa | |
Working system pressure | 18MPa | |
Transmission pressure | 1.3—1.8Mpa | |
Oil filling amount | Coolant | 50L |
Fuel tank | 280L | |
Engine | 24L | |
Transmission | 38L | |
Balancing box | 46L | |
Drive axle | 28L |
