XCMG Official Road Grader Machine GR1653 Grader Motor Machine Price
![](/app/topc/statics/images/close.png)
![XCMG Official Road Grader Machine GR1653 Grader Motor Machine Price](http://www.machmall.com/images/store/357636/item/GR1653-5.jpg)
![](/app/topc/statics/images/close.png)
Specifications
- weight:14500.000kg
- Condition:New
- Moving Type:Other
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

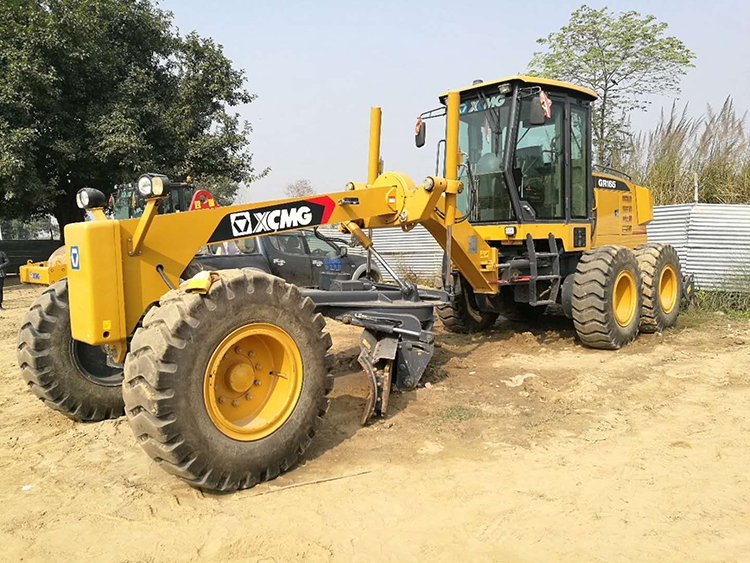

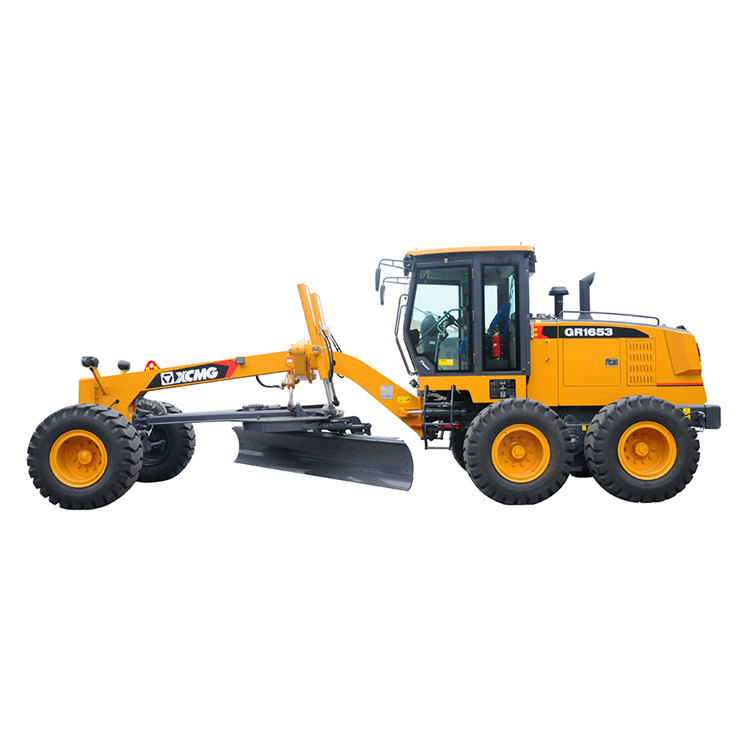

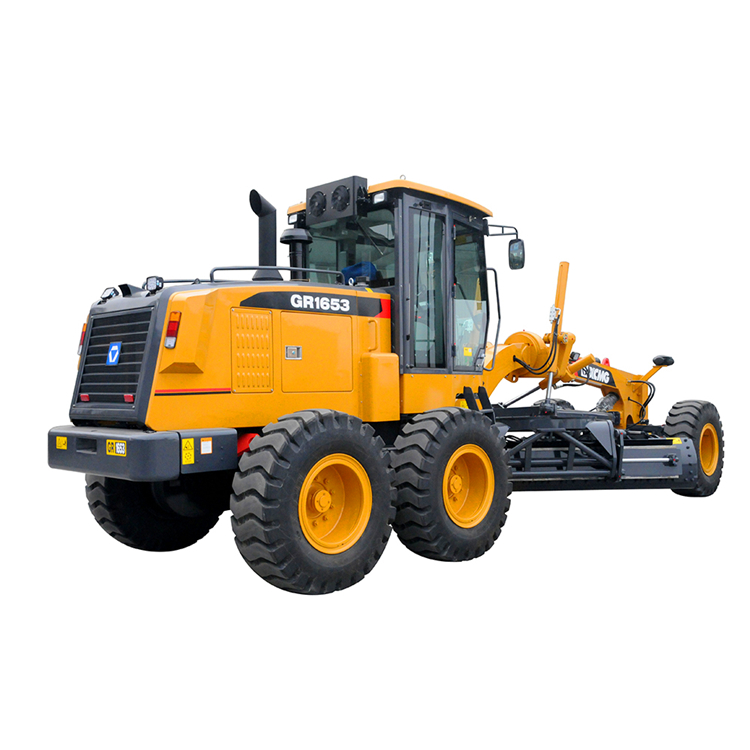

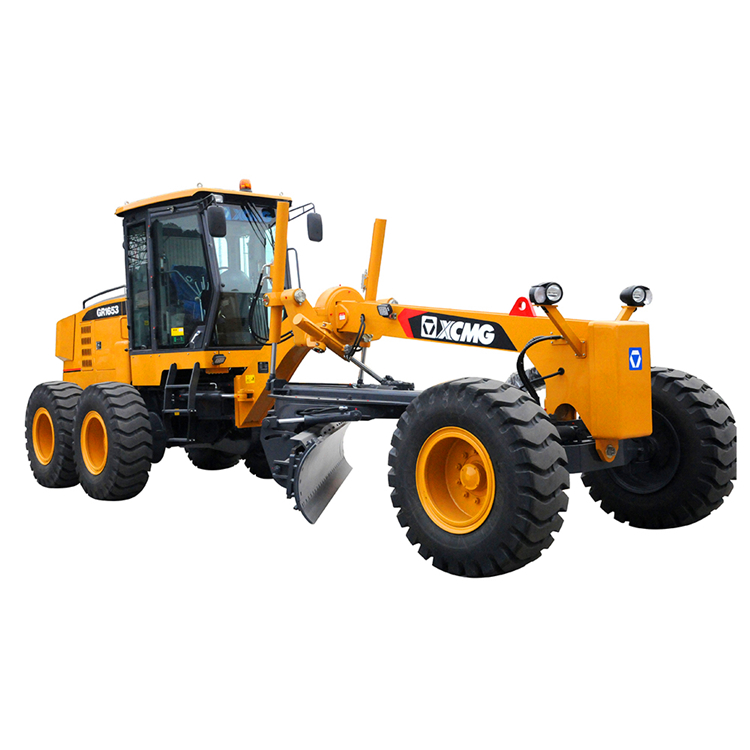

XCMG Official Road Grader Machine GR1653 Grader Motor Machine.
The motor grader is mainly used for ground leveling, ditching, slope scraping, bulldozing, scarification, snow removal for large areas such as highway, airports, farmlands etc.
It is the necessary construction machinery for national defense construction, mine construction, urban and rural road construction and water conservancy construction, farmland improvement and so on.
1. The articulation frame is adopted and matched with the steering of the front wheel, with small turning radius, maneuvering and flexible.
2. The electro-hydraulic controls the power shift gearbox, with 6ahead gears and 3 back gears.
3. The international matching hydraulic parts are adopted, with reliable operation.
4. The motions of the blade are fully hydraulically controlled.
5. The rear axle is the three-section driving axle which is provided with the NO-SPIN self-locking differential mechanism.

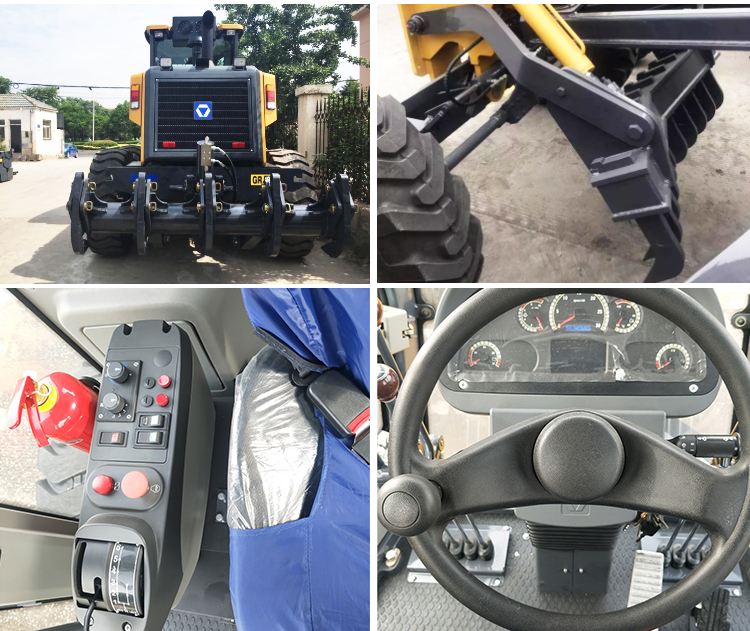

6. The manipulation table and seats are adjustable. The arrangement of the manipulation handle and instruments are reasonable, with convenient application, and the comfort of driving is improved .
7. The cab is grand and nice, with wide eyeshot and good sealing .
8. The front bulldozing plate, rear scarification device, front scarification harrow and automatic leveling device can be added.
Basic specification |
|
Engine model |
SC7H180.1G3 |
Rated power/speed |
128kW/2000rpm |
Dimension(LxWxH) |
8900×2625×3420mm |
Operating weight(Standard) |
15000kg |
Performance specification |
|
Travelling speed ,forward |
5,8,11,19,23,38 km/h |
Travelling speed ,reverse |
5,11,23 km/h |
Tractive force(f=0.75) |
77KN |
Max. gradeability |
20% |
Tire inflation pressure |
260 kPa |
Working hydraulic pressure |
20 MPa |
Transmission pressure |
1.3~1.8MPa |
Operating specification |
|
Max. steering angle of front wheels |
±48° |
Max. lean angle of front wheels |
±17° |
Max. oscillation angle of front axle |
±15° |
Max. oscillation angle of balance box |
15 |
Frame articulation angle |
±27° |
Min. turning radius using articulation |
7.3m |
Blade |
|
Maximum lift above ground |
450mm |
Maximum depth of cutting |
500mm |
Maximum blade position angle |
90° |
Blade cutting angle |
28°—70° |
Circle reversing rotation |
360° |
Moldboard width X height |
3965×610mm |
