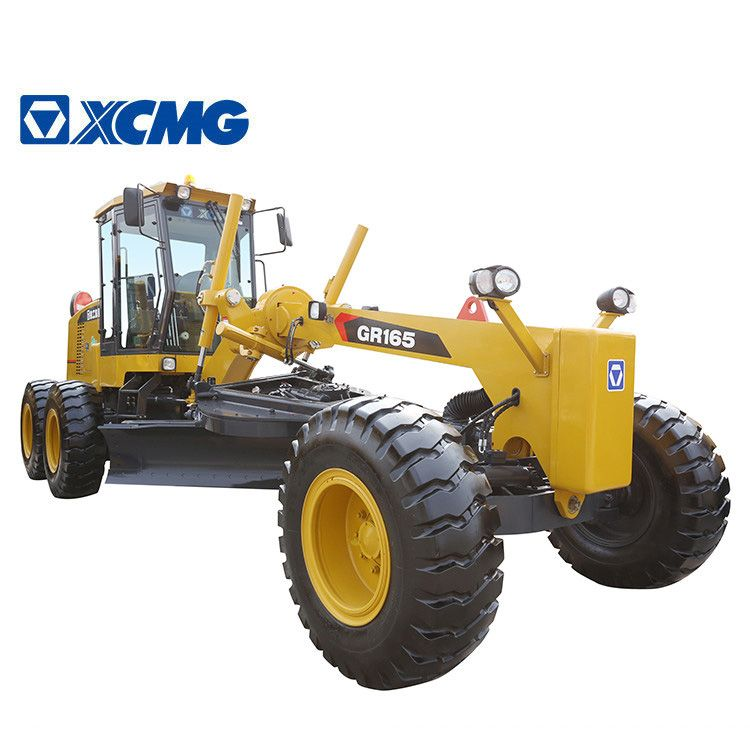

XCMG Brand 170hp RC Construct Road New Motor Graders Machine GR165 Price

FOB Price: $50000.00-$80000.00

View All >

Model： GR165

Engine： Cummins

After-sales Service： Engineers available to service machinery overseas

Min Order Quantity： 1 Unit

Delivery Time：

In Stock (Within 7 days)

Production (Within15 to 20 days)

Customization (negociated delivery time)

After-sales Service：

1. It is recommended that you keep in touch with the seller after purchasing offline...

About after-sales service:

1. It is recommended that you keep in touch with the seller after purchasing offline, who knows your equipment and working conditions and can provide you with more effective after-sales service.

2. If you purchase on Machmall.com, its customer management system will record your customer information, please rest assured to apply for after-sales service.

3. If you can't find the seller, Machmall.com will help you as long as you provide the equipment nameplate and service you want. Please inform us as much information as possible in order to get the most accurate after-sales service.

After-sales service forms:

1. Online service: samples, technical specifications, operation manuals, spare parts purchase.

2. Video service: application guidance, troubleshooting and maintenance guidance.

3. Overseas service: XCMG has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees.

Inquiry Chat Now

Favorite Products

Product:

XCMG Brand 170hp RC Construct Road New Motor Graders Machine GR165 Price

Quantity:

- + /EA

Content:

Or choose from these questions:

What is the best price you can offer?

Do you support customization?

What is the MOQ for this product?

*Email:

Full Name:

Mobile phone:

GR165

Specs & Compare

Details

Specifications

Weight:15000.000kg
Condition:New
Moving Type:Other
Brand Name:XCMG
Place of Origin:Jiangsu, China
Certification:CE/ISO9001

Packaging & Shipping

Delivery Lead Time:7 days for ready goods
Minimum Order:1 Piece
Supply Ability:10,000 Set/ Sets per Month
Total Quantity In Stock:Over 5000
Delivery Port:Any Port In China

XCMG Brand 170hp RC Construct Road New Motor Graders Machine GR165 Price

XCMG Brand 170hp RC Construct Road New Motor Graders Machine GR165 Price.

The motor grader is mainly used for ground leveling, ditching, slope scraping, bulldozing, scarification, snow removal for large areas such as highway, airports, farmlands etc. It is the necessary construction machinery for national defense construction, mine construction, urban and rural road construction and water conservancy construction, farmland improvement and so on.

Advantages and Highlights:

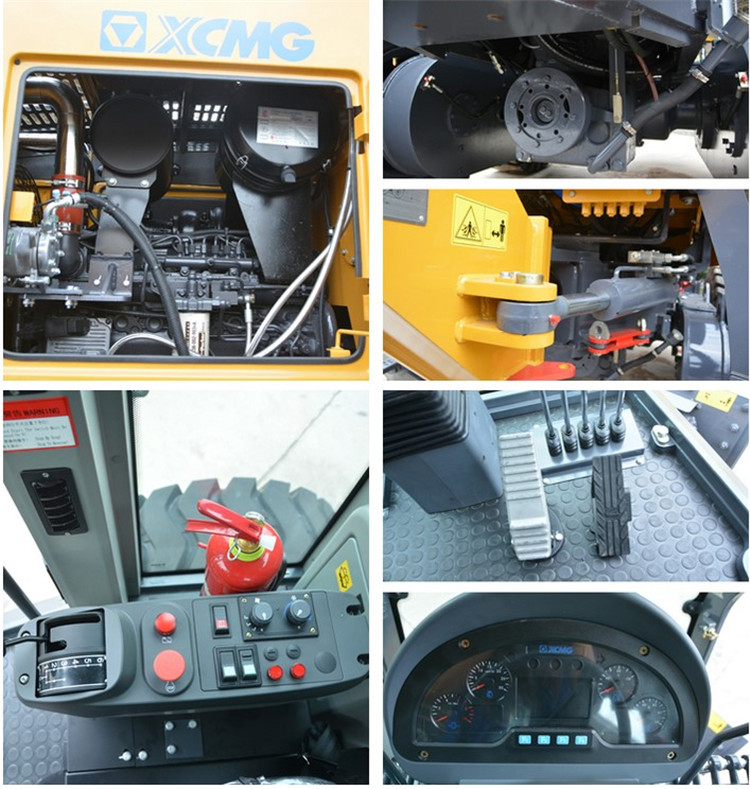

1. The GR165 adopts Dongfeng Cummins 6BTA5.9-C180-II turbocharged diesel engine, which has large output torque and power reserve coefficient and low fuel consumption.

2. The torque converter has a large torque coefficient, a high efficiency, a wide effective area, and a good joint operation characteristic with the engine.

3. Rear axle main drive is equipped with "NO-SPIN" without self-locking differential. When one wheel slips, the other wheel can still transmit its original torque.

4. The service brake is a dual-circuit hydraulic brake system that acts on the two rear wheels of the grader and is safe and reliable.

5. The sealed cab is used to configure the air conditioning system. The interior parts are sleek and compact plastic parts, which fully reflects the needs of ergonomics.

XCMG Brand 170hp RC Construct Road New Motor Graders Machine GR165 Price

Item			GR165
Basic parameters	Engine model		6BTA5.9-C180-Ⅱ
	Rated power/speed		130kW/2200rpm
	Overall dimension (standard)		8900x2625x3470
	Total weight (standard)		15000kg
	Tire specification		17.5-25
	Ground clearance (front axle)		430mm
	Tread		2156mm
	Space of front and rear axles		6219 mm
Performance parameters	Forward velocity		5、8、11、19、23、38km/h
	Reverse speed		5、11、23km/h
	Tractive effort f=0.75		77kN
	Maximum gradeability		25%
	Tire inflation pressure		260kPa
	Working system pressure		16MPa
	Transmission pressure		1.3—1.8Mpa
Working parameters	Maximum steering angle of front wheel		±50°
	Maximum slant angle of front wheel		±17°
	Maximum oscillating angle of front axle		±15°
	Maximum oscillating angle of equilibrium box		±15°
	Maximum steering angle of frame		±27°
	Minimum turning radius		7.3m
	Scrape knife	Maximum lift height	450mm
		Maximum cutting depth	500mm
		Maximum tilt angle	90°
		Cutting angle	28°—70°
		Angle of revolution	360°
		Length & chord height	3660x610mm
Oil filling amount	Coolant		50L
	Fuel tank		280L
	Engine		24L
	Transmission		38L
	Hydraulic oil		110L
	Drive axle		28L
	Balancing box		46 L
