Specifications
- Weight:12500.000kg
- Condition:New
- Moving Type:Other
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

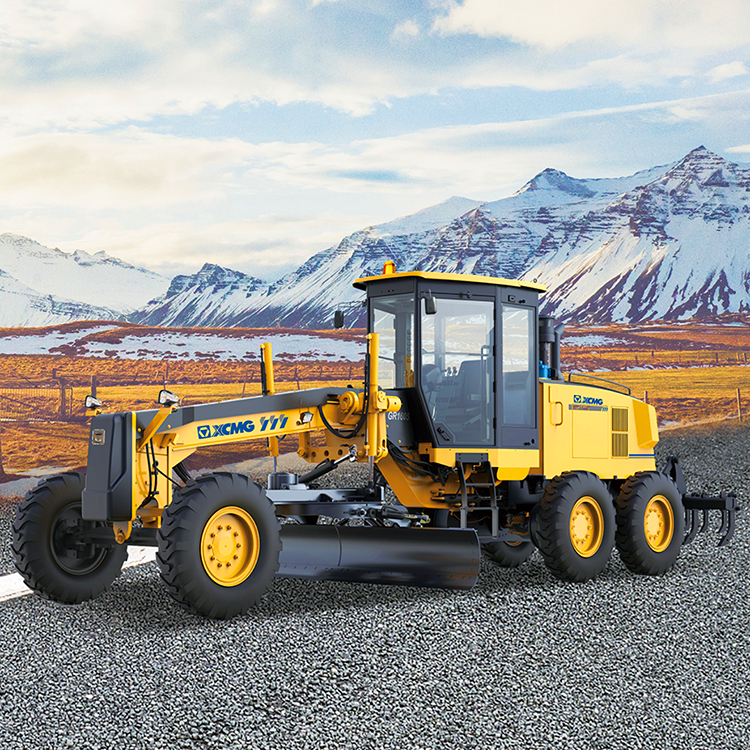

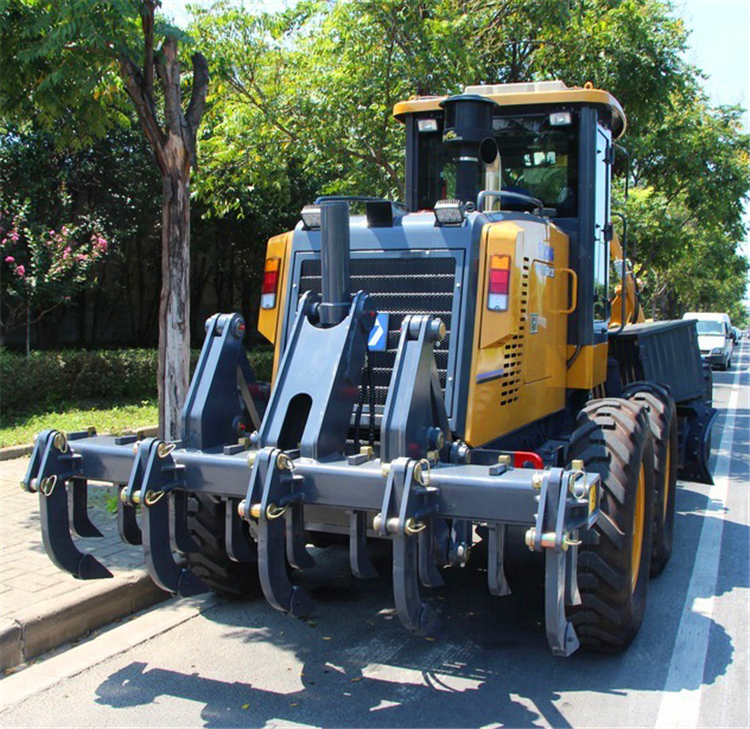

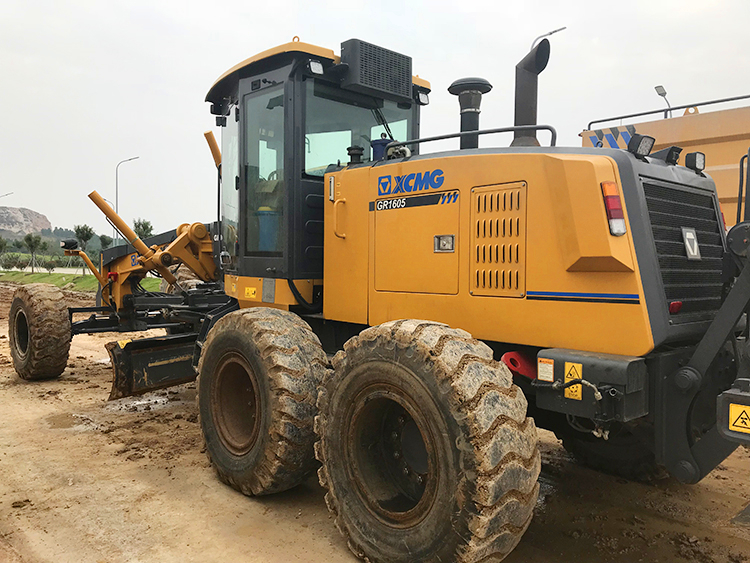

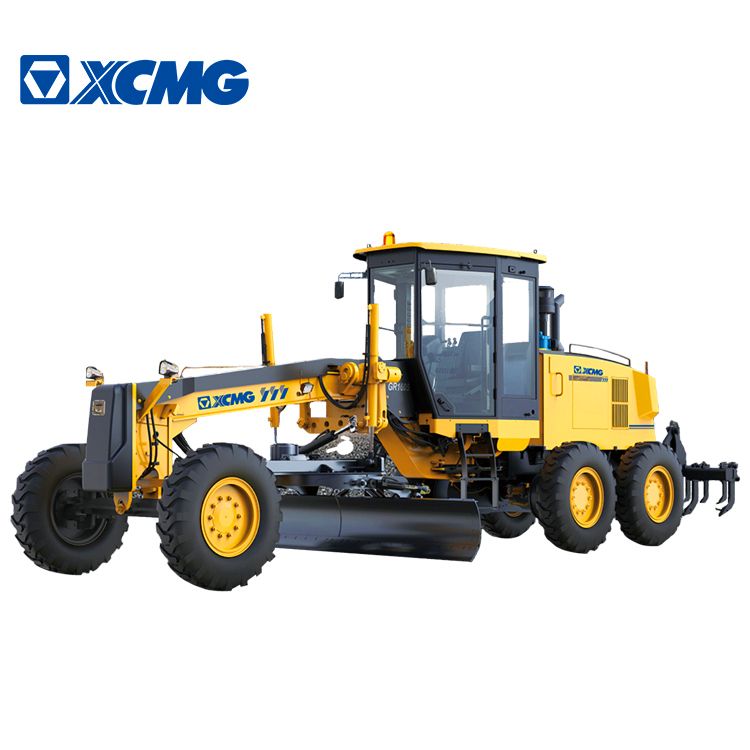

XCMG Official 170HP Motor Grader GR1605 China Motor Grader.
GR1605 is mainly used for large ground surface leveling, ditching, slope scraping, bulldozing, scarifying, snow removing and other work in highway, airport and farmland. The grader is necessary engineering machinery for national defense construction, mine construction, urban and rural road construction, water conservancy construction and farmland improvement, etc.
Performance Characteristics:
* Uses Cummins turbocharged diesel engine. Large output torque and power reserve coefficient and low oil consumption. Engine variable power control technology makes the machine work under the best fuel consumption area, more energy efficient.
* Torque converter has big torque ratio, high efficiency and wide high efficiency area. Better combined work characteristics can be achieved when the torque converter is matched with engine. Transmission has 6 forward gears and 3 reverse gears. It has neutral start protection function.
* Gears will be easily shifted by electrohydraulic control. During gear shift process, there is no impact, speed ratio distribution is reasonable, and various work requirements can be satisfied.
* The rear axle adopts balanced suspension to ensure the uniform load of four wheels, which is conducive to the full use of its adhesion ability. The main drive of the rear axle is equipped with“NO - SPIN" self-locking differential.
* The front axle is steering axle. The axle can swing from side to side. In addition to the front steering, it also uses the articulated frame, which can further reduce the turning radius.
* The hood is structural part, well shaped with turn over function, the two sides double door is reversible, enhances the maintainability.
Item |
GR1605 |
||
Basic parameters |
Engine model |
QSB5.9 |
|
Rated power/speed |
125kW/2200rpm |
||
Overall dimension (standard) |
8711x2483x3385 |
||
Total weight (standard) |
12500 kg |
||
Tire specification |
14.00-24 |
||
Ground clearance (front axle) |
586mm |
||
Tread |
2113mm |
||
Space of front and rear axles |
6279 mm |
||
Space of middle and rear wheels |
1568 mm |
||
Performance parameter |
Forward velocity |
5,8,13,18,30,47km/h |
|
Reverse speed |
5,13,30km/h |
||
Tractive effort f=0.75 |
≥70 kN |
||
Maximum gradeability |
≥25% |
||
Tire inflation pressure |
260kPa |
||
Working system pressure |
22MPa |
||
Transmission pressure |
1.3-1.8Mpa |
||
Maximum steering angle of front wheel |
±48° |
||
Maximum slant angle of front wheel |
±18° |
||
Maximum oscillating angle of front axle |
±16° |
||
Maximum oscillating angle of equilibrium box |
±15° |
||
Maximum steering angle of frame |
±20° |
||
Minimum turning radius |
7.2m |
||
blade |
Maximum lift height |
410mm |
|
Maximum cutting depth |
715mm |
||
Maximum tilt angle |
90° |
||
Cutting angle |
29°-69° |
||
Angle of revolution |
360° |
||
Length & chord height |
3965x610mm |
||
Oil filling amount |
Coolant |
50L |
|
Fuel tank |
380L |
||
Engine |
24L |
||
Transmission |
38L |
||
Equilibrium box |
60L |
||
Coolant |
36L |
||
Hydraulic oil |
170L |
