XCMG Grader Motor 160hp China Motor Grader Construct Road Machine GR1603 For Sale
Specifications
- Weight:13000.000kg
- Condition:New
- Moving Type:Other
- Brand Name:XCMG
- Place of Origin:Jiangsu, China
- Certification:CE/ISO9001
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

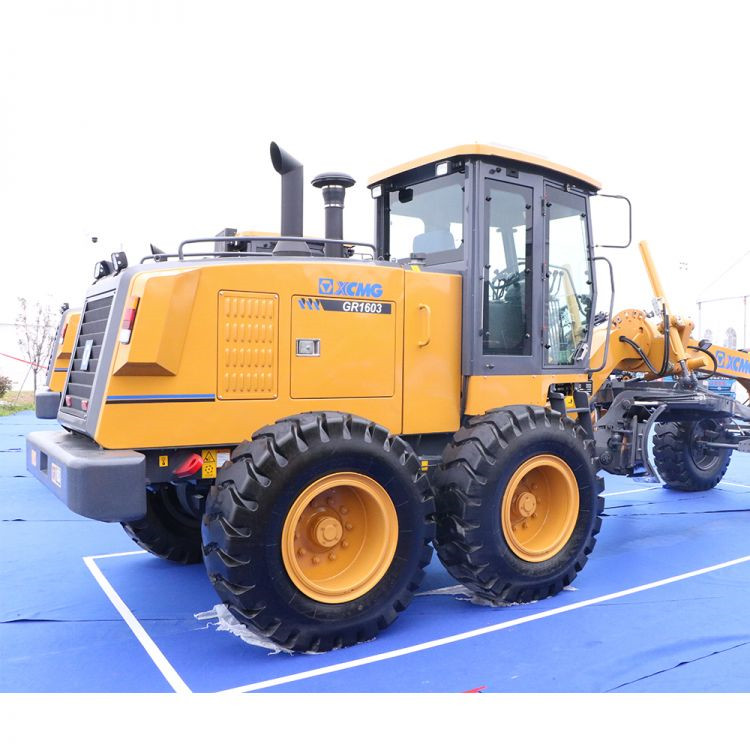

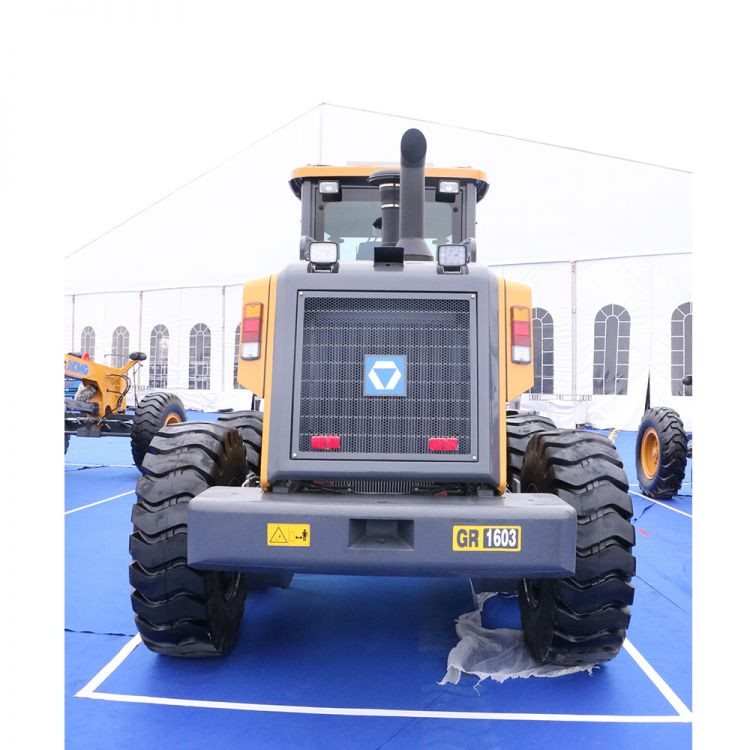

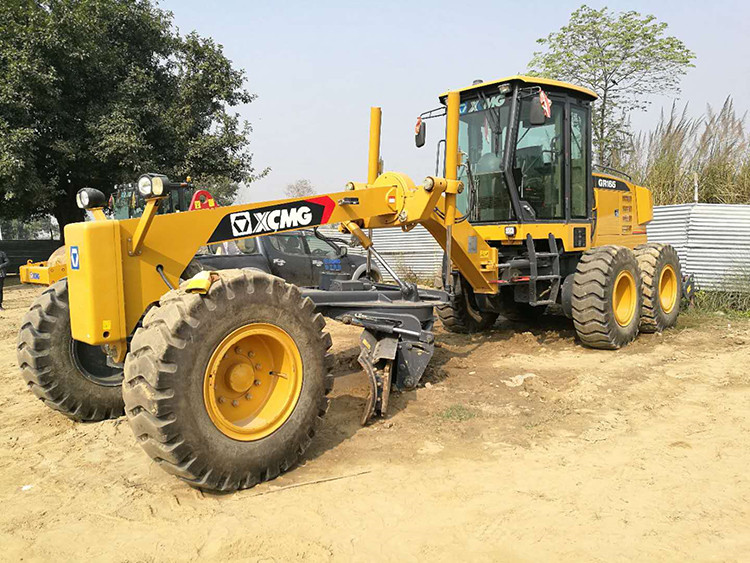

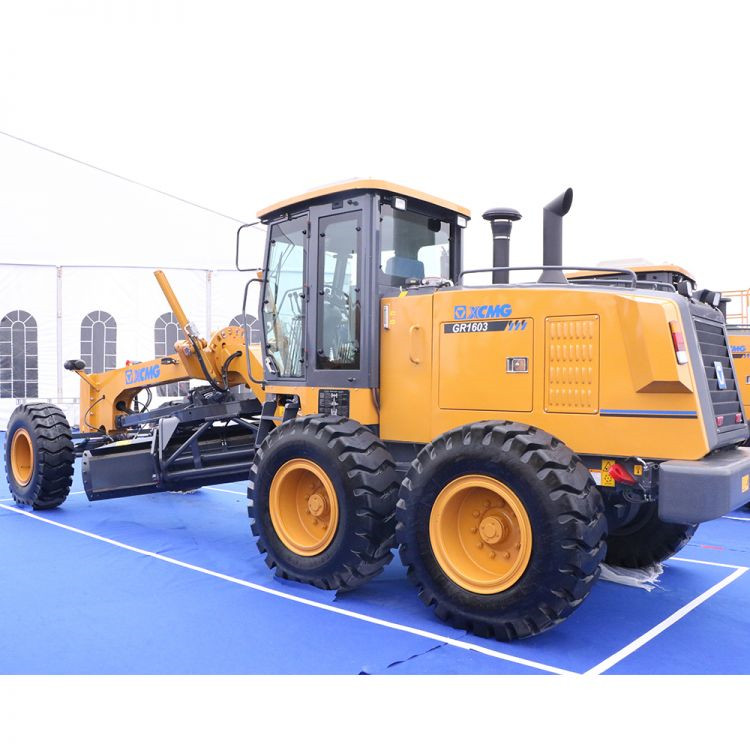

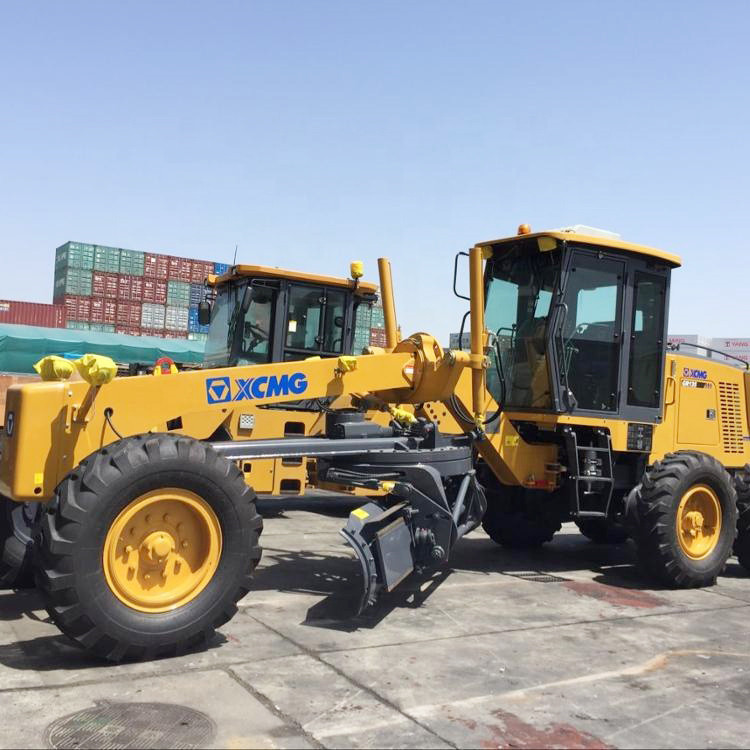

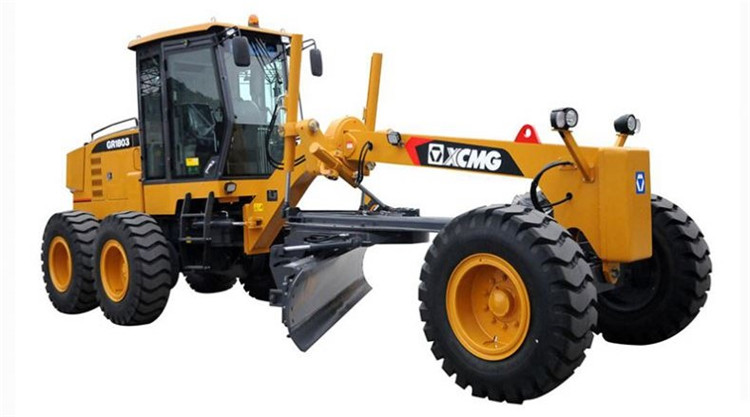

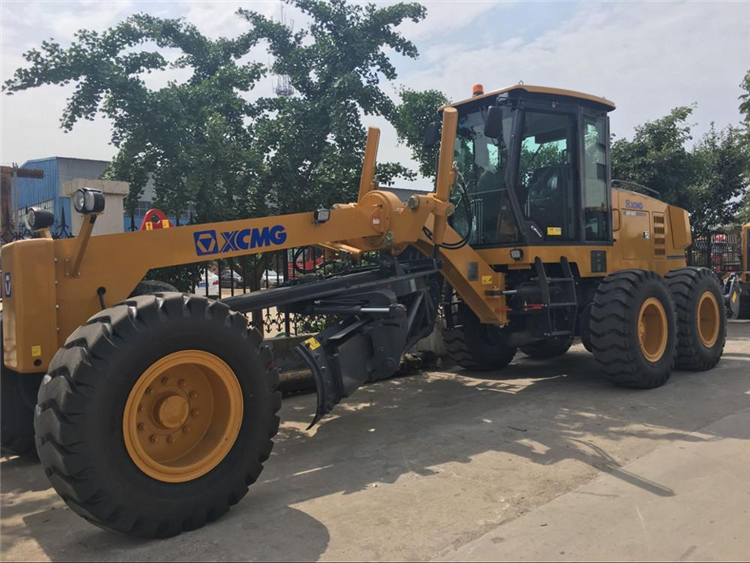

XCMG Grader Motor 160hp
China Motor Grader Construct Road Machine GR1603 For Sale.
GR1603 is mainly used for
large ground surface leveling, ditching, slope scraping, bulldozing,
scarifying, snow removing and other work in highway, airport and farmland. The
grader is necessary engineering machinery for national defense construction,
mine construction, urban and rural road construction, water conservancy
construction and farmland improvement, etc.
1. Strong power:
cummins efficient engine and hydraulic torque converter, the optimal torque
converter achieves the best matching of torque converter and engine, reducing
the start time, increase the work of torque output at low speed, strong and
powerful. The optional herringbone tread tires, the adhesion can be increased
by 10% in loosing soil and leveling, further enhance the power output.
2. Safe and reliable: full hydraulic braking
system, load sensing steering system, international supporting key, components,
ensuring safe and reliable. system; CAE global optimization, of the structural
parts, joint special research with universities and research institutes.
3. Maneuverability: single oil cylinder large
steering angle front axle is XCMG patented technology, combined with
articulated frame, small turning radius guarantees the flexible maneuvering.
4. Control comfortability: diamond shape cabin
with bearing damping at six points, control structure is optimized, reduce the
control force and operating stroke, operating force decreases by 30%,the
control is more flexible and Comfortable, accords with the man-machine
engineering control system, the operation environment is more comfortable.
5. Advanced processing technology: all important
parts and components are welded by international advanced welding equipment,
which is characterized by high weld strength, uniform welding line and high
welding quality.
6. Apppearance of the whole machine: it reflects
the special painting design of XCMG products.
7. Maintenance accessbility: adopting the backflip
hydraulic lift hood, the machine cover is has large opening, easy for maintenance
and repair of the machine.
|
|
Item |
Unit |
GR1603 |
|
|
Basic parameters |
Engine model |
|
QSB5.9 |
|
|
Rated
power/speed |
kW/rpm |
125/2200 |
||
|
Overall
dimension(standard) |
mm |
8420 x 2380 x
3150 |
||
|
Total
weight(standard) |
kg |
12500 |
||
|
Tire
specification |
|
13.00-24TG RP12 |
||
|
Ground clearance |
mm |
654 |
||
|
Tread |
mm |
2020 |
||
|
Space of front
and rear axles |
mm |
5780 |
||
|
Space of middle
and rear wheels |
mm |
1529-1553 |
||
|
Performance
parameters |
Forward velocity |
km/h |
5、8、13、20、30、42 |
|
|
Reverse speed |
km/h |
5、13、30 |
||
|
Tractive effort
f=0.75 |
kN |
≥66 |
||
|
Maximum
gradeadbility |
% |
≥25 |
||
|
Inflation
pressure of tires |
kPa |
260 |
||
|
Working system
pressure |
MPa |
19 |
||
|
Transmission
pressure |
MPa |
1.3-1.8 |
||
|
Working
parameters |
Maximum steering
angle of front wheels |
° |
±48 |
|
|
Maximum
inclination angle of front wheels |
° |
±17 |
||
|
Maximum swing
angle of front axle |
° |
±16 |
||
|
Maximum swing
angle of balance box |
° |
front 15, rear
15 |
||
|
Maximum steering
angle of frame |
° |
±27 |
||
|
Maximum turning
radius |
m |
6.9 |
||
|
Blade |
Maximum lifting
height |
mm |
410 |
|
|
Maximum
shoveling depth |
mm |
515 |
||
|
Maximum lateral
inclination angle |
° |
90 |
||
|
Cutting angle |
° |
28-70 |
||
|
Oil filling
amount |
Slewing angle |
° |
360 |
|
|
Length x chord
height |
mm |
3660 x 610 |
||
|
Coolant |
L |
50 |
||
|
Fuel tank |
L |
280 |
||
|
Engine |
L |
18 |
||
|
Transmission |
L |
26 |
||
|
Balance box |
L |
46 |
||
|
Drive axle |
L |
28 |
||
|
Hydraulic oil |
L |
96 |
||
