XCMG Official Motor Grader 100hp Mini Grader Motor GR1003 With Cummins Engine Price
Specifications
- Weight:7500.000kg
- Condition:New
- Moving Type:Other
- Brand Name:Brand Name
- Place of Origin:Place of Origin
- Certification:Certification
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

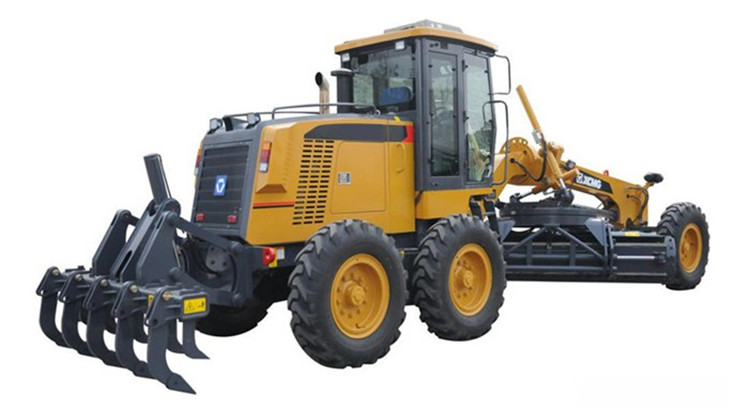

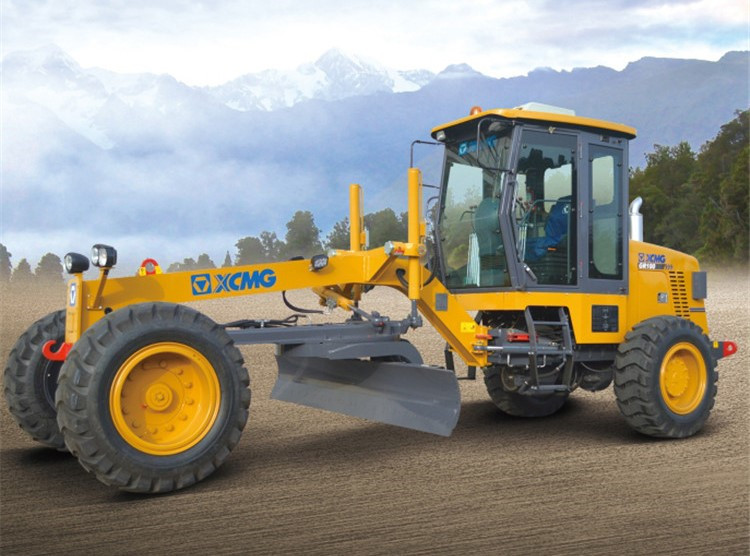

XCMG Official Motor Grader
100hp Mini Grader Motor GR1003 With Cummins Engine Price.

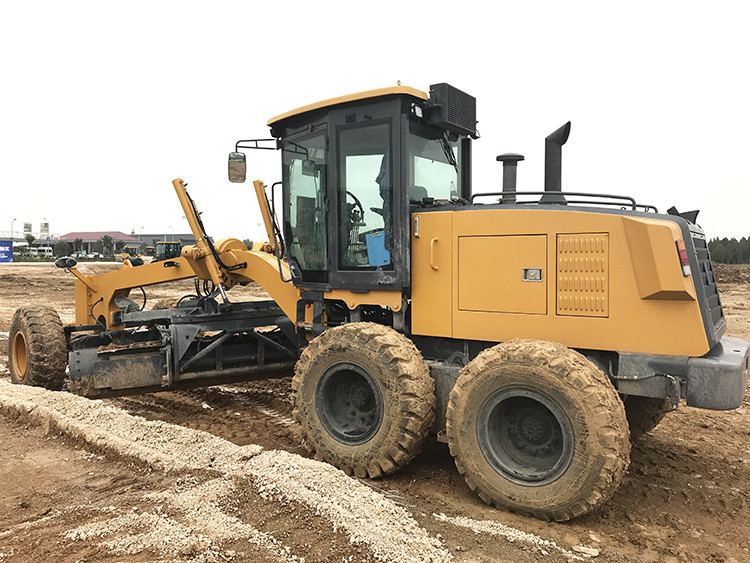

The motor grader is mainly used for ground leveling,
ditching, slope scraping, bulldozing, scarification, snow removal for large
areas such as highway, airports, farmlands etc. It is the necessary
construction machinery for national defense construction, mine construction,
urban and rural road construction and water conservancy construction, farmland
improvement and so on.

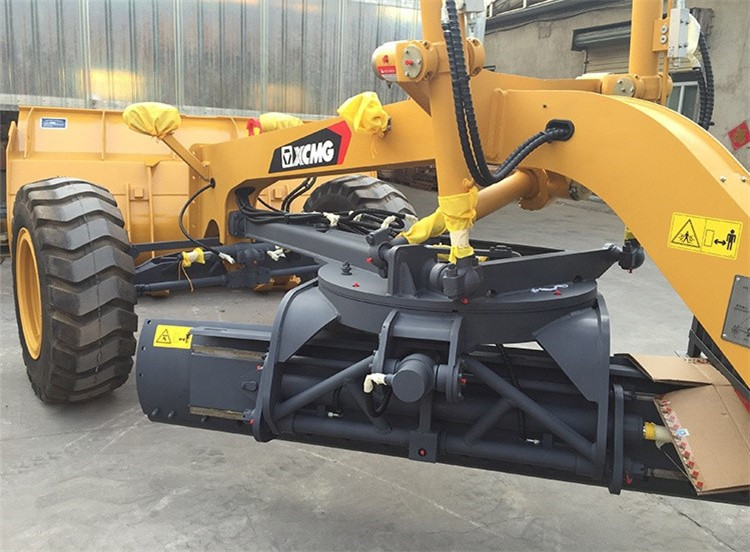

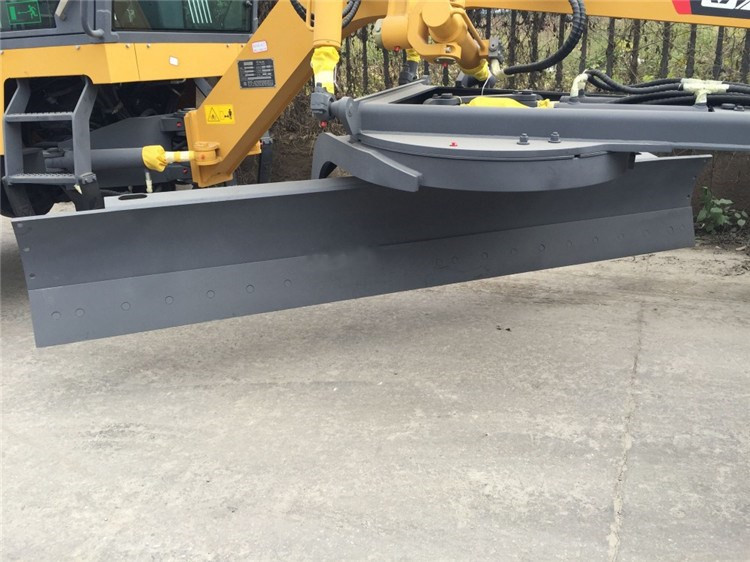

1. Efficient operation: the optimized blade
shape can turm and remove the soil quickly and efficiently, and realize optimal
load distribution and the minimum material accumulation within the rotary
discarea.
2. Safe and reliable: full hydraulic braking system, load
sensing steering system, international supporting key, components, ensuring
safe and reliable. system; CAE global optimization, of the structural parts,
joint special research with universities and research institutes.
3. Maneuverability: single oil cylinder large steering
angle front axle is XCMG patented technology, combined with articulated frame,
small turning radius guarantees the flexible maneuvering.

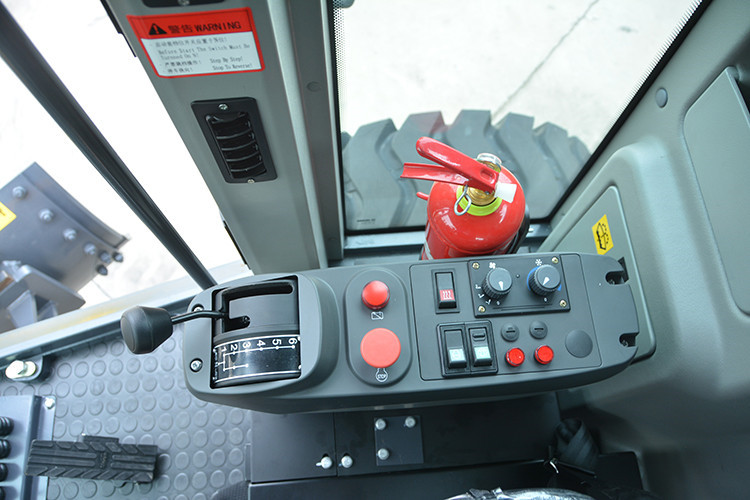

4. Control comfortability: diamond shape cabin with
bearing damping at six points, control structure is optimized, reduce the
control force and operating stroke, operating force decreases by 30%,the
control is more flexible and Comfortable, accords with the man-machine
engineering control system, the operation environment is more comfortable.
5. Advanced processing technology: all important parts
and components are welded by international advanced welding equipment, which is
characterized by high weld strength, uniform welding line and high welding
quality.
6. Apppearance of the whole machine: it reflects the
special painting design of XCMG products.

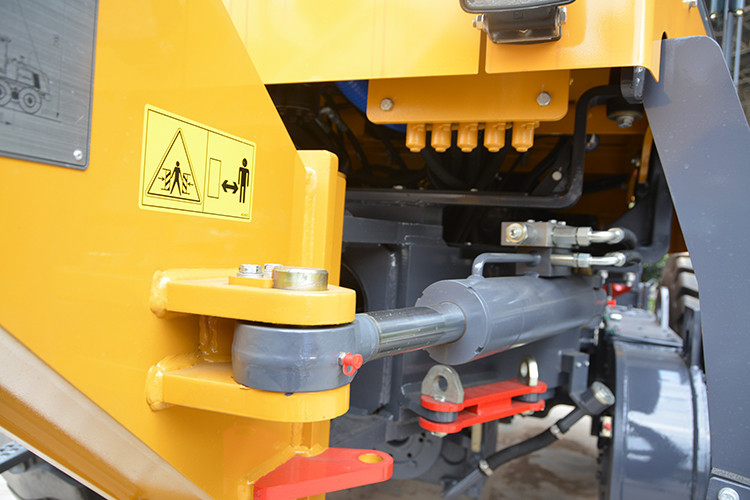

7. Maintenance accessbility: adopting the backflip
hydraulic lift hood, the machine cover is has large opening, easy for
maintenance and repair of the machine.
|
Item |
Unit |
GR1003 |
||
|
Basic parameters |
Engine model |
WP4.1 |
||
|
Rated
power/speed |
kW/rpm |
75/2200 |
||
|
Overall
dimension(standard) |
mm |
7130 x 2375 x
3150 |
||
|
Total
weight(standard) |
kg |
7500 |
||
|
Tire
specification |
16/70-24/13.00-24 |
|||
|
Ground clearance |
mm |
550 |
||
|
Tread |
mm |
1900 |
||
|
Space of front
and rear axles |
mm |
5135 |
||
|
Space of middle
and rear wheels |
mm |
/ |
||
|
Performance
parameters |
Forward velocity |
km/h |
5、8、11、17、24、38 |
|
|
Reverse speed |
km/h |
5、11、24 |
||
|
Tractive effort
f=0.75 |
kN |
≥39 |
||
|
Maximum
gradeadbility |
% |
≥25 |
||
|
Inflation
pressure of tires |
kPa |
300 |
||
|
Working system
pressure |
MPa |
16 |
||
|
Transmission
pressure |
MPa |
1.3-1.8 |
||
|
Working
parameters |
Maximum steering
angle of front wheels |
° |
±49 |
|
|
Maximum
inclination angle of front wheels |
° |
±17 |
||
|
Maximum swing
angle of front axle |
° |
±15 |
||
|
Maximum swing
angle of balance box |
° |
±16 |
||
|
Maximum steering
angle of frame |
° |
±27 |
||
|
Maximum turning
radius |
m |
6 |
||
|
Blade |
Maximum lifting
height |
mm |
310 |
|
|
Maximum
shoveling depth |
mm |
350 |
||
|
Maximum lateral
inclination angle |
° |
45 |
||
|
Cutting angle |
° |
28-70 |
||
|
Oil filling
amount |
Slewing angle |
° |
120 |
|
|
Length x chord
height |
mm |
3048 x 450 |
||
|
Coolant |
L |
50 |
||
|
Fuel tank |
L |
260 |
||
|
Engine |
L |
18 |
||
|
Transmission |
L |
26 |
||
|
Balance box |
L |
/ |
||
|
Drive axle |
L |
28 |
||
|
Hydraulic oil |
L |
89 |
||
