XCMG official mini motor graders GR100 China new 100HP motor grader with Cummins engine for sale
Specifications
- Weight:7000.000kg
- Condition:New
- Moving Type:Other
- Brand Name:XCMG
- Place of Origin:Jiangsu, China
- Certification:CE/ISO9001
- Weight:7000kg
- Forward Speed:38km/h
- Reverse Speed:24km/h
- Dimension(L*W*H):6880*2375*3150mm
- Engine Brand:Cummins
- Space of front and rear axles:4885 mm
- Working system pressure:16MPa
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

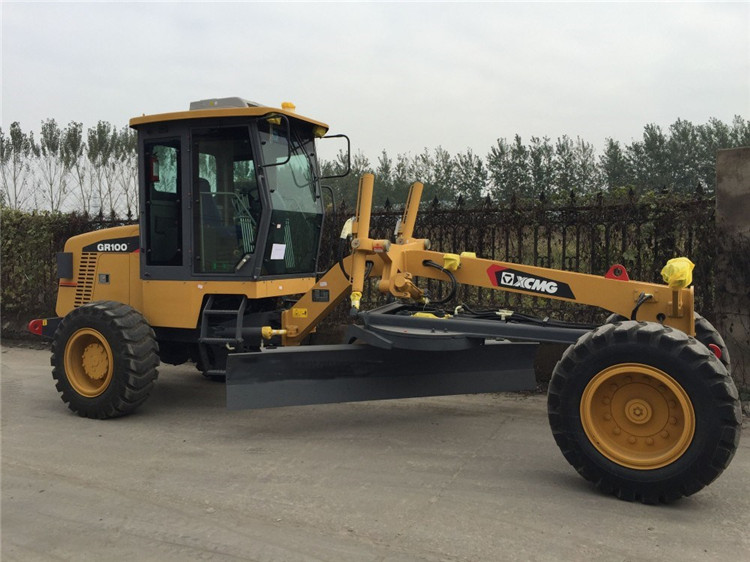

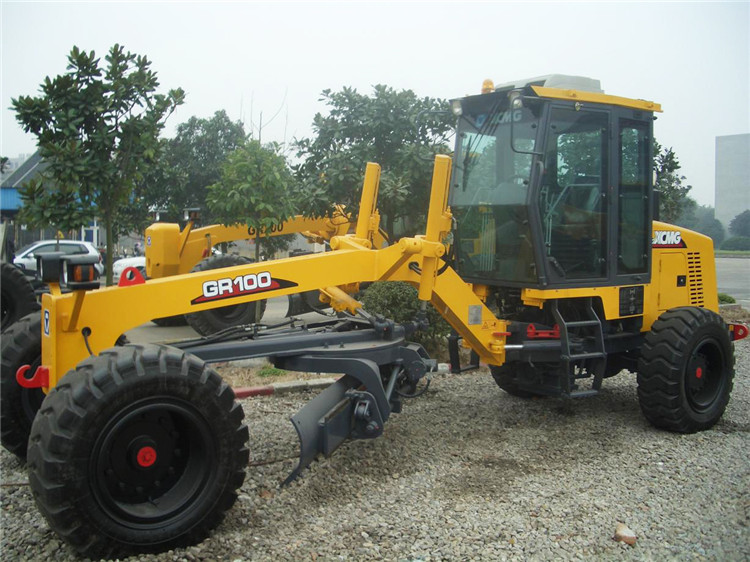

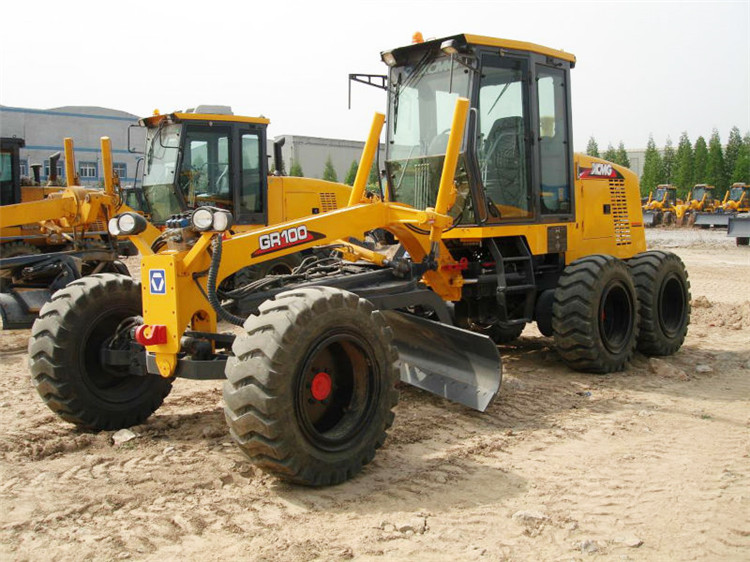

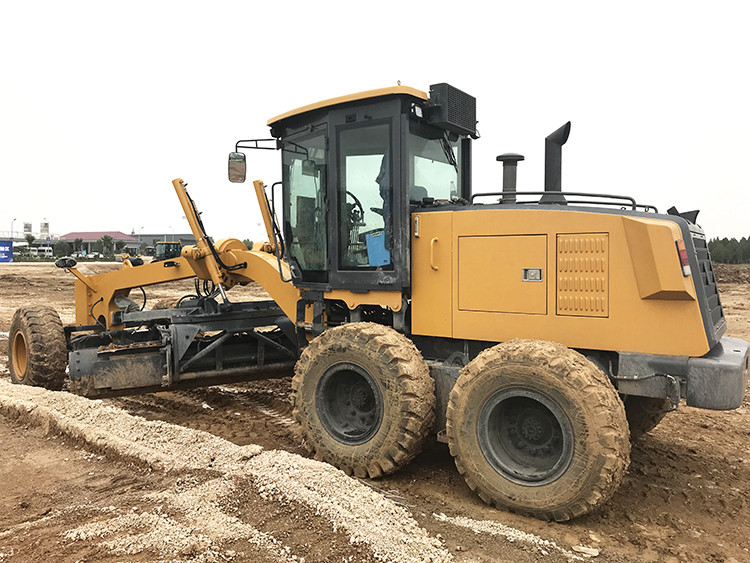

XCMG official mini motor graders GR100 China new
100HP motor grader with Cummins engine.
The motor grader is
mainly used for ground leveling, ditching, slope scraping, bulldozing,
scarification, snow removal for large areas such as highway, airports,
farmlands etc. It is the necessary construction machinery for national defense
construction, mine construction, urban and rural road construction and water
conservancy construction, farmland improvement and so on.
Advantages and Highlights:
1. GR100 adopts Dongfeng Cummins 4BTA3.9-C100-II (SO11847) turbocharged diesel
engine with large output torque and power reserve coefficient and low fuel
consumption.
2.
The torque converter has a large torque coefficient, a high efficiency, a wide
effective area, and a good joint operation characteristic with the engine.
3.
The drive axle is a dedicated XCMG axle.
4.
Rear axle main drive is equipped with "NO-SPIN" without self-locking
differential. When one wheel slips, the other wheel can still transmit its
original torque.
5.
The service brake is a dual-circuit hydraulic brake system that acts on the two
rear wheels of the grader and is safe and reliable.
6. The sealed cab
is used to configure the air conditioning system. The interior parts are sleek
and compact plastic parts, which fully reflects the needs of ergonomics.
|
Item |
GR100 |
|
Engine model |
J-XZGR100-4BT3.9 |
|
Rated power/speed |
75(2400r/min) |
|
Overall dimension (standard) |
6880X2375X3150 |
|
Total weight (standard) |
7000kg |
|
Tire specification |
16/70-24 |
|
Ground clearance (front axle) |
550mm |
|
Tread |
1900mm |
|
Space of front and rear axles |
4885 mm |
|
Forward velocity |
5,8,11,17,24,38km/h |
|
Reverse speed |
5,11,24km/h |
|
Tractive effort f=0.75 |
39.2N |
|
Maximum gradeability |
20% |
|
Tire inflation pressure |
300kPa |
|
Working system pressure |
16MPa |
