XCMG FD35T 3.5 Ton Small Diesel Forklifts Truck For Sale
Summary
- Fork Width:125mm
- Fork Length:1070mm
- Max Lifting Height:7000mm
- Rated Loading Capacity:3500Kg
- Power Source:Diesel Engine
- Model Number:FD35T
- Brand Name:XCMG
- Place of Origin:Jiangsu, China
Specifications
- Weight:1000.000kg
- Condition:New
- Moving Type:Other
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

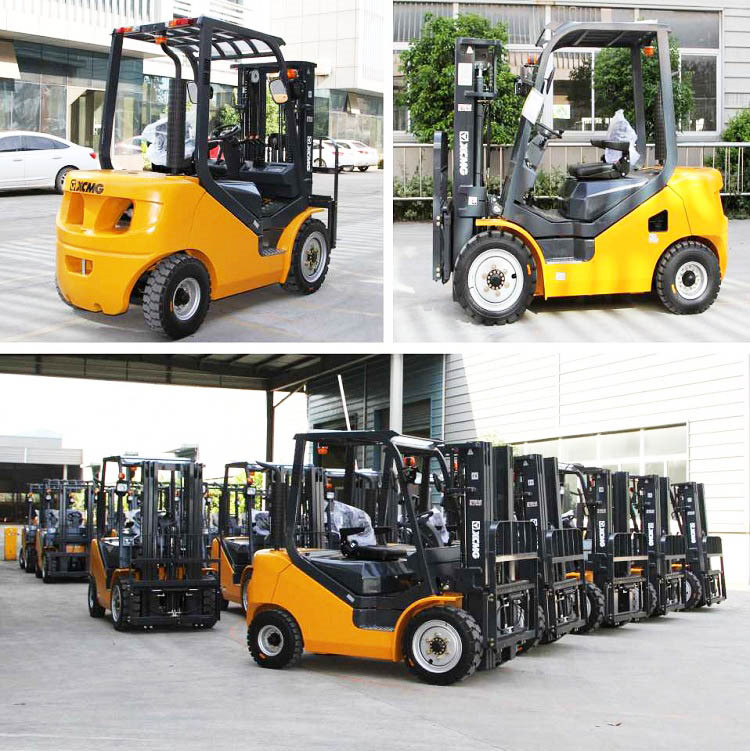

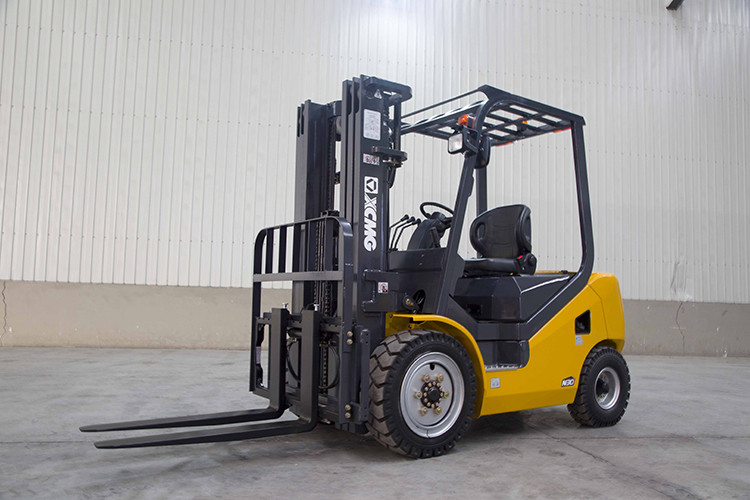

XCMG 3.5ton Small Diesel Forklift Truck FD35T Forklifts.

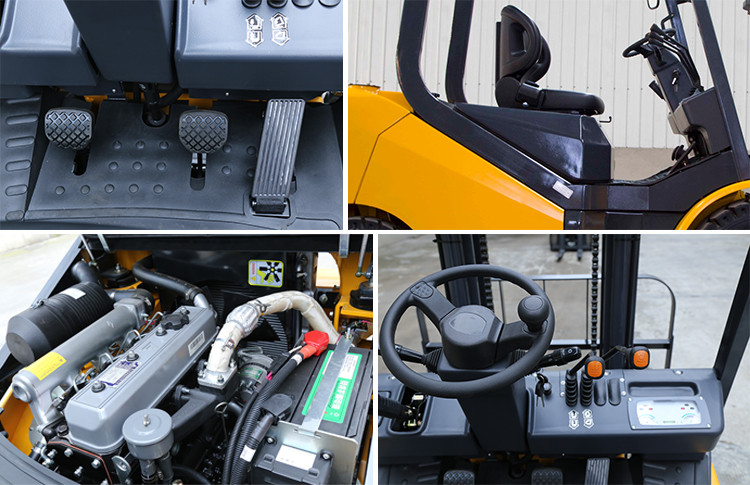

XCMG Forklifts provide you with multiple choice as per your real need,we have different reliable engines for choice. All these engine have been tested that they can be trusted through all kinds of tough working condition and get recognition from millions of client across the worldwide.
These engines are specifically designed for the forklift use,with low fuel consumption,less noise and vibration,all these features improve the whole performance of the forklift.
High efficiency is also delivered through the performance of the axles,the excellent brake system make sure the forklift operate with safety,the steering axle provide prompt and precise feedback to the driver when steering.
[Advantages and Highlights]
1, One-piece designed of suspension frame.
2, New water tank & cooling system.
3, Larger operation space.Optimized steering wheel, operating handle and pedals.
4, High-efficency hydraulic system, lower fuel comsumption.
5, Enhanced wide view mast improves the work efficency and operating safety.
|
Model |
FD35T |
|
|
Power Type |
Diesel |
|
|
Rated Load Capacity |
Q(kg) |
3500 |
|
Load Centre |
C(mm) |
500 |
|
Rated Lift Height |
H3(mm) |
3000 |
|
Free Lift Height |
H2(mm) |
100 |
|
Fork Size (L×W×T) |
mm |
1070×125×50 |
|
Mast Tilt Angle (F/R, α°/β°) |
deg |
6°/12° |
|
Fork Overhang (Wheel Center to Fork Face) |
X1(mm) |
484 |
|
Rear Overhang |
X2(mm) |
635 |
|
Ground Clearance (Bottom of Mast) |
H7(mm) |
145 |
|
Length to Face of Fork (Without Fork) |
L1(mm) |
2813 |
|
Overall Width |
B1(mm) |
1225 |
|
Mast Lowered Height |
H1(mm) |
2070 |
|
Mast Extended Height (With Backrest) |
H4(mm) |
4070 |
|
Overhead Guard Height |
H5(mm) |
2235 |
|
Tyre (Front x 2) |
mm |
28×9-15-12PR |
|
Tyre (Rear x 2) |
mm |
6.50-10-10PR |
|
Total Weight |
kg |
4840 |
|
Battery |
V/Ah |
12/90 |
