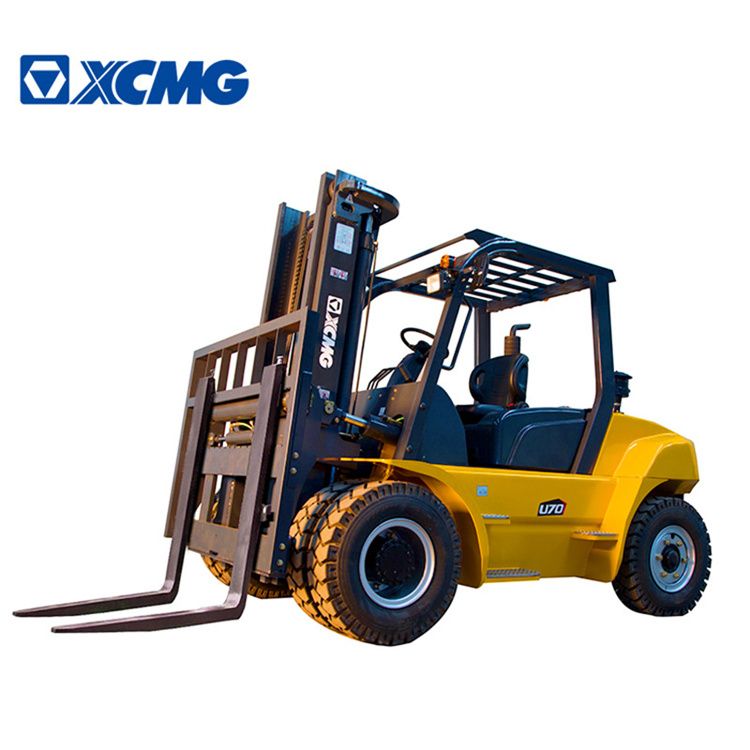

XCMG 7 ton diesel forklifts tractor FD70T with side shifter for sale
.jpg)
Summary
- Fork Width:150mm
- Fork Length:1220mm
- Min Lifting Height:2615mm
- Max Lifting Height:4437mm
- Rated Loading Capacity:7000kg
- Power Source:Diesel Engine
- Model Number:FD70T
- Brand Name:XCMG
- Place of Origin:Jiangsu, China
Specifications
- Weight:9350.000kg
- Condition:New
- Moving Type:Other
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
XCMG 7 ton diesel forklifts
tractor FD70T with side shifter.
XCMG Diesel Forklift Truck provide you with multiple
choice as per your real need, we have different reliable engines for choice.
All these engine have been tested that they can be trusted through all kinds of
tough working condition and get recognition from millions of client across the
worldwide.
These engines are specifically designed for the forklift
use, with low fuel consumption, less noise and vibration, all these features
improve the whole performance of the forklift.
High efficiency is also delivered through the performance
of the axles, the excellent brake system make sure the forklift operate with
safety, the steering axle provide prompt and precise feedback to the driver
when steering.
[Advantages and Highlights]
1, One-piece designed of suspension frame.
2, New water tank & cooling system.
3, Larger operation space. Optimized steering wheel, operating handle and
pedals.
4, High- efficiency hydraulic system, lower fuel consumption.
5, Enhanced wide view mast improves the work efficiency and operating safety.
|
Model |
FD70T-H |
FD70T-JF |
FD70T-JI |
FD70T-JT |
|
|
Power Type |
Diesel |
||||
|
Rated Load Capacity |
Q(kg) |
7000 |
|||
|
Load Centre |
C(mm) |
600 |
|||
|
Rated Lift Height |
H3(mm) |
3000 |
|||
|
Free Lift Height |
H2(mm) |
152 |
|||
|
Fork Size (L×W×T) |
mm |
1220×150×65 |
|||
|
Mast Tilt Angle (F/R, α°/β°) |
deg |
6°/12° |
|||
|
Fork Overhang (Wheel Center to Fork Face) |
X1(mm) |
585 |
|||
|
Rear Overhang |
X2(mm) |
720 |
|||
|
Ground Clearance (Bottom of Mast) |
H7(mm) |
200 |
|||
|
Length to Face of Fork (Without Fork) |
L1(mm) |
3590 |
|||
|
Overall Width |
B1(mm) |
1995 |
|||
|
Mast Lowered Height |
H1(mm) |
2615 |
|||
|
Mast Extended Height (With Backrest) |
H4(mm) |
4437 |
|||
|
Overhead Guard Height |
H5(mm) |
2415 |
|||
|
Turning Radius (Outside) |
Wa(mm) |
3360 |
|||
|
Min.Aisle width for pallets |
Ast(mm) |
5365 |
|||
|
Travel Speed (No Load) |
km/h |
20 |
|||
|
Lifting Speed (Full Load) |
mm/sec |
330 |
|||
|
Total Weight |
kg |
9350 |
|||
|
Battery |
V/Ah |
24/90 |
|||
|
Engine Model |
6102BG6 |
A-6BG1QC |
QSB4.5 |
TCD3.6 |
|
|
Engine Manufacturer |
CHAOCHAI |
ISUZU |
CUMMINS |
DEUTZ |
|
