XCMG forklift 7 ton FD70T china new diesel forklift truck with forklift spare parts price
![](/app/topc/statics/images/close.png)
![XCMG forklift 7 ton FD70T china new diesel forklift truck with forklift spare parts price](/images/store/357636/item/FD70T-7.jpg)
![](/app/topc/statics/images/close.png)
Summary
- Fork Width:150mm
- Fork Length:1220mm
- Min Lifting Height:2615mm
- Max Lifting Height:4437mm
- Rated Loading Capacity:7000kg
- Power Source:Diesel Engine
- Model Number:FD70T
- Brand Name:XCMG
- Place of Origin:Jiangsu, China
Specifications
- weight:9350.000kg
- Condition:New
- Moving Type:Other
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

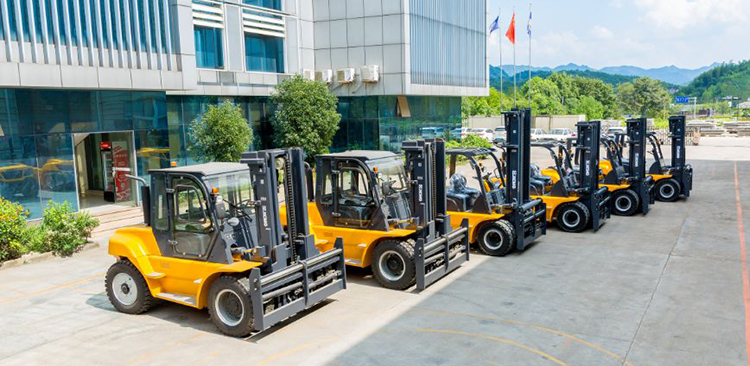

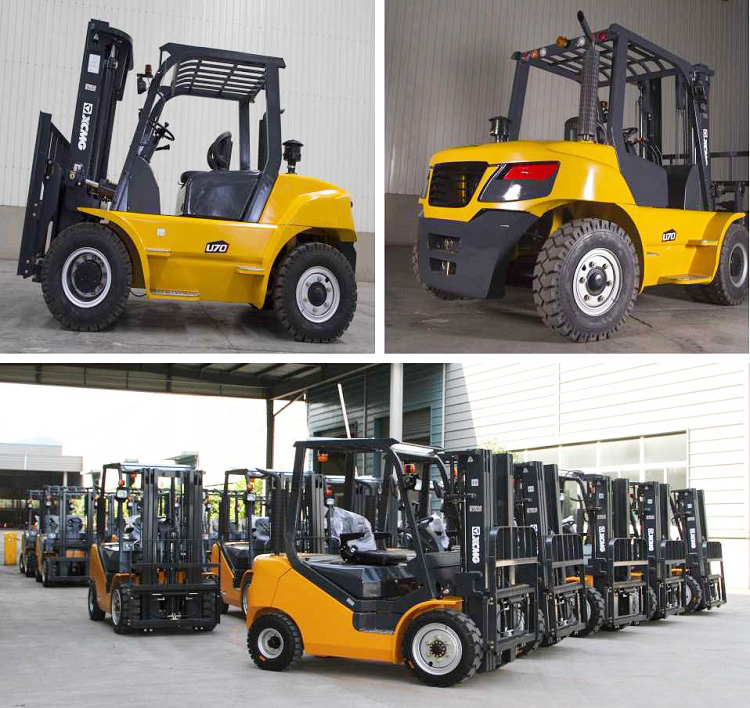

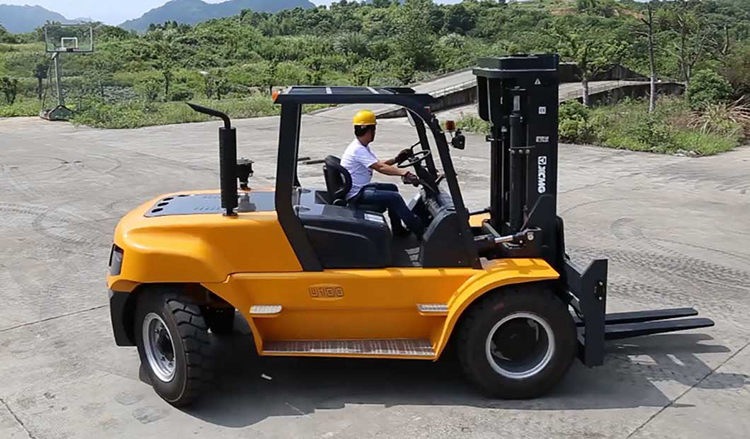

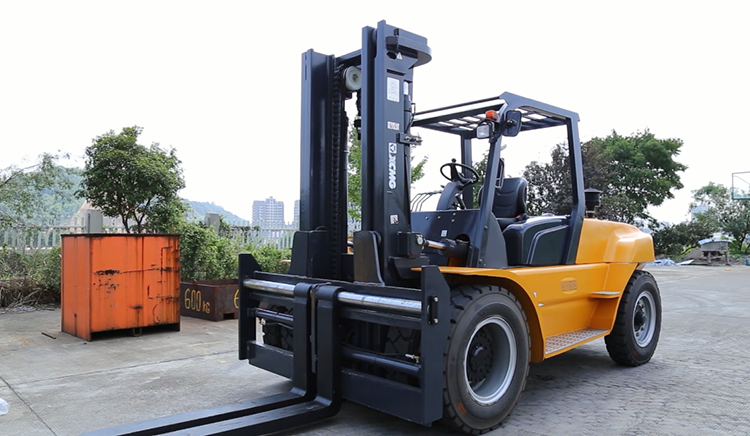

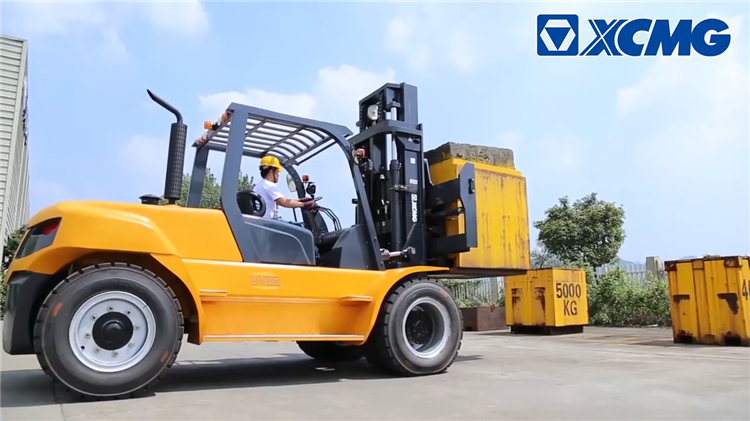

XCMG forklift 7 ton FD70T
china new diesel forklift truck with forklift spare parts.
XCMG
Diesel Forklift provide you with multiple choice as per your real need, we have
different reliable engines for choice. All these engines have been tested that
they can be trusted through all kinds of tough working condition and get
recognition from millions of client across the worldwide.
These
engines are specifically designed for the forklift use, with low fuel
consumption, less noise and vibration, all these features improve the whole
performance of the forklift.
High
efficiency is also delivered through the performance of the axles, the
excellent brake system makes sure the forklift operates with safety, the
steering axle provide prompt and precise feedback to the driver when steering.
Advantages and
Highlights:
1.
One-piece designed of suspension frame.
2.
New water tank & cooling system.
3.
Larger operation space. optimized steering wheel, operating handle and pedals.
4.
High-efficiency hydraulic system, lower fuel consumption.
5.
Enhanced wide view mast improves the work efficiency and operating safety.
Model |
|
FD70T-H |
FD70T-JF |
FD70T-JI |
FD70T-JT |
Power Type |
Diesel |
||||
Rated Load Capacity |
Q(kg) |
7000 |
|||
Load Centre |
C(mm) |
600 |
|||
Rated Lift Height |
H3(mm) |
3000 |
|||
Free Lift Height |
H2(mm) |
152 |
|||
Fork Size (L×W×T) |
mm |
1220×150×65 |
|||
Mast Tilt Angle (F/R, α°/β°) |
deg |
6°/12° |
|||
Fork Overhang (Wheel Center to Fork Face) |
X1(mm) |
585 |
|||
Rear Overhang |
X2(mm) |
720 |
|||
Ground Clearance (Bottom of Mast) |
H7(mm) |
200 |
|||
Length to Face of Fork (Without Fork) |
L1(mm) |
3590 |
|||
Overall Width |
B1(mm) |
1995 |
|||
Mast Lowered Height |
H1(mm) |
2615 |
|||
Mast Extended Height (With Backrest) |
H4(mm) |
4437 |
|||
Overhead Guard Height |
H5(mm) |
2415 |
|||
Turning Radius (Outside) |
Wa(mm) |
3360 |
|||
Min.Aisle width for pallets |
Ast(mm) |
5365 |
|||
Travel Speed (No Load) |
km/h |
20 |
|||
Lifting Speed (Full Load) |
mm/sec |
330 |
|||
Total Weight |
kg |
9350 |
|||
Battery |
V/Ah |
24/90 |
|||
Engine Model |
6102BG6 |
A-6BG1QC |
QSB4.5 |
TCD3.6 |
|
Engine Manufacturer |
CHAOCHAI |
ISUZU |
CUMMINS |
DEUTZ |
