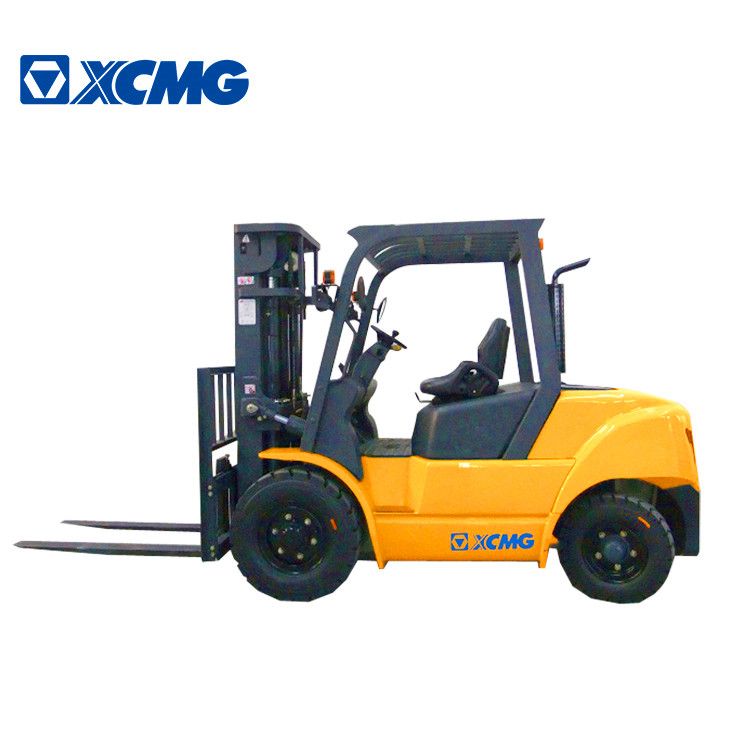

XCMG official 5 ton forklift FD50T china new diesel forklift truck machines with parts price
![](/app/topc/statics/images/close.png)
![XCMG official 5 ton forklift FD50T china new diesel forklift truck machines with parts price](/images/store/357636/item/FD50T (1).jpg)
![](/app/topc/statics/images/close.png)
Summary
- Fork Width:150mm
- Fork Length:1220mm
- Min Lifting Height:3000mm
- Max Lifting Height:6000mm
- Rated Loading Capacity:5000kg
- Type:Diesel
- Model Number:FD50T
- Brand Name:XCMG
- Place of Origin:China
- Min. Lifting Height:3000mm
- Max. Lifting Height:7000mm
- Power Souce:Diesel
- Overall Dimensions:3510*1995*2415mm
Specifications
- weight:4340.000kg
- Condition:New
- Moving Type:Wheel
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
5 ton forklift FD50T china new diesel
forklift truck machines with parts.
XCMG Diesel Forklift provide you with multiple choice as
per your real need, we have different reliable engines for choice. All these
engines have been tested that they can be trusted through all kinds of tough
working condition and get recognition from millions of clients across the
worldwide.
These engines are specifically designed for the forklift use,
with low fuel consumption, less noise and vibration, all these features improve
the whole performance of the forklift.
High efficiency is also delivered through the performance
of the axles, the excellent brake system makes sure the forklift operates with safety,
the steering axle provide prompt and precise feedback to the driver when
steering.
Advantages and Highlights:
1. One-piece designed of suspension frame.
2. New water tank & cooling system.

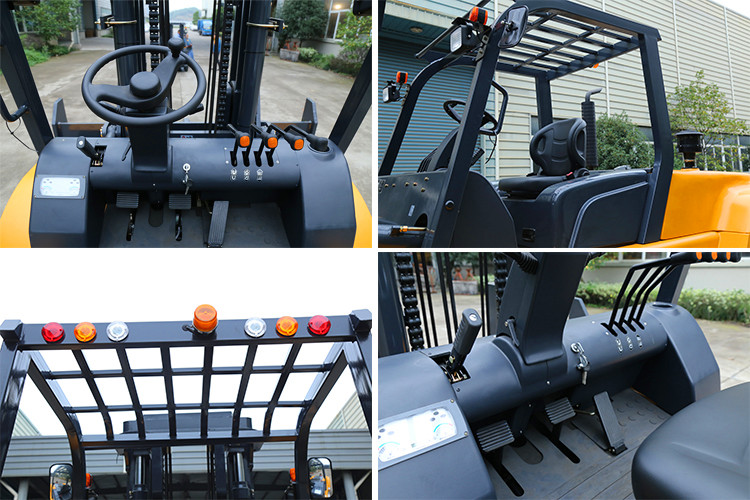

3. Larger operation space. Optimized steering wheel,
operating handle and pedals.
4. High-efficiency hydraulic system, lower fuel consumption.
5. Enhanced wide view mast improves the work efficiency
and operating safety.
Model | Unit | FD50T-H | FD50T-JF | FD50T-JI | FD50T-JT |
Power Type | Diesel | ||||
Rated Load Capacity | kg | 5000 | |||
Load Centre | mm | 600 | |||
Rated Lift Height | mm | 3000 | |||
Free Lift Height | mm | 152 | |||
Fork Size (L×W×T) | mm | 1220×150×60 | |||
Mast Tilt Angle (F/R, α°/β°) | deg | 6°/12° | |||
Fork Overhang (Wheel Center to Fork Face) | mm | 585 | |||
Rear Overhang | mm | 640 | |||
Ground Clearance (Bottom of Mast) | mm | 200 | |||
Length to Face of Fork (Without Fork) | mm | 3510 | |||
Overall Width | mm | 1995 | |||
Mast Lowered Height | mm | 2515 | |||
Mast Extended Height (With Backrest) | mm | 4437 | |||
Overhead Guard Height | mm | 2415 | |||
Turning Radius (Outside) | mm | 3280 | |||
Total Weight | kg | 7980 | |||
Battery | V/Ah | 24/90 | |||
Engine Model | 6102BG6 | A-6BG1QC | QSB4.5 | TCD3.6 | |
Engine Manufacturer | CHAOCHAI | ISUZU | CUMMINS | DEUTZ |
