Summary
- Fork Width:120mm
- Fork Length:1070mm
- Min Lifting Height:2055mm
- Max Lifting Height:4070mm
- Rated Loading Capacity:2500Kg
- Power Source:AC Motor
- Model Number:FB25-AZ1
- Brand Name:XCMG
- Place of Origin:Jiangsu, China
Specifications
- weight:2500.000kg
- Condition:New
- Moving Type:Other
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
XCMG Electric Reach Forklift 4 Wheel 2.5 Ton Small
Forklifts Truck Machine With FB25-AZ1 Attachment.

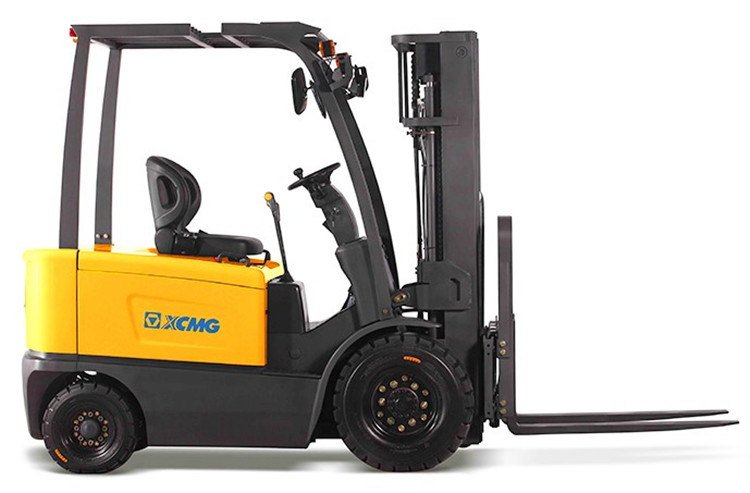

XCMG Electric Reach
Forklift FB25-AZ1 combining the Italian ZAPI electric controller, ZAPI-SUPEREC
AC motors, and HAKWER battery, as well as the excellent hydraulic system, these
features guarantee your material handling become the most cost-efficient.
Performance Characteristics:
1.Full AC System
2.OPS System
3.Comfortable
Operator Space, optimized steering wheel, operating handle and pedals.
4. Side-way Battery
Change System
5. Lower Energy
Consumption and Energy Regeneration Function
6.Easy-to-read operator
display
7.World Class Gear
Box System
8. Automatic
Maintenance Alarm
Model |
FB25-AZ1 |
|
Rated Load Capacity |
Q(kg) |
2500 |
Load Centre |
C(mm) |
500 |
Lift Height |
H3(mm) |
3000 |
Free Lift |
H2(mm) |
100 |
Fork Size (L×W×T) |
L/W/T(mm) |
1070×120×40 |
Length (To Fork Face) |
L1(mm) |
2380 |
Width |
B1(mm) |
1150 |
Overhead Guard Height |
H5(mm) |
2125 |
Turning Radius |
Wa(mm) |
2080 |
Fork Overhang (Wheel Center to Fork Face) |
X(mm) |
478 |
Wheelbase |
Y(mm) |
1500 |
Fork Spread (Min/Max) |
(mm) |
250/1040 |
Travel Speed (Full Load) |
km/h |
12 |
Travel Speed (No Load) |
km/h |
13 |
Lifting Speed (Full Load) |
mm/s |
300 |
Lifting Speed (No Load) |
mm/s |
420 |
Max.Gradeability (Full Load) |
% |
18 |
Max.Gradeability (No Load) |
% |
20 |
Total Weight (Include Battery Box) |
kg |
4660 |
Diver Motor |
kw |
11 |
Pump Motor |
kw |
11 |
Battery (Standard) |
V/Ah |
48/620 |
Controller Type |
AC |
|
Controller Manufacturer |
ZAPI |
