Summary
- Rated Speed:11r/min
- Max Digging Radius:6245mm
- Maximum Digging Depth:4070mm
- Maximum Digging Height:7120mm
- Bucket capacity:0.33m3
- Operating Weight:7730kg
- Model Number:XE80D
- Brand Name:XCMG
- Place of Origin:Jiangsu, China
Specifications
- Weight:7730.000kg
- Condition:New
- Moving Type:Other
- Power: 44.8kW
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

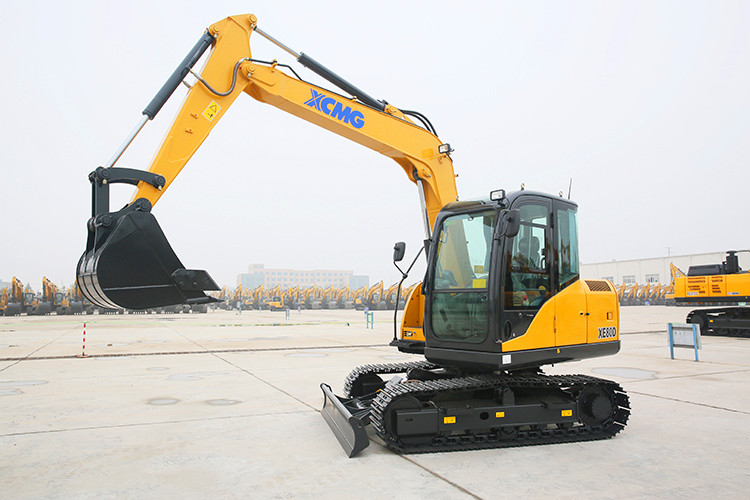

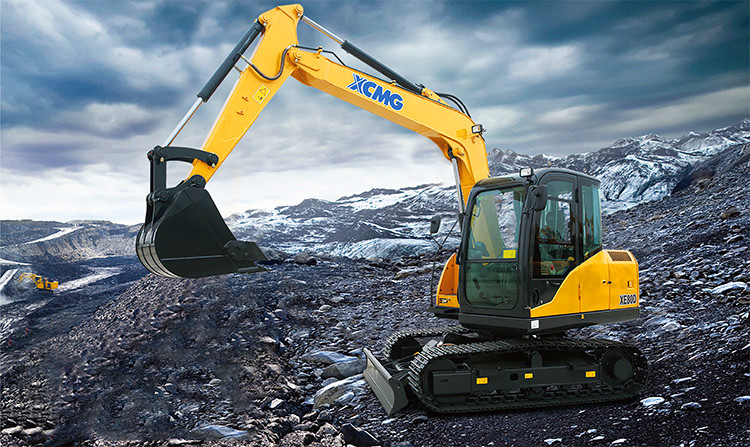

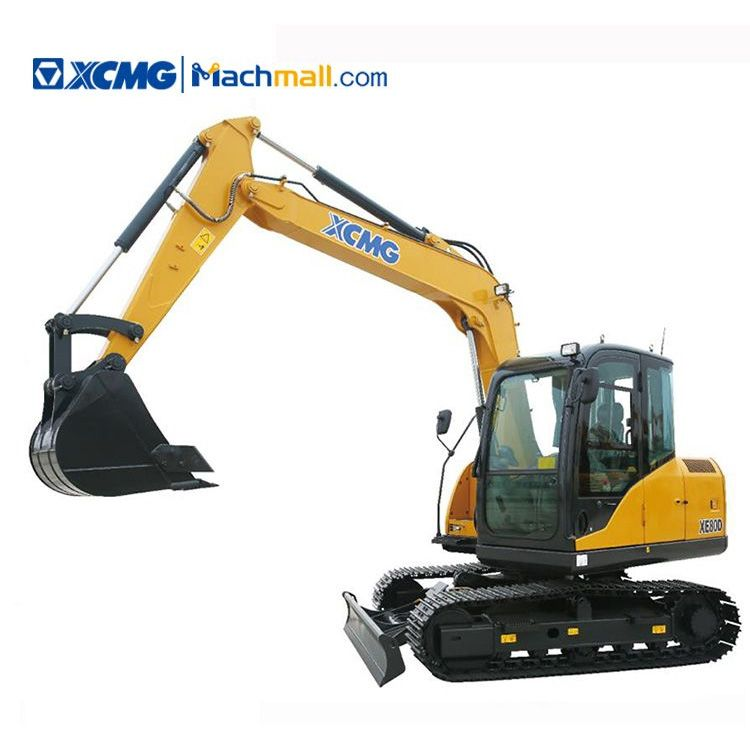

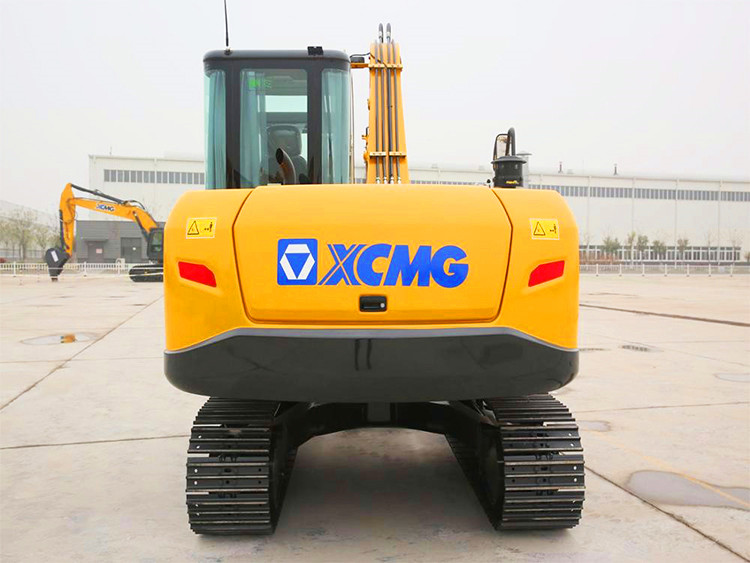

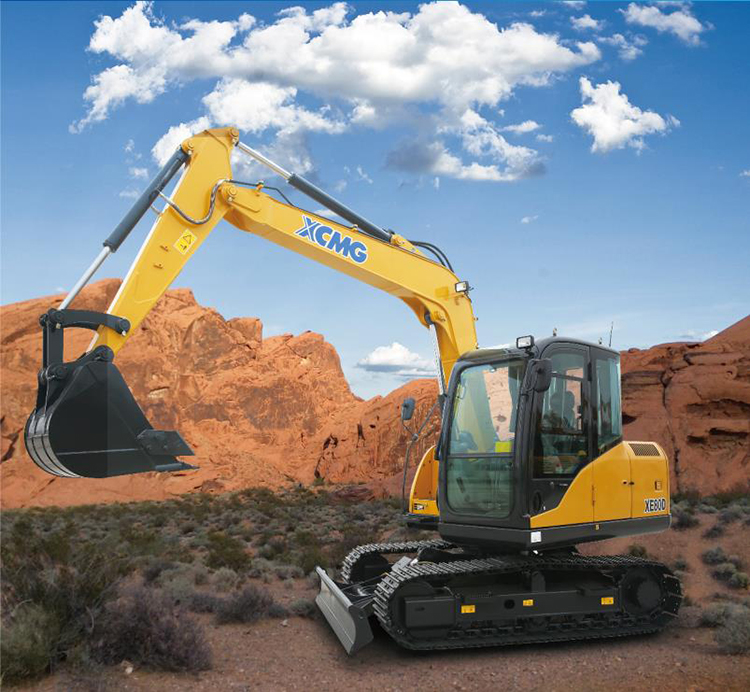

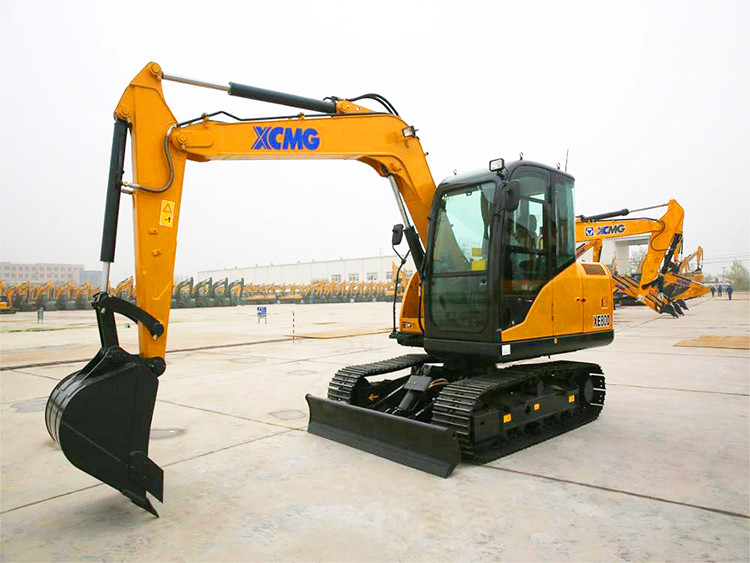

XCMG Official XE80D 8 ton Small Crawler Excavator Machine.
XCMG XE80D excavator machine use of Yanmar naturally aspirated engine widely used in the industry, with the features of small displacement, low fuel consumption, low-speed and large-torque, is perfectly matched the excavator operation conditions. The engine uses direct injection technology with good oil adaptability. The mechanical speed regulation is upgraded to electronic speed regulation, the speed control is more stable, not only reduce the fuel consumption, but also effectively reduce the "black smoke" from the engine.
1. Ecological and economical
* Adopting new environmental friendly Yanmar engine, low speed torque, low fuel consumption, high operating efficiency, reliable and durable.
* The advanced load-sensitive control system, low energy consumption.
2. Multiple applications
* Short tail design and short slewing radius can achieve flexible operation in confined space.
* Multiple additional configurations to adapt to a variety of operating requirement.
|
Description |
Unit |
Parameter value |
|
|
Operating weight |
Kg |
7730 |
|
|
Bucket capacity |
m³ |
0.33 |
|
|
Engine |
Model |
/ |
4TNV98-ZCSXG |
|
No. of cylinders |
/ |
4 |
|
|
Output power |
kw/rpm |
44.8/2200 |
|
|
torque/speed |
N.m |
225.7-245.8/1650 |
|
|
Displacement |
L |
3.319 |
|
|
Main performance |
Travel speed(H/L) |
km/h |
5.0/2.7 |
|
Rotating speed |
r/min |
11 |
|
|
Gradeability |
° |
35 |
|
|
Ground pressure |
kPa |
34.85 |
|
|
Bucket digging force |
kN |
57 |
|
|
Arm crowd force |
kN |
38 |
|
|
Maximum traction |
kN |
68.3 |
|
|
Main pump |
/ |
/ |
|
|
Hydraulic system |
Rated flow of main pump |
L/min |
176 |
|
Pressure of prime valve |
MPa |
28 |
|
|
Pressure of travel system |
MPa |
27.4 |
|
|
Pressure of swing system |
MPa |
20.6 |
|
|
Pressure of pilot system |
MPa |
3.5 |
|
|
Oil Capacity |
Fuel tank capacity |
L |
137 |
|
Hydraulic tank capacity |
L |
82 |
|
|
Engine oil capacity |
L |
10 |
|
|
Appearance size |
Overall length |
mm |
6215 |
|
Overall width |
mm |
2280 |
|
|
Overall height |
mm |
2690 |
|
|
Width of platform |
mm |
2260 |
|
|
Overall width of chassis |
mm |
2200 |
|
|
Width of crawler |
mm |
450 |
|
|
Length of wheel |
mm |
2195 |
|
|
Crawler gauge |
mm |
1750 |
|
|
Clearance under counterweight |
mm |
800 |
|
|
Min. ground clearance |
mm |
373 |
|
|
Dozer blade width/height |
mm |
2200/396 |
|
|
Working scope |
Max. digging height |
mm |
7120 |
|
Max. dumping height |
mm |
5160 |
|
|
Max. digging depth |
mm |
4070 |
|
|
Max. vertical wall digging depth |
mm |
3120 |
|
|
Max. digging reach |
mm |
6245 |
|
|
Min. swing radius |
mm |
1800 |
|
|
Min. tail swing radius |
mm |
1865 |
|
|
Max.dozer blade hoist height |
mm |
363 |
|
|
Max. dozer blade digging depth |
mm |
346 |
|
