Summary
- Rated Speed:11.7r/min
- Max Digging Radius:8304mm
- Machine Weight:14800Kg
- Maximum Digging Depth:5520mm
- Maximum Digging Height:8640mm
- Bucket capacity: 0.32~0.72m3
- Operating Weight:14800Kg
- Model Number:XE150U
- Brand Name:XCMG
- Place of Origin:Jiangsu, China
Specifications
- Weight:14800.000kg
- Condition:New
- Moving Type:Other
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

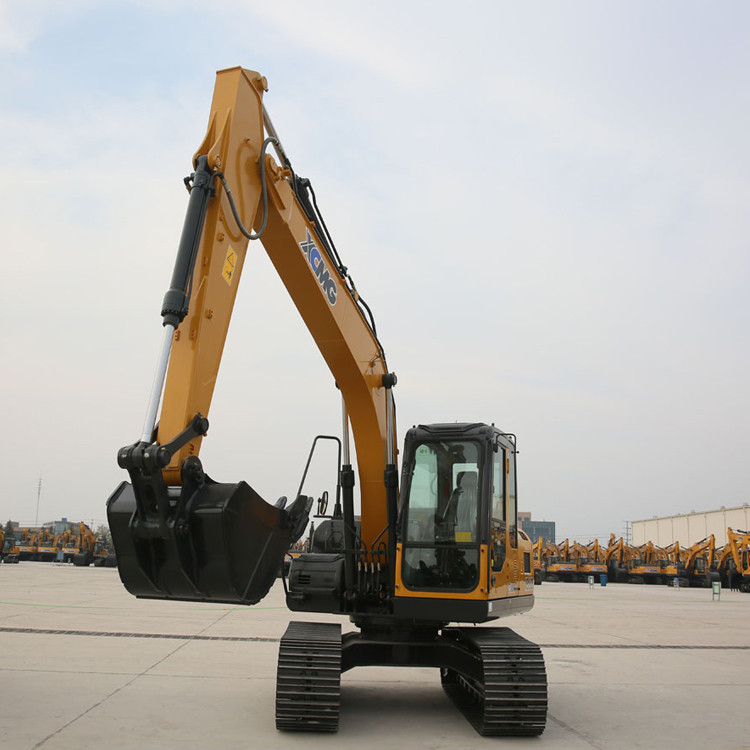

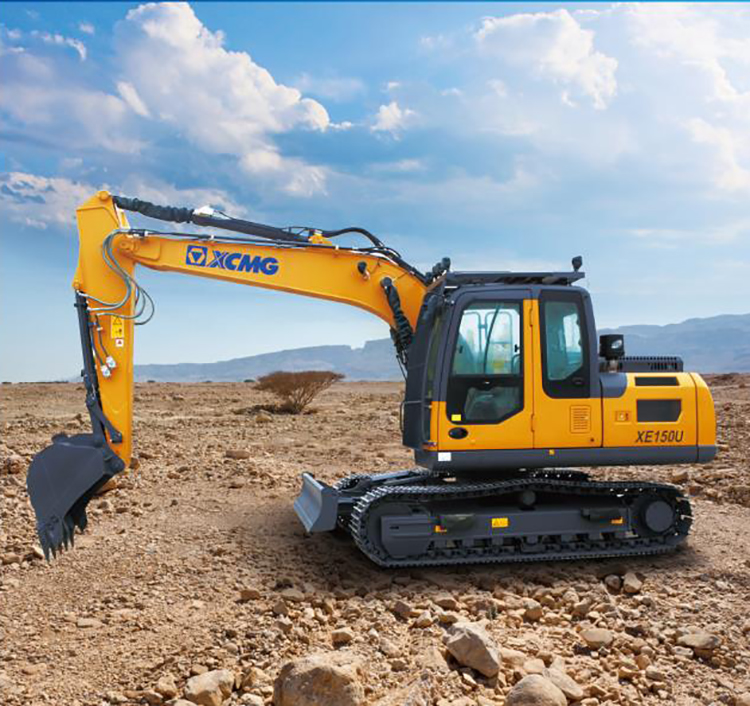

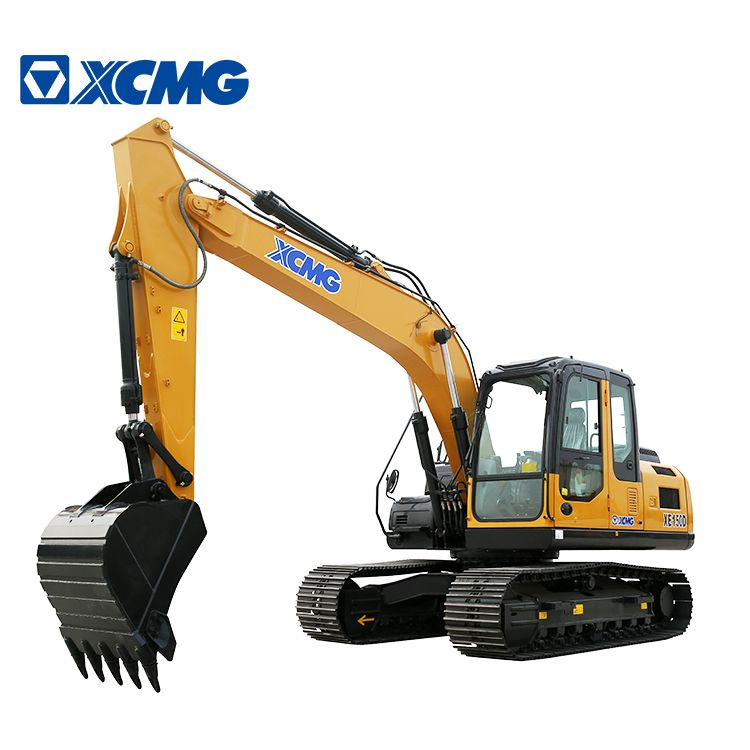

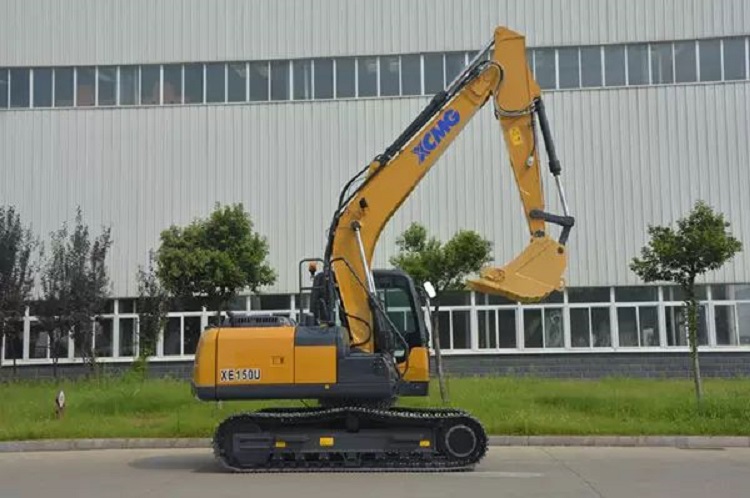

XCMG New XE150U 15 Ton Excavator Philippines.
XCMG Excavator XE150U Highlights:
1. The power system has passed the TPEM certification recognized by Cummins, which meets the emission requirements of the American market and can realize the quota sales in the local market
2. The arm and bucket rod are equipped with pipeline explosion-proof valve and directional valve, which can realize the rapid switch between ISO operation mode and BHL operation mode, to ensure the reliability, safety and convenience of the construction of the product.
3. The working device can be lubricated for 500 hours without maintenance, which greatly reduces the maintenance cost.
XCMG Excavator XE150U Optional Configuration:
Equipped with multi-functional intelligent control system and kinds of attachments, it can achieve crushing, shearing, cleaning, compaction, milling, pushing, clamping, grasping, scraping, loose, hoisting and other operations.
|
Sales model |
Unit |
XE150U |
|
|
Operating weight |
Kg |
14800 |
|
|
Bucket capacity |
m³ |
0.32～0.72 |
|
|
Engine |
Model |
/ |
QSB4.5 |
|
No. of cylinders |
/ |
4 |
|
|
Rated power |
kw/rpm |
90/2200 |
|
|
Maximum torque/speed |
N.m/rpm |
470/1500 |
|
|
Displacement |
L |
4.5 |
|
|
Main performance |
Travel speed |
km/h |
5.3/3.2 |
|
Swing speed |
r/min |
11.7 |
|
|
Gradeability |
° |
≤35 |
|
|
Ground pressure |
kPa |
38 |
|
|
Bucket digging force |
kN |
106.9 |
|
|
Arm digging force |
kN |
73.4 |
|
|
Maximum tractive force |
kN |
134 |
|
|
Hydraulic system |
Rated flow of main pump |
L/min |
123.5×2 |
|
Main safety valve pressure |
MPa |
34.3/37 |
|
|
Travel system pressure |
MPa |
34.4 |
|
|
Swing system pressure |
MPa |
25 |
|
|
Pilot system pressure |
MPa |
3.9 |
|
|
Oil Capacity |
Fuel tank capacity |
L |
260 |
|
Hydraulic tank capacity |
L |
105 |
|
|
Engine oil capacity |
L |
11 |
|
|
Appearance size |
A Overall length |
mm |
7806 |
|
B Overall width |
mm |
2590 |
|
|
C Overall height |
mm |
2900 |
|
|
D Width of platform |
mm |
2490 |
|
|
E Track length |
mm |
3658 |
|
|
F Overall width of chassis |
mm |
2590 |
|
|
G Track width |
mm |
600 |
|
|
H Wheel base of crawler |
mm |
2910 |
|
|
I Track gauge |
mm |
1990 |
|
|
J Counterweight clearance |
mm |
942 |
|
|
K Min. ground clearance |
mm |
476 |
|
|
L Min. tail swing radius |
mm |
2355 |
|
|
M Track height |
mm |
836 |
|
|
Working scope |
A Max. digging height |
mm |
8640 |
|
B Max. dumping height |
mm |
6180 |
|
|
C Max. digging depth |
mm |
5520 |
|
|
D Maximum depth cut for 2240mm(8 ft) level bottom |
mm |
5324 |
|
|
E Max. vertical wall digging depth |
mm |
4697 |
|
|
F Max. digging radius |
mm |
8304 |
|
|
G Min. swing radius |
mm |
2445 |
|
|
Standard |
Length of boom |
mm |
4600 |
|
Length of arm |
mm |
2520 |
|
|
Bucket capacity |
m³ |
0.61 |
|
|
Optional |
Length of boom |
m³ |
/ |
|
Length of arm |
m³ |
2100/3010 |
|
|
Bucket capacity |
m³ |
0.52 Rock bucket, Strengthened bucket 0.32/0.4/0.72 Earthwork bucket |
|
