Specifications
- Weight:73000.000kg
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

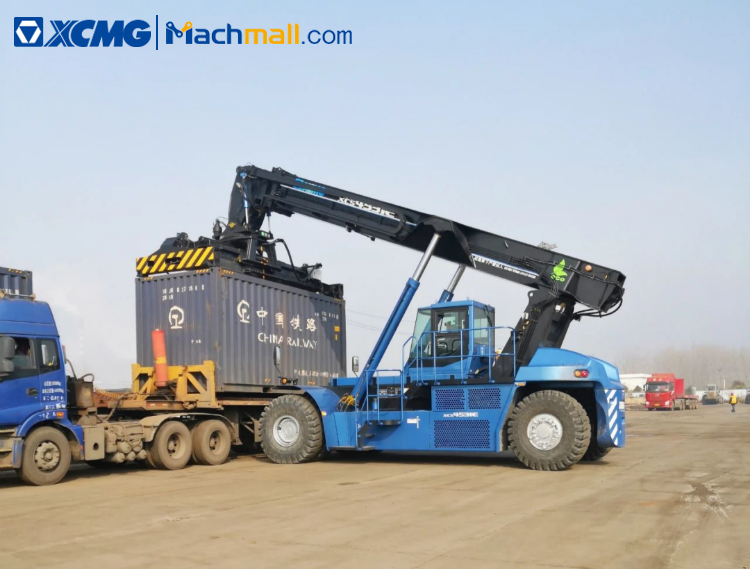

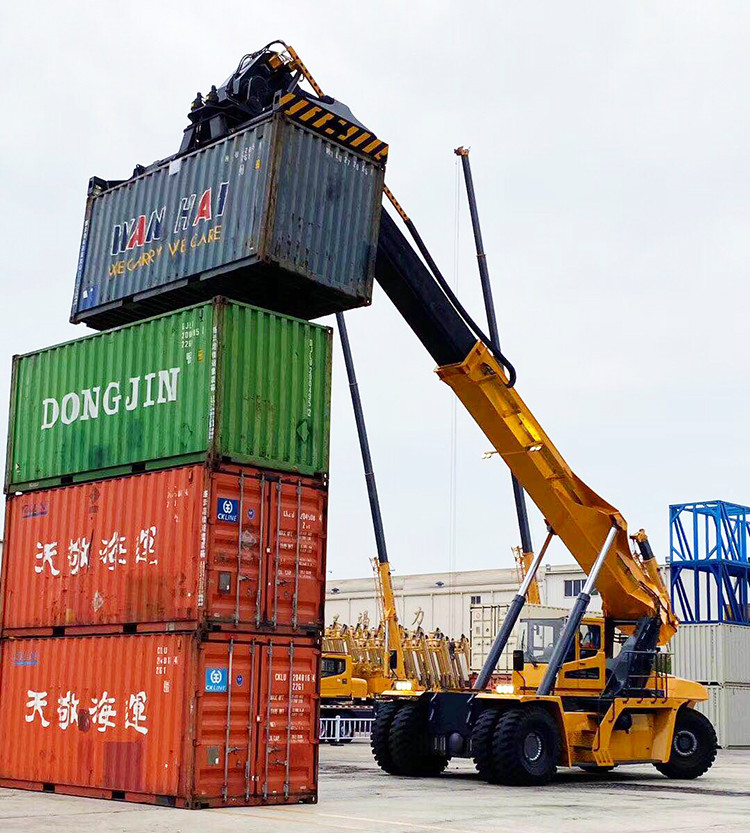

XCMG Offical 45 ton Electric Reach Stacker Container XCS4531E Product.
With the features of high efficiency, energy saving, zero emission and low noise, XCMG's new-generation pure electric container reach stacker is the pioneer of green port. Three-electric drive control scheme and distributed hydraulic control system bring higher operating efficiency and stronger performance for the whole machine.
423kWh lithium iron phosphate power battery to ensure sufficient battery life; advanced technologies such as precise weighing system, intelligent braking system, panoramic images and box protection make products intelligent and efficient;
Equipped with panoramic cab, high-power air-conditioning, humanized layout, the whole machine is elegant and comfortable to operate; a variety of attachments such as tilting slings, log slings, electromagnetic slings etc. can be selected for multiple purposes.
Advantages and highlights:
1. Long battery life, potential energy recovery technology, coupled control of drive and operation motors, large battery capacity.
2. Ultra-fast charging, full time is 80min.
3. Super fast response, two drivers respond to different functions respectively.
4. Super energy saving, annual maintenance, low labor and consumption costs.
|
Item |
Unit |
XCS4531E |
|
|
Main motor |
Model |
|
DM380H46 |
|
Rated power/speed |
kW/rpm |
210/942 |
|
|
Maximum torque/speed |
Nm/rpm |
3800/275 |
|
|
emission standards |
|
zero emission |
|
|
Working motor |
Model |
|
UM130H37 |
|
Rated power/speed |
kW/rpm |
160/2037 |
|
|
Maximum torque/speed |
Nm/rpm |
1300/1175 |
|
|
emission standards |
|
zero emission |
|
|
battery |
Types |
|
Lithium iron phosphate |
|
capacity |
kWh |
423 |
|
|
Drive axle |
Types |
|
Kessler-D102 |
|
Boom |
Maximum lifting height |
mm |
15100 |
|
inclination |
。 |
0-60 |
|
|
Maximum lifting speed (no load/full load) |
mm/s |
420/250 |
|
|
Maximum descending speed (no load/full load) |
mm/s |
400/360 |
|
|
Maximum travel speed (no load/full load) |
km/h |
20/14 |
|
|
Gradeability (no load/full load) |
% |
20/13 |
|
|
Hydraulic system working pressure |
Bar |
260 |
|
|
Vehicle quality |
t |
72 |
|
|
Rated load |
t |
45 |
|
|
Overall dimension(L*W*H) |
mm |
11340*4670*6053 |
|
|
Wheelbase L1 |
mm |
6000 |
|
|
Minimum ground clearance H1 |
mm |
300 |
|
