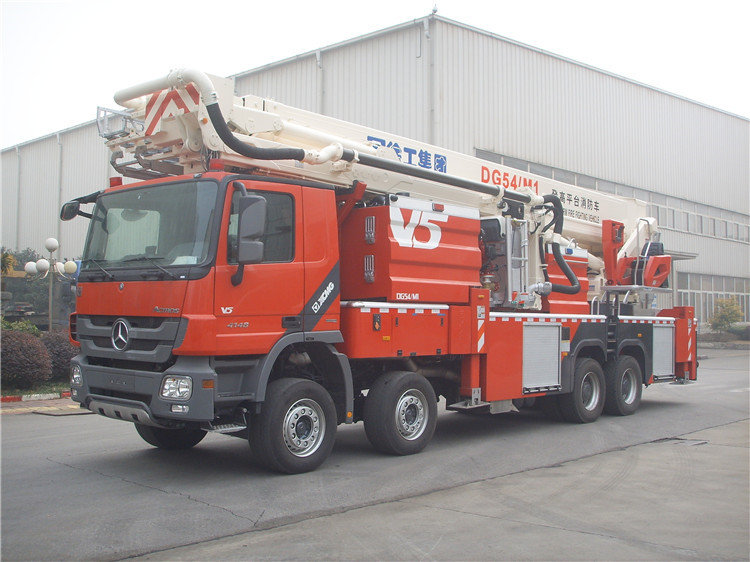

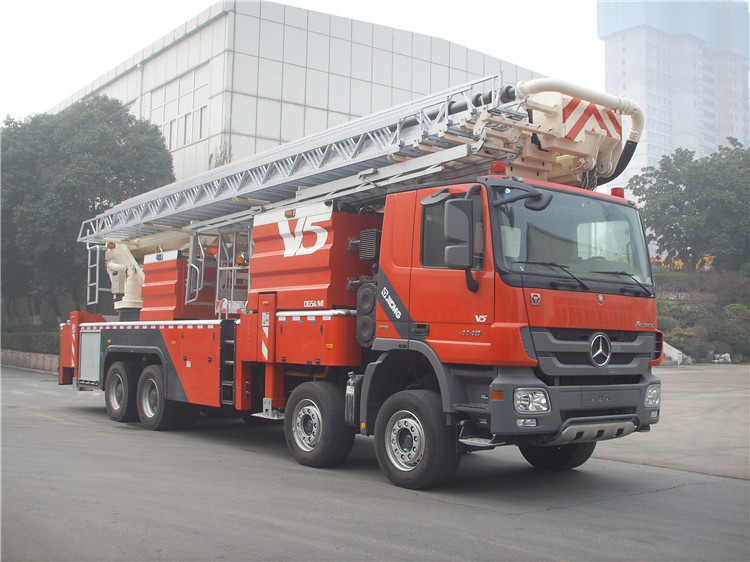

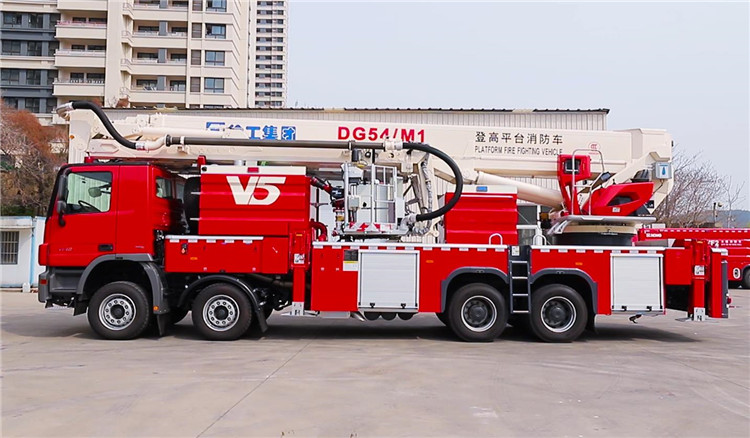

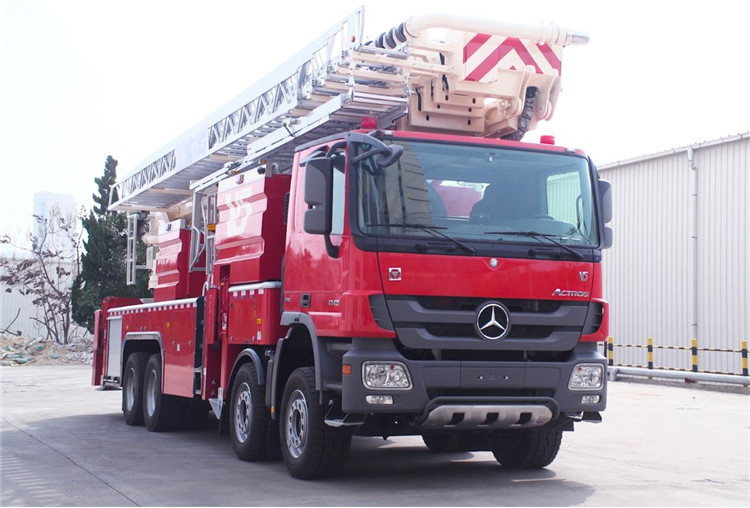

XCMG 54m fire fighting truck DG54M1 hydraulic aerial platform fire truck with Benz chassis for sale
Summary
- Model Number:DG54M1
- Brand Name:XCMG
- Place of Origin:Xuzhou,Jiangsu,China
- Size:11760*4000*2500mm
- Max Work Height:54m
- Fuel Type:Diesel
- Emission Standard:National Ⅴ
- Tank Capacity:Water 3400kg + foam 2000kg
- Horsepower:>450hp
- Transmission Type:Manual
- Type:Aerial
- Drive Wheel:8x4
- Certification:CE/ISO9001
Specifications
- Weight:41600.000kg
- Condition:New
- Moving Type:Other
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
54m fire fighting truck DG54M1 hydraulic aerial platform
fire truck with Benz chassis.

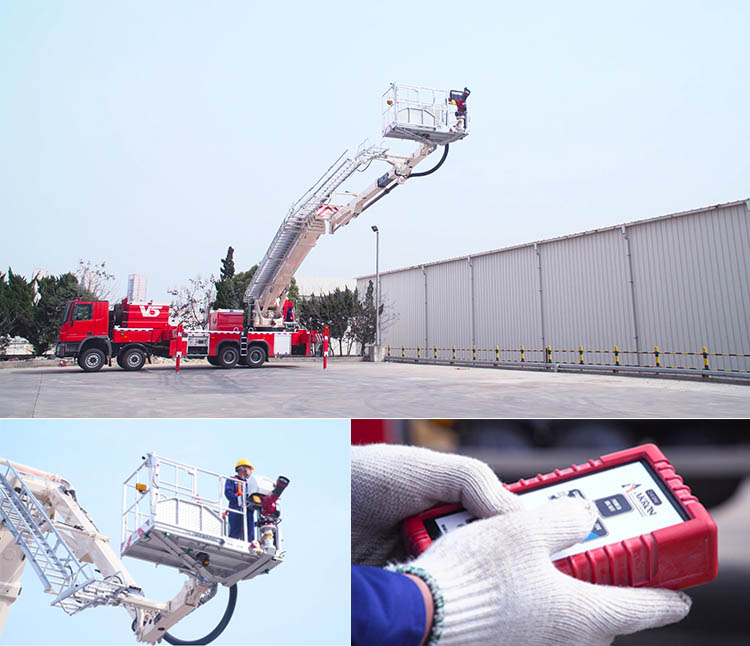

XCMG DG54M1 aerial platform fire truck is the main battle
vehicle integrates three functions of fire tanker, aerial spray truck, foam
truck and aerial truck.
It is widely applied in fire fighting and rescue
operation in cities and towns, mine, oil field and plant as well as other
medium and high-rise buildings, in addition, it also is the first choice for
medium and high-rise building fires, rescue of persons in distress and
properties.
Performance Characteristics:
1. The vehicle has a compact layout, fast and efficient,
and outstanding rescue ability.
2. The vehicle has strong maneuverability and superior
passing performance.
3. Multi-load and multi-curve operating range, with
powerful rescue capabilities.
4. Excellent fire protection performance.
|
Boundary dimension |
11760×2500×4000mm |
||
|
Full mass |
41600kg |
||
|
Maximum speed |
≥90km/h
(electric speed limit) |
||
|
Minimum turning diameter |
≤24m |
||
|
Approach angle |
≥23° |
||
|
Departure angle |
≥9° |
||
|
Maximum gradeability |
≥25% |
||
|

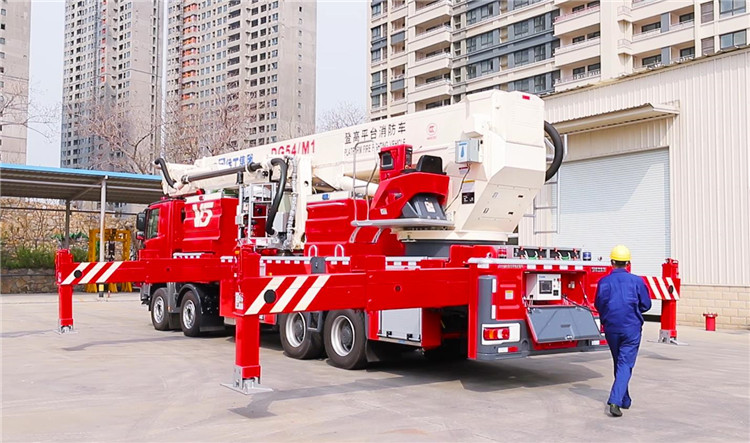

Outrigger span |
Longitudinal span |
6700mm |
|
|
Horizontal
span |
8000mm |
||
|
Work platform load |
500kg |
||
|
Maximum working height |
54m |
||
|
Maximum operating radius |
25m |
||
|
Elevating angle of boom |
The elevating
angle of telescopic boom is 0 to 83 degrees, and that of boom NO.2 and
telescopic booms is 0 to 177 degrees. |
||
|
Rotation scope |
360° full-rotation |
||
|
Spread time of outrigger |
≤35s |
||
|
Time for lifting the boom to rated height and rotating 90° |
≤150s |
||
|
Maximum slewing speed |
0.1~1.0r/min |
||
|
Fire pump |
Rated flow (L/s) |
≥70 |
|
|
Rated pressure
(MPa) |
≥1.6 |
||
|
Fire fighting gun |
Water monitor |
Model |
PLKD120ZB-3480 |
|
Rated flow (L/s) |
64 |
||
|
Rated pressure (MPa) |
≤1.0 |
||
|
Range (m) |
≥65m |
||
|
Model |
PLKD120ZB-3480 |
||
|
Foam monitor |
Rated flow (L/s) |
64 |
|
|
Rated pressure (MPa) |
≤1.0 |
||
|
Range (m) |
≥60m |
||
|
The swing range of the monitor head |
-45~+60 |
||
|
-80~+90 |
|||
