XCMG official 6x4 aerial platform fire truck DG34M1 34m fire fighting truck with Benz chassis price
![](/app/topc/statics/images/close.png)
![XCMG official 6x4 aerial platform fire truck DG34M1 34m fire fighting truck with Benz chassis price](http://www.machmall.com/images/store/357636/item/DG34M1-1.jpg)
![](/app/topc/statics/images/close.png)
Summary
- Model Number:DG34M1
- Brand Name:XCMG
- Place of Origin:Xuzhou,Jiangsu,China
- Size:12360×2500×4000mm
- Max Work Height:34m
- Fuel Type:Diesel
- Emission Standard:National Ⅴ
- Tank Capacity:5001 - 7000L
- Horsepower:351 - 450hp
- Transmission Type:Manual
- Type:Aerial
- Drive Wheel:6x4
- Certification:CE/ISO9001
Specifications
- weight:31020.000kg
- Condition:New
- Moving Type:Other
- Work platform load:400kg
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

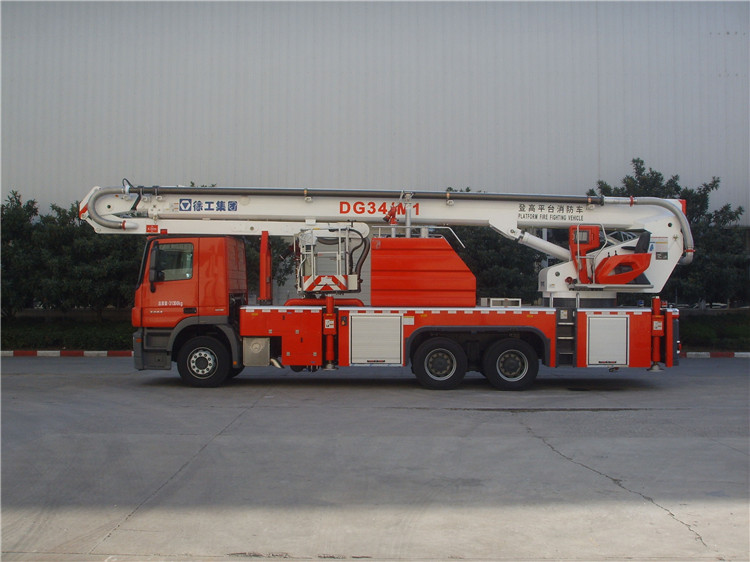

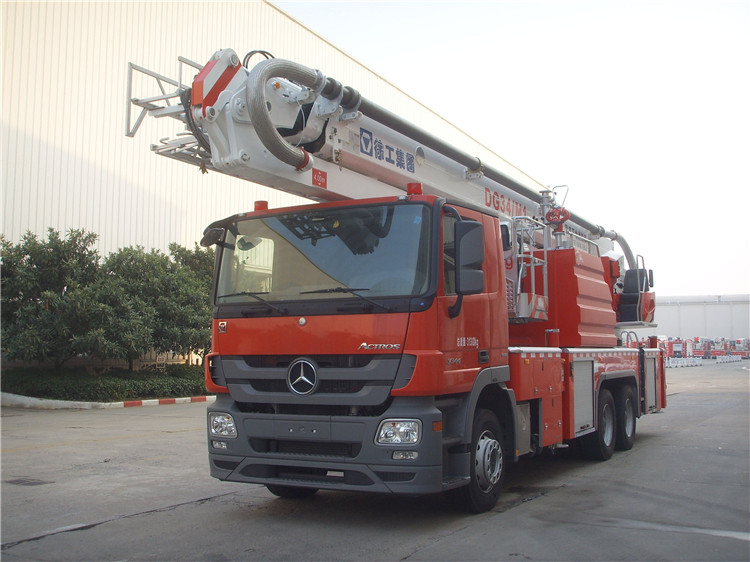

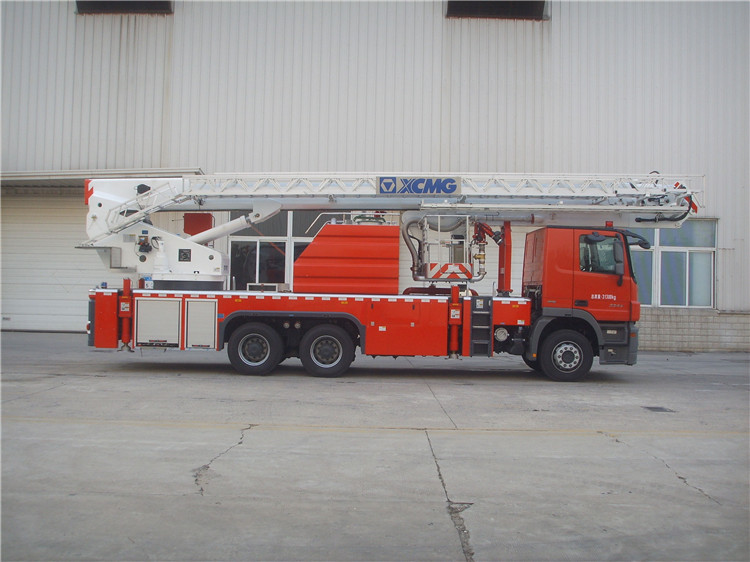

6x4 aerial platform fire truck DG34M1 34m fire fighting
truck with Benz chassis.
XCMG DG34M1 aerial platform fire truck is the main battle
vehicle integrates three functions of fire tanker, aerial spray truck, foam
truck and aerial truck.
It is widely applied in fire fighting and rescue
operation in cities and towns, mine, oil field and plant as well as other
medium and high-rise buildings, in addition, it also is the first choice for
medium and high-rise building fires, rescue of persons in distress and
properties.
Performance Characteristics:
1. The DG34M1 chassis adopts the German Mercedes-Benz
3344 chassis, which advanced performance, large bearing capacity, sufficient
power reserve.
2. Adopted electric control and hydraulic drive brings
the vehicle features of easy operation, safety and reliability and strong
practicability.
3. Operation quick, labor-saving, convenient and stable,
also brings large speed regulating range, flexible motion and exact.
4. Variable displacement piston pump LS load-sensitive
control system should be adopted in hydraulic system with good operation performance.
Boundary dimension |
12360×2500×4000mm |
||
Full mass |
31020kg |
||
Maximum speed |
≥100km/h (electronic
speed limit) |
||
Minimum turning diameter |
≤20m |
||
Approach angle |
≥13° |
||
Departure angle |
≥8° |
||
Maximum gradeability |
≥25% |
||
Outrigger span |
Longitudinal span |
6200 mm |
|
Horizontal
span |
5800 mm |
||
Work platform load |
400kg |
||
Maximum working height |
34m |
||
Maximum operating radius |
21m |
||
Elevating angle of boom |
The elevating
angle of telescopic boom is -3°~82° |
||
The elevating angle of folding boom and telescopic boom is 0°~175° |
|||
Rotation scope |
360°full-rotation |
||
Spread time of outrigger |
≤30s |
||
Time for lifting the boom to rated height and rotating 90° |
≤93s |
||
Maximum slewing speed |
0.5~1.5r/min |
||
Fire pump |
Rated flow |
≥ 50 L/s |
|
Rated pressure |
≥ 1.5 MPa |
||
Fire fighting gun |
Model |
3578+5177 |
PS30-50D |
Rated flow |
50 L/s (±8%) |
40L /s (±8%) |
|
Rated pressure |
≤ 0.8 MPa |
≤ 1.0 MPa |
|
Range |
≥ 70m |
≥ 65m |
