XCMG official Small Fire Truck 32m new aerial platform fire truck DG32K2 firefighting truck for sale
Summary
- Model Number:DG32K2
- Brand Name:XCMG
- Place of Origin:Jiangsu, China
- Size:9650*2500*3880(mm)
- Max Work Height:32m
- Fuel Type:Diesel
- Emission Standard:EURO 5
- Horsepower:251 - 350hp
- Transmission Type:Manual
- Type:Aerial
- Drive Wheel:4X2
- Certification:CE/ISO
Specifications
- Weight:17880.000kg
- Condition:New
- Moving Type:Other
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
XCMG official Small Fire Truck 32m new aerial
platform fire truck DG32K2 firefighting truck.

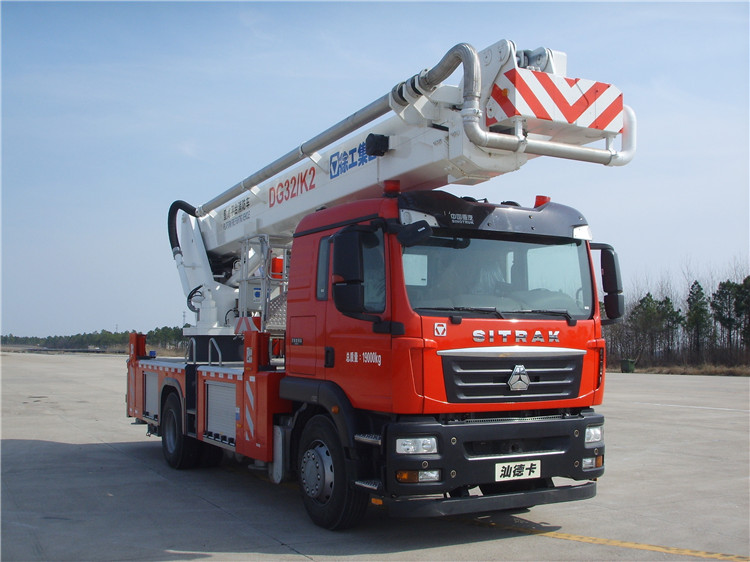

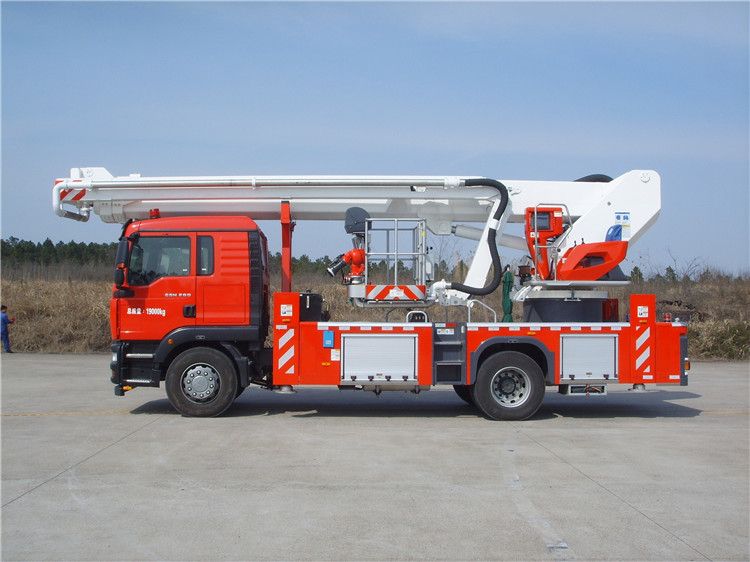

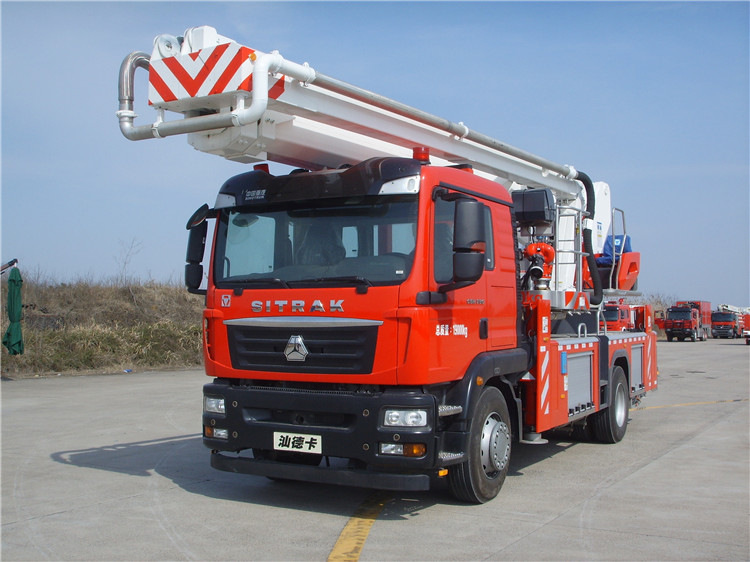

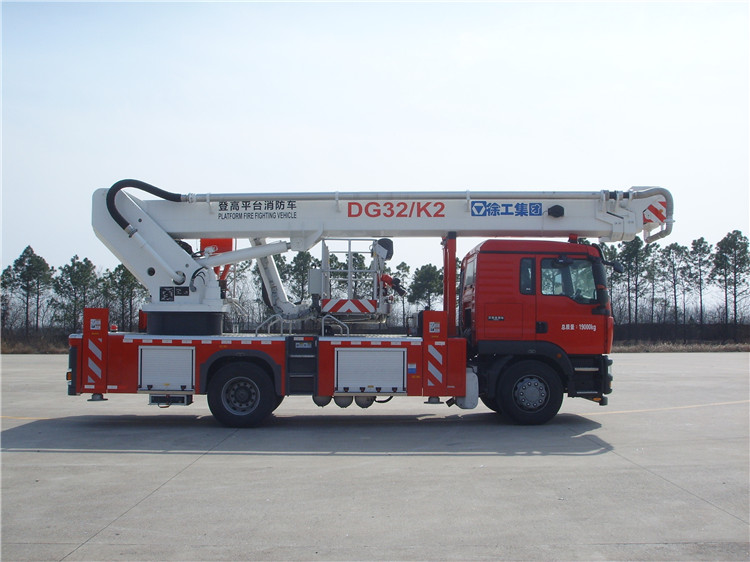

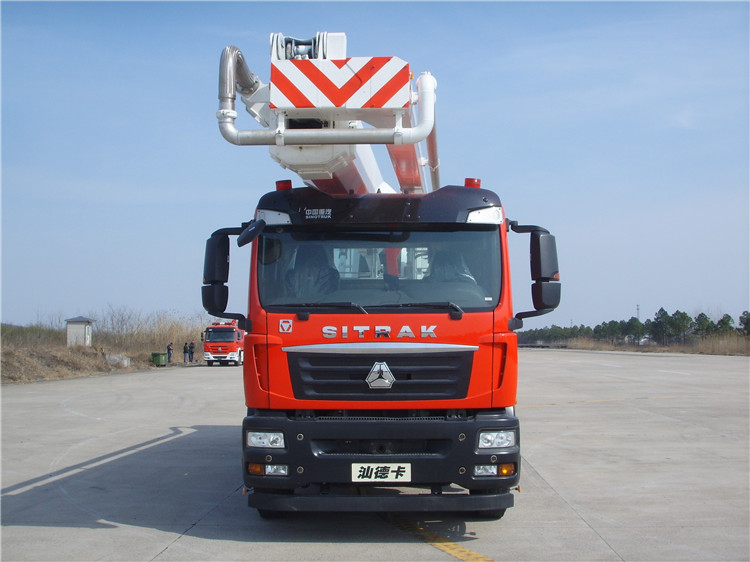

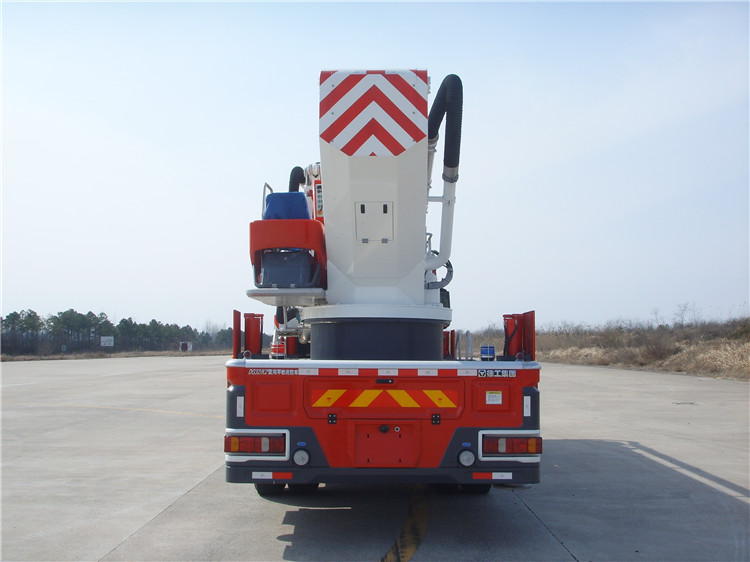

DG32K2 ladder truck is a kind of compact fire
fighting main vehicle which is driven by full hydraulic pressure, full
rotation, combination arm (two groups of telescopic arms + one curved arm), and
is mainly based on high altitude rescue and has the function of extinguishing
fire.

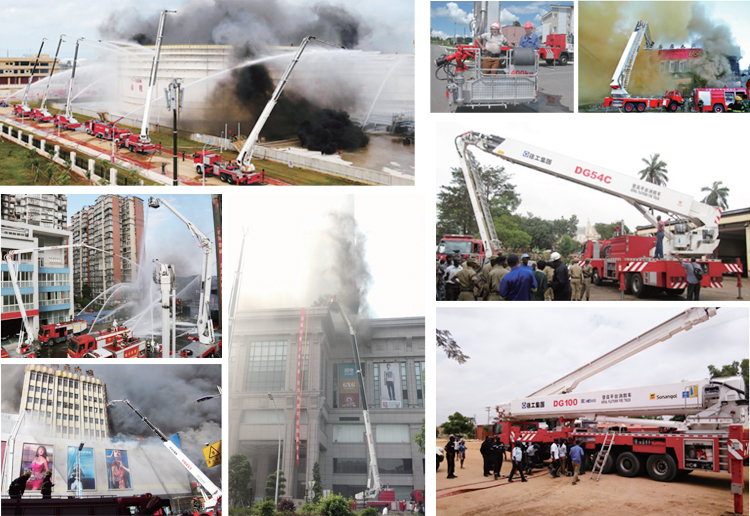

The vehicle is widely used in high-altitude
fire rescue operations in cities, factories, mines, ports, and other places. It
is the first choice for extinguishing high-rise building fires, rescue
personnel in distress and rescue of property.
This ladder truck uses advanced electro-hydraulic proportional control
technology. The main electrical and hydraulic components are imported, all of
the imported hydraulic sealing components and high-precision pipes adopt
hydraulic hard pipes. The system has high reliability, stable operation and
good micro-motion.
|
Items |
Parameters |
|||
|
Size parameters |
Boundary
dimension |
Length |
mm |
9650 |
|
Width |
mm |
2500 |
||
|
Height |
mm |
3880 |
||
|
Wheel base |
mm |
4500 |
||
|
Wheel track |
mm |
1998/1830 |
||
|
Front
overhang/rear overhang |
mm |
1430/2710 |
||
|
Driving parameters |
Maximum speed |
km/h |
90 |
|
|
Minimum
turning diameter |
m |
17 |
||
|
Braking
distance (full load, initial braking speed 30km/h) m |
≤10 |
|||
|
Approach /
departure angle |
° |
16/10 |
||
|
Maximum
gradeability |
% |
25 |
||
|
Quality parameters |
Curb weight |
Total mass |
kg |
17880 |
|
First shaft |
kg |
6010 |
||
|
Second shaft |
kg |
11870 |
||
|
Maximum
allowable total mass |
Total mass |
kg |
18030 |
|
|
First shaft |
kg |
6180 |
||
|
Second shaft |
kg |
11850 |
||
|
Chassis parameters |
Model |
ZZ5206N501GE1 |
||
|
Drive type |
4×2 |
|||
|
Manufacturer |
SINOTRUK |
|||
|
Engine |
Model |
MC07.28-50 |
||
|
Emission
Standards |
National V |
|||
|
Displacement
L |
6.78 |
|||
|
Maximum net
power |
kW |
203 |
||
|
Rated
power/speed |
kW/(r/min) |
206/2300 |
||
|
Maximum
torque/speed |
N·m/(r/min) |
1100/1200~1800 |
||
|
Manufacturer |
SINOTRUK |
|||
|
Number of
leaf springs (front/back) |
3/5 |
|||
|
Tire
specifications |
295/80R22.5 |
|||
|
Spare tire
specification |
295/80R22.5 |
|||
|
Number of
tires (number of spare tires) |
6(1) |
|||
|
Passengers |
people |
2 |
||
