XCMG 4x2 fire rescue truck DG22C2 small mini 22m aerial platform fire truck price for sale
Summary
- Model Number:DG22C2
- Brand Name:XCMG
- Place of Origin:Xuzhou,Jiangsu,China
- Size:10190*2500*3800mm
- Max Work Height:22m
- Fuel Type:Diesel
- Emission Standard:National Ⅴ
- Transmission Type:Manual
- Type:Aerial
- Drive Wheel:4x2
- Certification:CE/ISO9001
Specifications
- Weight:15325.000kg
- Condition:New
- Moving Type:Other
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

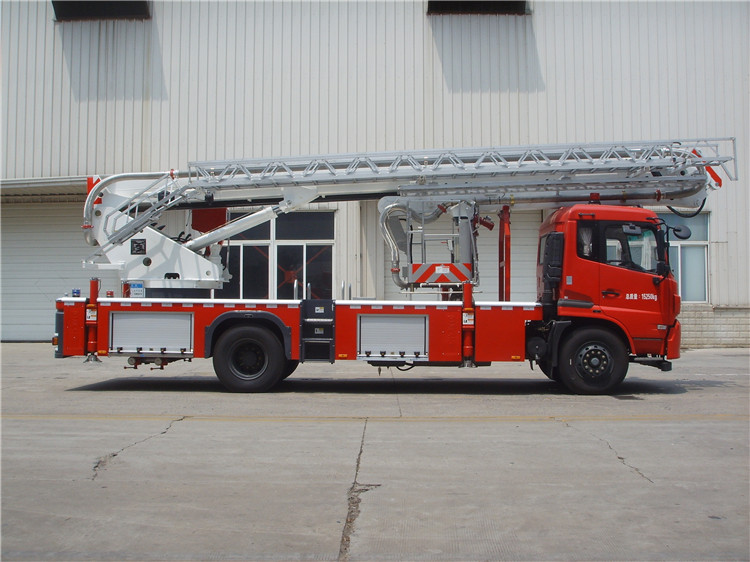

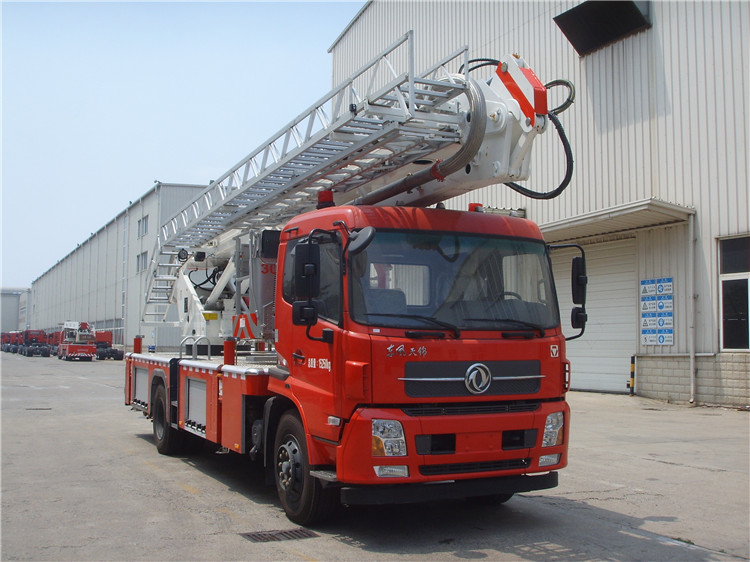

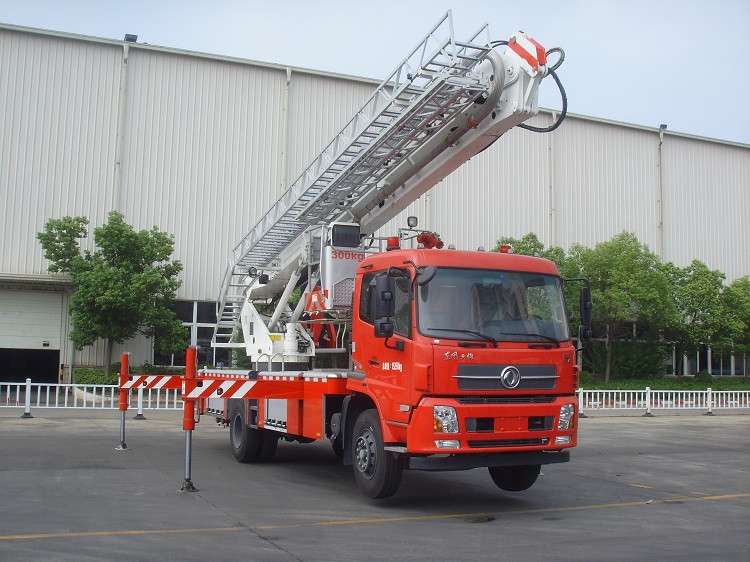

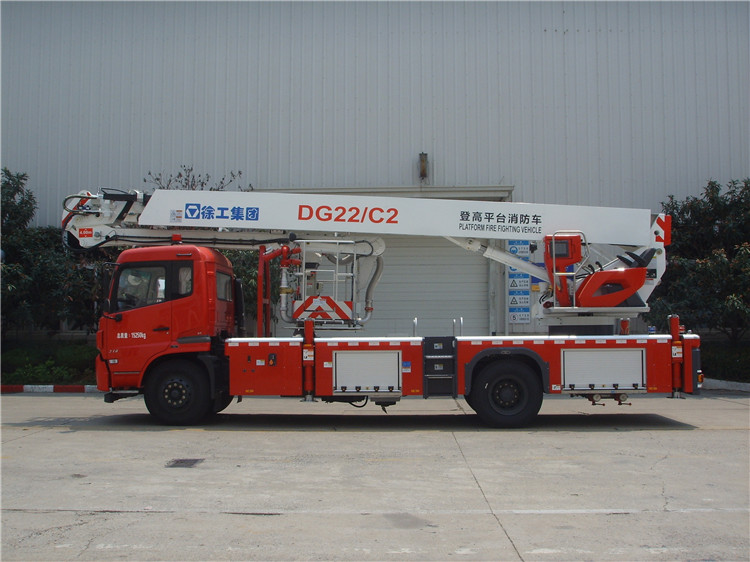

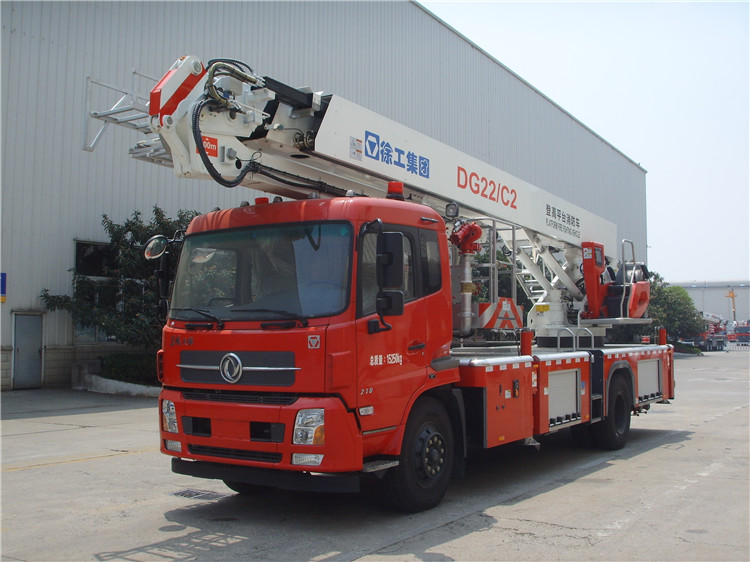

4x2 fire rescue truck DG22C2 small mini 22m aerial platform
fire truck.
XCMG
DG22C2 aerial platform fire truck is a multi-function main battle truck with
fully hydraulically driven. chassis adopts Dongfeng Tianjin DFL1160BX1V 4 x 2
national-V.
Performance Characteristics:
1.Chassis
is Dongfeng Tianjin DFL1160BX1V 4 x 2 chassis manufactured by Dongfeng Motor
Co., Ltd, national- V emissions, with advanced performance and large load
capacity, whose specific power reaches 9.7.
2.The
working platform is equipped with PSKD40D electric-controlled fire monitor, which
can achieve high altitude fire fighting operations and greatly enhance the
firefighting ability.
3.Using
CAN bus PLC control. Equipped with electronic amplitude limiter, so that the
machine is simple, safe and reliable.
4.The
hydraulic system adopts the load sensitive control system, which has high
reliability, smooth action, good micro-mobility.
|
Boundary dimension |
10190×2500×3800 mm |
|
|
Full mass |
15325 kg |
|
|
Maximum speed |
≥90 km/h |
|
|
Minimum turning diameter |
≤19 m |
|
|
Approach angle |
≥17° |
|
|
Departure angle |
≥9° |
|
|
Maximum gradeability |
≥25% |
|
|
Outrigger span |
Longitudinal span |
5500 mm |
|
Horizontal
span |
5500 mm |
|
|
Work platform load |
300 kg |
|
|
Maximum working height |
22 m |
|
|
Maximum working range |
14 m |
|
|
Elevating angle of boom |
The elevating
angle of telescopic boom is -3°-+80° |
|
|
The elevating angle of folding boom and telescopic boom is 0°-+175° |
||
|
Rotation scope |
360°
full-rotation |
|
|
Spread time of outrigger |
≤30 s |
|
|
Time for lifting the boom to rated height and rotating 90° |
≤150 s |
|
|
Maximum slewing speed |
0.5~1.5 r/min |
|
|
Fire fighting gun |
Model |
PSKD40D |
|
Rated flow |
40 L/s (±8%) |
|
|
Rated pressure |
≤0.9 MPa |
|
|
Range |
≥65 m |
|
