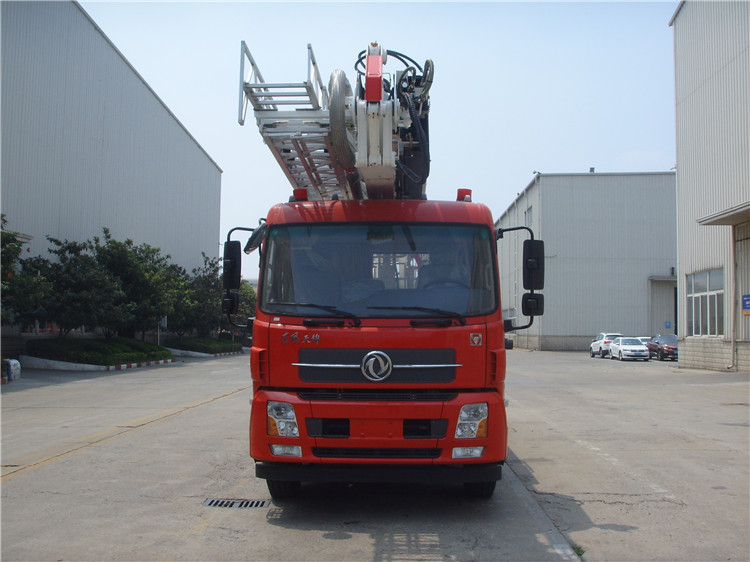

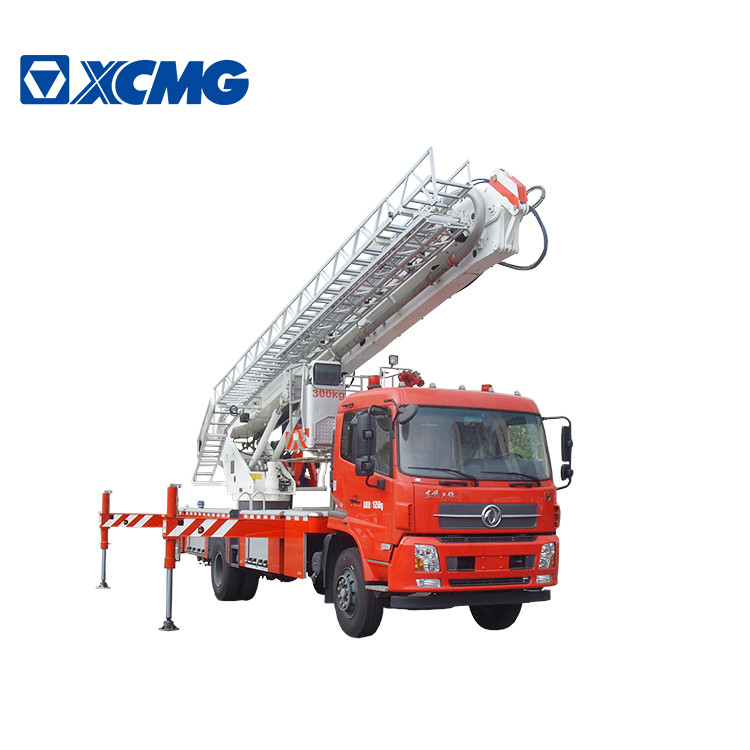

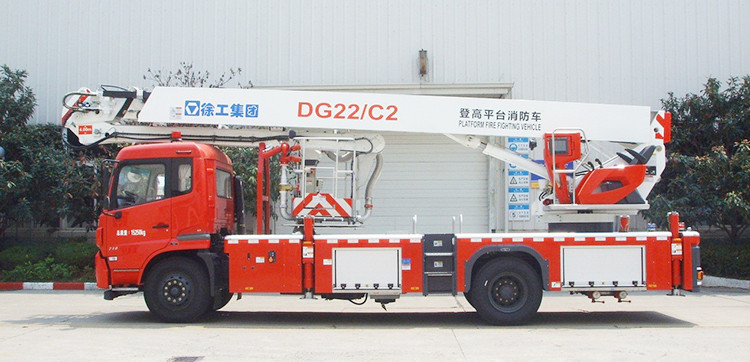

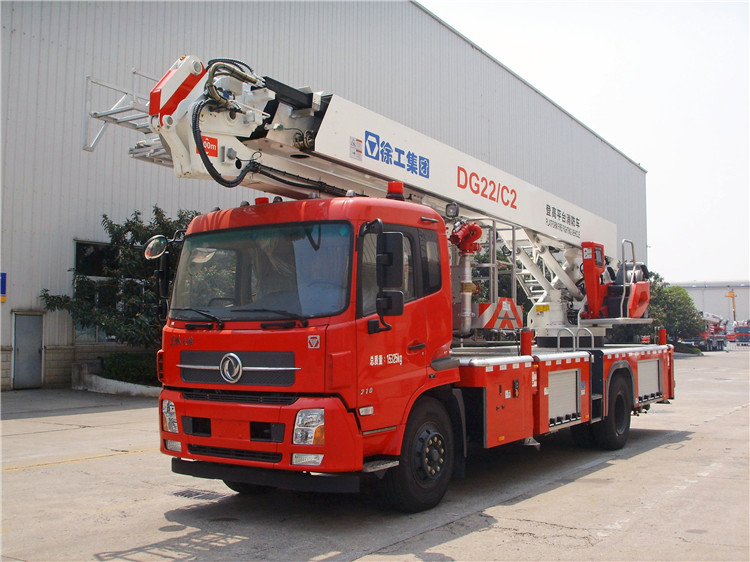

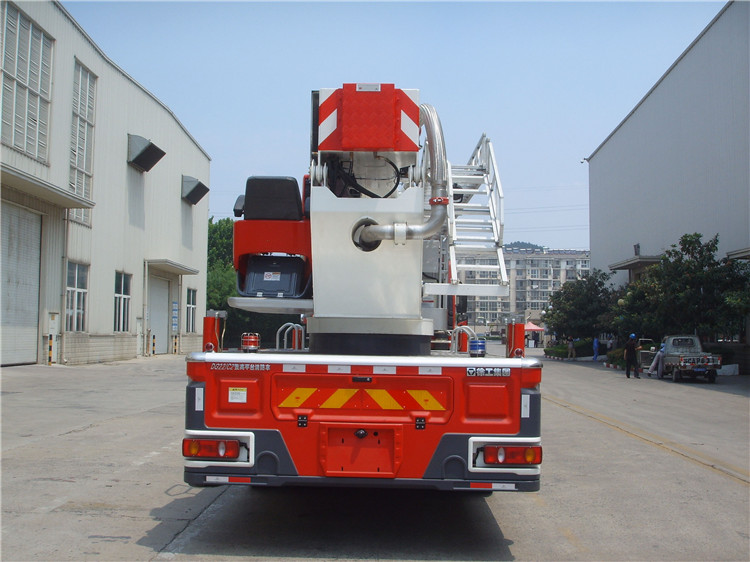

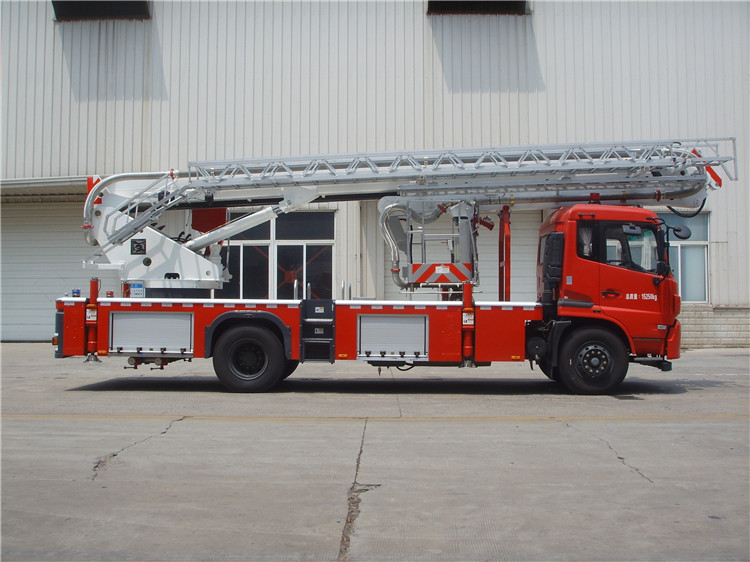

XCMG official Small Fire Truck 22m new aerial ladder fire truck DG22C2 telescopic platform fire trucks price for sale
.jpg)
Summary
- Model Number:DG22C2
- Brand Name:XCMG
- Place of Origin:Jiangsu, China
- Size:10190*2500*3800 mm
- Max Work Height:22m
- Fuel Type:Diesel
- Emission Standard:EURO 5
- Horsepower:251 - 350hp
- Transmission Type:Manual
- Type:Aerial
- Drive Wheel:4X2
- Certification:CE/ISO
Specifications
- Weight:15325.000kg
- Condition:New
- Moving Type:Other
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
XCMG official Small Fire Truck 22m new aerial
ladder fire truck DG22C2 telescopic platform fire trucks.
The DG22C2 ladder truck is a multi-purpose main battle fire truck that is fully hydraulically driven, full-slewing, and a combined arm type, and is equipped with a high-spray truck, a platform-lifting vehicle, and a rescue vehicle.

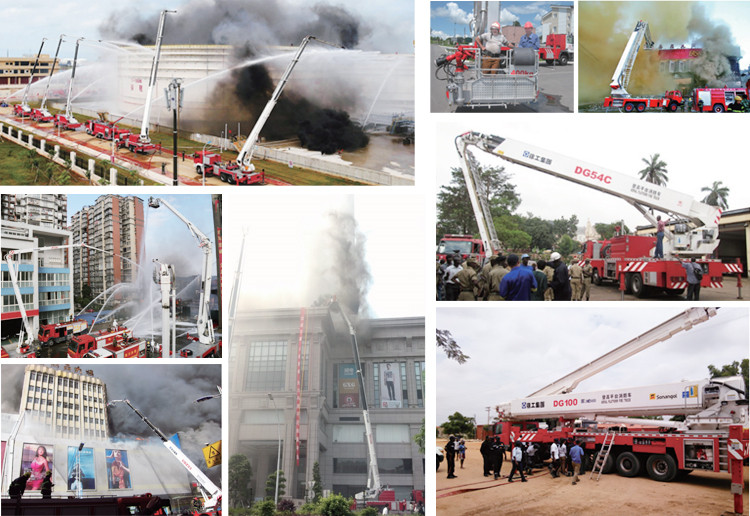

The vehicle is widely used in high-altitude
fire rescue operations in cities, factories, mines, ports, and other places. It
is the first choice for extinguishing high-rise building fires, rescue
personnel in distress and rescue of property.
The upper vehicle is equipped with two sections of synchronous telescopic arms
and one section of crank arm. The head of the crankarm is hinged to the working
platform. The PSKD40D electronically controlled fire water monitor is installed
on the working platform.
The water pipe of the fire protection system is fixed on the right side of the telescopic arm and stretching with the telescopic arm; through the double-cylinder front support luffing and H-type legs, the vehicle can achieve 360 ° full swing operation; the vehicle has a complete safety protection device; the whole machine can operate the upper vehicle on the turntable and work platform.
| Boundary dimension: (Length × width × height) | 10190×2500×3800 mm | |
| Full mass | 15325 kg | |
| Maximum speed | ≥90 km/h | |
| Minimum turning diameter | ≤19 m | |
| Approach angle | ≥17° | |
| Departure angle | ≥9° | |
| Maximum gradeability | ≥25% | |
| Outrigger span | Longitudinal span | 5500 mm |
| Horizontal span | 5500 mm | |
| Work platform load | 300 kg | |
| Maximum working height | 22 m | |
| Maximum working range | 14 m | |
| Elevating angle of boom | The elevating angle of telescopic boom is -3°—+80° | |
| Rotation scope | 360° full-rotation | |
| Spread time of outrigger | ≤30 s | |
| Time for lifting the boom to rated height and rotating 90° | ≤150 s | |
| Maximum slewing speed | 0.5~1.5 r/min | |
| Fire fighting gun | Model | PSKD40D |
| Rated flow | 40 L/s (±8%) | |
| Rated pressure | ≤0.9 MPa | |
| Range | ≥65 m | |
