XCMG 100m fire truck DG100 China new hydraulic aerial platform fire truck with Benz chassis price
Summary
- Model Number:DG100
- Brand Name:XCMG
- Place of Origin:Xuzhou,Jiangsu,China
- Size:17000*2550*3960mm
- Max Work Height:100m
- Fuel Type:Diesel
- Emission Standard:National IⅤ
- Tank Capacity:>10000L
- Horsepower:351 - 450hp
- Transmission Type:Automatic
- Type:Aerial
- Drive Wheel:12x4
- Certification:CE/ISO9001
Specifications
- Weight:64250.000kg
- Condition:New
- Moving Type:Other
- Rated load of platform:400kg
- Max incline capacity:30%
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
100m fire truck DG100 China new hydraulic aerial platform
fire truck with Benz chassis.

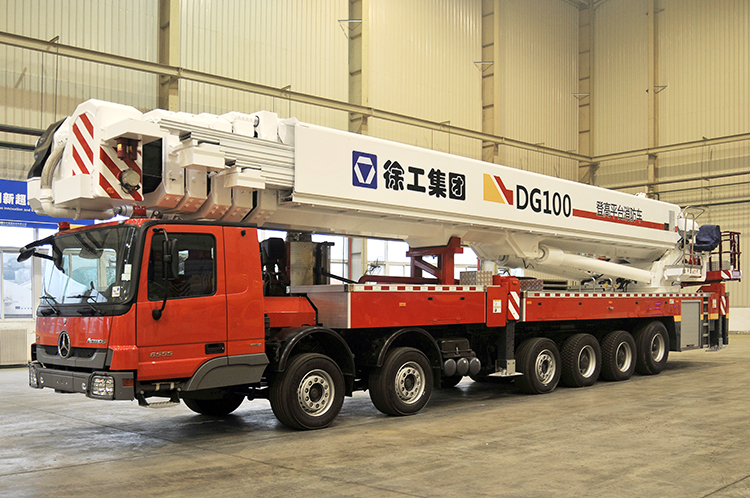

DG100 Aerial Platform Fire Truck is a large elevating
vehicle that integrates functions of high altitude life saving, fire fighting
and emergency rescue, and it is the necessary equipment in large and
medium-sized cities to protect life safety of people in high-rise buildings.

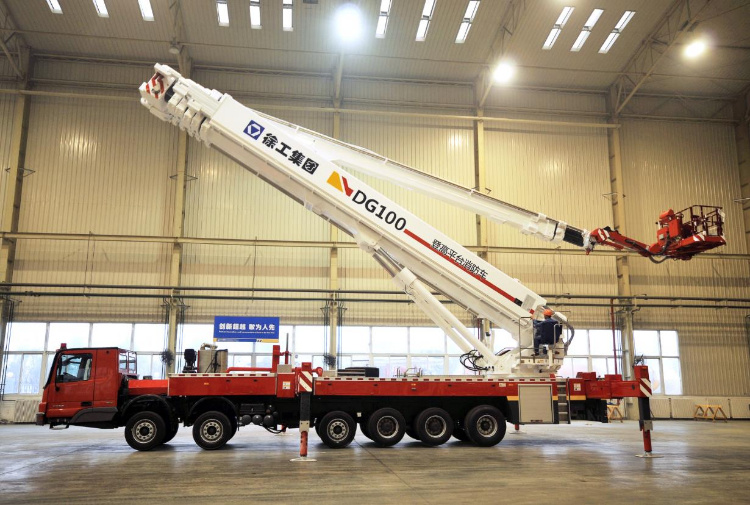

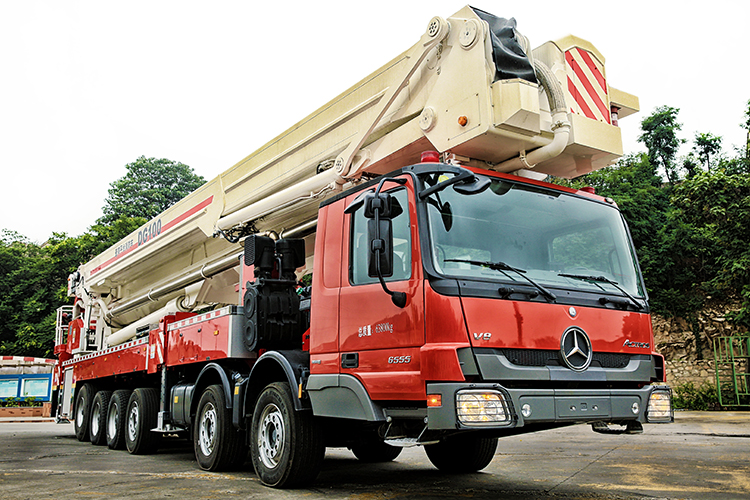

DG100 Aerial Platform Fire Truck is mounted on a Benz
Actros6555 chassis. It has a combined boom consisting of a six-section
telescoping boom, a three-section telescoping boom and a folding jib.
Dual-signal and dual CPU control as well as 31 safety protective devices
contribute to safer operations at height. With a working height of 102 m, It is
suitable for rescue and aerial working of high-raised building over 30 stories.
Advantages and highlights:
1.The vehicle is with abundant power, strong grade
ability, high bearing capacity, smooth and comfortable driving, and good
mobility.
2.The vehicle has strong rescue capability. With the
octagonal section boom made of Sweden WELDOX high-strength steel and the
structural light weight technology used, the vehicle obtains sufficient
rigidity and strength for safety.
3.To think globally, most components of electrical,
hydraulic and fire-fighting systems, as well as plates of chassis and main
structural parts, are imported from international brands, to ensure quality and
reliability of product supporting parts.
|
Item |
Parameters |
|||
|
Dimension parameters |
Outline dimension |
Length |
mm |
17000 |
|
Width |
mm |
2550 |
||
|
Hight |
mm |
3960 |
||
|
Axle distance |
mm |
1700+3300+1350+1350+1450 |
||
|
Wheel distance |
mm |
2087/2087/2087/1804/1804/2045 |
||
|
Front
overhang/rear overhang |
mm |
2740/3650 |
||
|
Front protraction/rear protraction |
mm |
172/1288 |
||
|
Driving parameters |
Max speed |
km/h |
≥80 |
|
|
Minimum diameter of turning circle |
m |
≤27 |
||
|
Brake distance
(full load, initial speed of brake 30km/h) |
m |
≤10 |
||
|
Approaching angle/departure |
° |
≥10/≥9 |
||
|
Max incline
capacity |
% |
≥30 |
||
|
Overall mass |
Total mass |
kg |
64250 |
|
|
1 Axle |
kg |
8650 |
||
|
2 Axle |
kg |
8900 |
||
|
3 Axle |
kg |
8900 |
||
|
4.5 Axle |
kg |
25900 |
||
|
6 Axle |
kg |
11900 |
||
|
Maximum permissable total mass |
Total mass |
kg |
64400 |
|
|
1 Axle |
kg |
8800 |
||
|
2 Axle |
kg |
8900 |
||
|
3 Axle |
kg |
8900 |
||
|
4.5 Axle |
kg |
25900 |
||
|
6 Axle |
kg |
11900 |
||
|
Chassis parameters |
Driving type |
12×4 |
||
|
Model |
Benz
Actros6555 |
|||
|
Engine |
Model |
OM502 LA.4/2 |
||
|
Type of fuel |
Diesel |
|||
|
Emission/ Max. Net power |
mL/ kw |
15928/405 |
||
|
Emission level |
National IV |
|||
|
Manufacturer |
Daimler AG |
|||
|
Leaf Springs
Number |
4/4/2+_/5/2+_ |
|||
|
Specification of tire |
385/55R22.5/315/70R22.5/445/65R22.5 |
|||
|
Number of
tires (Excluding the spare tires) |
16 |
|||
|
Cab allowed capacity |
2 |
|||
